Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55
Электрический соединительный провод для батареи экранированный медный изоляционный
- Категории: Control Cables >>>
- Поставщик: Ningbo,Exact,Cables,&,Wire,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification

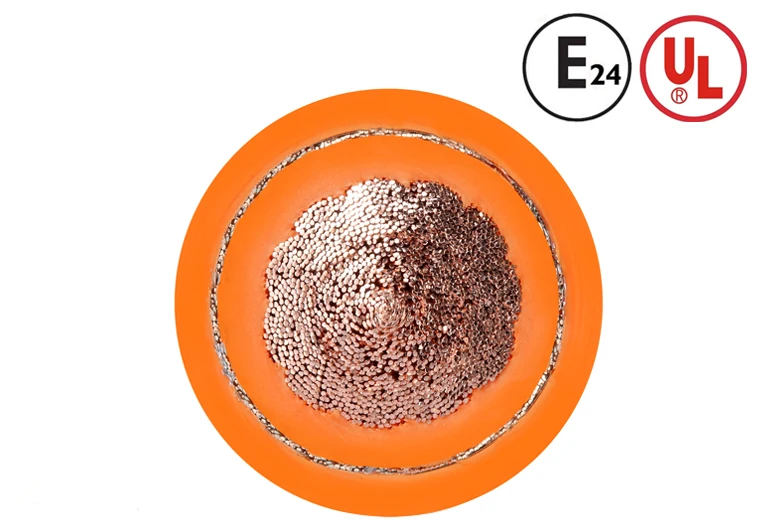

Construction | Features |
1,Conductor | 1,Rated Temperature:-40ºC-+125ºC |
Material: Bare Copper | 2,Rated Voltage:Optional 1000V AC or 1500V AC |
2,Insulation | 3,Aging:158ºC*168h,comply with UL 758 |
Material: XLPE | 4,Dielectric Voltage:3000V AC*1min |
Color:Orange | 5,Deformation Test:121ºC*4h,comply with UL 758 |
3,Shielded | 6,Flame Test:VW-1,comply with UL 758 |
Material:Tinned Copper | 7,Cold Bend Test:-40ºC*4h,comply with UL 758 |
4,Sheath | 8,Environmental Requirements:Compliant with RoHS 2.0 and REACH |
Material: XLPE | 9,Anti-tear Performance:>20N/mm |
Color:Orange | 10,Min Bending Radius:4*OD |
Material: TPU | Environmental Requirements:Compliant with RoHS 2.0 and REACH |
Product Series | Size | Conductor Stranded OD mm ( Ref.) | Max. Conductor resistance mΩ/m@20ºC | Permissible ampacity A (Ref.) | Over diameter mm (Ref.) | |||||
UL 30088 for 1000V | 16AWG | 1.5 | 14.1 | 15 | 5.6 | |||||
15AWG | 1.7 | 11.2 | 20 | 5.7 | ||||||
14AWG | 1.9 | 8.88 | 24 | 5.8 | ||||||
13AWG | 2.1 | 7.02 | 28 | 5.8 | ||||||
12AWG | 2.8 | 5.58 | 34 | 6.7 | ||||||
11AWG | 3.0 | 4.43 | 39 | 6.9 | ||||||
10AWG | 3.3 | 3.51 | 45 | 7.2 | ||||||
9AWG | 3.7 | 2.78 | 53 | 7.6 | ||||||
8AWG | 4.2 | 2.23 | 64 | 8.8 | ||||||
7AWG | 4.8 | 1.77 | 75 | 9.4 | ||||||
6AWG | 5.4 | 1.40 | 85 | 10.0 | ||||||
5AWG | 6.0 | 1.11 | 100 | 12.1 | ||||||
4AWG | 6.6 | 0.882 | 115 | 12.2 | ||||||
3AWG | 7.4 | 0.7 | 135 | 13.0 | ||||||
2AWG | 8.4 | 0.555 | 160 | 13.6 | ||||||
1AWG | 9.4 | 0.44 | 175 | 15.0 | ||||||
The specification, size, structure of above product may be changed due toTechnical progress, similar specifications are available according to customer's requirements | ||||||||||
Product Series | Size | Conductor Stranded OD mm ( Ref.) | Max. Conductor resistance mΩ/m@20ºC | Permissible ampacity A (Ref.) | Over diameter mm (Ref.) | |||||
UL 3820 for 1000V or UL 3886 for 1500V | 16AWG | 1.5 | 14.1 | 15 | 3.4 | |||||
15AWG | 1.7 | 11.2 | 20 | 3.5 | ||||||
14AWG | 1.9 | 8.88 | 24 | 3.6 | ||||||
13AWG | 2.1 | 7.02 | 28 | 3.8 | ||||||
12AWG | 2.8 | 5.58 | 34 | 4.5 | ||||||
11AWG | 3.0 | 4.43 | 39 | 4.7 | ||||||
10AWG | 3.3 | 3.51 | 45 | 5.0 | ||||||
9AWG | 3.7 | 2.78 | 53 | 5.4 | ||||||
8AWG | 4.2 | 2.23 | 64 | 6.6 | ||||||
7AWG | 4.8 | 1.77 | 75 | 7.2 | ||||||
6AWG | 5.4 | 1.40 | 85 | 7.8 | ||||||
5AWG | 6.0 | 1.11 | 100 | 8.4 | ||||||
4AWG | 6.6 | 0.882 | 115 | 9.0 | ||||||
3AWG | 7.4 | 0.7 | 135 | 9.4 | ||||||
2AWG | 8.4 | 0.555 | 160 | 10.8 | ||||||
1AWG | 9.4 | 0.44 | 175 | 12.4 | ||||||
The specification, size, structure of above product may be changed due toTechnical progress, similar specifications are available according to customer's requirements | ||||||||||
Why Choose Us
We,Ningbo Exact Cables & Wire Co.,Ltd is a Pioneer manufacturer with more than 12 years experience in the cable industry in China.We can professionally manufacture and supply Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Datacables, HDMI cables, Telecommunication cables, Telephone cables, Power cables ,accessory and other various of cables and wires.Our products with the brand of "Exactcables" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current productioncapacity is about 500,000,000 meters per year.
Customer Photos
Exhibition
Product packaging

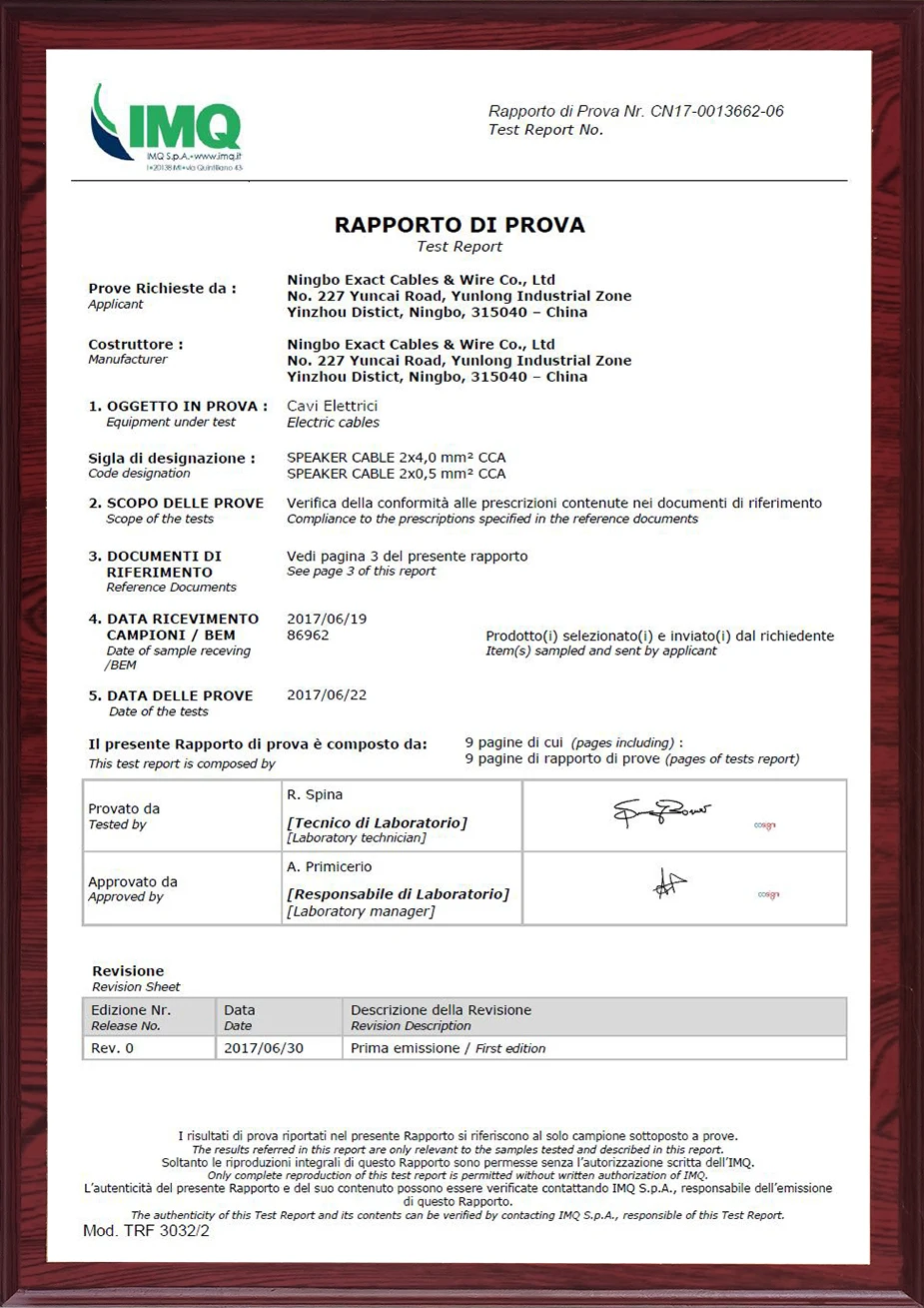

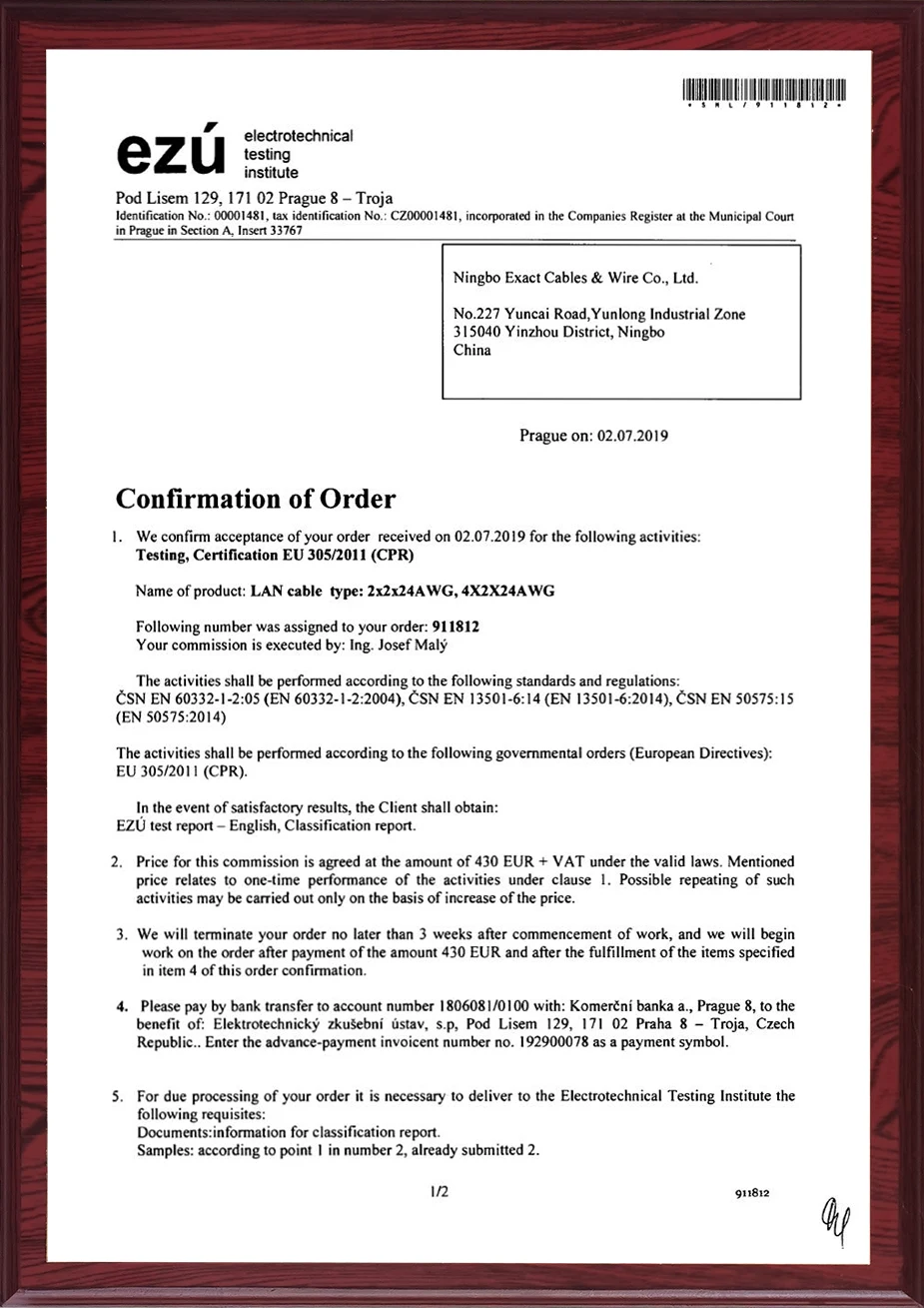

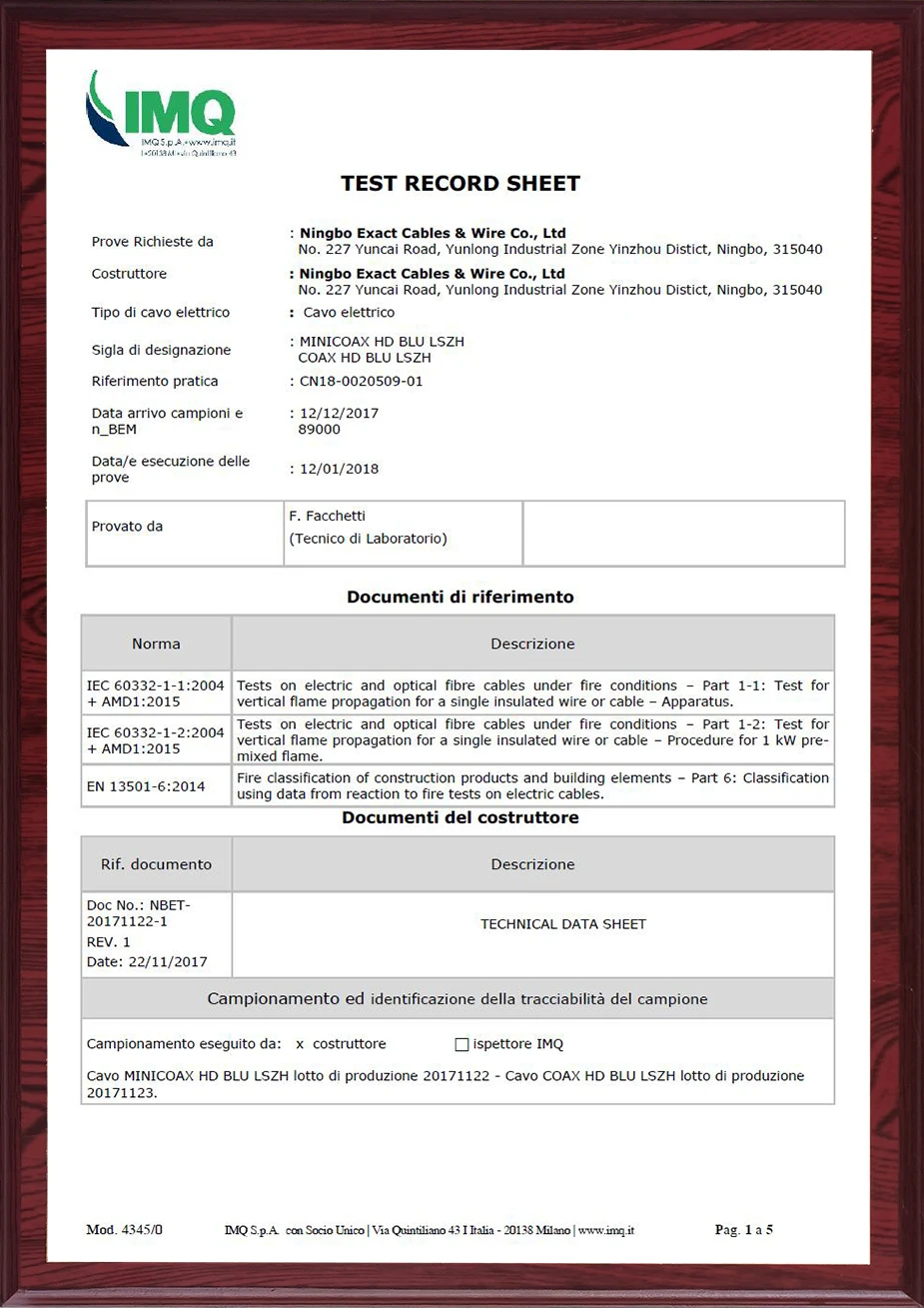

Certifications
FAQ
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables,
telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna
dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our
clients, from home or abroad, are warmly welcome to visit us!
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables,
telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna
dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our
clients, from home or abroad, are warmly welcome to visit us!
