SVLEC CONTACT BLOCK DC/DC CONVERTER, MODEL QUINT-PS 24VDC/5A DIN-RAIL MOUNTING Phoenix/Phoenix 2320034




Product Description


SVLEC provides customers with cost-effective, standard rail-mounted, high-efficiency and energy-saving environmentally friendly power supplies. The power supply is small in size, light in weight, compact in structure, and standard DIN-rail (35mm)installation saves a lot of space for customers. The product is safe and reliable, with good EMC performance, and the EMC and safety specifications meet the international standards of IEC/EN/UL62368, UL61010, and UL508.




Technical data:


Type
PR-120-24
PR-240-24
PR-480-48
PR-480-24
Part No.
Type
    752405
752410
754810
752420
Output Power (W)
Type
120
240
480
Vo/Io
Type
24V / 5A
24V / 10A
48V / 10A
24V / 20A
ADJ(V)
23.5-28.0
24.0-28.0
48.0-55.0
24.0-28.0


Efficiency  230VAC(%)Typ.
94
 Input voltage range
85-264 VAC
Input voltage frequency
47-63 Hz
Working temperature
-40 ... 70°C
 Working humidity
20 ...95 %
Safety standard
 IEC/EN/UL62368/UL61010/UL508
Safety certification
EN62368/UL61010
Security Level
CLASSI
MTBF：MIL-HDBK-217F@25°C
＞ 300,000h
Housing material
 Metal（AL1100，SPCC）Plastic（PC940）
 Cooling method
Natural air cooling


Application

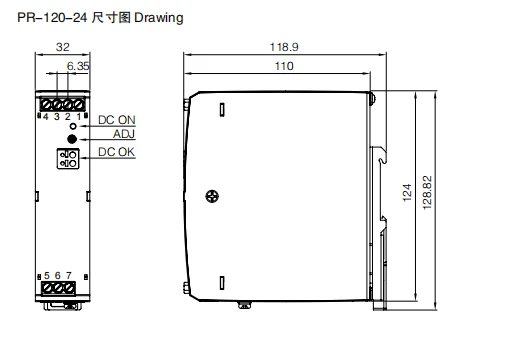

Dimension






Packing & Delivery


For product in stock, we will ship within 3-7 days.
For OEM product, please inquire.
Transport Package: PE bag/Bubble bag→Carton→Pallet
Payment: T/T , 50% Deposit, 50% Balance Before Delivery.
Trade term: EXW , FOB , CIF, CFR, DDU.
Shipment: Express, air cargo, sea shipment.




Company Profile




Our Customer




FAQ


1. Q: What is the necessary information needed for quotation?
A:The series(M8/M12/M23...),coding,male or female,pin number,cable material(PVC or PUR) color and length.

2. Q: What is the minimum order quantity(MOQ)?
A: Negotiable. We are manufacture there is no MOQ, large quantities can have a discount.

3. Q: What quality standard does SVL have?
A: ISO9001:2015, CSA.

4. Q:What product certifications can SVL provide?
A: IP67, UL, CE and RoHS.

5. Q: Sample lead time?
A: Normal 5 days. Customized connector need 2 weeks.

6. Q: Volume order lead time?
A: 2-3 weeks.

7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.

8. Q: How do you ship the finished product?
A: Based on the customer request.

9. Q: What kind of delivery terms or trade terms is available?
A: EXW, FOB, FCA HK, Telex releases are available.
