Подгонянная форма по Заводской Цене термостойкий флогопитовый слюдяной лист для
- Категории: Mica >>>
- Поставщик: Zibo,Jucos,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Phlogolite mica roll is a specially pressed mica product which is made of phlogopite mica paper and silicon resin.The thickness
ranges from 0.2mm to 0.8mm,breakdown voltage is above 15KV,tensile strength is above N/15mm and temperature resistance is above
800℃. It is based on phlogopite mica paper reinforced by glass cloth,harmless ceramic fiber according to customer’s requirement.
ranges from 0.2mm to 0.8mm,breakdown voltage is above 15KV,tensile strength is above N/15mm and temperature resistance is above
800℃. It is based on phlogopite mica paper reinforced by glass cloth,harmless ceramic fiber according to customer’s requirement.
Type:
1.It is made from phlogopite mica paper with glass fiber cloth inside.
2.It is made from phlogopite mica paper with glass fiber cloth on double sides.
3.It is made from phlogopite mica paper with glass fiber cloth on one side.
4.It is made from phlogopite mica paper with glass fiber cloth and ceramic fiber paper on each side.
2.It is made from phlogopite mica paper with glass fiber cloth on double sides.
3.It is made from phlogopite mica paper with glass fiber cloth on one side.
4.It is made from phlogopite mica paper with glass fiber cloth and ceramic fiber paper on each side.
Characteristics:
1.Excellent insulation performance in high temperature.
2.Good flame retardancy,the products are free from asbestos,so they will not release poisonous gas in high temperature.
3.Good ability to resist acid/alkali,corona,radiation.The finished products are dry for touch,free from adhesiveness,of good bendability and flexibility.they have high tensile strength when wrapping electric wires and cables at high speed.
2.Good flame retardancy,the products are free from asbestos,so they will not release poisonous gas in high temperature.
3.Good ability to resist acid/alkali,corona,radiation.The finished products are dry for touch,free from adhesiveness,of good bendability and flexibility.they have high tensile strength when wrapping electric wires and cables at high speed.
Technical Data Sheet：
Properties Brand | Mica with Fiber Glass Cloth on both sides |
MICA | Phlogopite |
Length(m) | 20-100 |
Width(m) | 1 |
Thickness(mm) | 0.2-0.8 |
Mica Content(%) | ＞83 |
Glass Content(%) | 8~10 |
Binder Content（%) | 8~10 |
Tensile Strength(N/15mm) | ＞400 |
Dielectric Strength（KV） | ＞4.0 |
Thermal Conductivity(W/m.K) | 0.3 |
Thermal Expansion(10-6/K) | 100 |
Heat Conductivity(W/m.K) | 3 |
Tracking Index(v) | 525 |
Fire Grade(℃） | 750~800 |
Oxygen Index | 90 |
Application:
Oil platforms,multi-story buildings,power plants,industrial workshops,tunnels,competer centers,aerospace centers,telecommunication centers,vessels,military facilities.

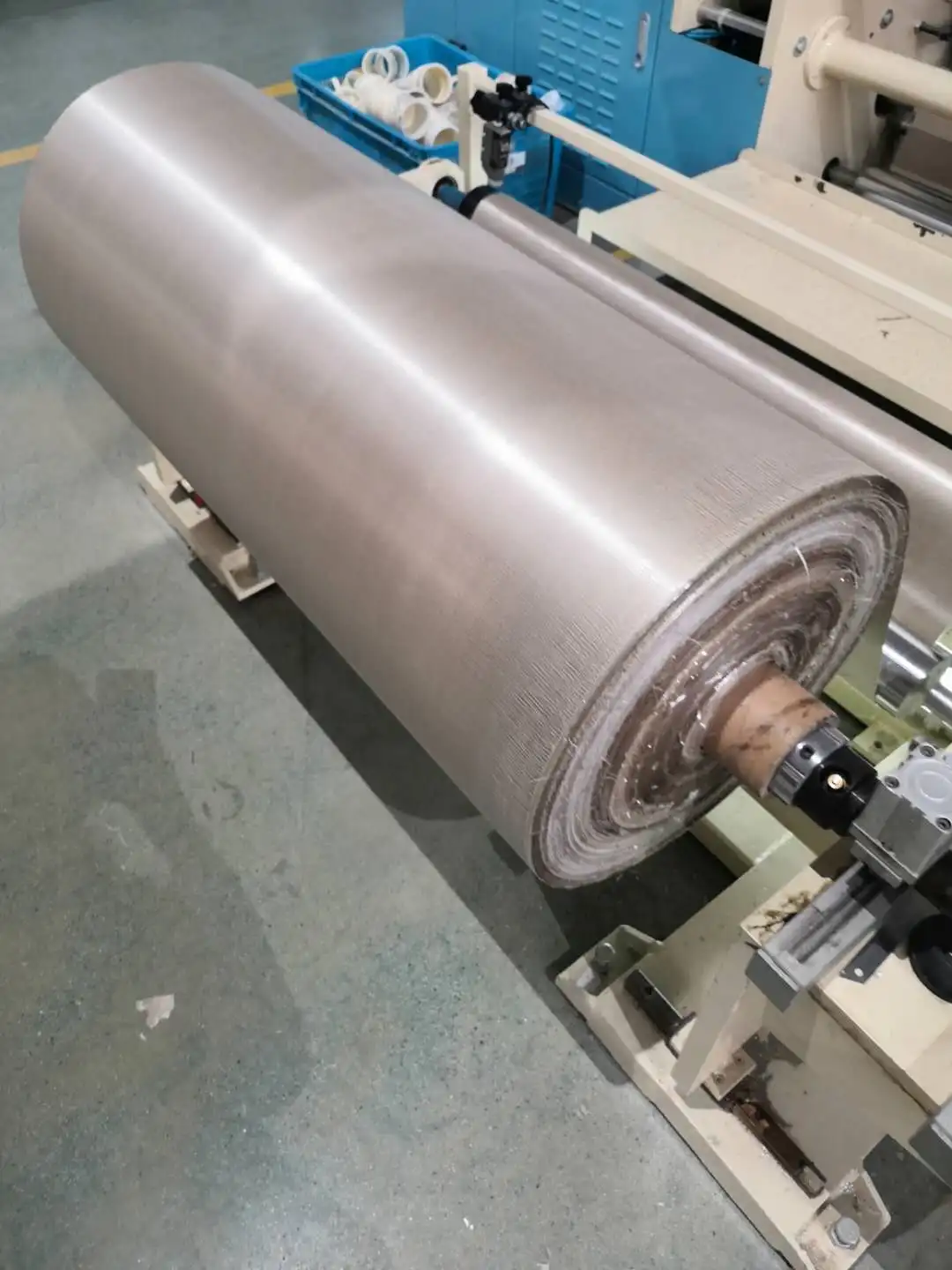

Picture Display：

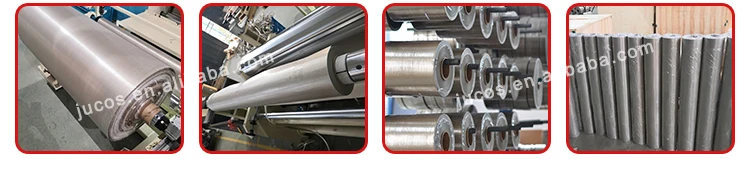

Production Process：
Packaging & Shipping
Company Information
ZIBO JUCOS CO.,LTD, was created in 2008 with combination of global expertise and local knowledge, aim to supplying range of refractory products, services and solutions to the global Iron, Steel, Non-Ferrous, Cement, Glass, Incinerator, Energy.Petrochemical and other Chemical Industries.
JUCOS REFRACTORY located in Shandong Zibo, the place where rich in refractory raw material,we exploiting the availability of rich & high pure natural mineral resources of China understands the exact intelligence of the customers world wide to design, offer, manufacture and market high quality & performance oriented refractory products with a team of Techno Creative Commercial Engineers.
JUCOS REFRACTORY located in Shandong Zibo, the place where rich in refractory raw material,we exploiting the availability of rich & high pure natural mineral resources of China understands the exact intelligence of the customers world wide to design, offer, manufacture and market high quality & performance oriented refractory products with a team of Techno Creative Commercial Engineers.
Our Services
Free samples are available by freight collect;
Strict QC & Fast delivery
High quality goods, Perfect Pre-sales and after-sales service.
JUCOS will update you any production process after placing order.
We have special after-sales team to solve your problem during using our products.
Any question will be get our feedback in the first time.
Strict QC & Fast delivery
High quality goods, Perfect Pre-sales and after-sales service.
JUCOS will update you any production process after placing order.
We have special after-sales team to solve your problem during using our products.
Any question will be get our feedback in the first time.
Customer Visit & Exhibition
Certifications
Q & A
Q1 : How can you control your quality?
A1 : For each production processing, JUCOS have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
Q2: Are you a manufacture or trader?
A2: We are truly a manufacturer, we not only can provide the high quality products
with the best price, but also can offer the best pre-sale service and after-service.
Q3 : Do you provide free samples?
A3 : Of course, free samples are available.
Q4 : What is your lead time?
A4 : It usually needs about 15- 20 days after receiving the PO.
Q5 : Can we visit your company?
A5 : Yes, for sure, you are welcome to visit JUCOS company and our products,
Also, we can talk more about the technique details if you need;
Q6.: What is the warranty of your products?
A6: Our products have at least 1 year warranty,if any quality problems,
we will take responsibility of the cost of the shipment and the replacement.
Q7.: What's the MOQ of trial order?
A7 : No limit, we can offer the best suggestions and solutions according to your condition.
Q8: Why choose us?
A8: We had been in this line for more than 20 years, we can not only provide you high quality products with competitive price, but also we can supply good technique service which can help you solve problems;
Q9 : What standards do you have?
A9 : Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc.
The third party testing is all available for us.
A1 : For each production processing, JUCOS have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
Q2: Are you a manufacture or trader?
A2: We are truly a manufacturer, we not only can provide the high quality products
with the best price, but also can offer the best pre-sale service and after-service.
Q3 : Do you provide free samples?
A3 : Of course, free samples are available.
Q4 : What is your lead time?
A4 : It usually needs about 15- 20 days after receiving the PO.
Q5 : Can we visit your company?
A5 : Yes, for sure, you are welcome to visit JUCOS company and our products,
Also, we can talk more about the technique details if you need;
Q6.: What is the warranty of your products?
A6: Our products have at least 1 year warranty,if any quality problems,
we will take responsibility of the cost of the shipment and the replacement.
Q7.: What's the MOQ of trial order?
A7 : No limit, we can offer the best suggestions and solutions according to your condition.
Q8: Why choose us?
A8: We had been in this line for more than 20 years, we can not only provide you high quality products with competitive price, but also we can supply good technique service which can help you solve problems;
Q9 : What standards do you have?
A9 : Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc.
The third party testing is all available for us.
