Product Description
Bypass conductor assembly on Floating Roof tanks
The “Bypass conductor assembly on Floating Roof tanks” (RGR for short) is designed to discharge the static electricity of floating roof storage tanks. It is used as the equipotential bonding between the floating roof and tank shell. The lightning current and bound charge will be effectively and rapidly dissipated to the earth upon a lightning strike. Compared with the conventional bypass conductor, it will effectively decrease the possibility of a lightning-induced fire, and make it more reliable and safe.
Specification
Product name | Bypass conductor assembly on Floating Roof tanks |
Brand | ALPTEC |
Model | RGR |
Housing | 316L stainless steel |
Axle sleeve | 201 stainless steel |
Cable | tinned braided copper,65ft.[18m] |
Weight | 54.0 kgs |
Certificate | ATEX |
MOQ | 10 sets |
Delivery time | 14 days after payment |
Payment | L/C T/T Western Union |
Package | Plywood case(diamensions:550mm*580mm*400mm) |

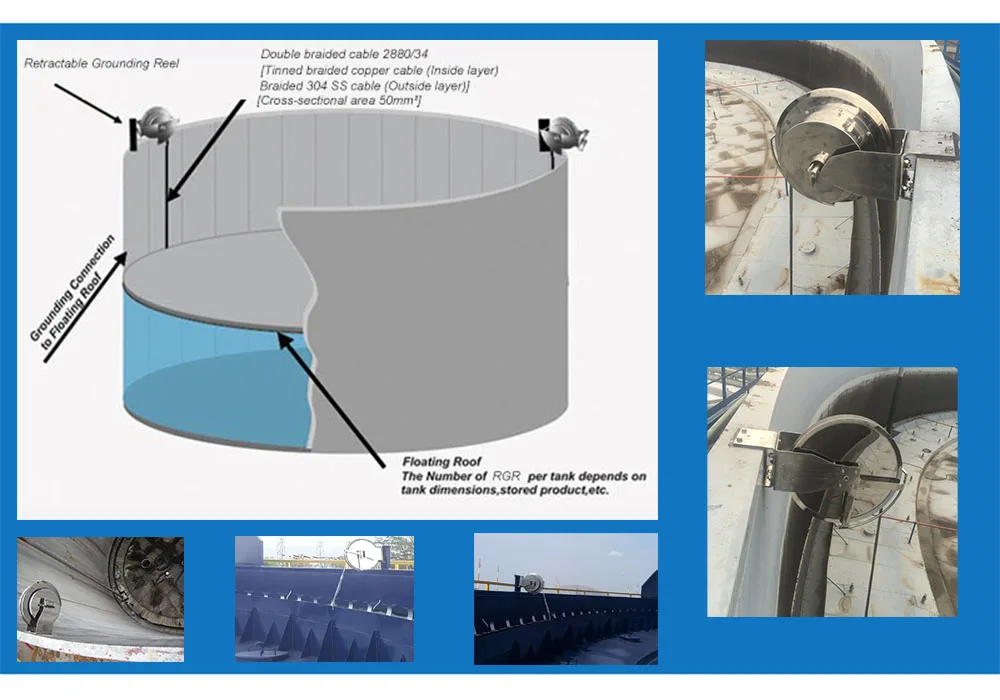

Working Principle
The RGR can be mounted directly to the rim of the tank. The retractable cable is fixed to the floating roof foam dam, as the lowest impedance connection between the tank shell and the roof.
The retractable cable length is always the minimum wherever the floating roof is, thus it has the smallest inductance, and will effectively dissipate the lighting current and bound charge to the ground. Restrain the instantaneous overvoltage between the floating roof and tank wall, prevent the flashover (ARC) in sealing ring space, and eliminate the ignition source for the floating roof tanks.
It is easy to catch lighting when the floating roof is at the top position. At this time, the extended cable length is the shortest with minimum AC impedance. The lightning bypass can be grounded to prevent the ARC in the sealing ring space.
The retractable cable length is always the minimum wherever the floating roof is, thus it has the smallest resistance, reduces the time constant τ＝RC, accelerates the current dissipating and restrain the ARC.
.
The retractable cable length is always the minimum wherever the floating roof is, thus it has the smallest inductance, and will effectively dissipate the lighting current and bound charge to the ground. Restrain the instantaneous overvoltage between the floating roof and tank wall, prevent the flashover (ARC) in sealing ring space, and eliminate the ignition source for the floating roof tanks.
It is easy to catch lighting when the floating roof is at the top position. At this time, the extended cable length is the shortest with minimum AC impedance. The lightning bypass can be grounded to prevent the ARC in the sealing ring space.
The retractable cable length is always the minimum wherever the floating roof is, thus it has the smallest resistance, reduces the time constant τ＝RC, accelerates the current dissipating and restrain the ARC.
.
Related Products

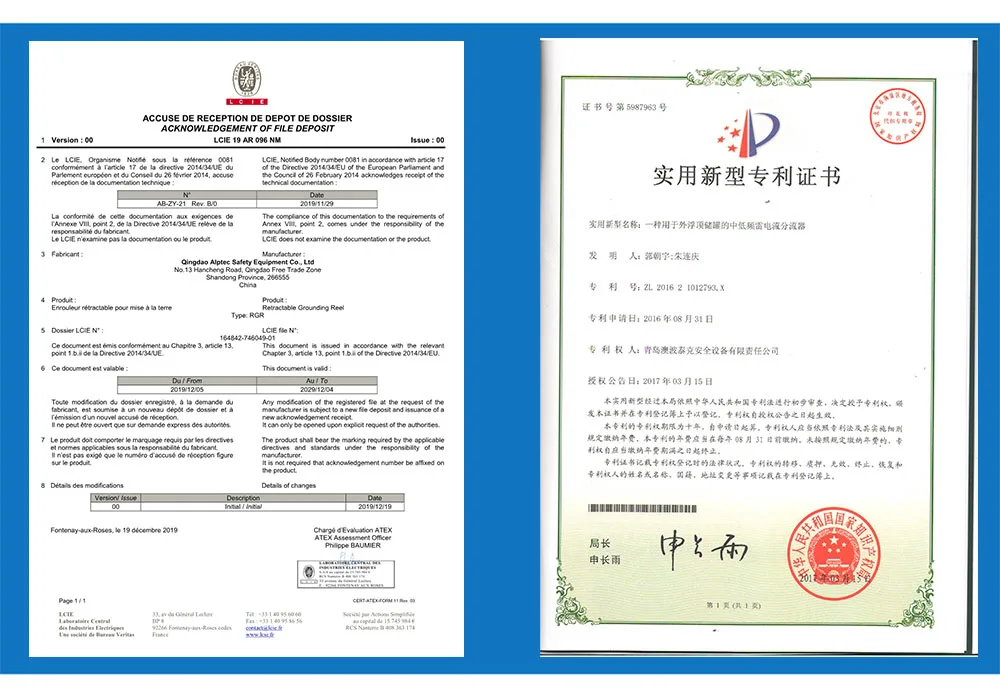

Certifications
Packing & Delivery

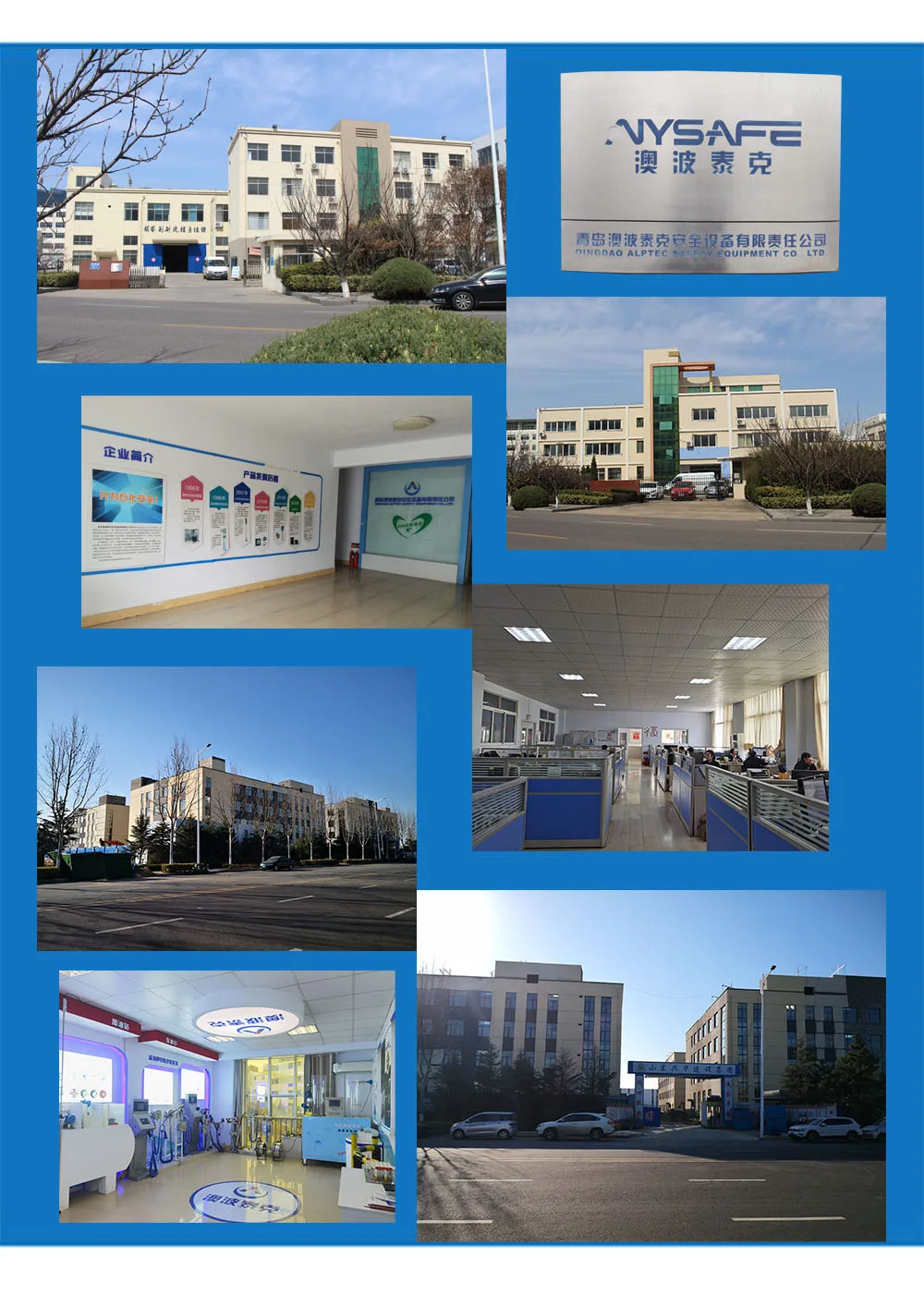

Company Profile
Established in 1996, Qingdao Alptec Safety Equipment Co., Ltd specialises in the design, manufacture, and supply of high-quality Overfill Protection as well as Static Grounding Systems, Earthing Clamps, Reels and accessories for the chemical, petrochemical, oil and gas and process industries that transport, store, transfer and use flammable liquids, solvents or combustible liquids in hazardous areas.
Alptec is Sinopec and PetroChina's preferred brand and we have secured more than 50% of the market share in China. Internationally we began exporting in 2006 to Germany, Spain, USA, Canada, Australia &New Zealand, Korea, Singapore, Thailand, Vietnam, Mexico, Brazil, South-Africa, India, and many other countries.
Alptec is Sinopec and PetroChina's preferred brand and we have secured more than 50% of the market share in China. Internationally we began exporting in 2006 to Germany, Spain, USA, Canada, Australia &New Zealand, Korea, Singapore, Thailand, Vietnam, Mexico, Brazil, South-Africa, India, and many other countries.
Our Advantages
1. Sufficient Inventory;
2. Alptec is Sinopec and PetroChina's preferred brand and the supplier of big companies; such as BP, PPG, Total, Shell etc.;
3. We participate in international exhibitions every year and welcome customers to visit:
1). ADIPEC 1-4 November 2010 in UAE
2). STOC EXPO EUROPE 2012 in Rotterdam
3). NACS Show 2012 in Las Vegas
4). STOC EXPO Asia 2014 in Singapore
5). 16th Pakistan Oil & Gas Exhibition - POGEE 2018
6). STOC EXPO EUROPE 26-28 March 2019 in Rotterdam
7). OIL & GAS Thailand 09-11 October 2019
4. Excellence in the industry with over 26 years' experience;
5. Good reputation;
6. High quality guaranteed;
7. Competitive factory-direct sale price;
8. Prompt delivery;
9. Good after-sales service;
10. Accept urgent order.
2. Alptec is Sinopec and PetroChina's preferred brand and the supplier of big companies; such as BP, PPG, Total, Shell etc.;
3. We participate in international exhibitions every year and welcome customers to visit:
1). ADIPEC 1-4 November 2010 in UAE
2). STOC EXPO EUROPE 2012 in Rotterdam
3). NACS Show 2012 in Las Vegas
4). STOC EXPO Asia 2014 in Singapore
5). 16th Pakistan Oil & Gas Exhibition - POGEE 2018
6). STOC EXPO EUROPE 26-28 March 2019 in Rotterdam
7). OIL & GAS Thailand 09-11 October 2019
4. Excellence in the industry with over 26 years' experience;
5. Good reputation;
6. High quality guaranteed;
7. Competitive factory-direct sale price;
8. Prompt delivery;
9. Good after-sales service;
10. Accept urgent order.
Exhibitions and Customers
FAQ
Q1: How many workers in your factory?
A: 134.
Q2: Could you send me a sample before bulk order?
A: Sure.
Q3: What tests do you do during production?
A: Intermediate tests and finished product tests.
Q4: Is there MOQ for the ATEX Approved Bypass conductor assembly on Floating Roof tanks?
A:10 units.
Q5: How soon can my order be shipped?
A: Usually 3 business days after payment.
A: 134.
Q2: Could you send me a sample before bulk order?
A: Sure.
Q3: What tests do you do during production?
A: Intermediate tests and finished product tests.
Q4: Is there MOQ for the ATEX Approved Bypass conductor assembly on Floating Roof tanks?
A:10 units.
Q5: How soon can my order be shipped?
A: Usually 3 business days after payment.
