Цена:140,00 $ - 160,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





Product Description

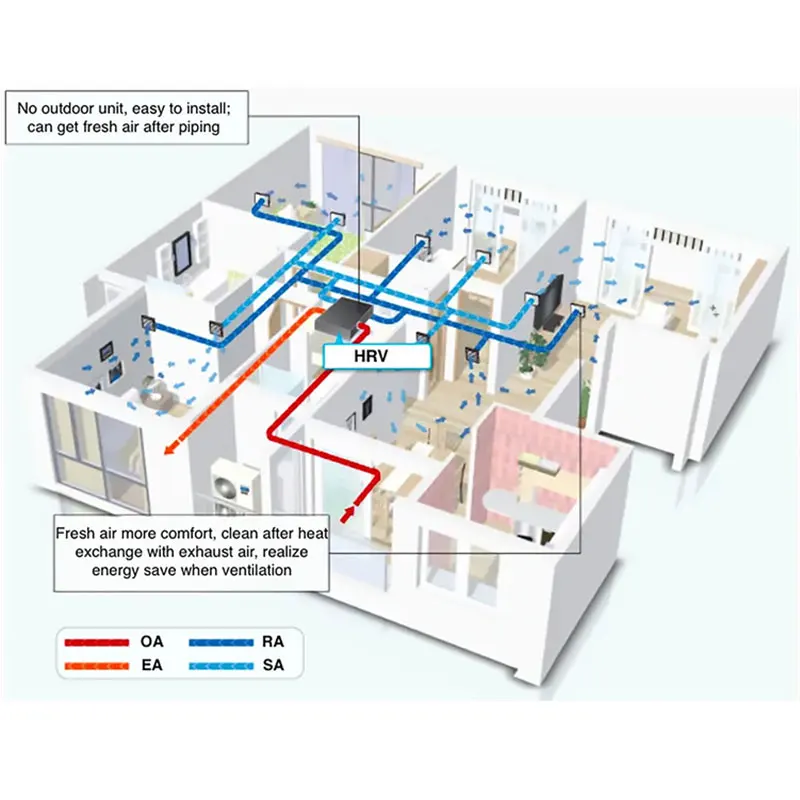

Holtop Ceiling Mounted Energy Recovery Ventilator introduces clean and fresh air to indoor and exhuasts the polluted air outdoors.

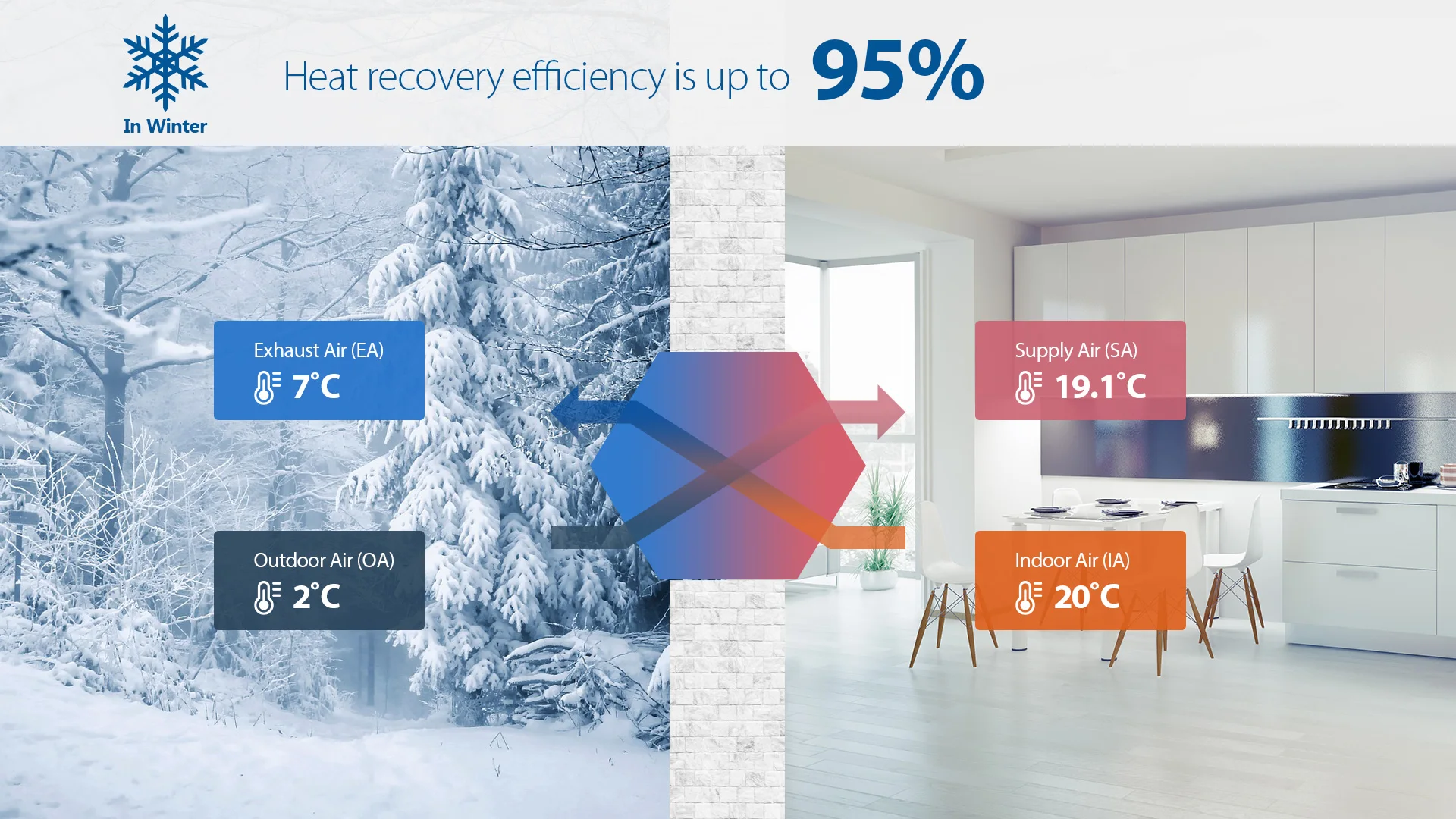

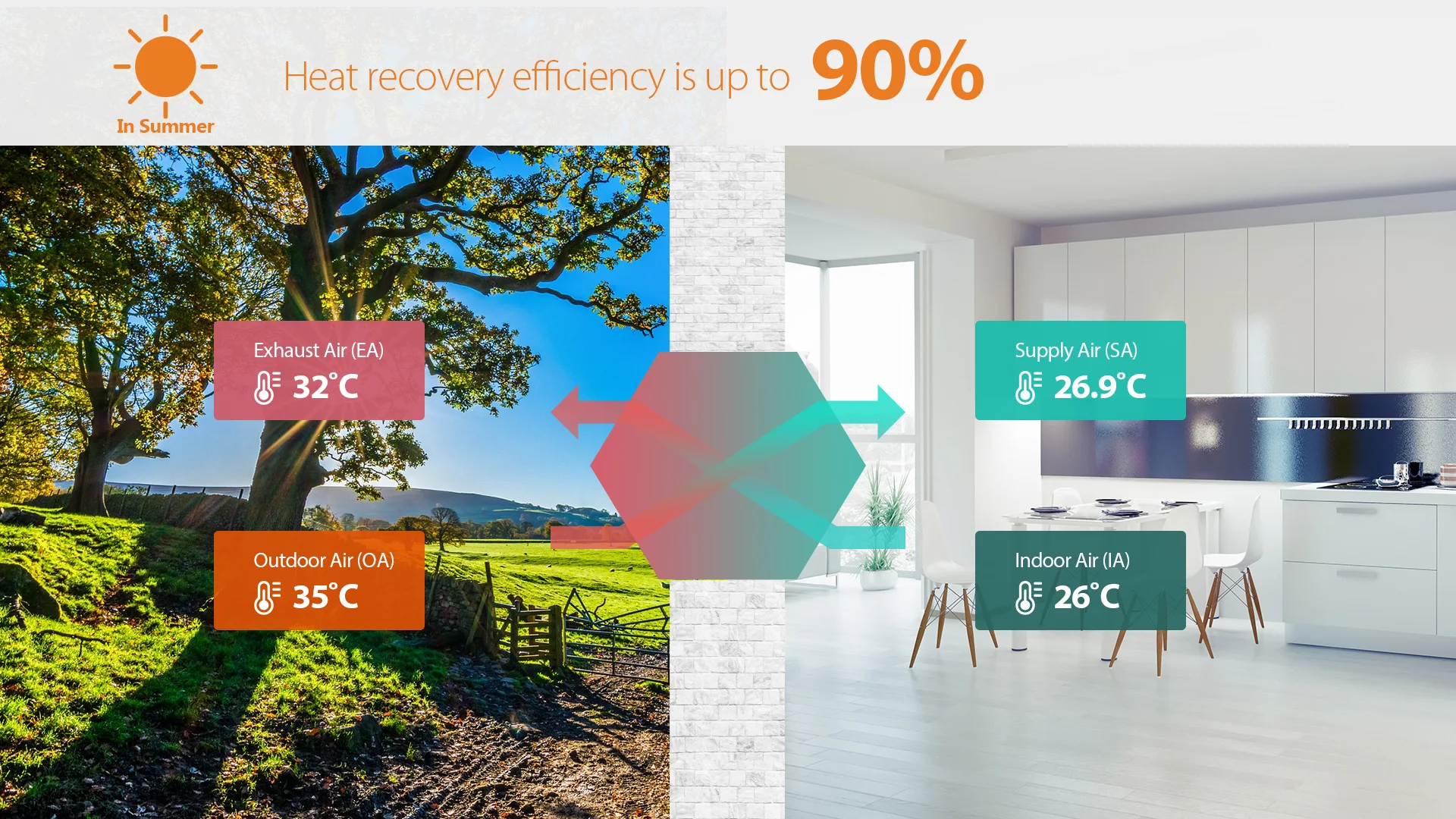

When the outdoor air is comfortable, it works in bypass mode, the fresh air can be directly supplied to the room without heat exchange, and the exhaust air in the room can be discharged at the same time, to improve the indoor air quality. In winter or summer time, to provide comfortable indoor atmosphere and reduce the energy consumption, it works in energy recovery mode. This product is built with high efficient 5th Generation Heat Exchanger that integrates compact and delicate filter slider. It uses less energy while providing greater benefits, such as keeping your home healthier, replacing stale air with fresh air, and removing various contaminants




•Wide airflow range among 150-2000 m³/h.
• Plastic encapsulated DC motor, 10 speeds.
• Supply air purification with primary filter
(G3) and medium filter (F7) optional.
• Occlusal edge sealing technology.
• High efficiency 5th generation total heat exchanger. Reserved side ports for OA and EA, flexible installation.
• Auto bypass.
• Two types of installation to suitable room.

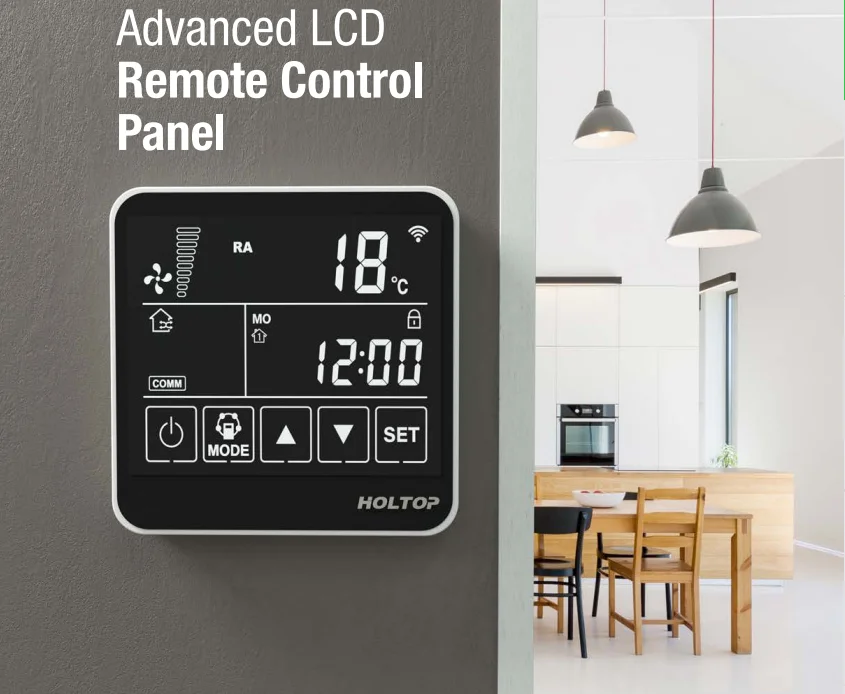

• A smarter control system Android/ IOS.
• Energy efficiency class of A+ or A according to EU NO. 1253/2014.


Item
CFA 150C
CFA 250C
CFA 350C
CFA 500C
Airflow[m³/h]
150
250
350
500
External Static Pressure[Pa]
95
85
160
120
Current [A]
0.45
0.48
0.98
1.15
Power[W]
58
62
140
165
Enthalpy exchange efficiency[%]
Cooling
71-79
68-83
71-82
67-82
Heating
73-79
70-83
72-84
69-83
Temperature exchange efficiency[%]
80-84
79-86
80-89
78-87
Noise dB(A)
28
27
32
34
Net weight (kg)
20
23
30
33
Energy consumption per unit airflow [W/(m³/h)]
0.38
0.25
0.4
0.33
Power supply
220-240V,50/60HZ, 1ph

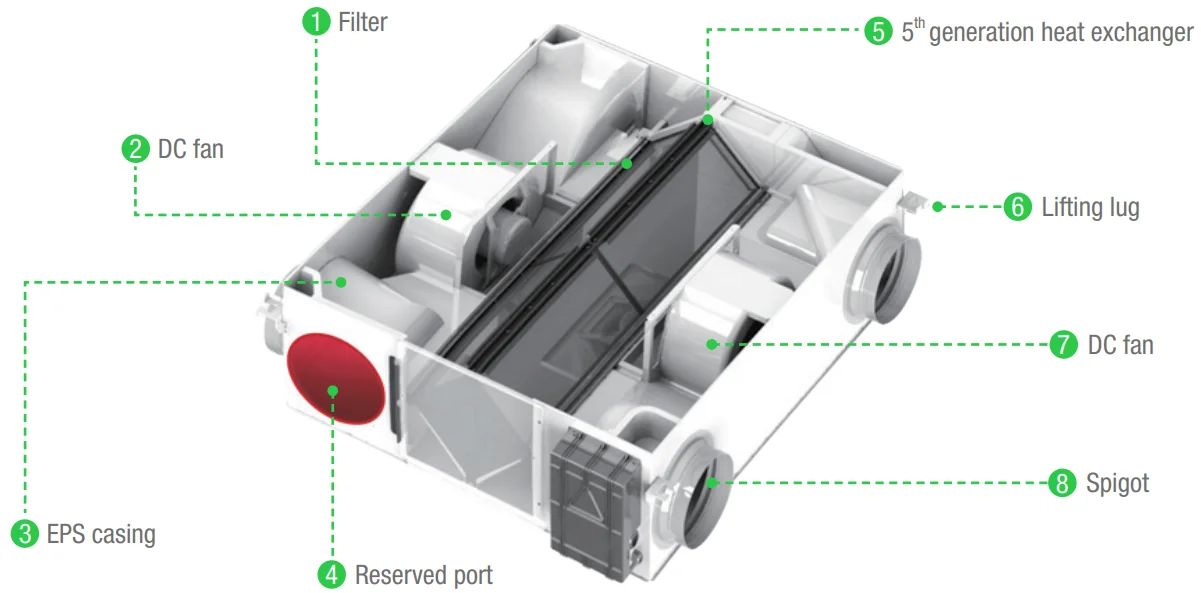

Product Structure

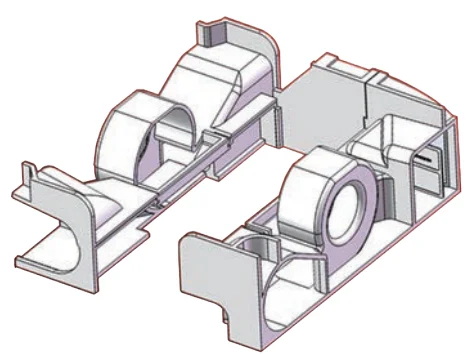

Integrated EPS for good insulation and air tightness and noise reduction performance.
The fans placed in the center is conducive to the uniform distribution of airflow, so that the heat exchange is more sufficient; the equipment has a symmetrical counterweight, and the operation is more stable.




CASING
•Easy installation with integrated EPS casing.
• Better insulation, air tightness, and noise reduction.
• Mid-mounted fans, with stable air flow to have better heat exchange efficiency and stable operation.

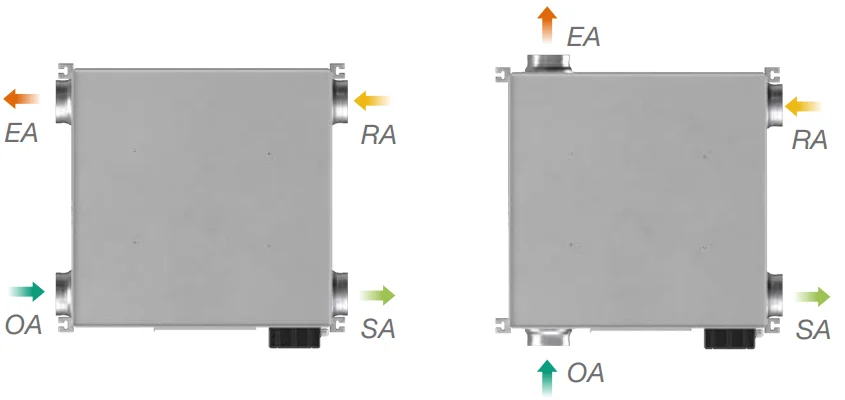

FLEXIBLE INSTALLATION
•Parallel airflow.
• Available with inverted installation.
• Reserved side ports for OA and EA.

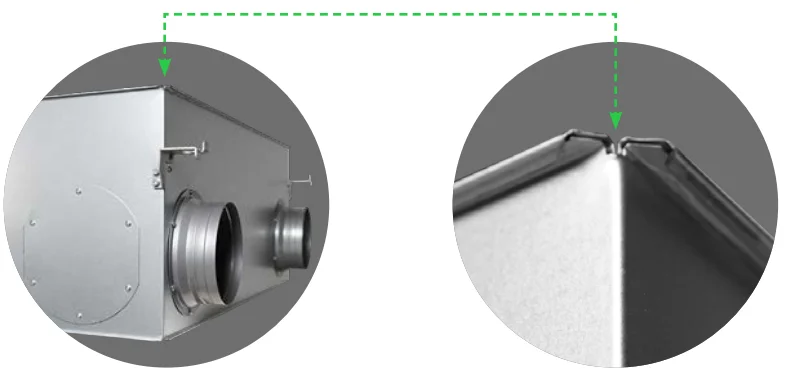

OCCLUSAL EDGE SEALING TECHNOLOGY
•Triple folded edge thickness improving casing strength.
• Higher production efficiency.
• Good appearance and air tightness.

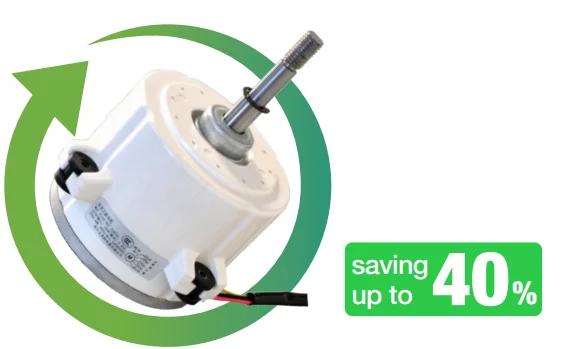

NEW DC FANS
Comparing with the old AC motor with metal casing, the new motor operate more stable, silent and energy-efficient, saving up to 40%.

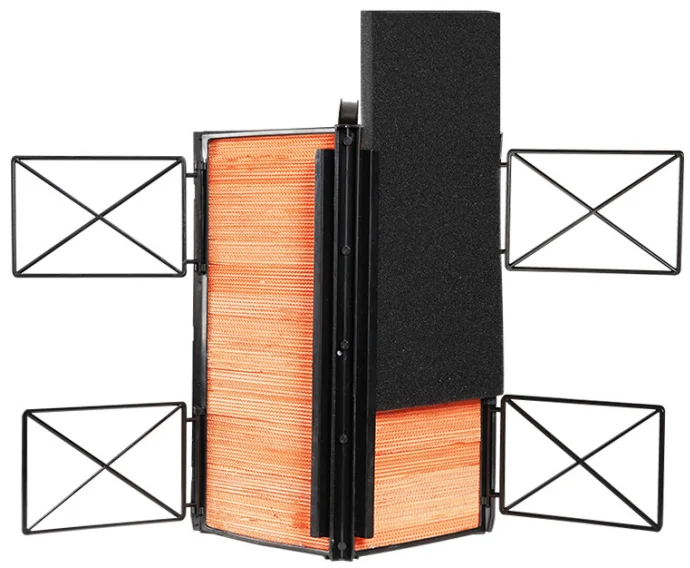

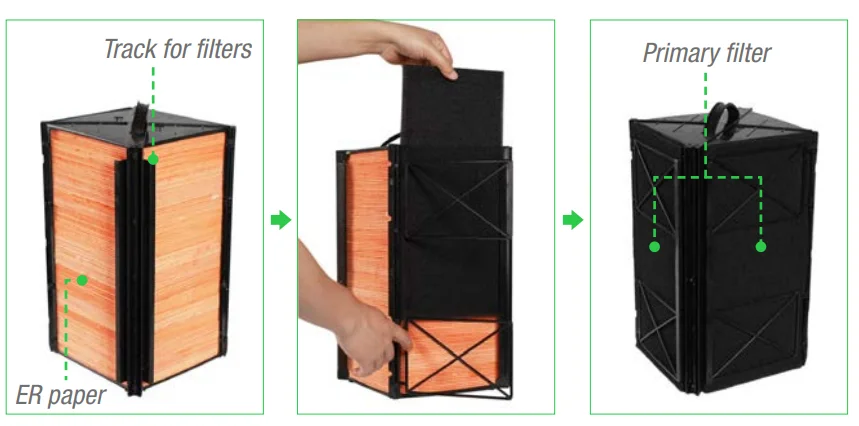

5TH GENERATION TOTAL HEAT EXCHANGER
New ER paper with higher heat exchanger efficiency.
•The heat exchange materials are mildew resistant and fire retardant.
•Integrated structure, better air tightness and appearance.

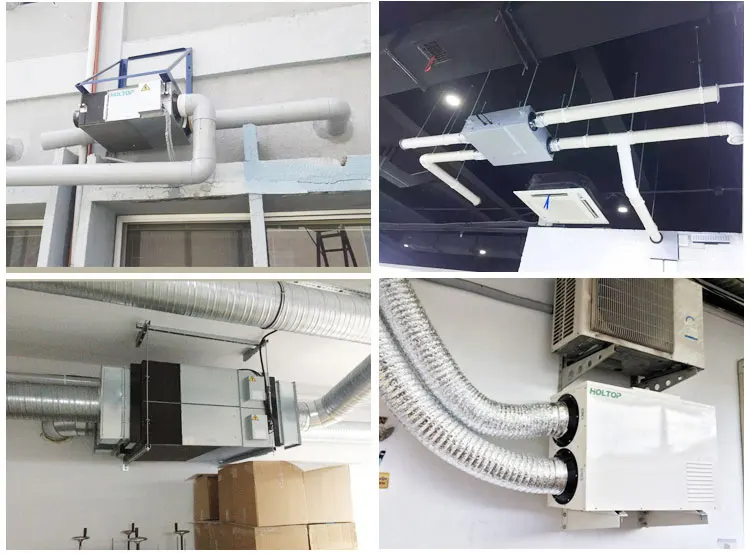

Installation Instructions

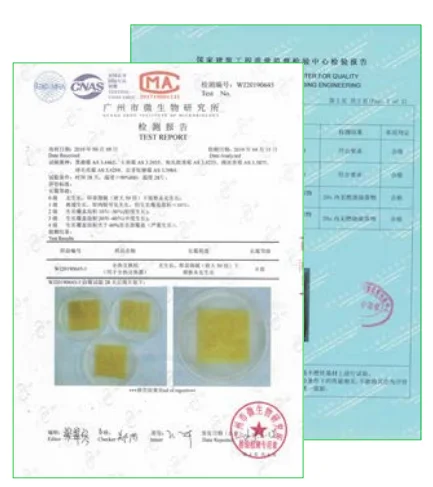

Certifications




Company Profile

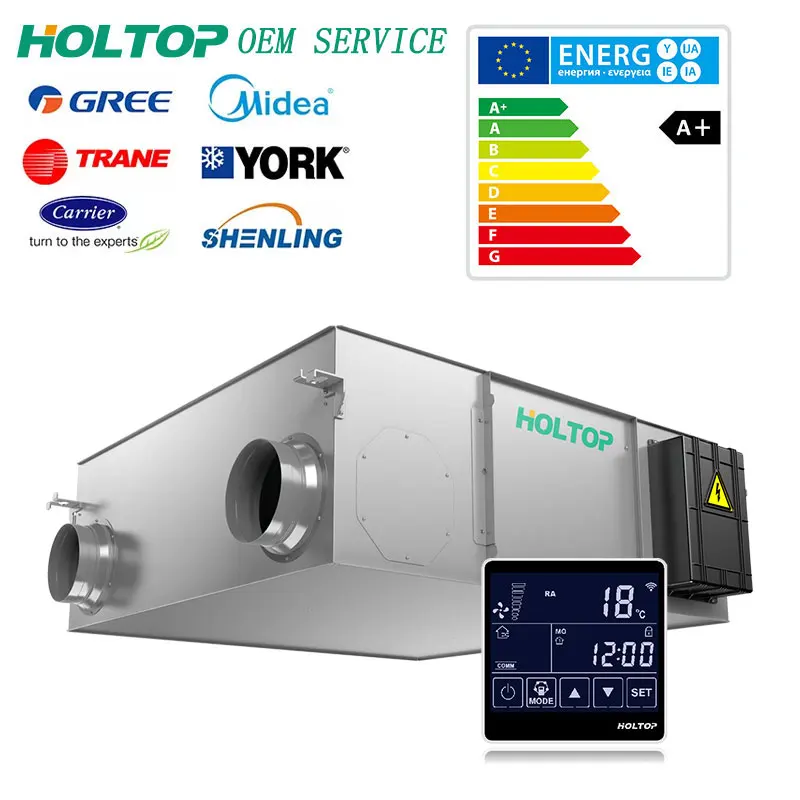

Holtop cooperate with world famous brand or offer OEM service.
