Nbr pu 12 мм силиконовый каучук оптовый поставщик микро экскаватор уплотнительное кольцо размеры материал комплект
- Категории: Hardware >>>
- Поставщик: Tianjin,Jerrylin,Science,And,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Materials | NBR, FKM, Siicone/VMQ, EPDM, FFKM, HNBR, PU, PTFE, or Custom |
Temperature | NBR(-40~120°C), FFKM(-20~320°C), FKM(-20~200°C), Silicone (-70~220°C) EPDM(-50~150°C), PU(-40~90°C) |
Hardness | 20~90 Shore A |
Size | AS568,BS,JIS,DIN, engineering drawing or sample |
Colors | Custom |
OEM/ODM | Accept |

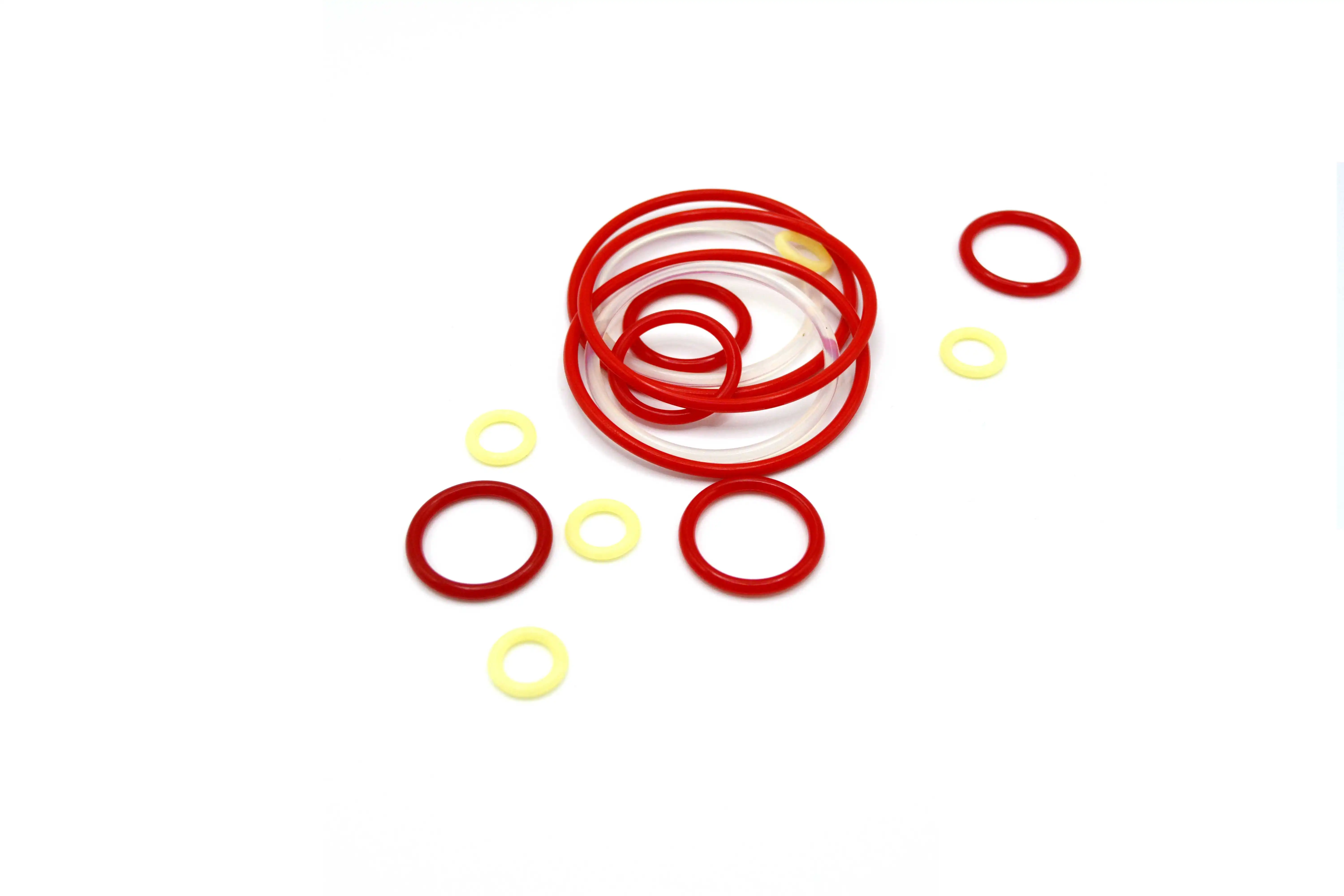

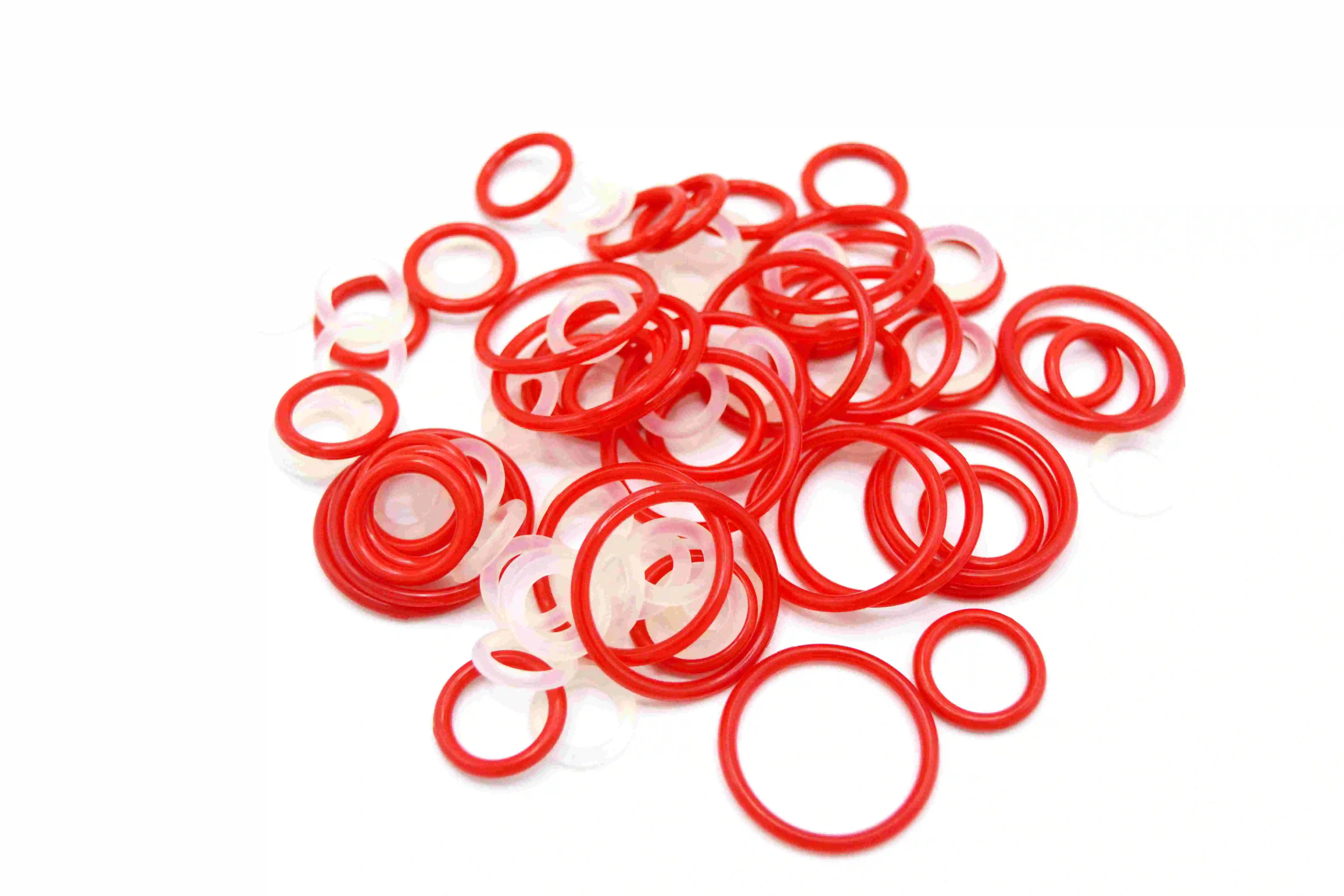

Colors Optional
Jerrylin Rubber Manufacturing can provide custom rubber compounds in colors such as yellow, red, orange, blue, and gray. purple, brown, and white to enhance the look of your custom rubber product. We can also color parts to help differentiate the size or hardness of your parts.
Material Optional
Tell us the application and the environment for your product's intended use and Jerrylin Rubber Manufacturing will provide a suitable standard compound, or if needed, create a formula compounded specifically for you.
The following are some of the materials that are commonly used for products and their corresponding temperature ranges and applications.
Silicone Rubber O-Rings (VMQ, PVMQ)
For Silicones the service temperatures are from -60 ℃ to 225 ℃. Some special types can be used in extreme temperatures up to 300 ℃ and down to -100 ℃.
Silicone rubber performs well under environmental and temperature extremes. It is usually applied in automotive and aerospace industries where flexibility and longevity are important. It is also a suitable material for parts that need food grade for food handling equipment and appliances.
Silicone rubber performs well under environmental and temperature extremes. It is usually applied in automotive and aerospace industries where flexibility and longevity are important. It is also a suitable material for parts that need food grade for food handling equipment and appliances.

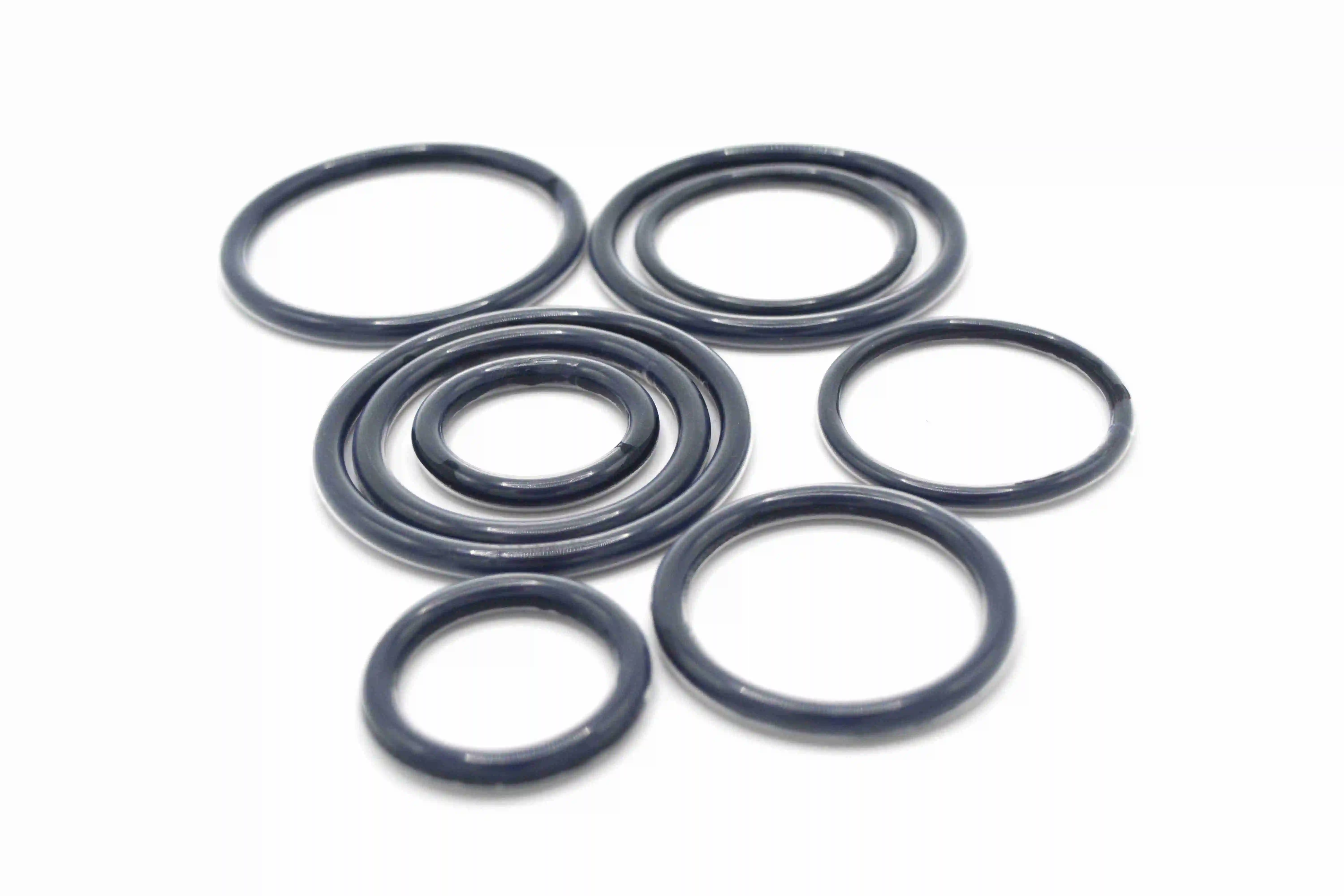

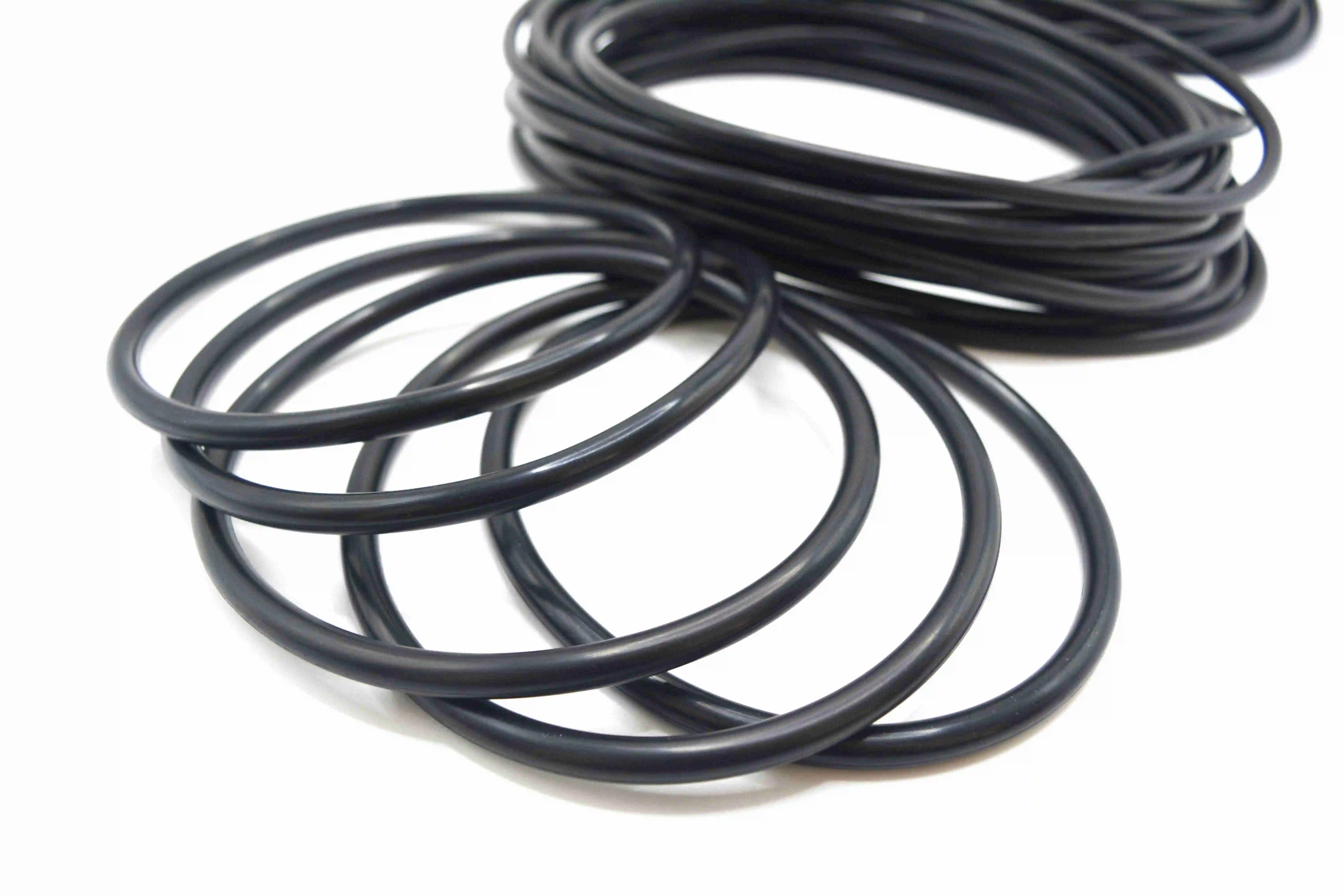

NBR O-Rings(nitrile butadiene rubber)
For NBR the service temperature can be designed from -55 ℃ to 100 ℃ or up to 130 ℃ depending on the difference in nitrile content and formula.
NBR compounds have excellent resistance to abrasion, non-polar oils and solvent, water, and permeation (higher acrylonitrile content will be better). NBR also can be used in conditions of dilute acids, alkalis, and salt solutions at low temperatures.
NBR compounds have excellent resistance to abrasion, non-polar oils and solvent, water, and permeation (higher acrylonitrile content will be better). NBR also can be used in conditions of dilute acids, alkalis, and salt solutions at low temperatures.

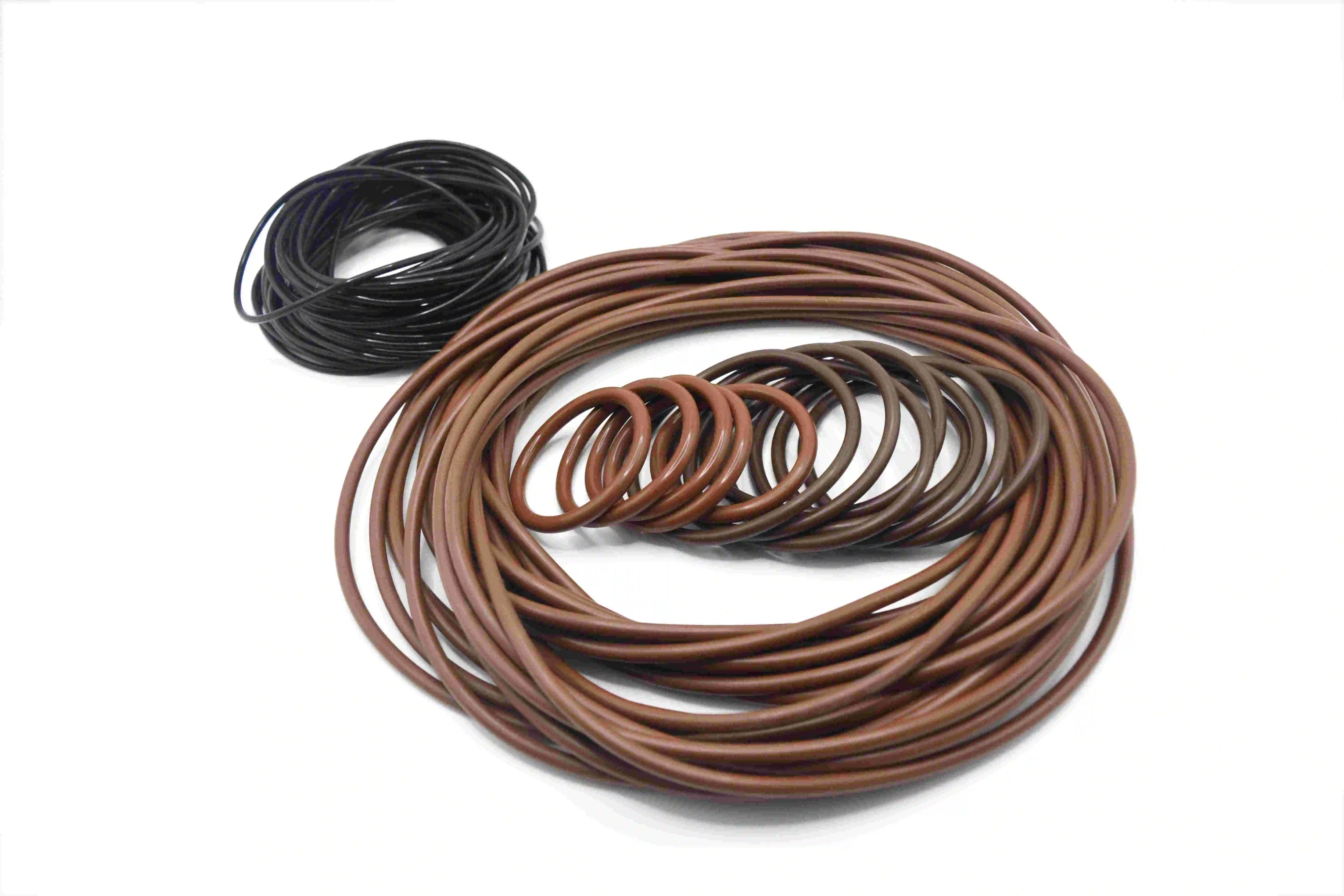

FKM O-Rings(Fluorocarbon)
For general type Viton, the service temperature is better limited to approximately -26 ℃ to 232 ℃ in static applications, though the service temperature can arrive at 275 ℃ in a short time In dynamic applications, it is suitable between -15 ℃ and 200 ℃.
Because FKM has excellent resistance to high temperature, oil, solvent, flame, chemicals, and weathering, it is usually applied in automotive, chemical processing, aerospace, and many other industries.
Because FKM has excellent resistance to high temperature, oil, solvent, flame, chemicals, and weathering, it is usually applied in automotive, chemical processing, aerospace, and many other industries.
PU O-Rings(Polyurethane)
-45 to 120 °C.
PU displays higher mechanical strength, high abrasion, wear and extrusion resistance, high-pressure load capacity, as well as a high tear and elongation at break resistance.
PU is suitable for application in mineral oils and greases, hydraulic oils, silicone oils and greases, highly non-flammable hydraulic fluids HFA and HFB, and water up to 50℃.
PU is suitable for application in mineral oils and greases, hydraulic oils, silicone oils and greases, highly non-flammable hydraulic fluids HFA and HFB, and water up to 50℃.
PTFE O-Rings
PTFE's mechanical properties are low compared to other plastics, but its properties remain at a useful level over a wide temperature range of -100°F to +400°F (-73°C to 204°C).
PTFE is the common sealing material used for making wear rings, backing-up rings, o rings, gaskets, etc. It can be found in metallurgy machinery, petrochemical machinery, engineering machinery, and light industrial machinery.
PTFE is the common sealing material used for making wear rings, backing-up rings, o rings, gaskets, etc. It can be found in metallurgy machinery, petrochemical machinery, engineering machinery, and light industrial machinery.
Ethylene Propylene O-Rings (EPM, EPDM)
For EPDM the service temperature can be designed from -55 °C to 125 °C or up to 150 °C (for peroxide-cured systems).
In phosphate-ester-based hydraulic fluids and glycol-based brake fluids systems Ethylene Propylene Rubber is a good choice for sealing parts. EPDM is also usually used in hot water or steam applications up to 150 °C.
In phosphate-ester-based hydraulic fluids and glycol-based brake fluids systems Ethylene Propylene Rubber is a good choice for sealing parts. EPDM is also usually used in hot water or steam applications up to 150 °C.

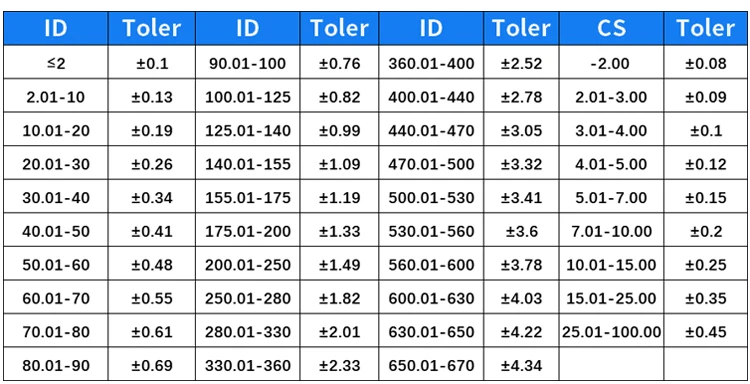

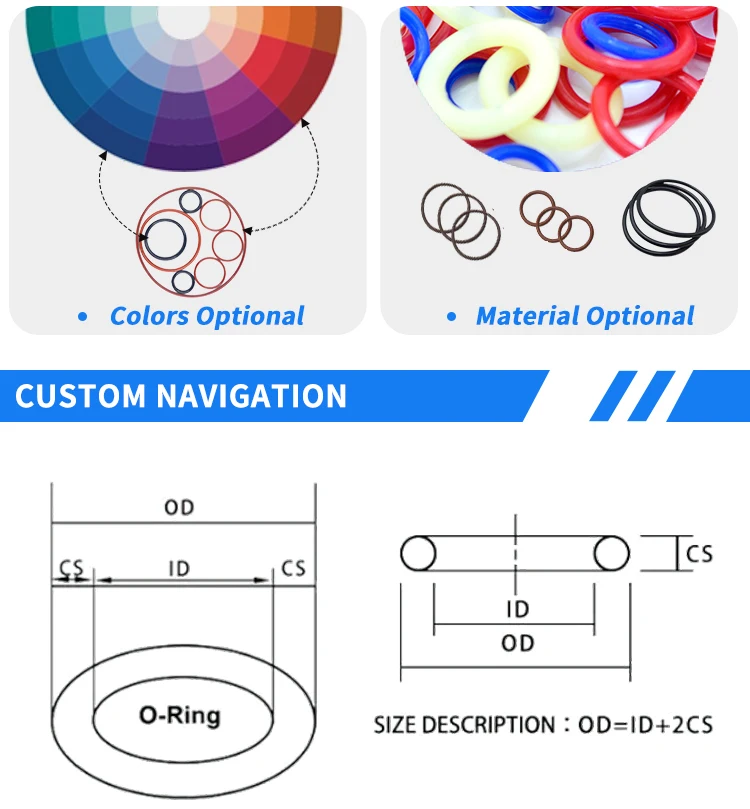

About the size
You can tell me the size you need and we can produce them all. If you have special requirements, we can also make products according to your requirements.
You can tell me the size you need and we can produce them all. If you have special requirements, we can also make products according to your requirements.

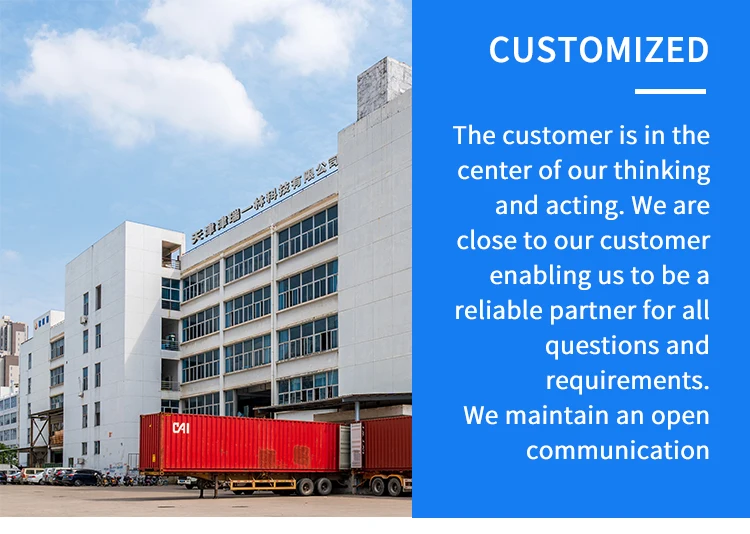

Tianjin Jerrylin Science And Technology Development Co., Ltd.
We are a company specialising in the design, manufacture and sale of rubber seals. With many years of production experience and technical accumulation, we are able to provide our customers with high quality products and excellent service. We can customise our products according to customers' needs, including material, specification and quantity.
Application
Our rubber seals are widely used in the following fields: automotive industry, machinery industry, electronics industry, medical devices, petrochemical industry, etc.

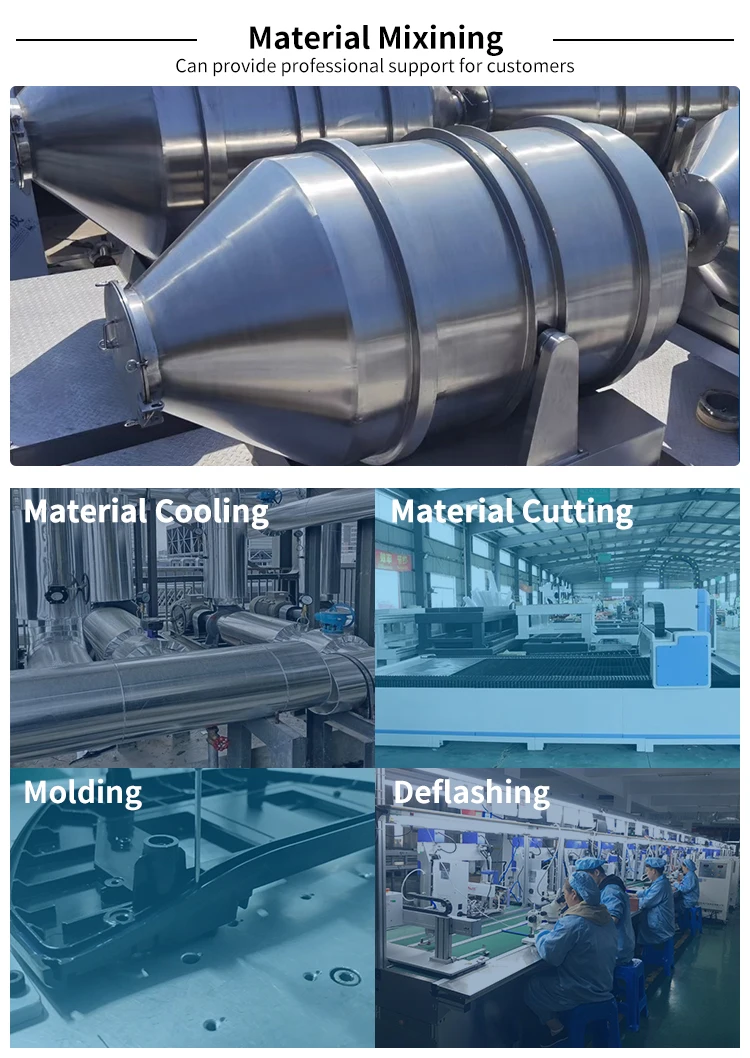

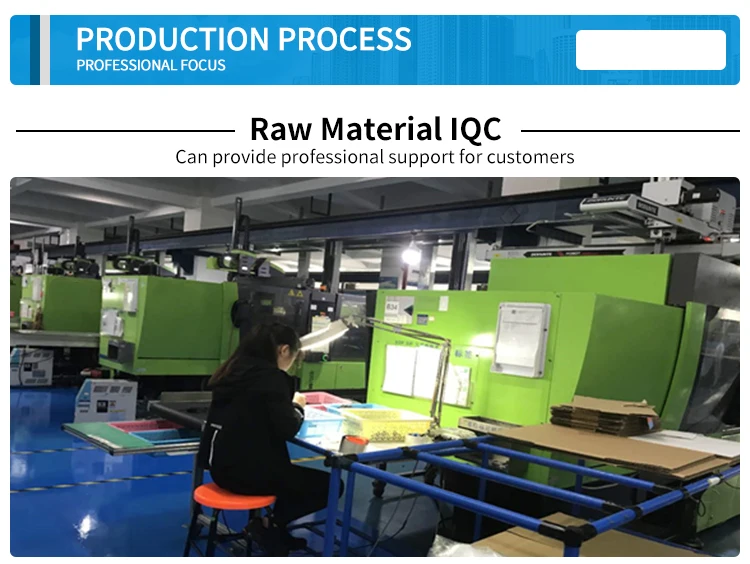

Production Process
We use advanced production processes, including mould making, raw material selection, compounding and moulding, and vulcanisation, to ensure the stability and consistency of our products.
After Sales Service
Our after-sales service team is always ready to solve any problems for our customers and deal with their feedback and suggestions in a timely manner. We always pay attention to the needs of our customers and strive to provide better services to them.
You are welcome to contact us at any time, so that we can cooperate and develop together.
Application
Our rubber seals are widely used in the following fields: automotive industry, machinery industry, electronics industry, medical devices, petrochemical industry, etc.
Production Process
We use advanced production processes, including mould making, raw material selection, compounding and moulding, and vulcanisation, to ensure the stability and consistency of our products.
After Sales Service
Our after-sales service team is always ready to solve any problems for our customers and deal with their feedback and suggestions in a timely manner. We always pay attention to the needs of our customers and strive to provide better services to them.
You are welcome to contact us at any time, so that we can cooperate and develop together.
FAQ
Q: Could you please tell us the month capacity of your products?
A: It depends on which model, we produce more than 2500 tons of rubber materials per month.
A: It depends on which model, we produce more than 2500 tons of rubber materials per month.
Q: What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, FPM(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.
A: NBR, EPDM, SILICONE, FPM(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.
Q: Do you use any international standards for rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, and tolerances as per ISO3302, ISO2768, etc.
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, and tolerances as per ISO3302, ISO2768, etc.
Q. What is the normal lead time for product orders?
A: Generally it is 1-2 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.
A: Generally it is 1-2 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.

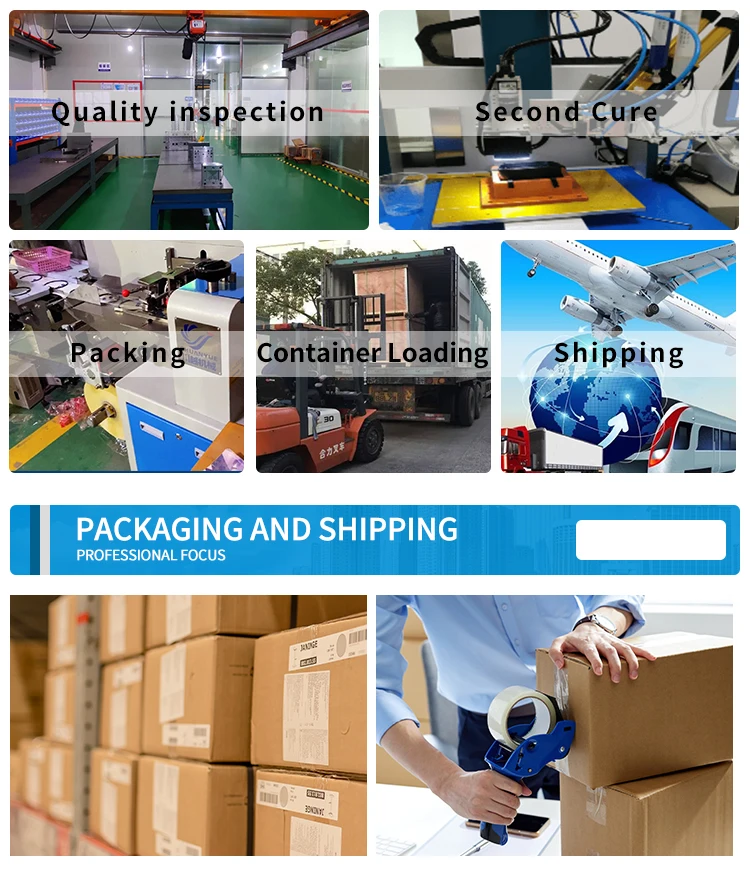

Q. What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing methods can be accepted when needed.
A: All the goods will be packed by carton box and loaded with pallets. Special packing methods can be accepted when needed.
