Product Description
Low consumption R134a 300W 500W 800W door mounted control cabinet air conditioner for CNC machine
This series product can be used in high ambient temperature environment, even reach in 55℃。With the advanced sign idea in this unit, there are double filter in the air inlet of fan,which can improve the resistance to dust and oil pollution ability. So,It is well suited to steel mills and the textile industry.
Specification
model | SGEA-500 |
Power supply | 1P 220V 50Hz |

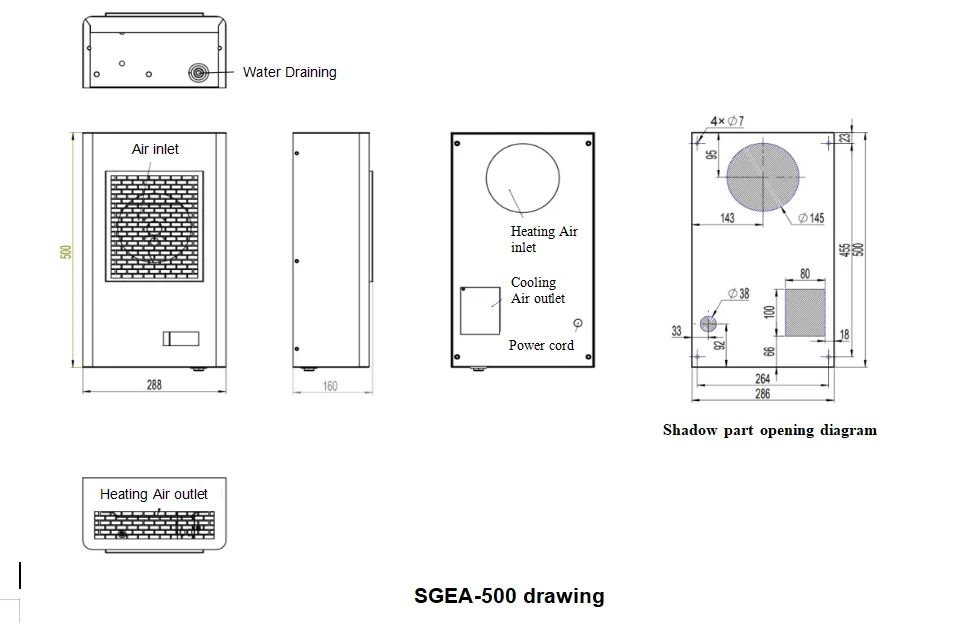

Dimension | 288*500*160mm |
Power supply | 352W |
Refrigerant Type | R134a |
Noise | 55dB |
Controller | Digital type |
Packing & Delivery
The Cabinet Air Conditioner is designed for many industries. It can protect the electricity wind chest's electrical element in the controllable temperature range movement. Excellent functions and good performance of electric cabinet air conditioning is gradually get more and more foreign high-end praised by users.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shanghai Saigu Refrigeration Technology Co., Ltd is mainly engaged in industrial cooling equipment research , development and sales.
After several years development, we have cabinet air conditioner, heat exchanges and industrial water chiller, precision oil cooler, automotive air conditioning, other series of high-standard products。We have successfully resolved the heating problem in the Machining Process for a number of large and Medium - sized Enterprises.
The products are widely used in CNC ，laser cutting, advertising, woodworking, machining, textile processing, communications , automation control systems and other industries fields．Our products were widely exported many foreign countries .
We believe that through our continuous efforts and the pursuit ,the large and medium-sized enterprises will certainly be able to achieve mutual benefit and win-win!
Welcome to our factory for a visit and negotiation.
After several years development, we have cabinet air conditioner, heat exchanges and industrial water chiller, precision oil cooler, automotive air conditioning, other series of high-standard products。We have successfully resolved the heating problem in the Machining Process for a number of large and Medium - sized Enterprises.
The products are widely used in CNC ，laser cutting, advertising, woodworking, machining, textile processing, communications , automation control systems and other industries fields．Our products were widely exported many foreign countries .
We believe that through our continuous efforts and the pursuit ,the large and medium-sized enterprises will certainly be able to achieve mutual benefit and win-win!
Welcome to our factory for a visit and negotiation.
Production Procedure
Paste Thermal insulation cotton ，
Assembly
Welding
Make the refrigeration system vacummn
Automatic add refrigerant
Connect the wire
Testing
Packing
Delivering
Make the refrigeration system vacummn
Automatic add refrigerant
Connect the wire
Testing
Packing
Delivering
Our Advantages
One-stop service：We provide global r & D, production, sales system to meet your needs
Independent factory:Stable price, timely delivery and quality assurance;
Professional technical team:Provide ODM and OEM system solutions
Rich experience：More than 15 yearsin refrigeration industry
Independent factory:Stable price, timely delivery and quality assurance;
Professional technical team:Provide ODM and OEM system solutions
Rich experience：More than 15 yearsin refrigeration industry
FAQ
Q:How to Determine Correct Model of Cabinet cooler？
A:Key Point---Calculating Heat Load for your Enclosure
To determine the correct model for your application, it is first necessary to determine the total heat load to which the control panel is subjected. This total heat load is the combination of two factors — heat dissipated within the enclosure and heat transfer from outside into the enclosure.
Steps of Calculating Btu/hr.:
1. First, determine the approximate watts of heat generated within the enclosure. Watts x 3.41 = Btu/hr.
2. Then, calculate outside heat transfer as follows:
a. Determine the area in square feet exposed to the air, ignoring the top of the cabinet.
b. Determine the temperature differential between maximum surrounding temperature and desired internal temperature. Then, using the Temperature Conversion Table (below), determine the Btu/hr./ft.2 for that differential. Multiplying the cabinet surface area times Btu/hr./ft.2 provides external heat transfer in Btu/hr.
A:Key Point---Calculating Heat Load for your Enclosure
To determine the correct model for your application, it is first necessary to determine the total heat load to which the control panel is subjected. This total heat load is the combination of two factors — heat dissipated within the enclosure and heat transfer from outside into the enclosure.
Steps of Calculating Btu/hr.:
1. First, determine the approximate watts of heat generated within the enclosure. Watts x 3.41 = Btu/hr.
2. Then, calculate outside heat transfer as follows:
a. Determine the area in square feet exposed to the air, ignoring the top of the cabinet.
b. Determine the temperature differential between maximum surrounding temperature and desired internal temperature. Then, using the Temperature Conversion Table (below), determine the Btu/hr./ft.2 for that differential. Multiplying the cabinet surface area times Btu/hr./ft.2 provides external heat transfer in Btu/hr.
Shipping Method
The products will be shipped via EMS, FedEx, DHL, TNT，Special-line, Container, etc.
Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-Sales Service
* Training how to instal and maintain the machine.
*Provide remote instruction by video or recording
* Engineers available to service machinery overseas.
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-Sales Service
* Training how to instal and maintain the machine.
*Provide remote instruction by video or recording
* Engineers available to service machinery overseas.
Contact
If you have any questions please feel free to contact me, there may be a time difference, but we will try to reply as soon as possible.
We attach great importance to all our customers and hope we can establish a good relationship of cooperation, we can achieve a win-win situation.
We attach great importance to all our customers and hope we can establish a good relationship of cooperation, we can achieve a win-win situation.
