Подгонянная Превосходная производительность длительный срок службы карбида вольфрама
- Категории: Cemented Carbide >>>
- Поставщик: Jiangsu,Hanpu,Mechanical,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Product Description

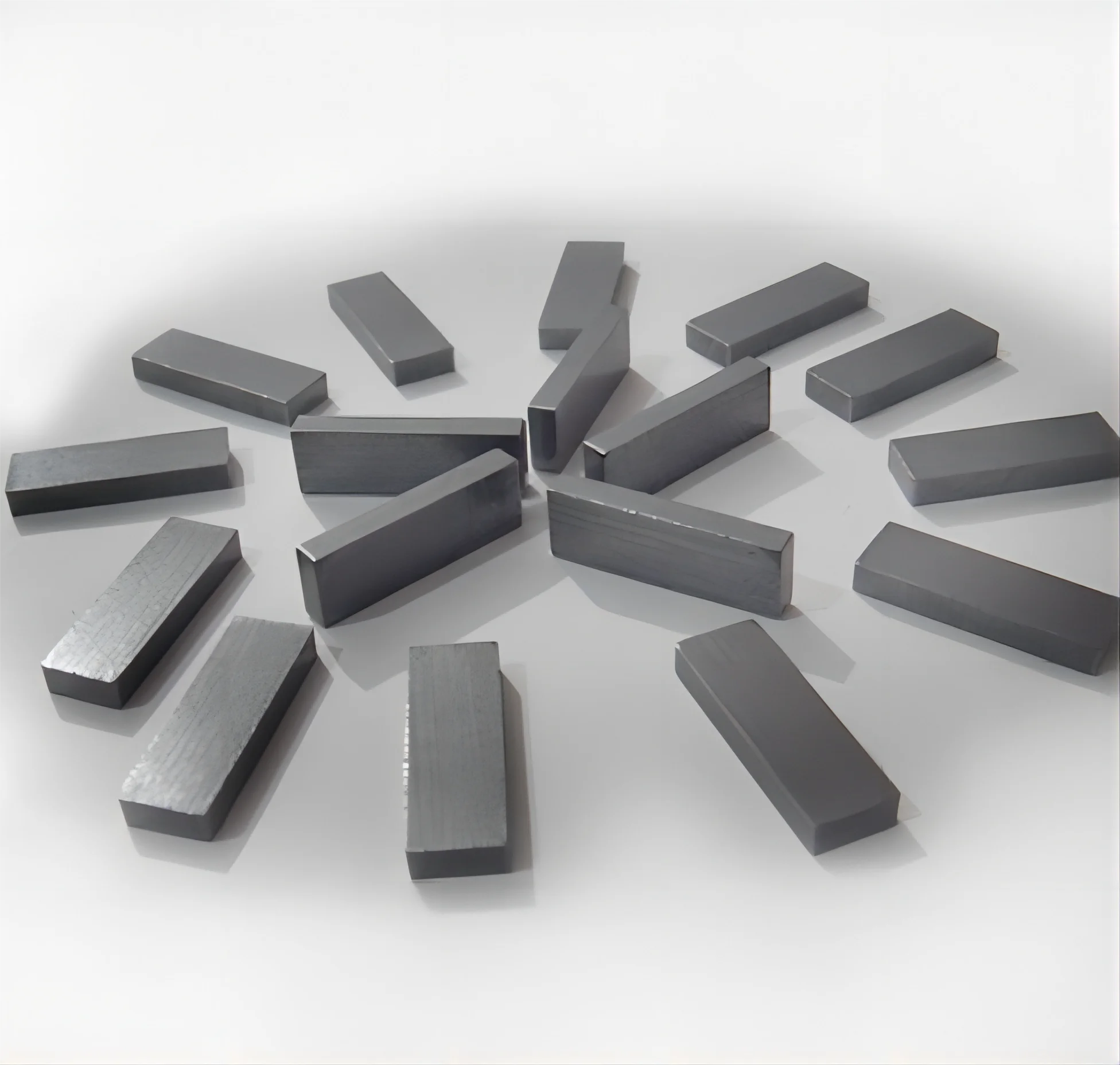

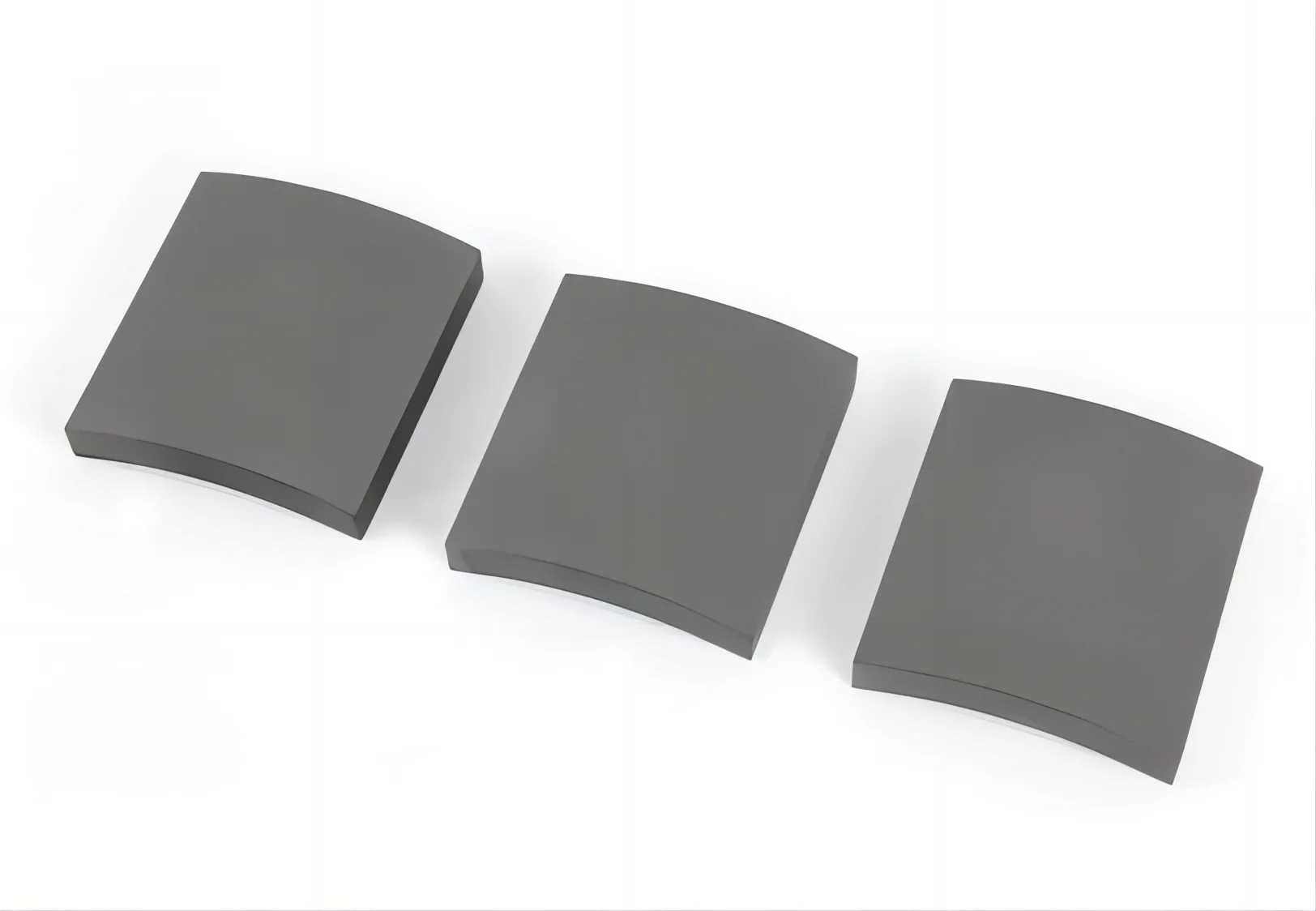

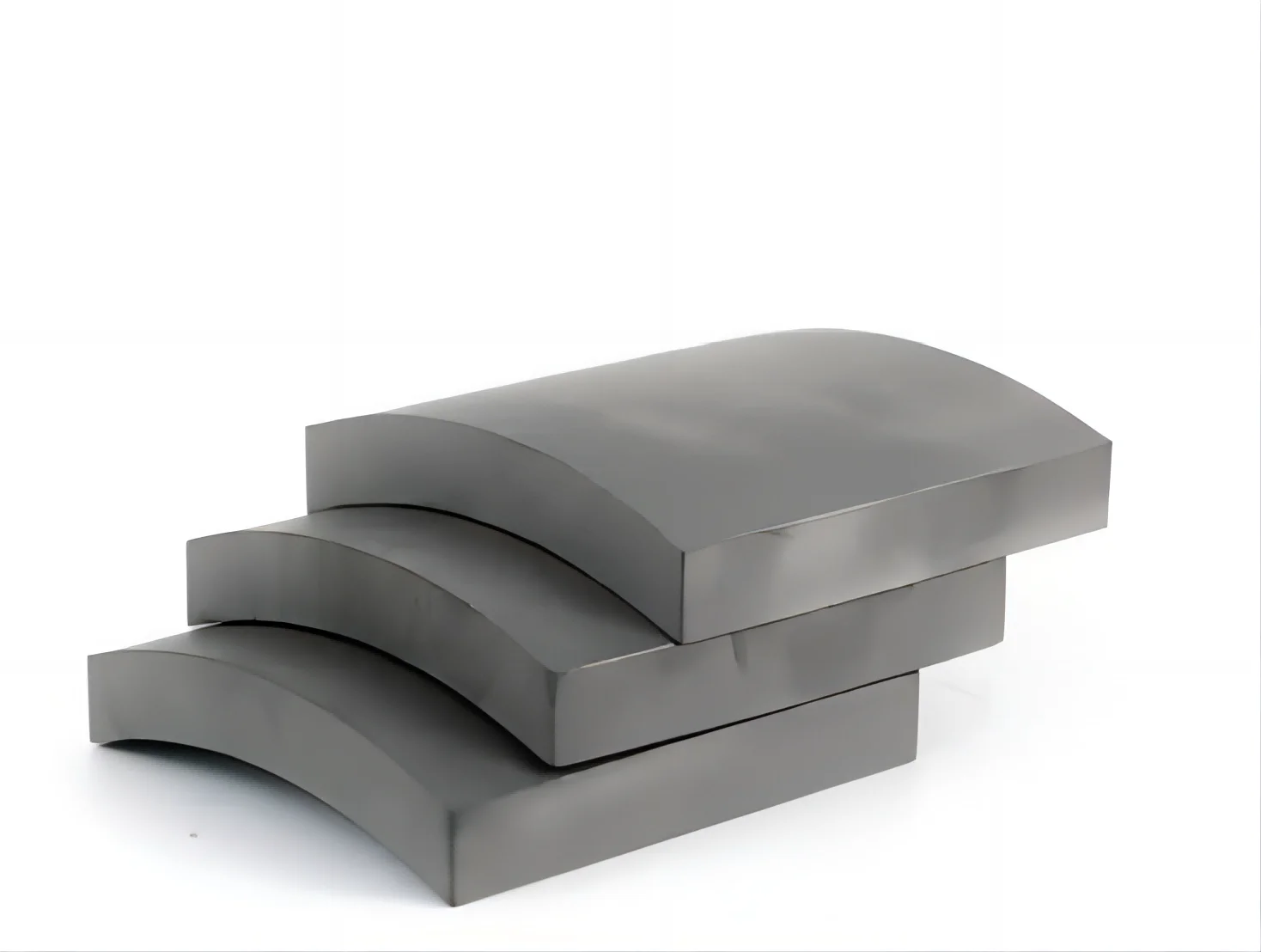

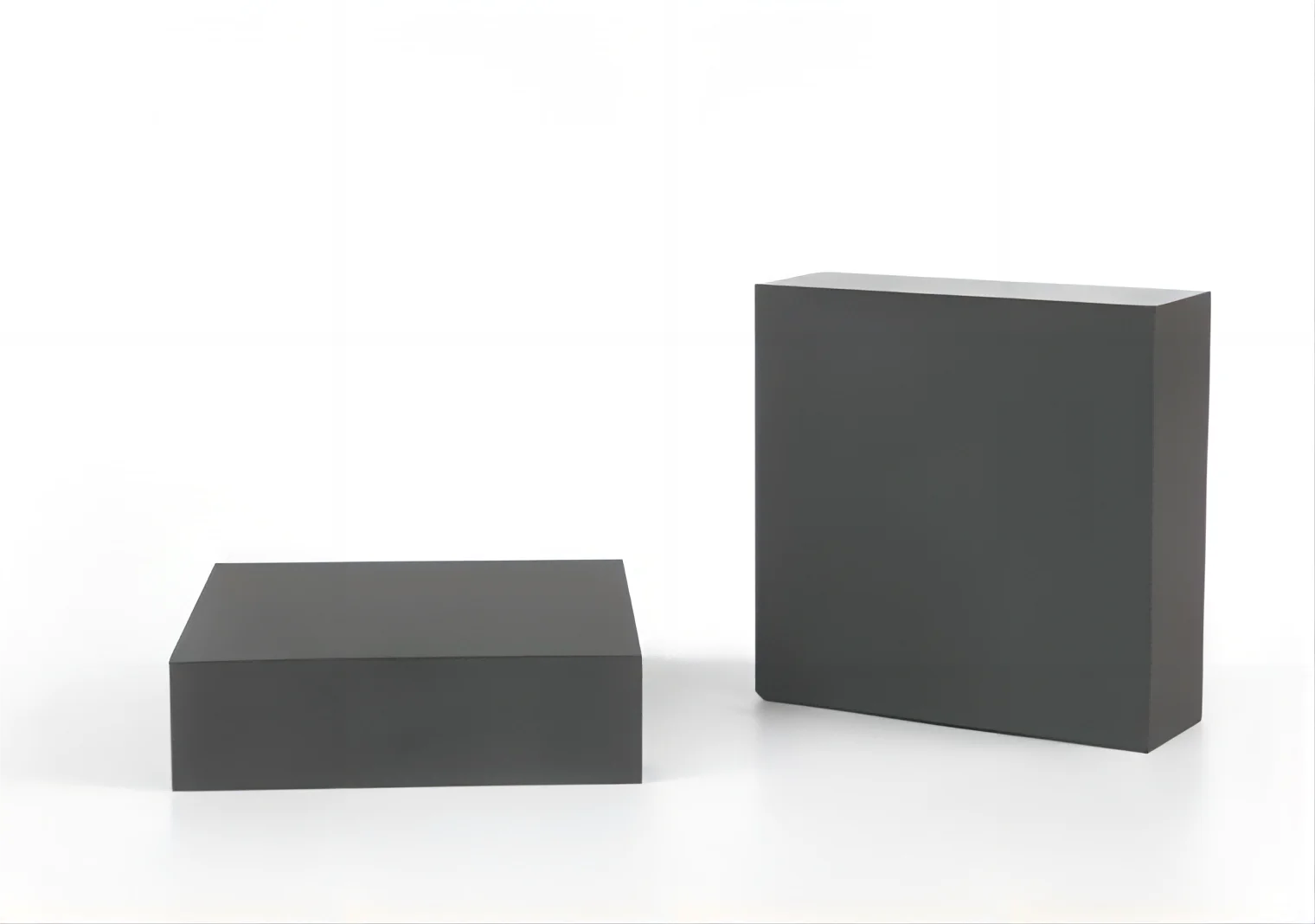

Tungsten carbide plate is suitable for semi-finishing the chilled cast iron, nonferrous metal and its alloy. It is also suitable for semi-finishing and finishing the hardened steel and alloy steel.Tungsten Carbide Non-magnetic Alloy comes in a variety of sizes & grades, the common types are always in stock, we can recommend grade for different applications, we can also manufacture the products according to clients' drawings or samples.
A. Over pressure sintering tungsten carbide plates have excellent red toughness,high hardness,good wear resistance,high elastic modulus,high strength,good chemical stability,acid,alkali,high temperature oxidation),Low impact toughness,low expansion coefficient,thermal conductivity,the characteristics of the conductive similar to iron and other alloy.
1. Having all kind sizes for your choose.
2. Sintere by vacuum sintering furnace and HIP machine with excellent specifications without any hole.
3. Supply blank plate with tolerance(-0.15~+0.15)or (0~+0.3).
4. Can grinding and polishing the side and blading.
A. Over pressure sintering tungsten carbide plates have excellent red toughness,high hardness,good wear resistance,high elastic modulus,high strength,good chemical stability,acid,alkali,high temperature oxidation),Low impact toughness,low expansion coefficient,thermal conductivity,the characteristics of the conductive similar to iron and other alloy.
1. Having all kind sizes for your choose.
2. Sintere by vacuum sintering furnace and HIP machine with excellent specifications without any hole.
3. Supply blank plate with tolerance(-0.15~+0.15)or (0~+0.3).
4. Can grinding and polishing the side and blading.
Product Details
Specification
Grade | YG6 | YG6X | YG8 | YG11 | YG15 | YN6 | YN8 | YN12 |
Density (g/cm³) | 14.6-15.0 | 14.4-14.7 | 14.4-14.7 | 14.2-14.4 | 13.9-14.0 | 14.6-15 | 14.5-14.8 | 14-14.4 |
Hardness(HRA) | 89.5-91 | 90.2-91.5 | 89-90.5 | 87-88.5 | 86-88 | 89.5-90.5 | 89.0-90.0 | 87.5-88.5 |
TRS | 1800 | 1650 | 2200 | 2800 | 3300 | 1800 | 2200 | 2600 |
Application
1.YG6 - Qualified for finish machining and semi-machining for the cast iron, non-ferrous metal, alloy and unalloyed materials.Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc.
2.YG8 - Qualified for rough machining of cast iron, non-ferrus metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts.
3.YG15 - Qualified for hard rock drilling, steel bars with high compression ratios, pipe drawing, punching tools, core cabinet of powder metallurgy automatic molders etc.
Note:Welcome OEM&ODM.The size and purity can be customized as requirements.
2.YG8 - Qualified for rough machining of cast iron, non-ferrus metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts.
3.YG15 - Qualified for hard rock drilling, steel bars with high compression ratios, pipe drawing, punching tools, core cabinet of powder metallurgy automatic molders etc.
Note:Welcome OEM&ODM.The size and purity can be customized as requirements.
Advantage
Our Advantages：
-Metal Printing and carbide hybrid engineering
-Many carbide grades available
-Normal and abnormal shapes available
-Good wear rezistance
-Longer service lifetime
-Metal Printing and carbide hybrid engineering
-Many carbide grades available
-Normal and abnormal shapes available
-Good wear rezistance
-Longer service lifetime
Our Company
Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project,plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
Certificates

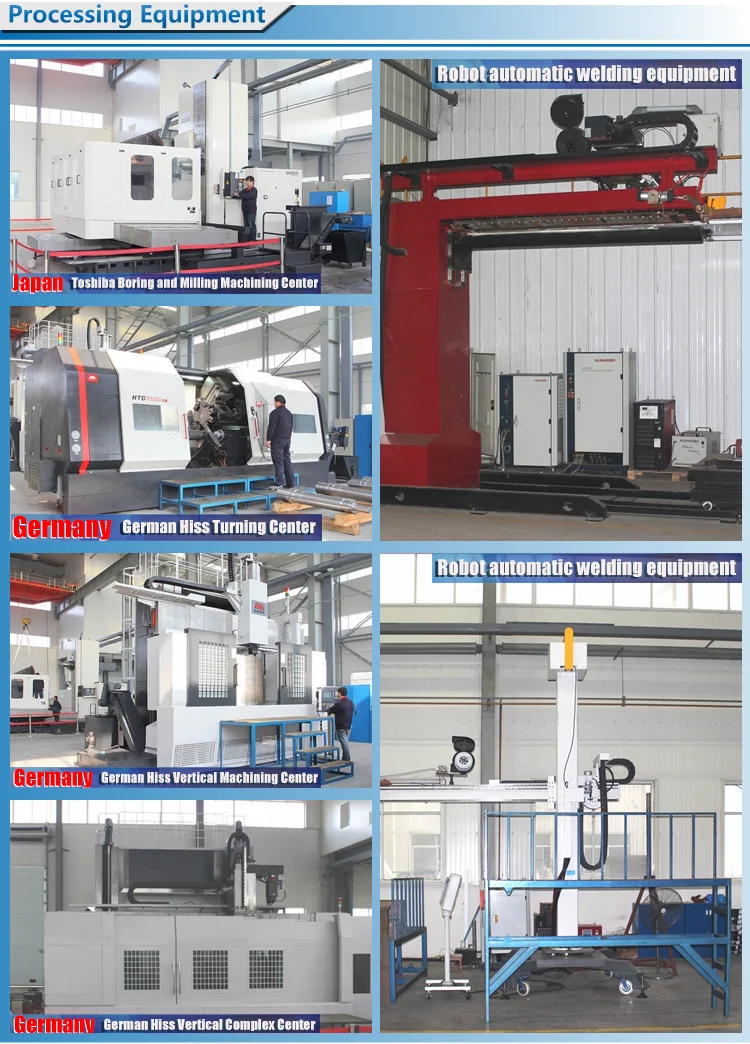

Processing Equipment
