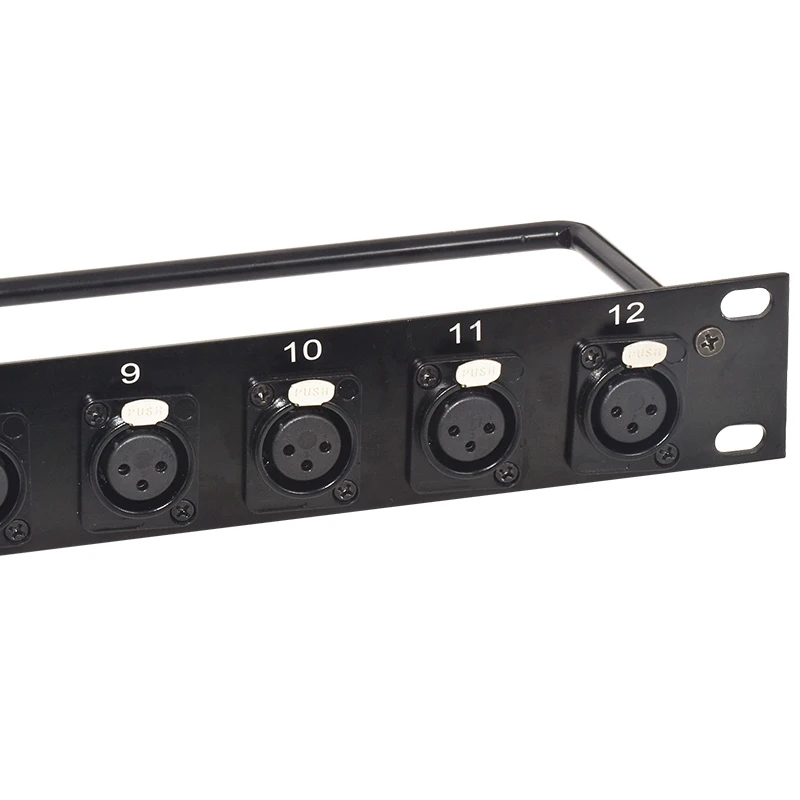

1U 12 Way 3Pin Мужской Женский XLR настенный патч-панель
- Категории: Patch Panel >>>
- Поставщик: DONGGUAN,DOSIN,PRECISION,INDUSTRY,CO.,LTD
Поделиться:
Описание и отзывы
Характеристики
For the Specific Price of Other Models,
Product Description

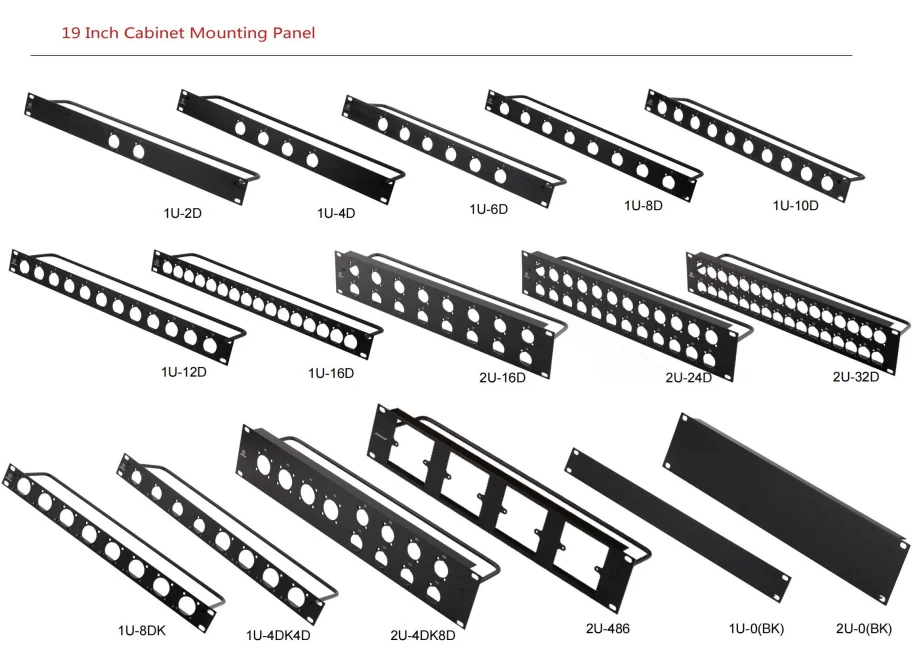

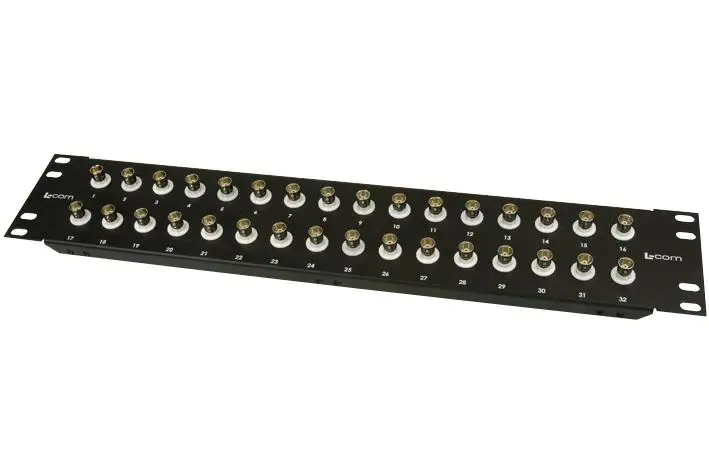

Full Series : Patch Panel
All types of Automotive Connector from OEM Manufacturer in China
Patch Panel is a device used in telecommunications, computer networks, and other communication systems to connect and manage various cables and devices. A patch panel usually consists of a frame and a series of slots in which are installed modular receptacles for connecting various cables and devices. The main function of the distribution frame is to provide a centralized, manageable, and scalable connection point for the transmission of data and signals in the communication system.
Product Features
1. Simplified management: Provides a centralized connection point for easy management and maintenance of various cables and equipment.
2. Improve reliability: It can reduce the connection between cables and equipment, thereby reducing the possibility of failure and signal interference.
3. Improve flexibility: cables and devices can be added or removed as needed, thereby improving the flexibility and scalability of the system.
4. Improve security: It can provide physical isolation and protection to prevent unauthorized access and damage.
2. Improve reliability: It can reduce the connection between cables and equipment, thereby reducing the possibility of failure and signal interference.
3. Improve flexibility: cables and devices can be added or removed as needed, thereby improving the flexibility and scalability of the system.
4. Improve security: It can provide physical isolation and protection to prevent unauthorized access and damage.
Name | Patch Panel |

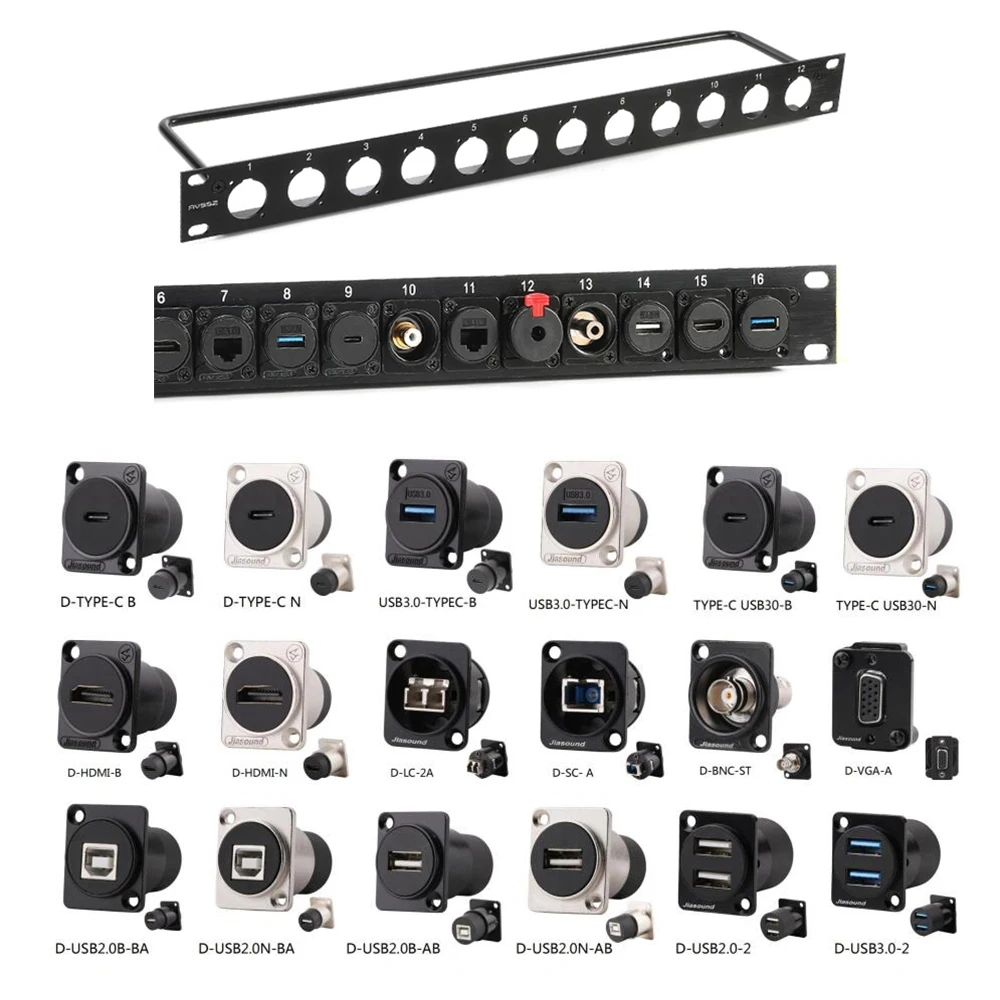

Connector Type | XLR / BNC / VGA / DB etc. |
Frame | SPCC |
Insulation Resistance | ≥500 Ω |
Contact Resistance | ≤10 Ω |
Conductor DC Resistance | ≤ 0.1 Ω |
Withstanding Voltage | DC 1000 Volts, AC 750 Volts |
Durability | ≥1000 times |
Contact Pressure | ≥ 1 Newton |
Holding Force (lifting weight) | ≥ 5 kg |
Working Temperature | -10℃ ~ +60℃ |
Working Humidity | 10℃ ~ 90℃ |
Storage Temperature | -40℃ ~ +68℃ |
If You Still Not Found a Suitable Product, Please Contact Us>>
Applications
1. Telecommunications system: used to connect telephone lines and telephone equipment, including telephone exchanges, telephone exchanges, telephone rooms, etc.

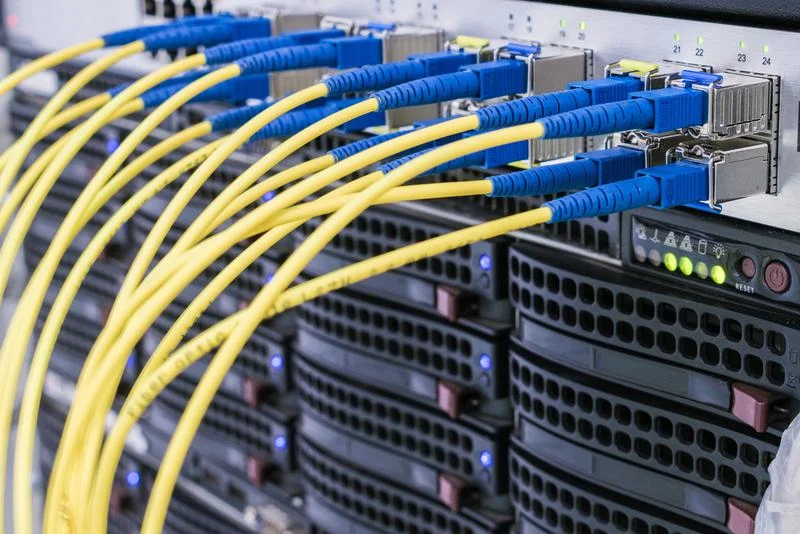

2. Computer network: used to connect computer networks and other data communication equipment, including data centers, computer rooms, offices, etc.
3. Broadcast TV: used to connect TV signals and TV equipment, including TV stations, TV broadcasting centers, cinemas, etc.
4. Security monitoring: used to connect monitoring cameras and monitoring equipment, including monitoring centers, security control rooms, public places, etc.
5.Suitable for voice, broadcasting, audiovisual imaging, laboratory, LMR, wireless LAN, and other RF electronic devices.
2. Computer network: used to connect computer networks and other data communication equipment, including data centers, computer rooms, offices, etc.
3. Broadcast TV: used to connect TV signals and TV equipment, including TV stations, TV broadcasting centers, cinemas, etc.
4. Security monitoring: used to connect monitoring cameras and monitoring equipment, including monitoring centers, security control rooms, public places, etc.
5.Suitable for voice, broadcasting, audiovisual imaging, laboratory, LMR, wireless LAN, and other RF electronic devices.
Our Factory
Dongguan Dosin Hardware Electronics Co., Ltd.
Was established in 2008, and specializes in design, development and manufacturing in RF Coaxial Connectors ,RF cable assemblies, RF adapters, antenna series, Fiber optical cable assemblies and other custom made connectors.
Our company covers more than 20000 square meters, with well-equipped workshop, automatic production lines, andhundreds of employers. Since our establishment, our products and services have received a good reputation home and abroad. So far,we have built business relations in many countries, 70% products being sold to all over the world.
Our company adheres the business philology of "hardworking, pragmatic, innovation, excellence" and values "trust, quality,service, Thanksgiving" to make constant effort to prefect our products. The company is ISO9001 certificated,and the products are RoHS, REACH compliant. If you are interested in our company or our products, please contact us. We will be here to response youthe first around.
We promise you the top-quality and the most cost-effective products and services. Looking forward to cooperate with you!
Stamping Workshop
Insert Metal Plate between the top and bottom mold, and then apply pressure to cut the plate. Ideal for mass production as high production capacity with only one die mold.
Die Casting Workshop
Forcing the molten metal under high pressure into a mold cavity. In DOSIN, this workshop is main for die casting moulding to make Zinc Alloy or Aluminium Alloy parts.
Injection Moulding Workshop
Injection moulding requires to transfer the polymeric material in powder or granule form from a feed hopper to a heated barrel. And then the plastic melted and injected into a mould. This process is automated, so the production capacity is high.
Lathe Turning
Lathe is used to remove unwanted material from a cylindrical workpieces by machine tool. We used lathe to produce copper parts and insulators (like Teflon). No mould required for this process. The production capactity limited by products' structure and quantity of machine.
FAQ
1. Manufacturer or trader?
We have been owning a factory since established in 2005. The factory keeps developing as our business grows larger.
We have been owning a factory since established in 2005. The factory keeps developing as our business grows larger.
2. What's your MOQ?
Normally our MOQ is 200pcs. Small order is also available.
3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.
4. How is your product quality?
Normally our MOQ is 200pcs. Small order is also available.
3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.
4. How is your product quality?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. Renhotec always care what you care!
5. What's the warranty?
One year, 12 months.
