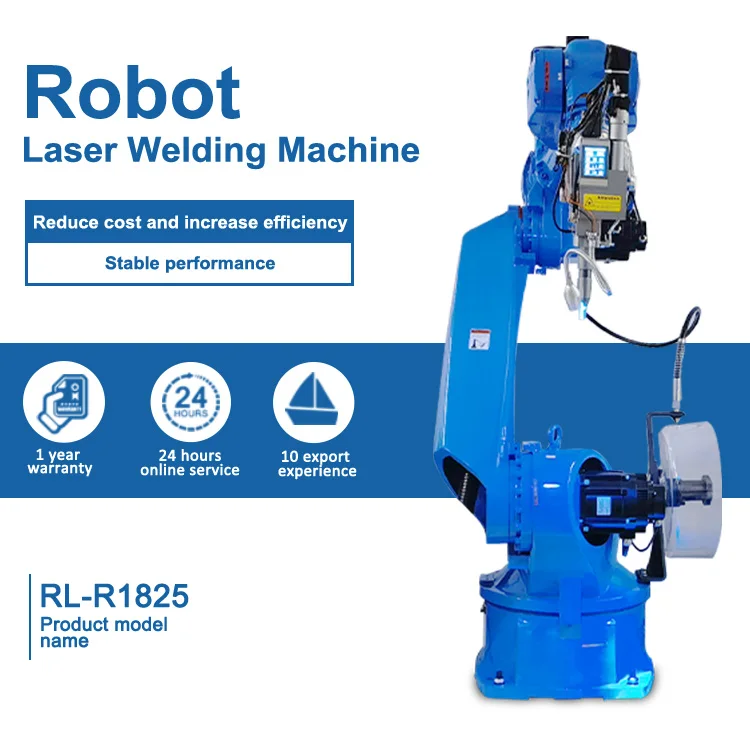

Автоматизация ЧПУ шесть оси робот сварочное оборудование Роботизированный лазерный сварочный аппарат пользовательский
- Категории: >>>
- Поставщик: Riselaser,Technology,Co.,Ltd.Riselaser,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Parameters
Model | RL-R1825 |
Number of axes | 6 axis |

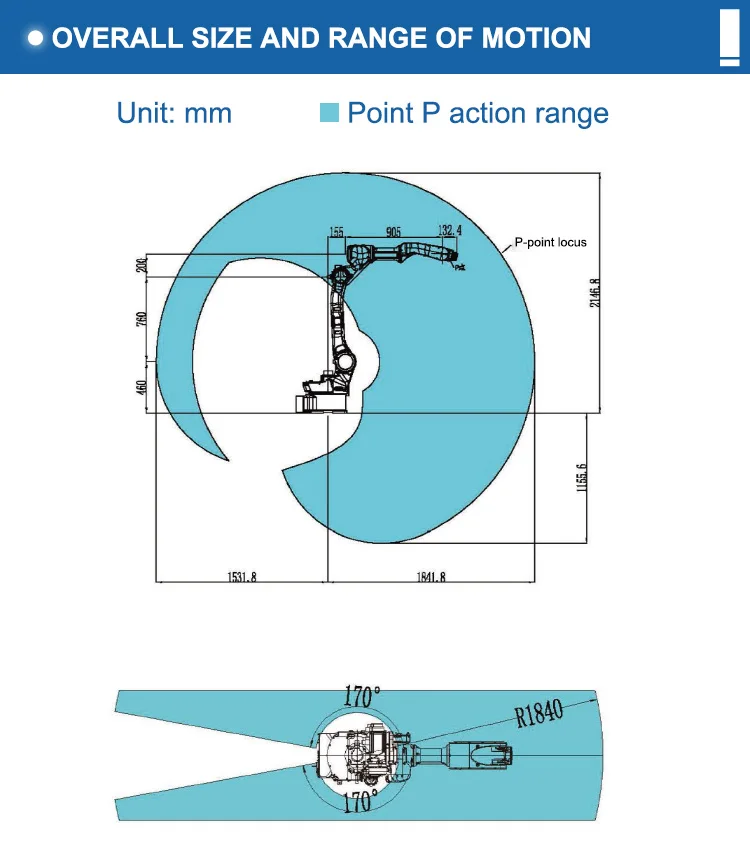

Radius of motion | 1840mm |

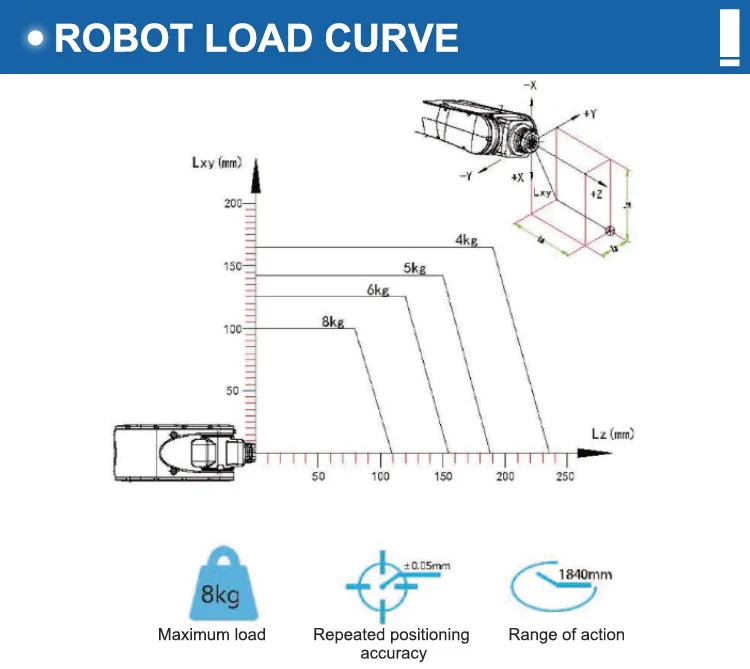

Payload | 8KG |
Degree of protection | J1J2 axis IP56 (J3, J4, J5, J6 axis IP67) |
Installation method | Floor, wall-mounted, tilted, upside-down |
Battery capacity | 4.5KVA |
Input/output signal | Standard 16 in/16 out 24VDC |
Robot weight | 180KG |
Repeatability | ±0.08 |
Range of motion | |
1 axis S | ±160° |
2 axis L | +80 to -145° |
3 axis U | +145° to -75° |
4 axis R | +190° |
5 axis B | +50 to -210° |
6 axis T | ±360° |
Movement speed | |
1 axis S | 133°/s |
2 axis L | 149°/s |
3 axis U | 149°/s |
4 axis R | 315°/s |
5 axis B | 245°/s |
6 axis T | 376°/s |

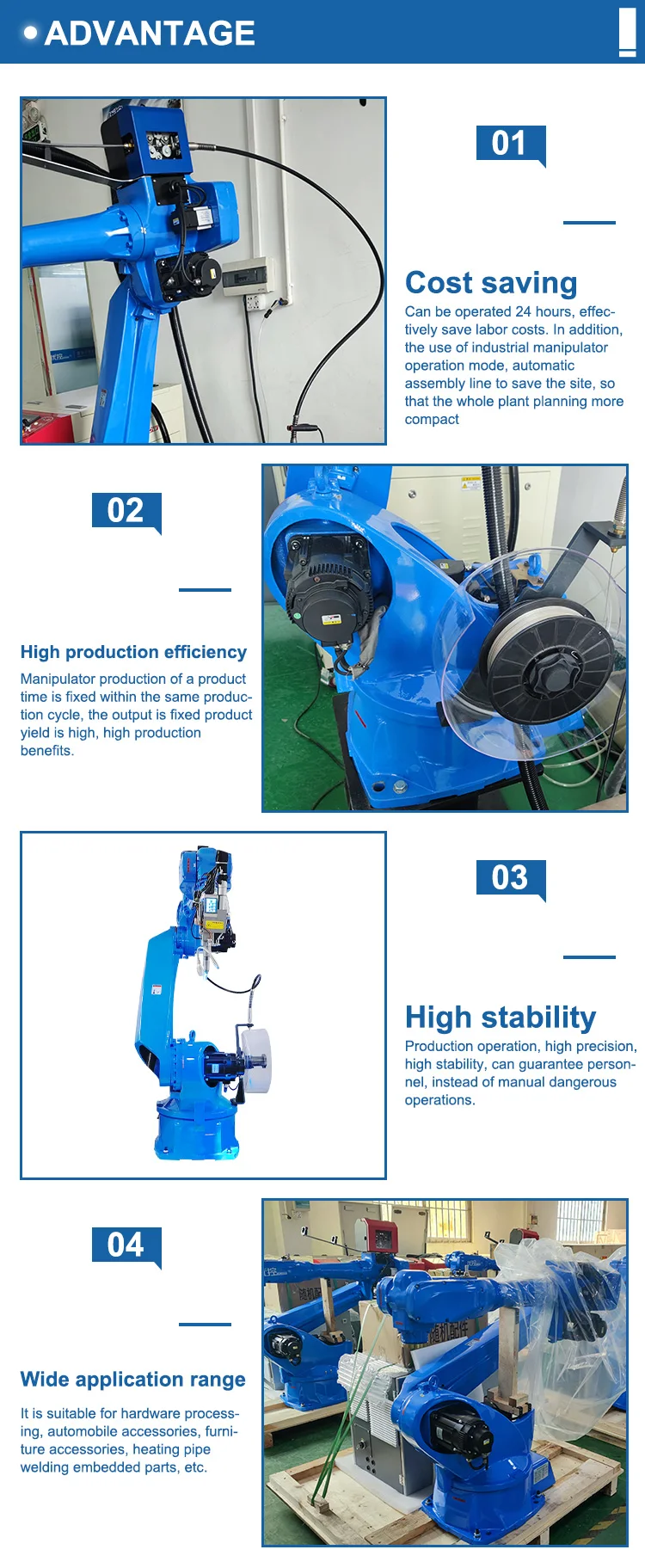

Application field | Loading and unloading, spraying, handling, packaging, cutting |
4 axis R(N.m) | 103.5 |
5 axis S(N.m) | 51.84 |
6 axis T(N.m) | 32.64 |
Built-in trachea | Φ10 |
Installation environment | Temperature 0-45°C,Humidity 20~80%RH (no condensation) vibration acceleration below 4.9m/S (0.5G) altitude below 1000m |
Other non-flammable, corrosive gases, liquids, no splashing water, less oil, dust away from electromagnetic sources and away from magnetic fields |
1.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded
1-8mm thick metal materials.
4.Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded?
Yes, it can.
6.Packaging
All our machines are packed in wooden boxes.
7.Language interface
Supports language customization, etc. You can also translate and insert to software.
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded
1-8mm thick metal materials.
4.Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded?
Yes, it can.
6.Packaging
All our machines are packed in wooden boxes.
7.Language interface
Supports language customization, etc. You can also translate and insert to software.
