Chassis parameters | ||||||||||
Chassis model | ZZ1257N4341W | Chassis brand | SINOTRUK | |||||||
Overall dimensions | 9800X2496X3048mm | Wheel base | 4325+1350mm | |||||||
Front/rear wheel track | 2022, 1830/1830mm | Front/rear suspension | 1500, 2600mm | |||||||
Approach/departure angle | 16/15° | Maximum speed | 90km/h | |||||||
Chassis Manufacturer | China National Heavy Duty Truck Group Co.,Ltd | |||||||||
Cab | Configuration | HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers | ||||||||
Color | White, other color is optional | |||||||||
Engine | Model | WD615.69 | ||||||||
Emission | Euro 2 | |||||||||
Type | 6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine | |||||||||
Rated power | 336hp, rated power speed 2200rpm | |||||||||
Displacement | 9726ml | |||||||||
Max.torque | 1350N.m | |||||||||
Bore x stroke | 126x130mm | |||||||||
Manufacturer | China National Heavy Duty Truck Group Co.,Ltd | |||||||||
Tire | Size | 12R22.5 tubeless tire | ||||||||
Number | 10+1 nos | |||||||||
Clutch | φ430 diaphragm clutch | |||||||||

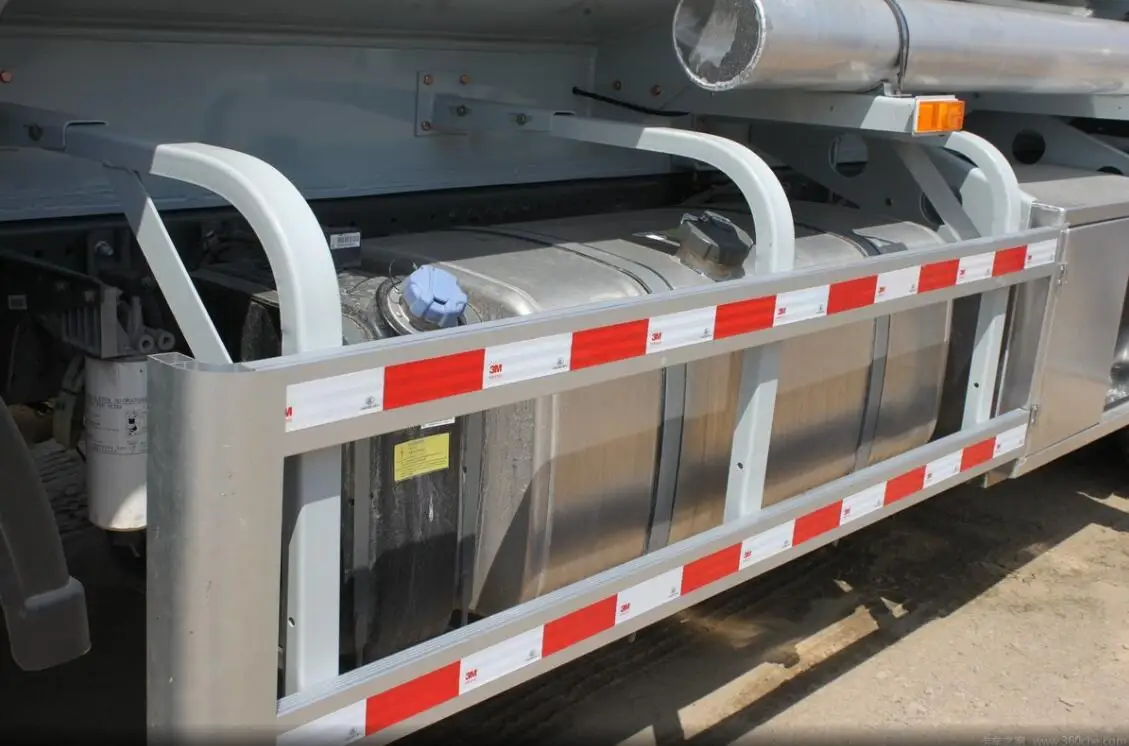

Fuel tank | 400L iron oil tank | |||||||||
Front axle | HF 7 tons | |||||||||
Rear axle | ST 16 tons | |||||||||
Drive form | 6X4 | |||||||||

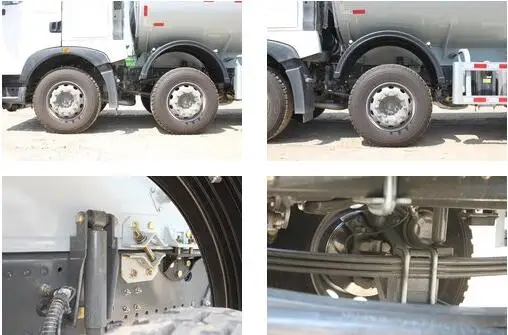

Suspension | Multi leaf springs | |||||||||
Rated voltage | 24V, DC | |||||||||
Transmissions | gearbox HW19710, 10 speed forward 2 reverse. | |||||||||
Steering device | Power assisted steering |
