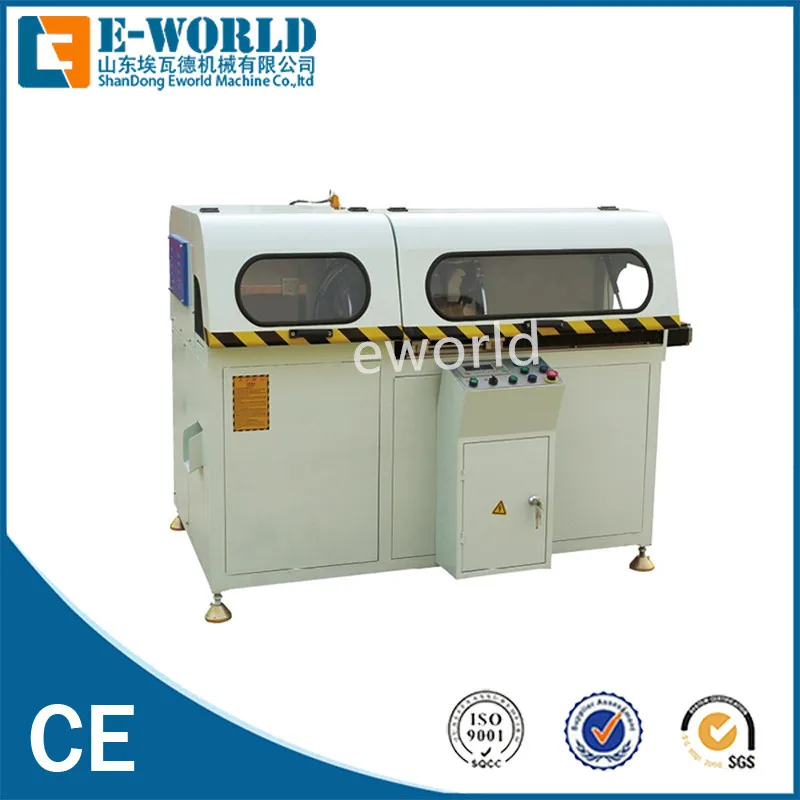

Automatic Aluminum profile corner connector cutting saw
Products Description
It is a full automatic machine specially used to cut the profiles of aluminum doors and windows at angles.
2). After you manually install the profiles, all the other operations are automatic there is of cut quantity the main spindle of
machine is manufactured by the specialized manufacturer of main spindle of the machining center, the guiding and clamping device
ensures no residual sharp comers even in cutting 3mm long comers.
3). Hydraulic damping cylinder is equipped to drive the feeds for cutting the machine body adopts integral construction with good
rigidity.
4). This model can cut the max. Width is 140 mm aluminum corner connector profile, if your width is more than this 140 mm, you can
tell me, I can give you the other models.
5). Before you buy the machine, please make sure then tell me your local power supply, then we can make the right according to
your true voltage.
2.Technical parameters
2). After you manually install the profiles, all the other operations are automatic there is of cut quantity the main spindle of
machine is manufactured by the specialized manufacturer of main spindle of the machining center, the guiding and clamping device
ensures no residual sharp comers even in cutting 3mm long comers.
3). Hydraulic damping cylinder is equipped to drive the feeds for cutting the machine body adopts integral construction with good
rigidity.
4). This model can cut the max. Width is 140 mm aluminum corner connector profile, if your width is more than this 140 mm, you can
tell me, I can give you the other models.
5). Before you buy the machine, please make sure then tell me your local power supply, then we can make the right according to
your true voltage.
2.Technical parameters
Product Paramenters
Model number | LJJZ-450 |
Power supply | 380V 50Hz |
Cutting motor power | 1.5 kw |
Operation air pressure | 0.4 ~ 0.6Mpa |
Blade rotational speed | 2850r/min |
Saw blade specification | 450mm |
Cutting length | Min3mm Max60mm |
Contour dimension (L×W×H) | 5100*1100*1600mm |
Cutting width × height | 120*150mm |
Machine weight(about) | 700kg |

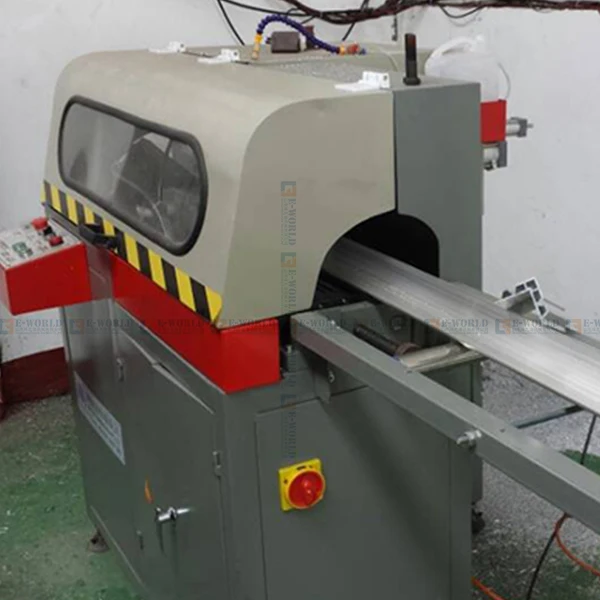

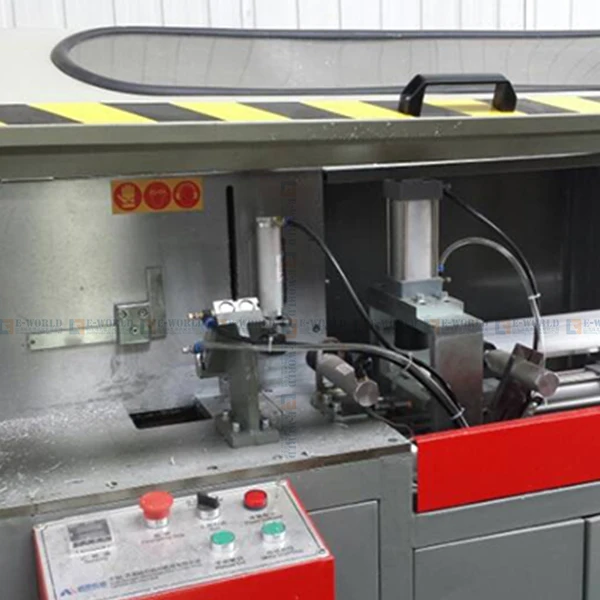

Details Images
