My friend,Welcome to Shandong HENGWANG Group Co., Ltd.

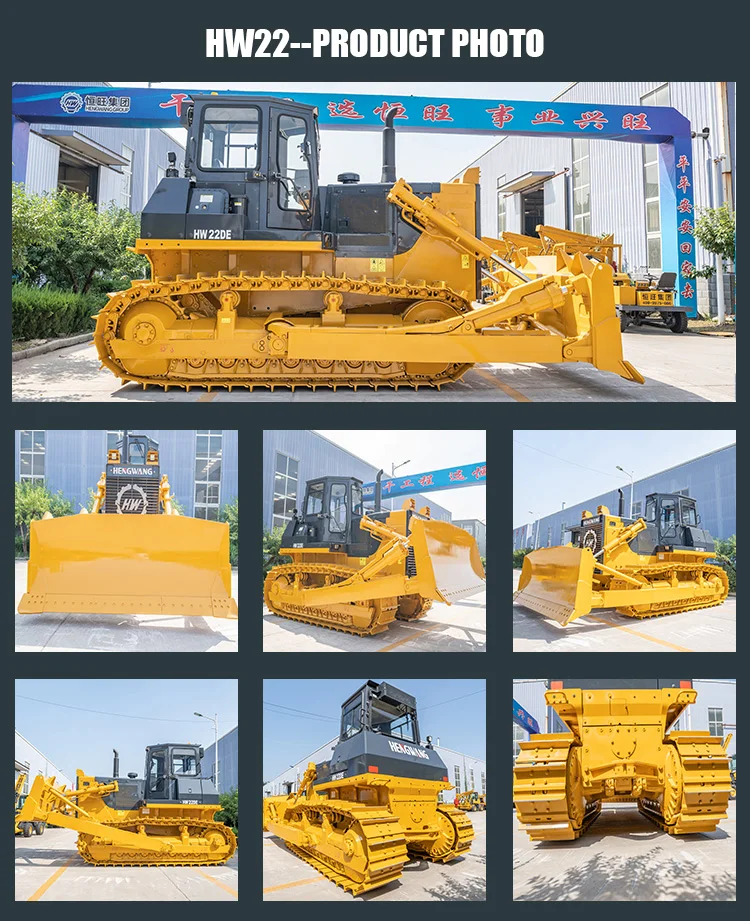

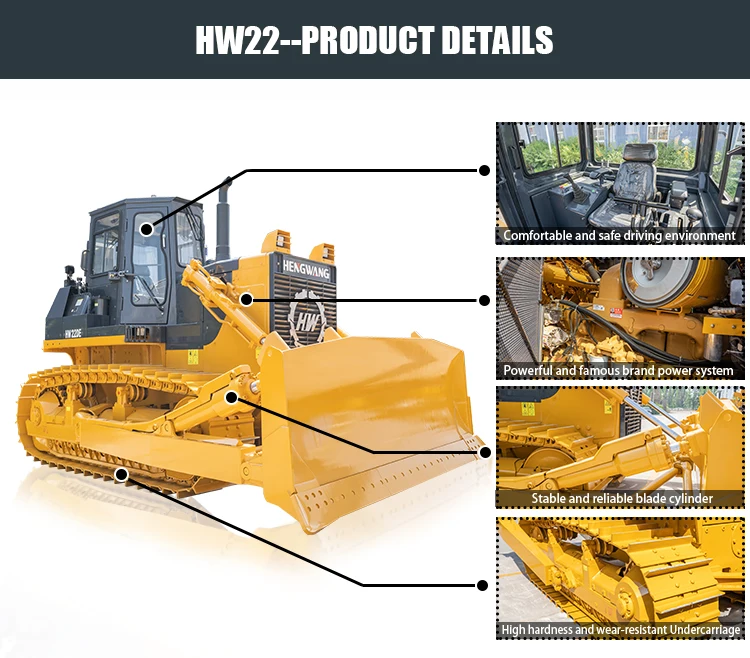

HW22 (Standard version)Bulldozer | |||
Operating weight (Kg) | 23450( With tow frame) | Chain track pitch (mm) | 215.9 |
Minimum turning radius (mm) | 3300 | Number of rollers (one side) | 6 |
Ground specific pressure (kpa) | 0.077 | Number of supporting wheels (one side) | 6 |
Engine model | NT885-C280S10/Customization | Fuel tank (L) | 450 |
Rated power/rated speed (kW/rpm) | 175/1800 | Working hydraulic tank(L) | 110 |
Overall dimensions of machine (mm) | 5750*3725*3402 | Blade type | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade |
Forward speed (km/h) | F1:0-3.6 F2:0-6.5 F3:0-11.2 | Blade Capacity (m³) | 4.5/4.3/Customization |
Reversing speed (km/h) | R1:0-4.3 R2:0-7.7 R3:0-13.2 | Ripper type | Single-shank three-shank |
Track center distance (mm) | 2000 | Ripping depth (mm) | 695 (Single-shank) and 666 (Three-shank) |
Track shoe width (mm) | 560 | Winch type | Hydraulic winch/Customization |
Number of track shoes(one side/piece) | 38 | Winch motor model | INM7-3600D480111/Customization |
Advantage:

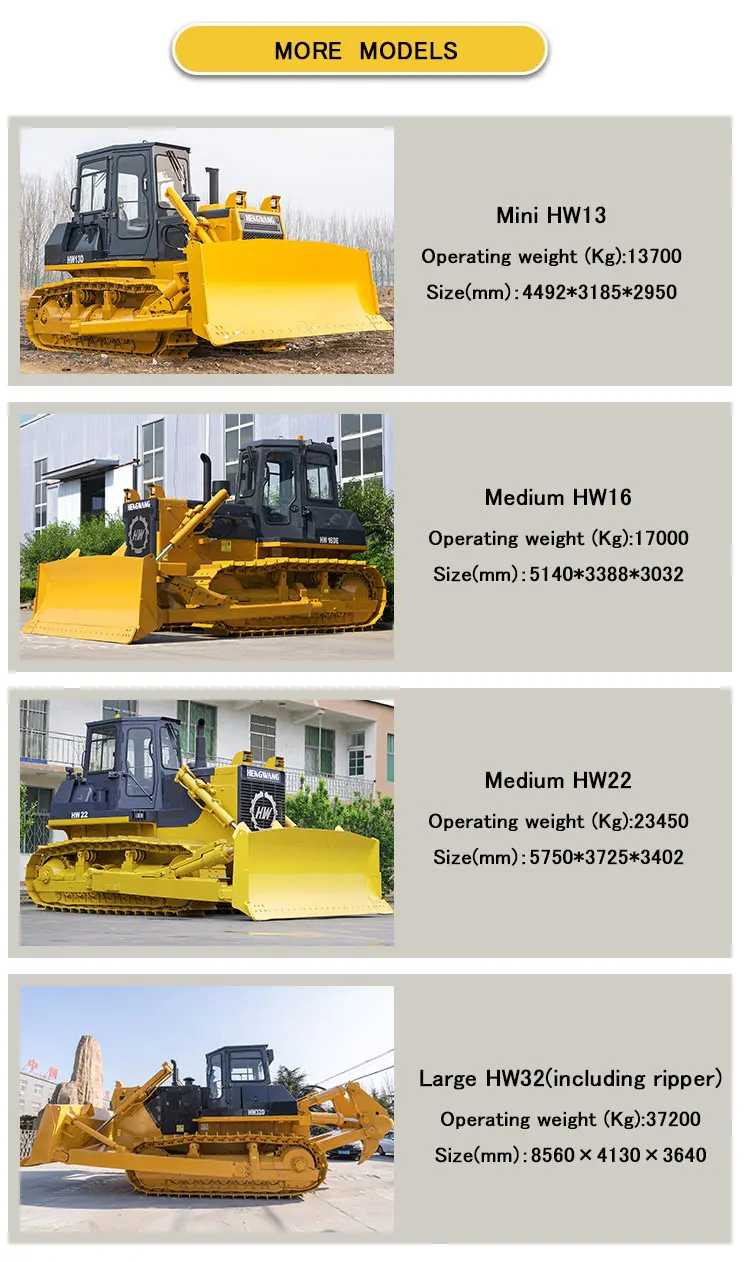

The HW13,HW16 ,HW22 and HW32bulldozers have reinforced chassis, arms, and blades, which can handle the most challenging large obstacles, such as large rocks and boulders.
*The blade is thicker, and the arm coating is improved to enhance strength and durability.
*It is particularly suitable for heavy mining applications.
*It is one of the best-selling products of Hengwang in Africa, where large-scale mining is prevalent.
*Widely used in mining, rock, coal, wetland, farm, water conservancy, power station, scrap station, transportation and other use scenarios.

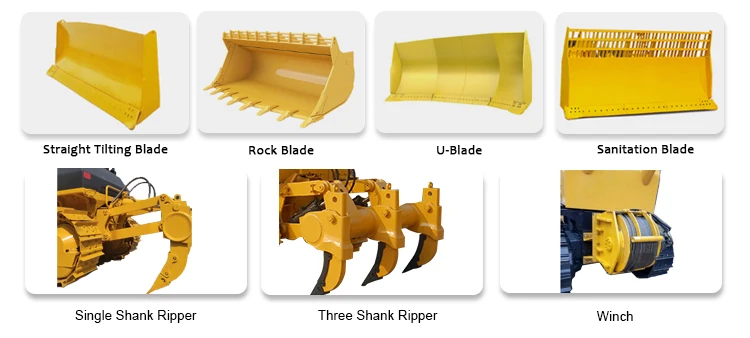

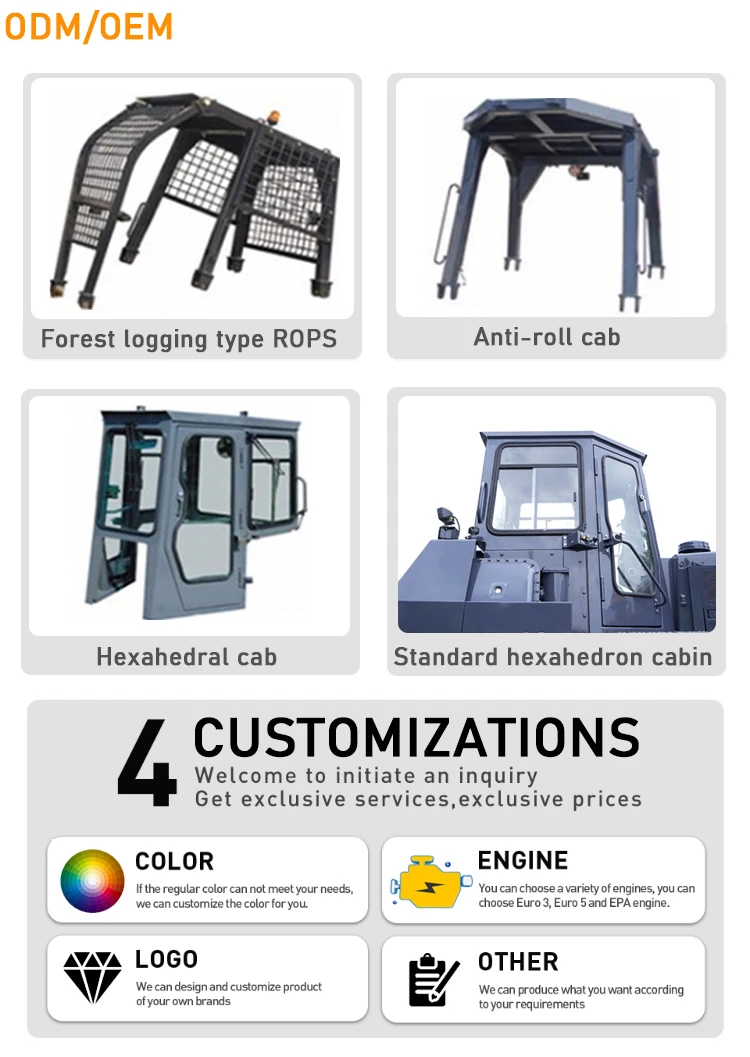

Optional Attachment

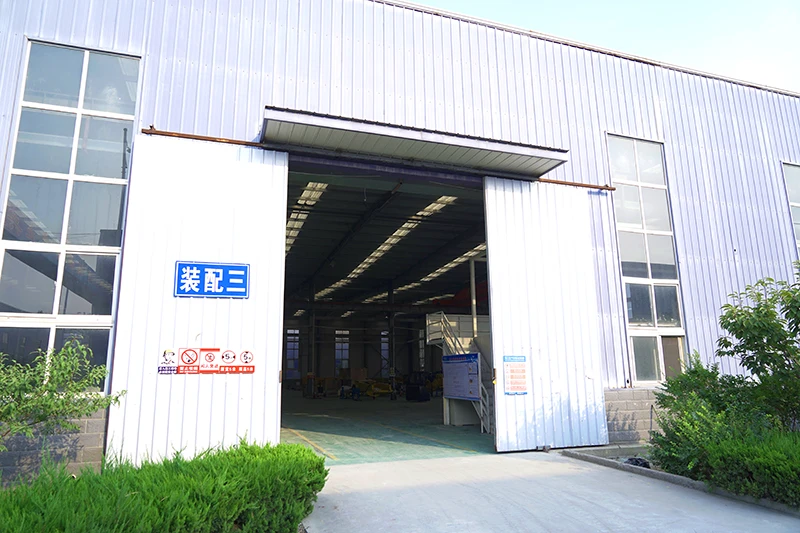

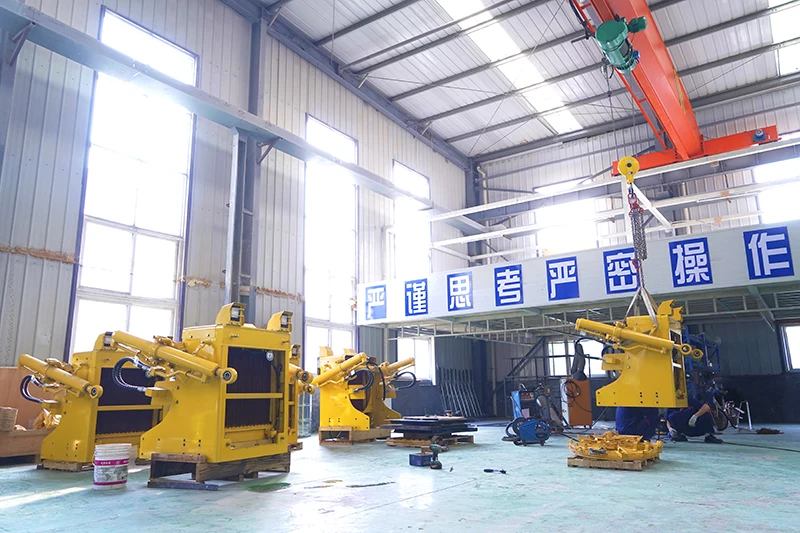

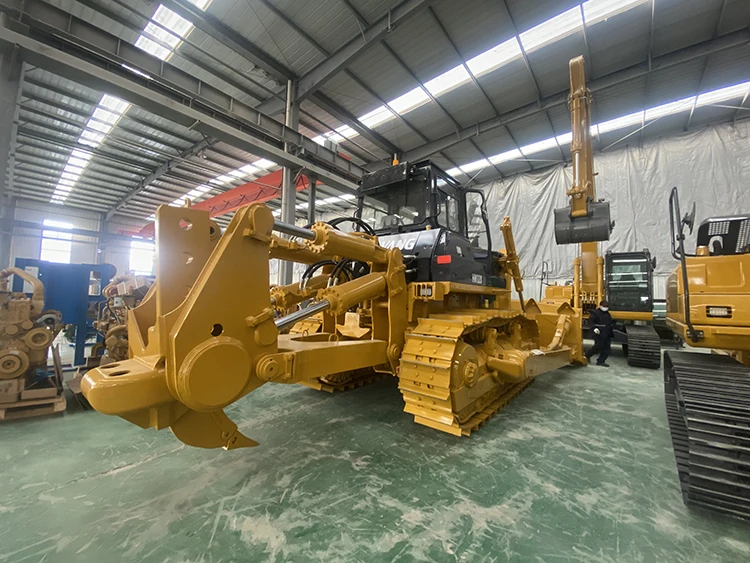

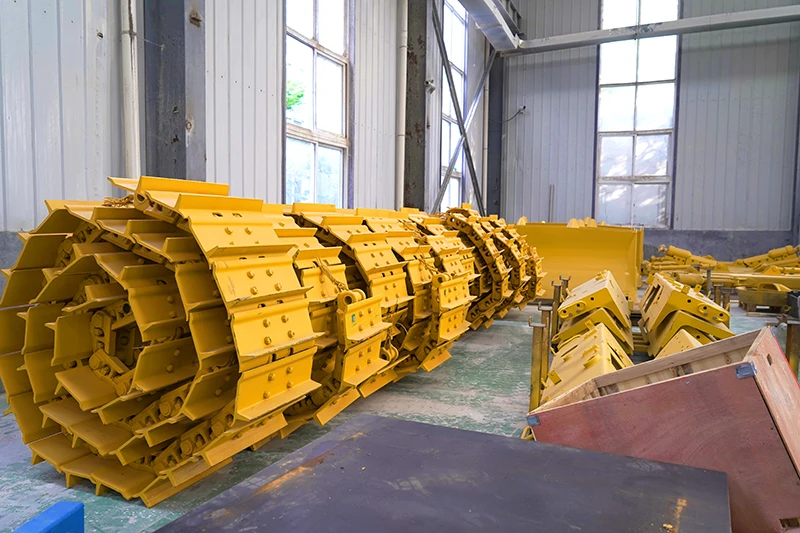

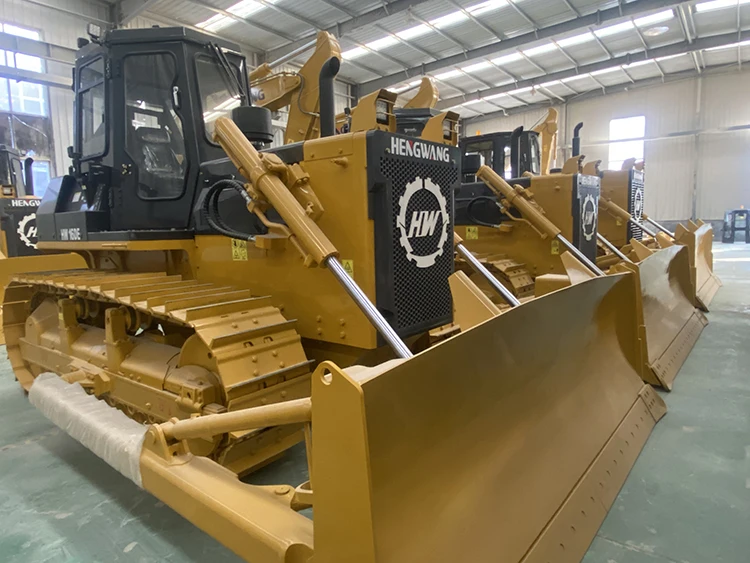

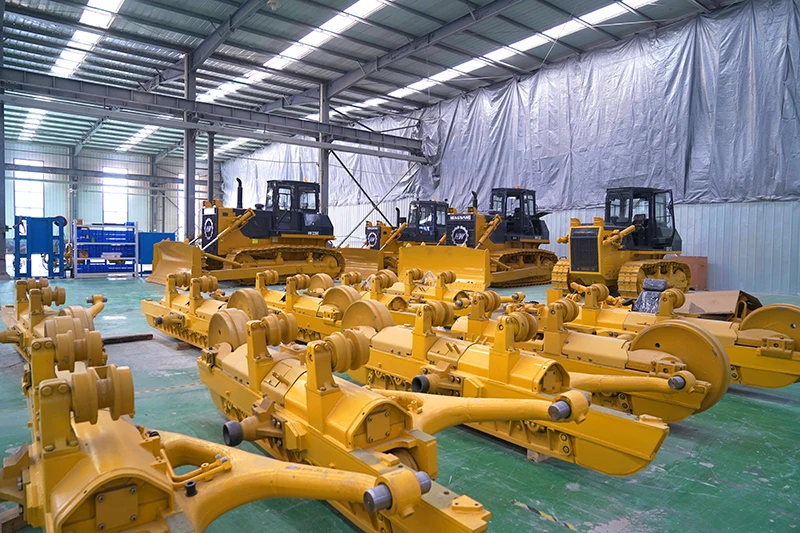

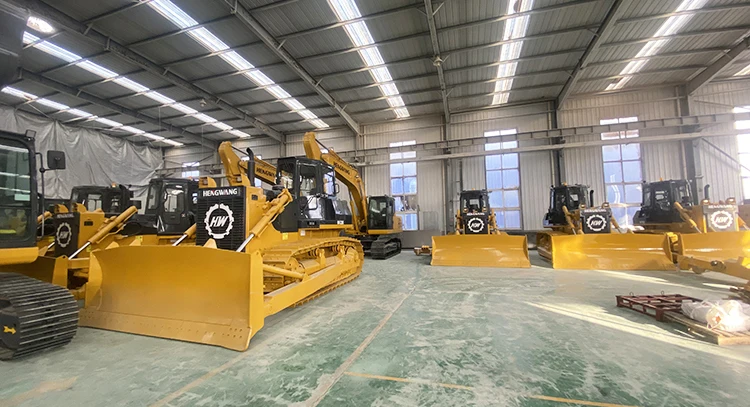

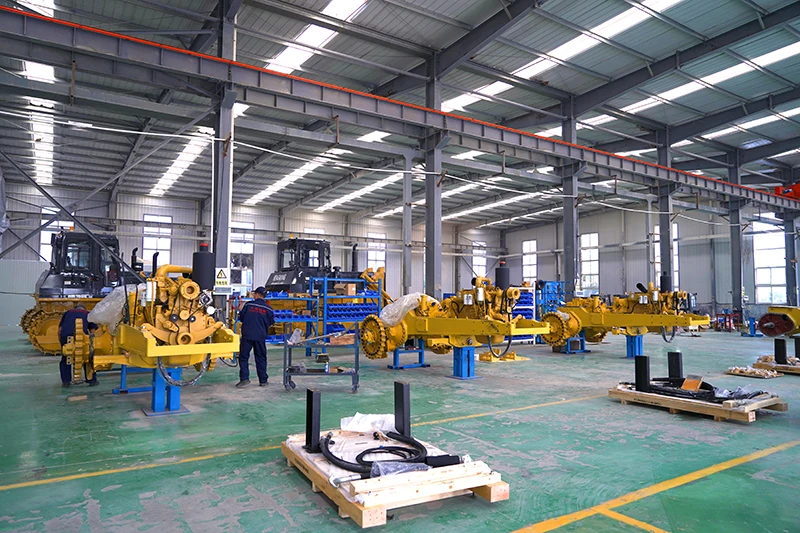

Bulldozer Operation Workshop

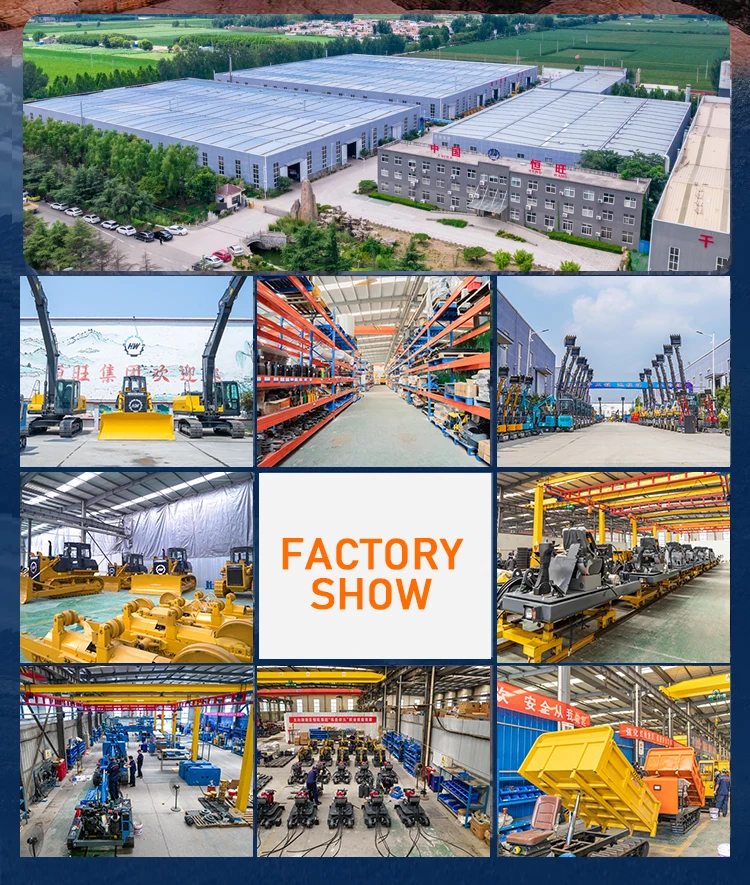

Our factories have passed the certification of relevant organizations.
For example, ISO and so on.
Products have also passed CE, EPA certification and so on.
Advantage:
1:Over 10 Years'Foreign Trade Experience
2:Rich experience in sea transportation
3:Professional and enthusiastic salesman
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
We have received more than 1000 clients and training engineers from more than 100 countries around the world
Support land transportation such as roads and railways, ocean transportation, and air transportation.
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Pre-sale service
Dear friends, before the sale, we will fully understand your needs, according to your machine requirements and your budget, choose the right model for you, to ensure that you buy high-quality products at a lower price.
At the same time, you are welcome to visit our factory.
After-sale service
*Warranty
