Product Description


Hydrogen Storage Solutions
Rubri provides hydrogen storage solutions for different usage scenarios, such as low pressure hydrogen storage and high pressure hydrogen storage.






In addition, Rubri can fully customize products according to customer requirements and provide a wide range of products.


Product I--Metal Hydride Tank





Low pressure hydrogen storage, with good safety and high storage-density, makes hydrogen storage , hydrogen filling, and hydrogen moving much easier.
With small size and good hydrogen storage capacity, metal hydride tanks are suitable for multiple usage scenarios that requires hydrogen storage,  such as hydrogen bike, hydrogen motorcycle, portable hydrogen power station, hydrogen robot, hydrogen demo system etc.


Metal Hydride Tank
SN.
Model NO.
Tank Length
Storage Capacity
Filling pressure
Ambient temperature
1
CHMH60-A1
365 mm
>33g




3.5 MPa




        - 20~70°C
2
CHMH70-A1
400 mm
>55g
3
CHMH89-A1
450 mm
>85g
4
CHMH140-A1
670 mm
>350 g
5
CHMH160-A1
870 mm
>615g
6
CHMH203-A1
1000 mm
>1230 g

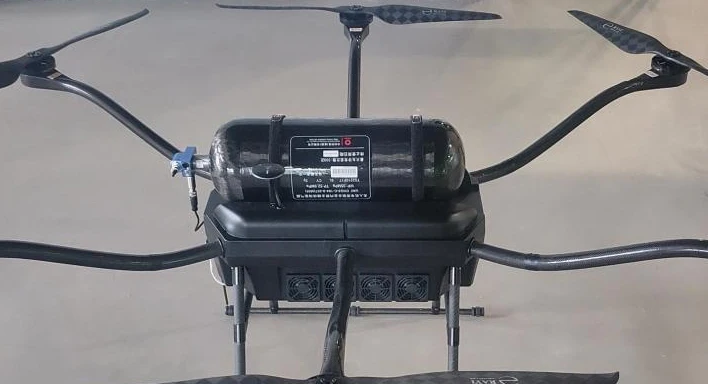

Product II--Small Hydrogen Storage Tank



Rubri supplies small size and light weight Type III carbon fiber composite high pressure hydrogen tank, which is specially designed for hydrogen robots, hydrogen motorcycles and other small hydrogen powered vehicles.


Small Hydrogen Storage Tanks
Outer
Diameter(mm)

Volume(L)
Length(mm)
 (valve not included)
Weight(kg) (accessories not included)
Working Pressure (MPa )

Cylinder port
152±2
5
395±6
1.85
35
M18*1.5
173±2.2
9
528±6
2.85
35
M18*1.5
196±2.3
12
540±6
3.85
35
M18*1.5
230±2.7
20
655±6
7
35
M18*1.5

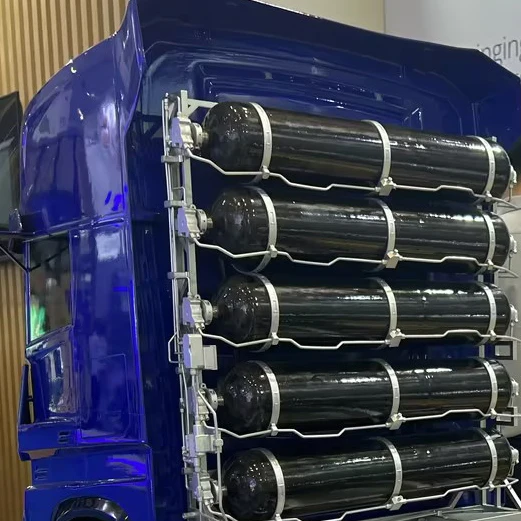

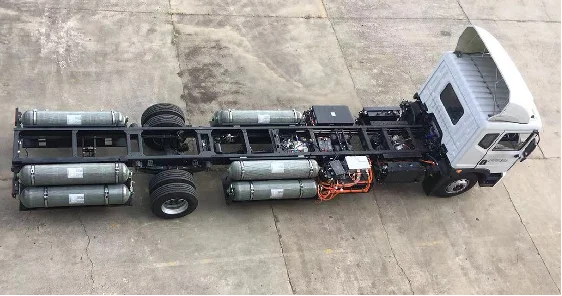

Product III--Hydrogen Tank for Automobiles


Rubri supplies carbon fiber composite high pressure hydrogen tank for hydrogen automobiles.
Rubri provides multiple options:
1.Type III/Type IV;
2. 35Mpa / 70Mpa ;
3. GB/ EC79 / R134 standard.
Rubri can also supply hydrogen tank system according to customers' specific requirements.




Hydrogen Storage Tank For Automobiles

Model
Outer Diameter
(mm)
Water Volume
(L)
Length without Valve
(mm)
Nominal weight
（Without accessories)(kg）
Working Pressure
(MPa )
CHG3-372-162-35S/A
410
162
1800
85
35
CHG3-370-165-35T/A
406
165
1800±10
96
35
CHG3-390-210-35S/A
422
210
2120
115
35
CHG3-370-320-35T/A
408
320
3400
180
35
CHG3-344-140-35 S/A
370
140
1800
80
35
CHG3-382-210-35 S/A
420
210
2210
120
35
CHG4-580-390-35 S/A
580
390
2060
147
35
CHG3-358-134-70 S/B
410
134
1775
135
70

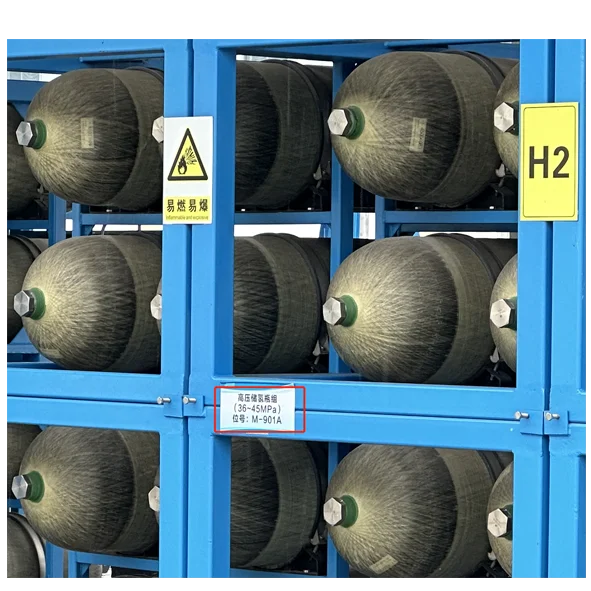

Product IV--Stationary Hydrogen Storage Tanks




Rubri provides multiple options for high pressure hydrogen storage tanks, such as 20Mpa, 30Mpa, 35Mpa, 45Mpa, 90Mpa etc. Tanks can get certified as customers' required.




Product V-- Hydrogen Tube Bundle for Hydrogen Transport




Rubri also supplies skid mounted hydrogen tube bundles, which is to be installed on trailers for hydrogen transport. Hydrogen tube bundles can get certified as customers' required.



Company Profile




Hefei Sinopower Technologies Co., LTD., founded in 2011, has been committed to integrating global high-quality resources and supporting the development of China's clean energy industry. The company develops and distributes all kinds of products in the hydrogen energy industry chain, including but not limited to hydrogen production, hydrogen storage, hydrogen supply, electric maintenance and BOP parts, fuel cell system assembly, fuel cell vehicles,etc.
We have an experienced professional technical research and development team, and can provide from the design, product custom development and technical support and other professional services. We work with the University of Science and Technology of China, the University of Auckland, Peru National University, Jilin University, Wuhan University of Technology, Zhongshan University and other domestic and foreign universities and research institutions.
At the same time, our products are exported to the United States, Russia, the Netherlands, Italy, Germany, South Korea, India,Malaysia and other dozens of countries and regions.
