Product Description
Solar Tracker For Roof
The new design of solar tracker for roof was mounted on roof, it equipped with slewing drive and linear actuator, which can bring the solar panels swivel horizontally and pitch moving by the axis, tracking the sun automatically in real time to make the sunlight perpendicular to the solar panel as much as possible, to achieve the maximum light intensity and improve the efficiency of power generation.

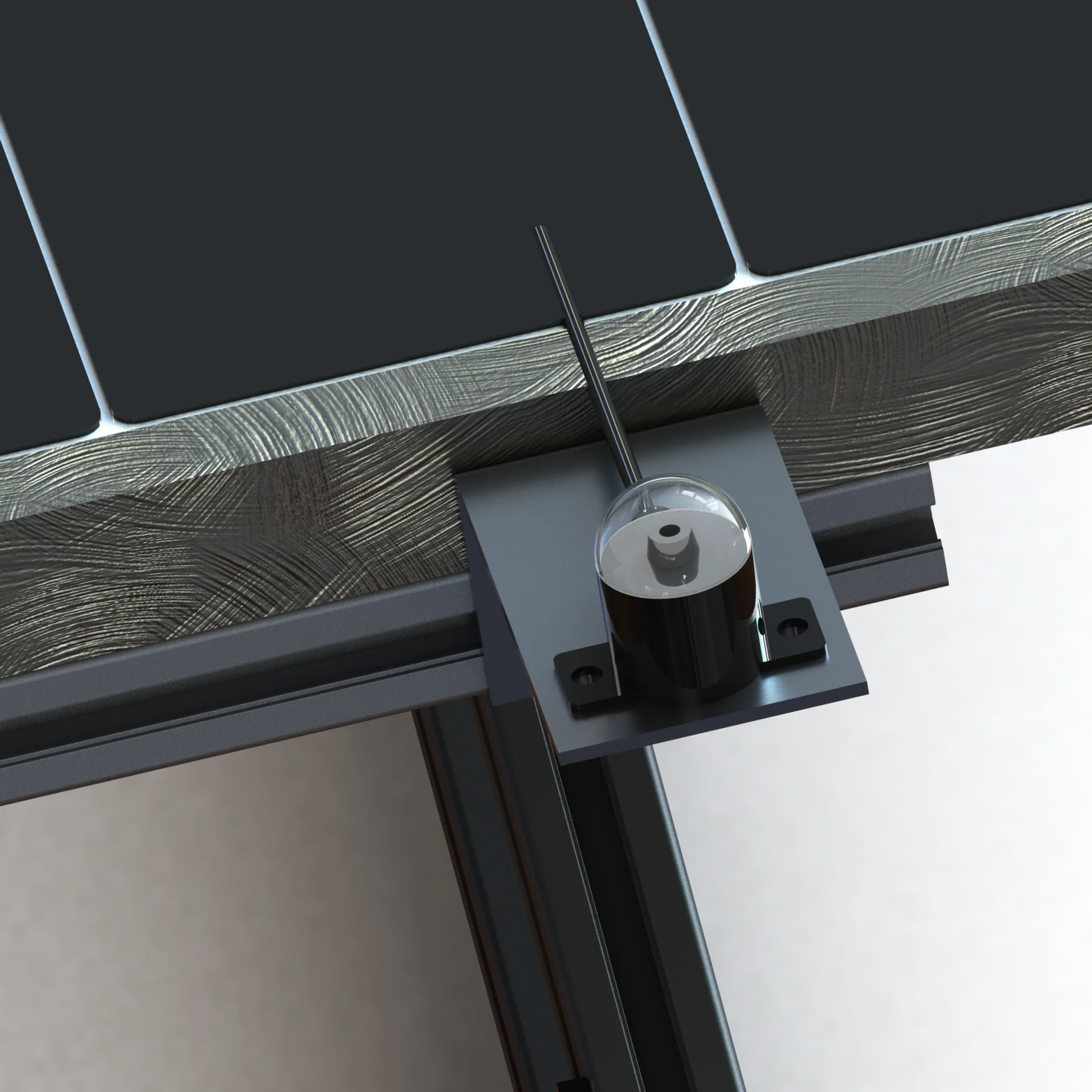

Light Sensor
The bracket tracking the sun with light sensors, which will detect the light intensity of different area of the solar panels, and
find the right angle to receive the most light, so to improve the generation rate.
find the right angle to receive the most light, so to improve the generation rate.
Note: The light sensor only works when there is sufficient sun light, when there is not adequate sunlight, and not worth to
track, the tracker will not moving until sunshine again.
track, the tracker will not moving until sunshine again.

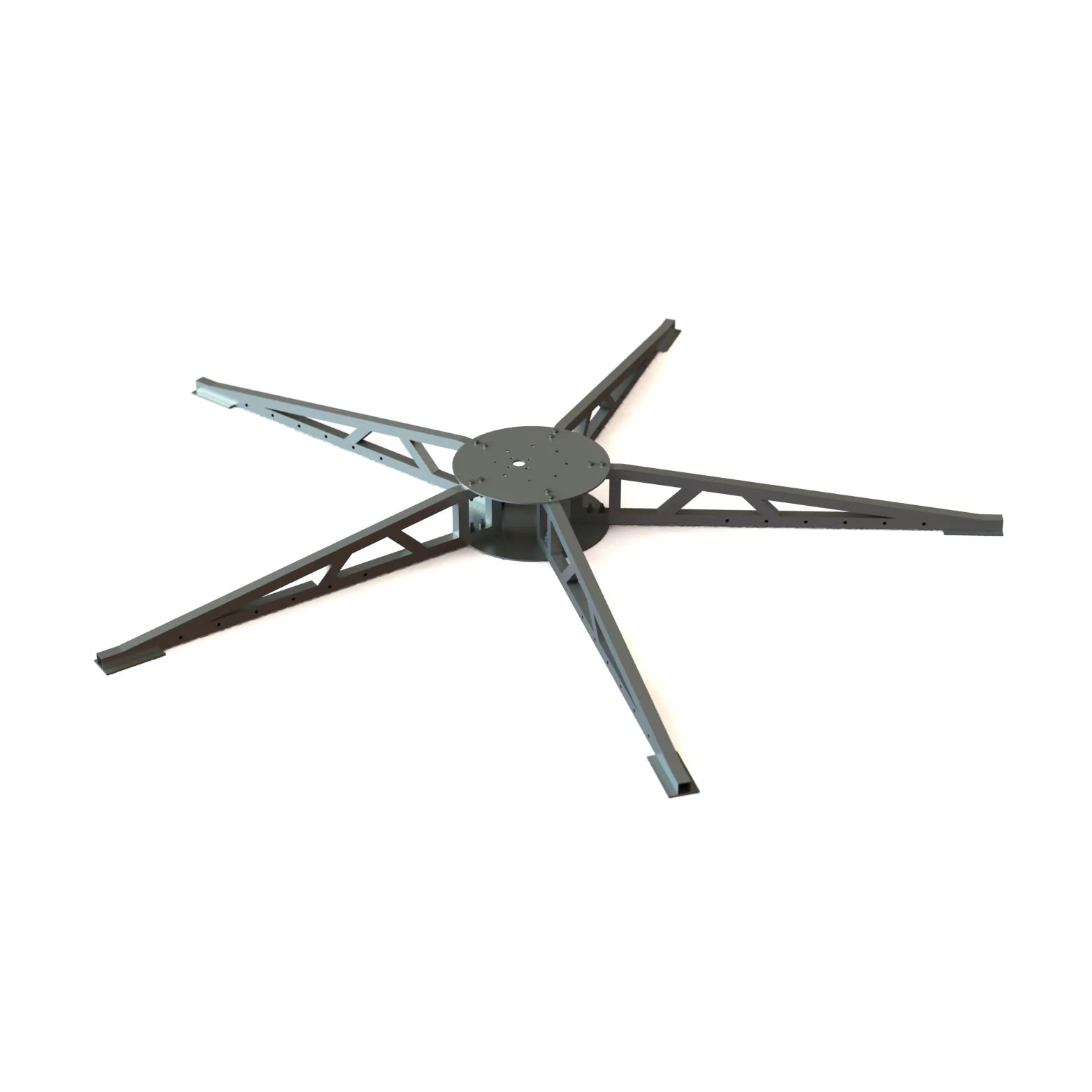

Steel Material For Bracket Base
The base of the bracket was made from Q235 steel, which is heavy weight and strong enough to firmly mount on the roof, keep stable of the whole system.

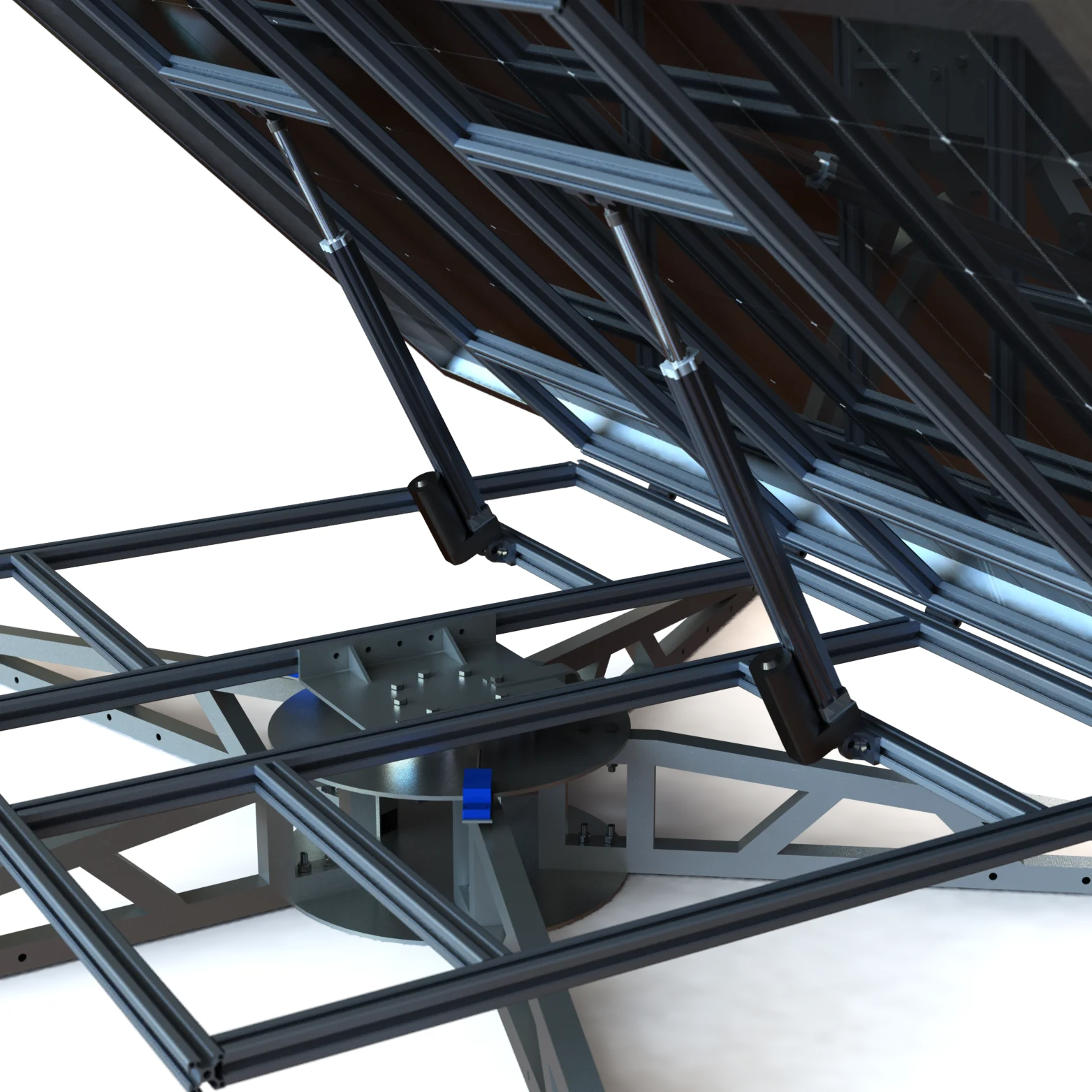

Big Thrust Linear Actuator
The linear actuator brings the panels up and down moving, the pitch angle is 0° to 60°, the maximum pushing thrust is 3000N,
guarantee the solar tracker works well even in windy weather.
guarantee the solar tracker works well even in windy weather.

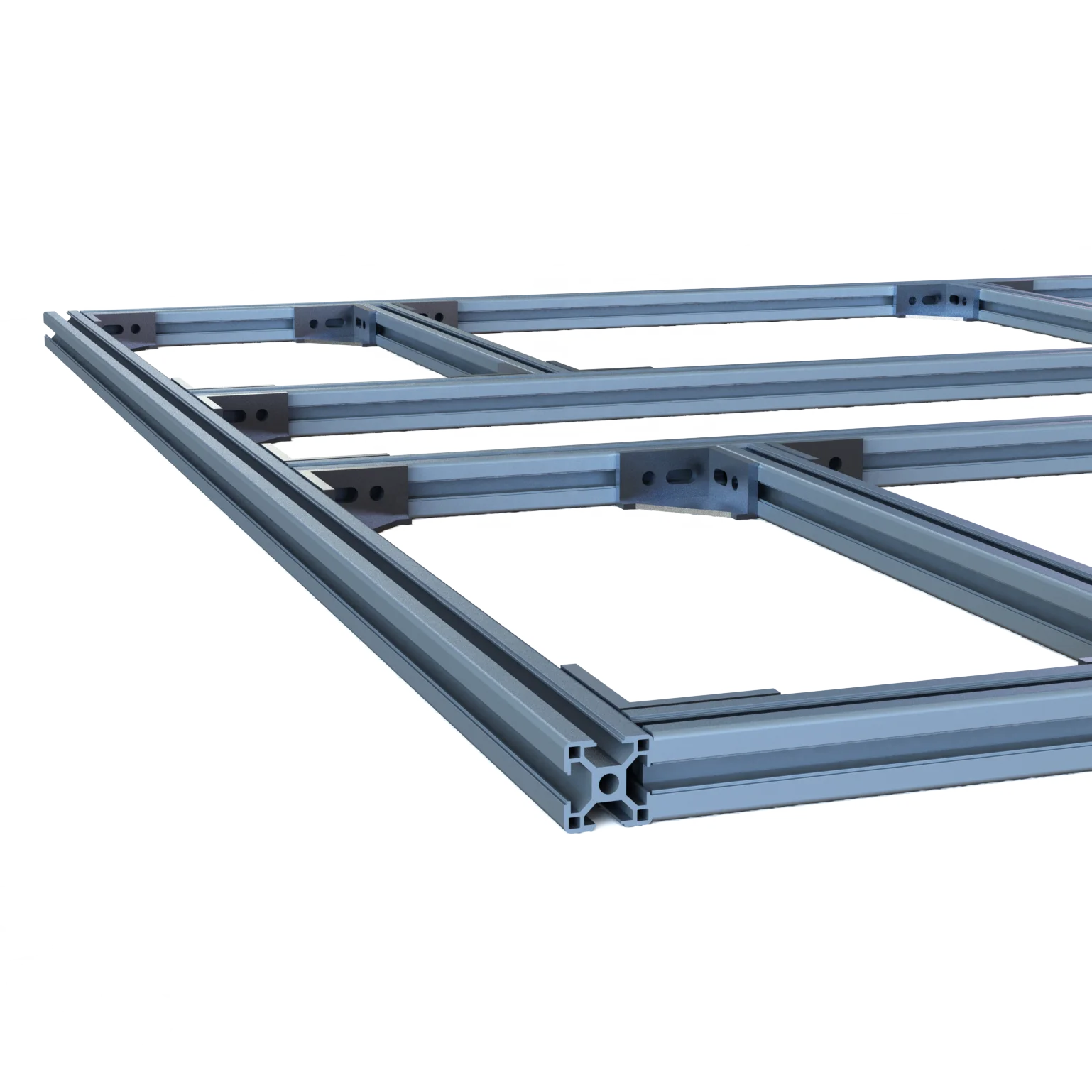

Aluminum Profile Bracket
The upper bracket of the tracker was made by standard aluminum profile, which is easy install, light weight and strong enough to hold big panels like 2384x1303x35mm.
Specification
item | value |
Place of Origin | China |
Liaoning | |
Brand Name | BOFU |
Model Number | BOFU-STR-D001 |
Wind Load | 17m/s |
Snow Load | 1.6KN/m2 |
Warranty | 3 years |
Product name | Solar Tracker For Roof |
Feature | Auto Solar Tracking |
Drive Motor | Slewing Drive + Linear Actuator |
Tracking Method | Light Sensor |
Material | Q235 + Aluminum |
Power Supply | AC 110-230V |
Drive Power (W) | <0.3KWH/day |
PV size (PV not include) | ≤2384*1303*35 |

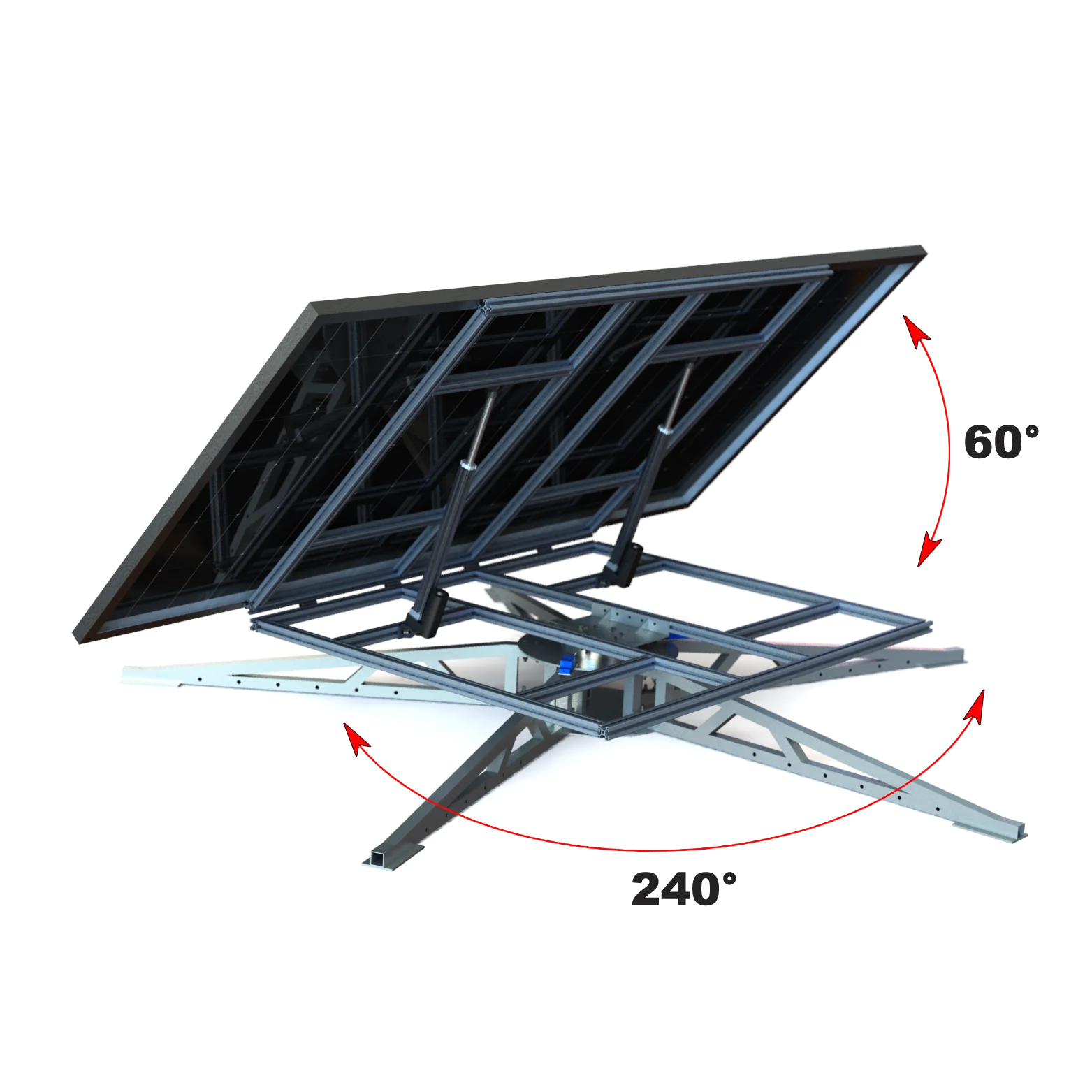

Horizontal Angle | +-120° |
Pitch Angle | 0°-60° |
Application | Roof Mounting |
