Водосберегающий микро-спринклер для орошения черная полиэтиленовая труба катушка капельного тепличного удобрения пластиковые трубки сельского
- Категории: >>>
- Поставщик: Shandong,Sinopipe,Industry,Co.,Ltd.Shandong,Ltd.
Поделиться:
Описание и отзывы
Характеристики
SPECIFICATION
Processing Service | Moulding, Cutting |
Brand Name | PANDA PIPE |
Material | Polyethylene PE100 grade HDPE |
Standard | ISO4427 GB/T13663.2-2018 |
Percentage of breaking-elongation,% | ≥350 |
Longitudinal reversion(110℃),% | ≤3 |
Oxidation induction time (200℃)min | ≥20 |
Pressure Rating | PN5,PN6,PN8,PN10,PN12.5,PN16,PN20,PN25 |
Size Range | 16-630MM |
Product name | HDPE Pipe Roll |
Color | Black |
Life | Over 50 years |
Delivery Time | 7--15 Working Day |
Certification | ISO4427 GB/T13663.2-2018 |
Connection method | Hot melt docking, hot melt socket, electric fusion welding |
PE100 | 0.4MPa | 0.5MPa | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa | 2.0MPa | 2.5MPa | ||||||||
Outside Diameter | PN4 | PN5 | PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 | PN25 | ||||||||
SDR41 | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | SDR7.4 | |||||||||
Wall Thickness (en) | |||||||||||||||||
20 | - | - | - | - | - | - | 2.0 | 2.3 | 3.0 | ||||||||
25 | - | - | - | - | - | 2.0 | 2.3 | 3.0 | 3.5 | ||||||||
32 | - | - | - | - | 2.0 | 2.4 | 3.0 | 3.6 | 4.4 | ||||||||
40 | - | - | - | 2.0 | 2.4 | 3.0 | 3.7 | 4.5 | 5.5 | ||||||||
50 | - | - | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 | 5.6 | 6.9 | ||||||||
63 | - | - | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 | 8.6 | ||||||||
75 | - | - | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 | 10.3 | ||||||||
90 | - | - | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 | 12.3 | ||||||||
110 | - | - | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | 12.3 | 15.1 | ||||||||
125 | - | - | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 | 14.0 | 17.1 | ||||||||
140 | - | - | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | 15.7 | 19.2 | ||||||||
160 | - | - | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 | 21.9 | ||||||||
180 | - | - | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | 20.1 | 24.6 | ||||||||
200 | - | - | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 | 27.4 | ||||||||
225 | - | - | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 | 30.8 | ||||||||
250 | - | - | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 | 34.2 | ||||||||
280 | - | - | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 | 38.3 | ||||||||
315 | 7.7 | 9.7 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 | 35.2 | 43.1 | ||||||||
355 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | 39.7 | 48.5 | ||||||||
400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 | 54.7 | ||||||||
450 | 11.0 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 | 61.5 | ||||||||
500 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 | - | ||||||||
560 | 13.7 | 17.2 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 | - | ||||||||
630 | 15.4 | 19.3 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 | 70.3 | - | ||||||||
710 | 17.4 | 21.8 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 | - | ||||||||
800 | 19.6 | 24.5 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 | - | ||||||||
900 | 22.0 | 27.6 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | - | - | ||||||||
1000 | 24.5 | 30.6 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 | - | - | ||||||||
1200 | 29.4 | 36.7 | 45.9 | 57.2 | 67.9 | 88.2 | - | - | - | ||||||||
1400 | 34.3 | 42.9 | 53.5 | 66.7 | 82.4 | 102.9 | - | - | - | ||||||||
1600 | 39.2 | 49.0 | 61.2 | 76.2 | 94.1 | 117.6 | - | - | - | ||||||||
PRODUCT APPLICATION
HDPE Pipe:
PE pipe inner wall is smooth with features of low friction resistance and energy saving and does not change with the use of time.Its pressure loss is about 30% smaller than steel pipe, therefore,smaller pe pipe is a better way than steel pipe.PE pipe has good hygienic performance with no additives, so it is impossible to pollute the drinking water.Polyethylene material level is 0 (the lowest level) in ISO standard and it is moldy material. Compared with other commonly used plastic materials,mildew resistance of polyethylene is much higher resulting a long term use without scaling.
Applications:

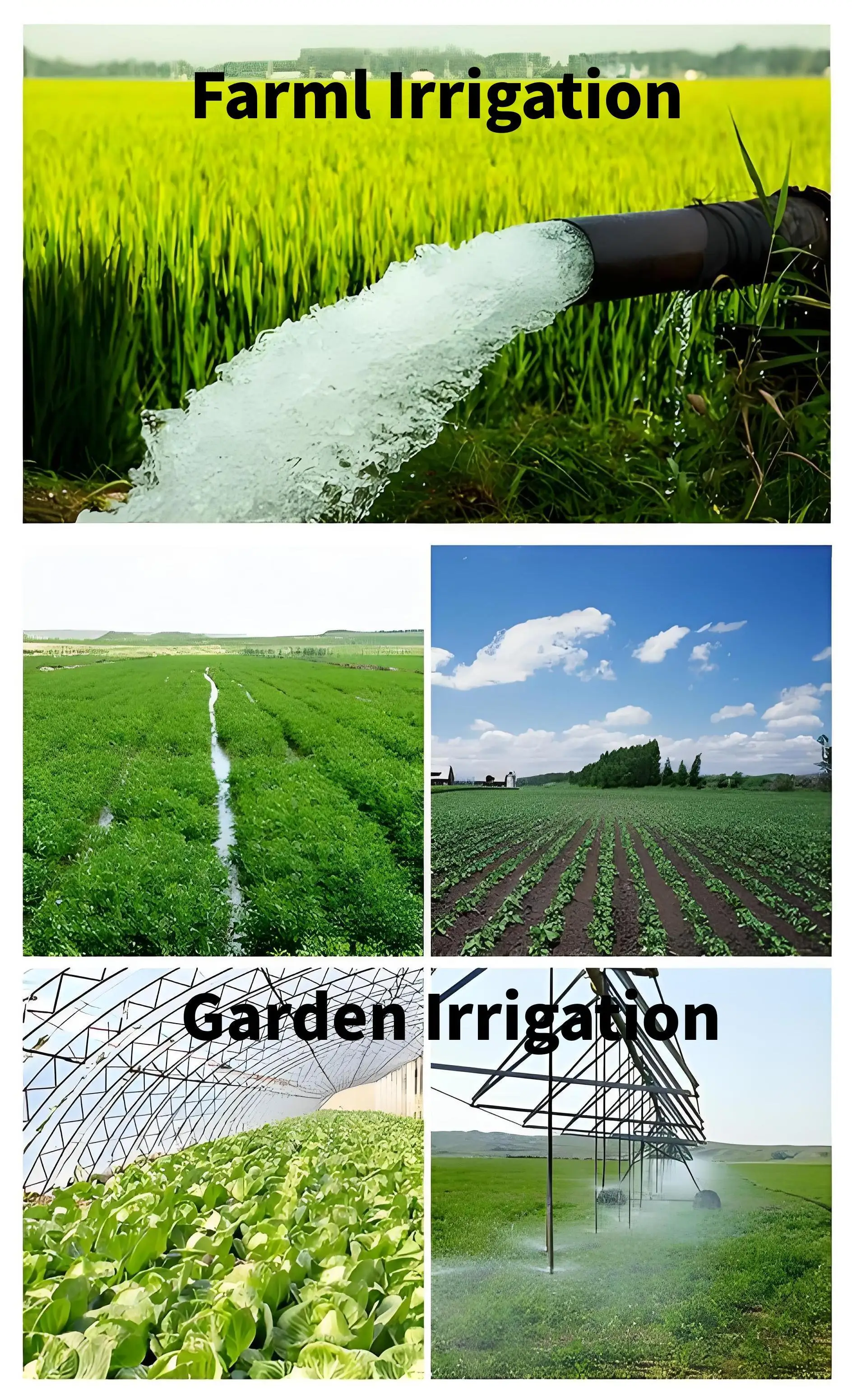

HDPE coils are suitable for agricultural irrigation systems such as drip irrigation, sprinkler irrigation, and micro sprinkler
irrigation. Its good flexibility, low temperature resistance, and wear resistance ensure the stability and durability of the
irrigation system.
PE pipe inner wall is smooth with features of low friction resistance and energy saving and does not change with the use of time.Its pressure loss is about 30% smaller than steel pipe, therefore,smaller pe pipe is a better way than steel pipe.PE pipe has good hygienic performance with no additives, so it is impossible to pollute the drinking water.Polyethylene material level is 0 (the lowest level) in ISO standard and it is moldy material. Compared with other commonly used plastic materials,mildew resistance of polyethylene is much higher resulting a long term use without scaling.
Features:
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;
8. Better resistance to slow crack growth (SCG) and rapid crack propagation (RCP).
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;
8. Better resistance to slow crack growth (SCG) and rapid crack propagation (RCP).
Applications:
HDPE coils are suitable for agricultural irrigation systems such as drip irrigation, sprinkler irrigation, and micro sprinkler
irrigation. Its good flexibility, low temperature resistance, and wear resistance ensure the stability and durability of the
irrigation system.
RECOMMEND PRODUCTS

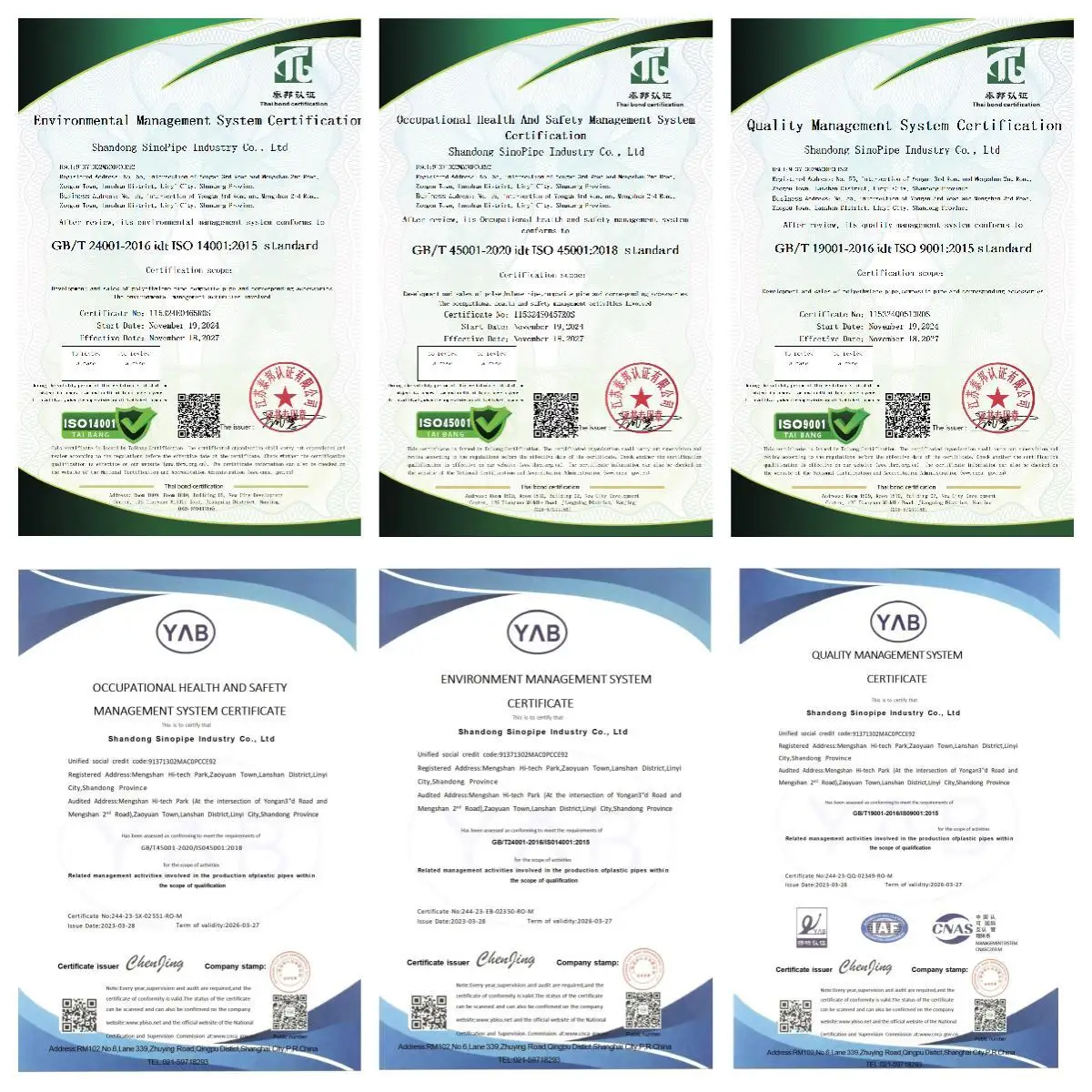

CERTIFICATIONS
