Product Description
DESIGN FLEXIBILITY PRANCE ceiling panel appearance provides interesting possibilities for spatial room designing. The ceiling panel show different style pattern and shape, which engage you match your design. A range of colours and finishes is standard available and special colours upon request.
EASY PLENUM ACCESS The panels can be easily demounted by hand allowing easy and full access to services and installation in the plenum.
DURABILITY Square panel ceilings are manufactured from durable roll formed aluminum (0.5/0.6mm) or steel0.5 mm coil,finished with a polyester paint to provide a long ,low maintenance life .
Product characteristic: 5)Function: Acoustical, Fireproof, Waterproof, Washable, Light reflect,
|  |
Material: Aluminum 1100H24 | |
ALIMINUM CEILING CLIP IN TILE | 600x600x20,600x600x24, 300x300x18, 600x300x20, 600x1200x20, 625x625x20,400x400x20,500x500x20, 800x800x20 |
ALUMINUM CEILING LAY IN TILE | 575x575(595x595)x8, 575x575(585x585)x8, 585x585(603x603)x10, 585x585(595x595)x10 |
ALUMINUM CEILING LAY ON TILE | 595x595x17, 603x603x17 |
ALUMINUM CEILING STRIP TILE | 100x15x3000, 200x15x3000, 300x15x3000 |
ALUMINUM CEILING OPEN CEILING | (Cell size:75x75, 100x100, 150x150, 200x200): Width:10,15 Height:35,40,45,50 Length:2000 |
ALUMINUM CEILING TUBE CEILING | Size adjustable |
ALUMINUM CEILING BLADE CEILING | Height:80,100,150 |
Aluminum ceiling NONE-STANDARD | Design as client's project |
Other size please confirm with us
| Test item | Tolerance | Test result | Verdict |
| Length | ±1.5mm | 0.05 | pass |
| Width | ±1.5mm | 0.2 | pass |
| Thickness | ±1.5mm | 0.11 | pass |
| Squareness deviation from 90° | ≤ 1/500 | 0.21/500 | pass |
| Fatness positive and negative blending | ≤1/300 length | 0.28/300 | pass |

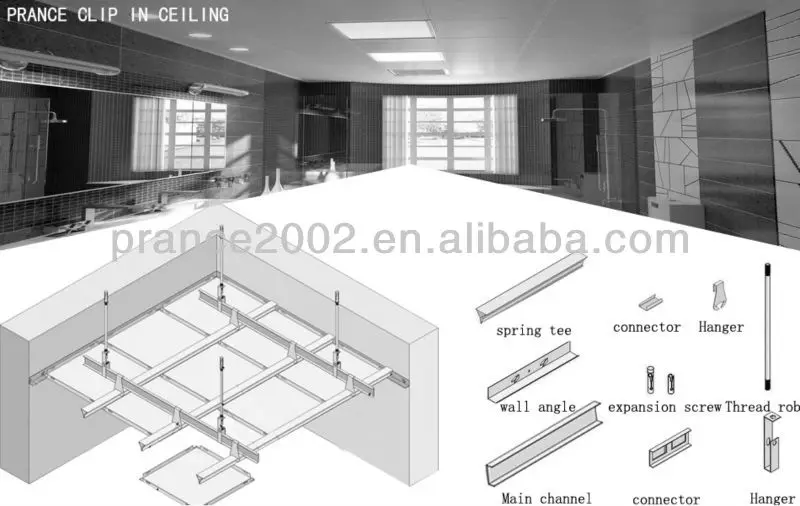

| Clip in installation draft | ||
The PRANCE Clip-In Tile system has a beveled edge to form visually closed joints.The 4.2 mm bevel will emphasise the crispness of the tile ceiling design with fine jointlines. | ||
 | 1.Spring tee | 0.6pcs/m2 |
| 2Main Channel | 0.33pcs/m2 | |
| 3.Connector for spring tee | 0.4pcs/m2 | |
| 4.Hanger for spring tee | 2pcs/m2 | |
| 5.Main channel hanger | 1.5pcs/m2 | |
| 6.Thread rob | 1.5pcs/m2 | |
| 7.L angle | 0.2pcs/m2 | |
| 8.Connector for main tee | 0.4pcs/m2 | |

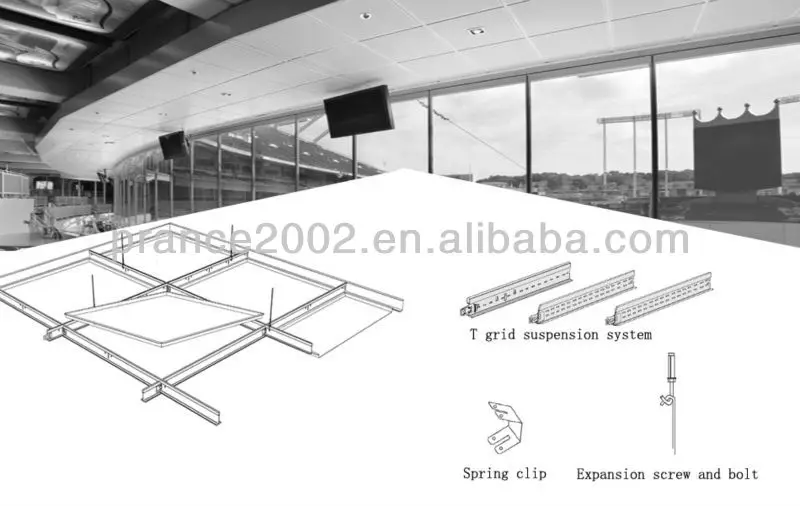

| Lay in Installation method | ||
PRANCE Lay-In and Lay-On Tiles provide easy access by lifting and tilting the ceiling tiles.They are ideal for situations where regular maintenance or service is required to ducts,pipes,airco-systems,or computer-or telephone networks.Before selecting this system,care should be taken to ensure that there is enough space in the plenum to lift the tiles upward.Because the PRANCE Lay-In and Lay-On system offers easy access and adaptability,lighting and services can be conveniently repositioned.This is particularly useful for supermarkets,Laboratories,computer suites and offices. | ||
 | 1-1.Main tee | 0.225pcs/m2 |
| 1-2.Cross tee | 1.35pcs/m2 | |
| 1-3.Cross tee | 1.35pcs/m2 | |
| 1-4.L angle | 0.2pcs/m2 | |
| 2.Adjustable clip | 2pcs/m2 | |
| 3-1.Hanging bolt | 4pcs/m2 | |
| 3-2.Expansion screw | 2pcs/m2 | |
| ||

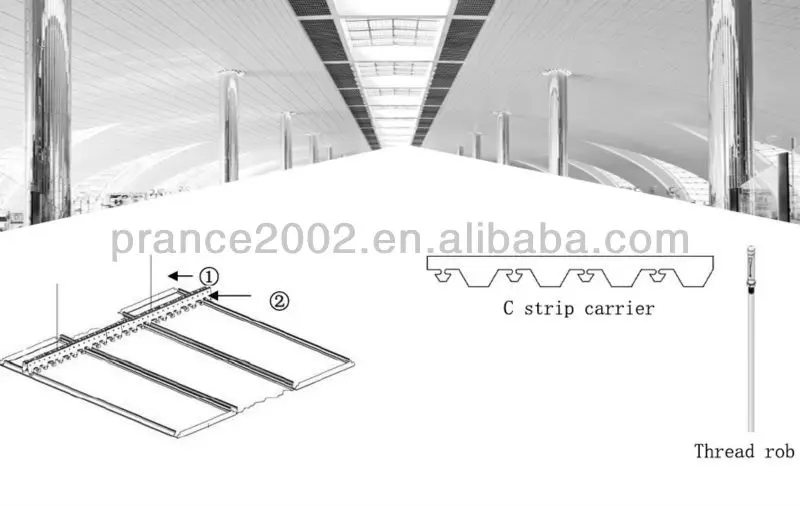

| Strip installation method | ||
| PRANCE Wide Panel Ceilings enables the architect to design a closed ceiling with high performance aluminum or steel materials.In order to five maximum freedom in design there is a wide choice in panels with soft edges for a monolithic ceiling appearance or panels with square edges which results in a smooth ceiling with a narrow butt joint. | ||
| 1.Thread rob | 1.5pcs/m2 |
2.C strip carrier | 0.33pcs/m2 | |

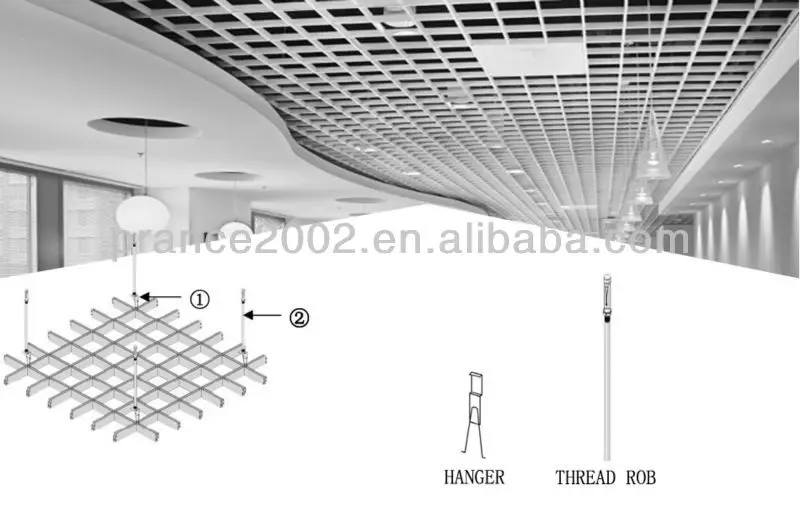

| Open ceiling installation method | ||
| Ideal solutions for highlighting or defining sapces let you design a variety of sizes and shapes. Great options for bringing color and texture to the ceiling plane, with the widest selection of patterns, colors, and configurations for lighting and other systems. Our unique expertise enables a wide range of design possibilities. A proproetary clip suspension structure-not dependent on T-grid - allows you to creat unlimited sizes and shapes. | ||
 | 1.Hanger | 1.5pcs/m2 |
| 2.Thread rob and screw | 1.5set/m2 | |
| ||

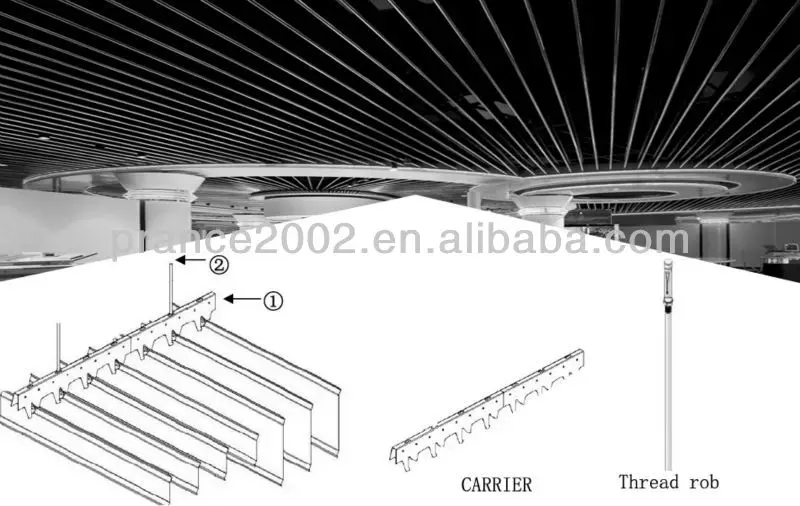

| Baffle ceiling installation | ||
| PRANCE Baffle ceiling system is a light weight, floating ceiling, The panels come in either 110 mm high or 125mm high and clip easily to the carrier .Panels are made to measure and available in any length up 6000mm.Select from a white or black panel carrier.The carrier is made of 0.4mm thick stainless steel, and includes prongs to accommodate the panels in a 100mm, 150mm, or 200mm module. The carriers have a standard length of 3000mm . | ||
 | 1.Carrier(3meter) | 0.33PCS/m2 |
| 2.Thread rob and screw | 2pcs/m2 | |
APPLICATION AREA Office, School, Restaurant, Air port, library, Apartment, Shopping Mall, Hospital, Hotel, Gym, Kitchen...... |

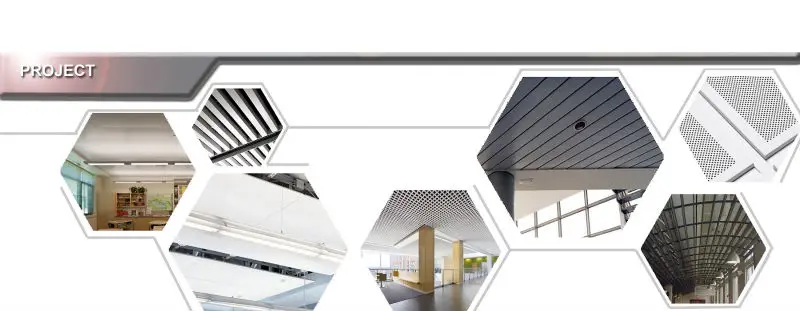

Famous project list:
1.USA EMBRASS IN GUANGZHOU, 2.Nigeria Kaduna International Airport Upgrading Extension, 3.TET FUND APC 4.HARRY MWANGA NKUMBULA INTERNATIONAL AIRPORT( LIVINGSTONE INTERNATIONAL AIRPORT) 5. The VLADIVOSTOCK AIR PORT 6.WORLD CUP IN QATAR(100,000M2) |
 | ||||||||||||||||||||||||||

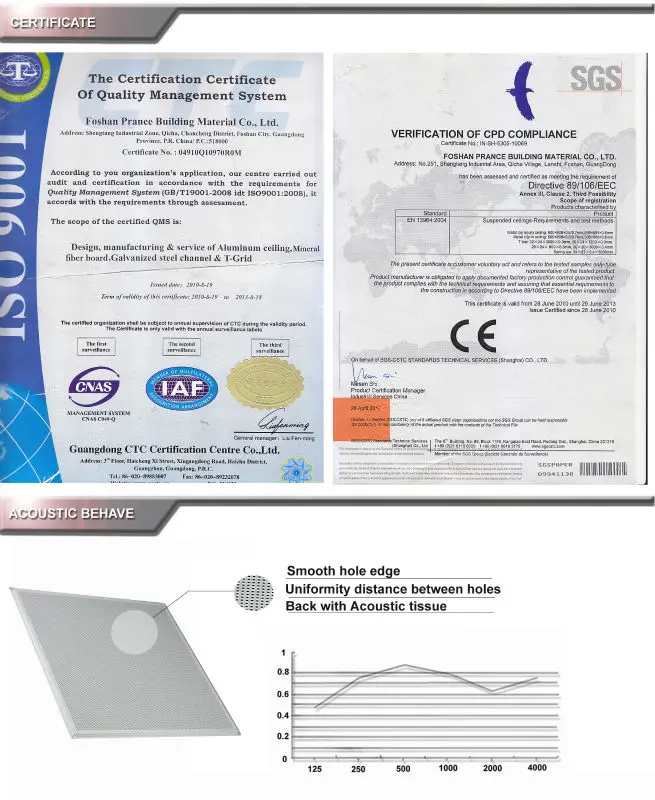

ACOUSTIC PERFORMANCE | ||||||||||||||||||||||||||
Flexural tensile strength Test method BS EN 13964:2004 SUSPENDED CEILING---REQUIREMENT AND TEST METHOD
|
Other color required please kindly inform us.

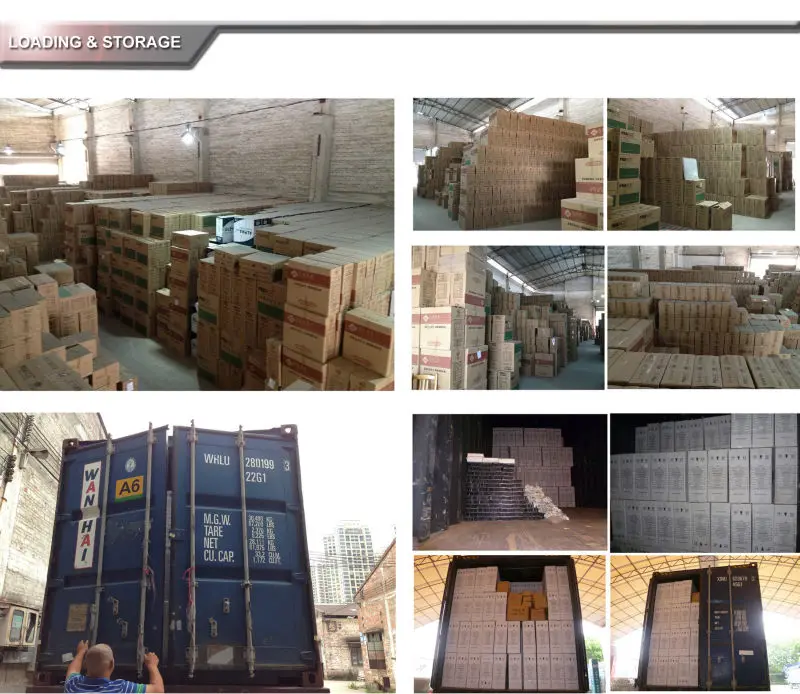

Packaging & Shipping

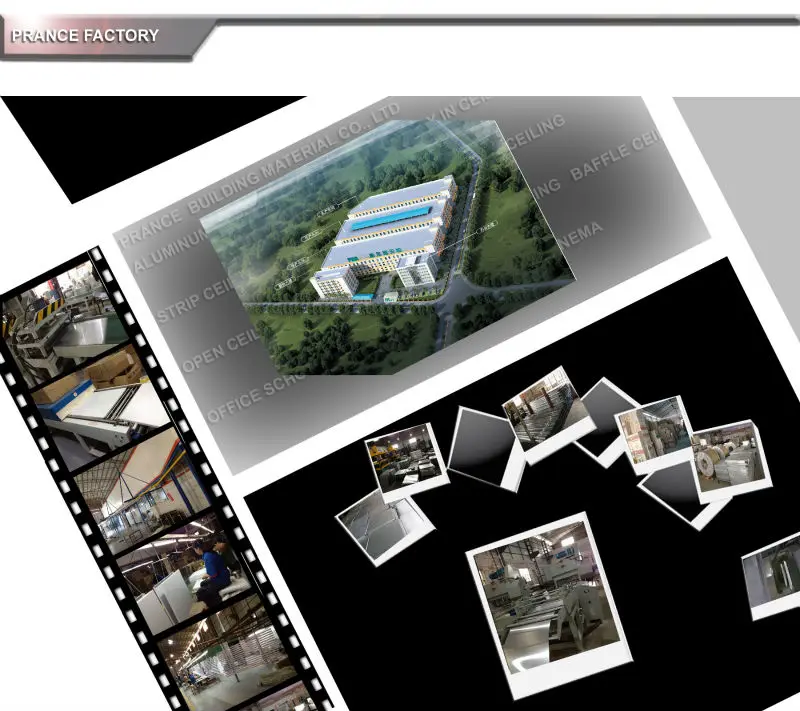

Company Information
