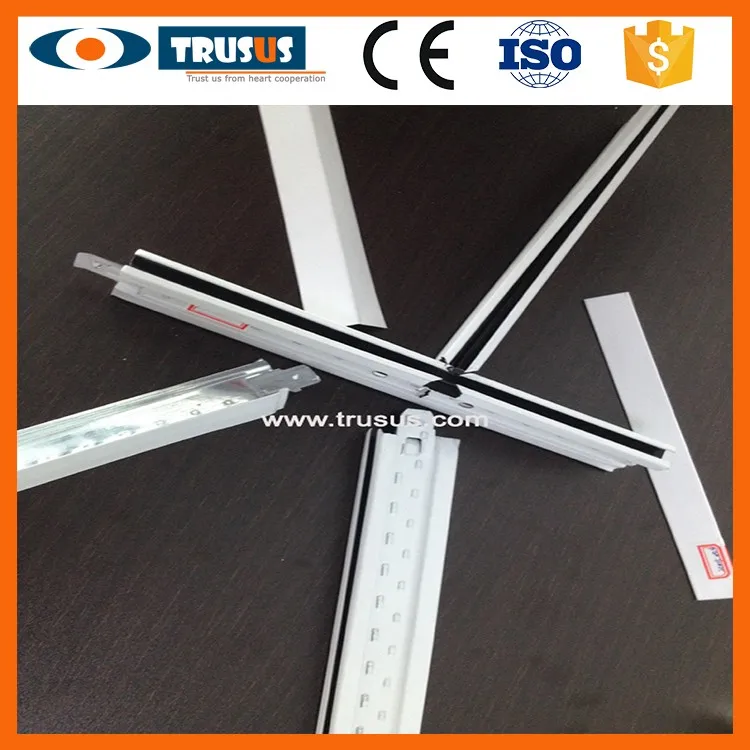

TRUSUS Munfacturing For The Gypsum Ceiling Installation Galvanized Steel T Bar

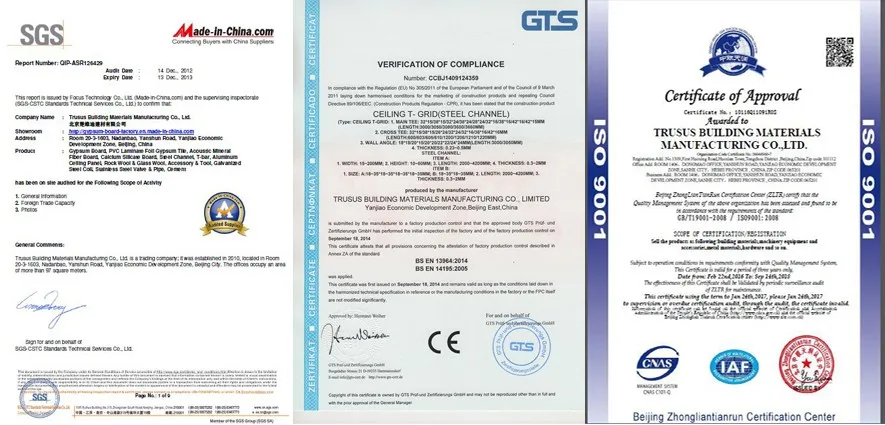

CERTIFICATION





 OUR SERVICE



TRUSUS TEAM guarantees ' TRUSUS ' as following

Trust us from heart cooperation

Reasonable price

Unique quality

Schedule delivery on time

Updated technology and equipment

Service warmly

 DESCRIPTION

T Bar is made from hot dipped galvanized steel, pressed to T shape after cooling, baked paint on

surface finish.

 ADVANTAGE



1. High grade galvanized steel as main material, non-deforming, fadeless, moisture proof and anti-corrosive.

2. Strong close fitting, high symmetry.

3. High load capacity.

4. Easy and fast installation, save installing time and labor cost.

5. Large production line and strict product inspection, larger quantity and better quality are

available.

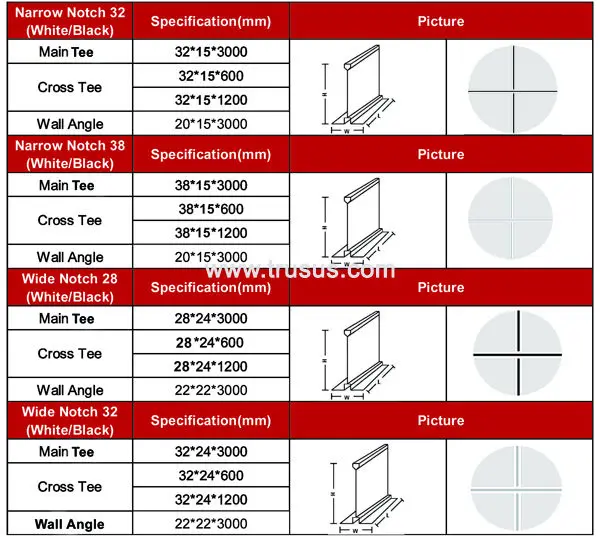

   SPECIFICATION

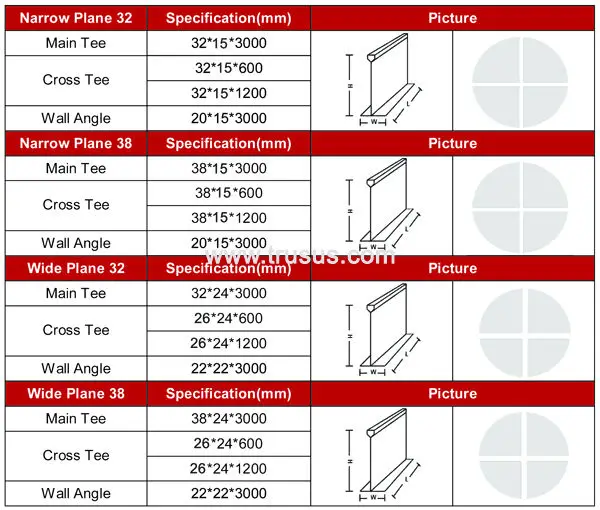

1. PLANE T GRID





2. NOTCH T GRID

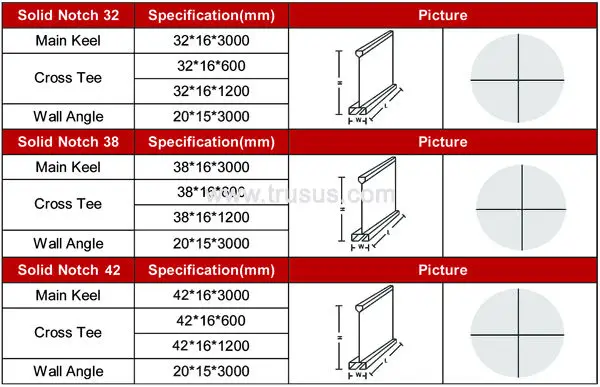

3. SOLID NOTCH T GRID

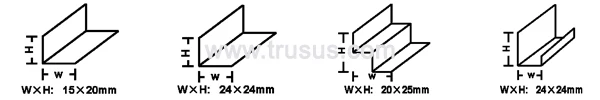

4. WALL ANGLE





   NOTES

1. Available thickness: 0.23mm/0.26mm/0.3mm/0.35mm/0.4mm/0.5mm

2. Wall angle: 20*15mm/20*20mm/22*22mm/24*24mm

3. Other specification is available.



  TECHNICAL DATA



Inspection item	Unit	National Standard	Test Result
Appearance	——	no damage	no
Hole Distance Difference	mm	±0.3	±0.1
Difference of baking paint thickness	µm	≥20	24
Width Difference	mm	±0.5	0.1-0.3
Length Difference	mm	±1.0	0.3-0.6
Underside straight Limitation	mm/1000mm	≤1.3	0.6
Galvanized thickness	µm	≥14	17
Load bending Limitation	mm	≤2.8	2.1



Building Metallic Material Steel Frame Low Price Indonesia Ceiling Steel T Bar Size

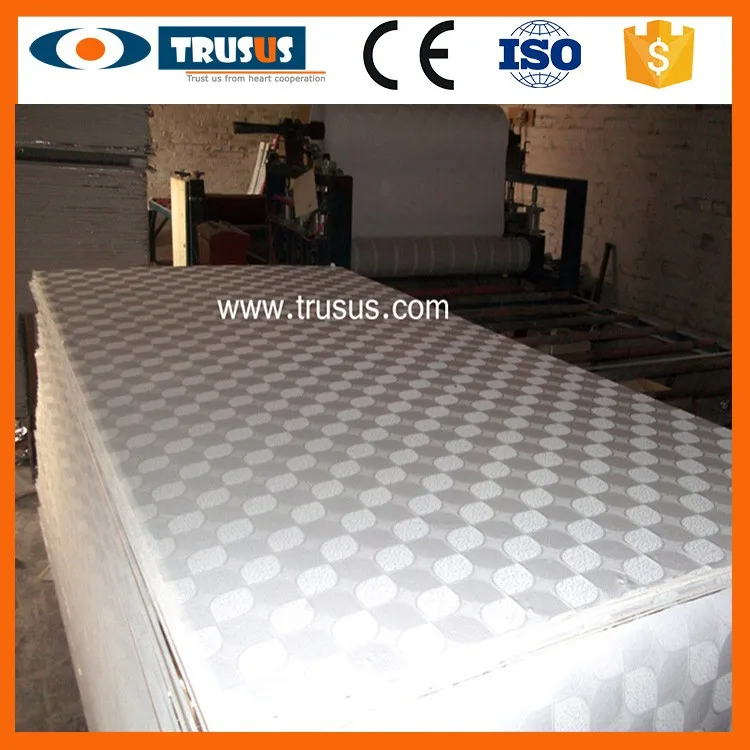

We can also provide all kinds of pvc gypsum ceiling tiles:

More details click here >>>

http://preview.alibaba.com/product/60253453034-219465486/Made_In_China_PVC_Laminated_Gypsum_Ceiling_Tiles.html

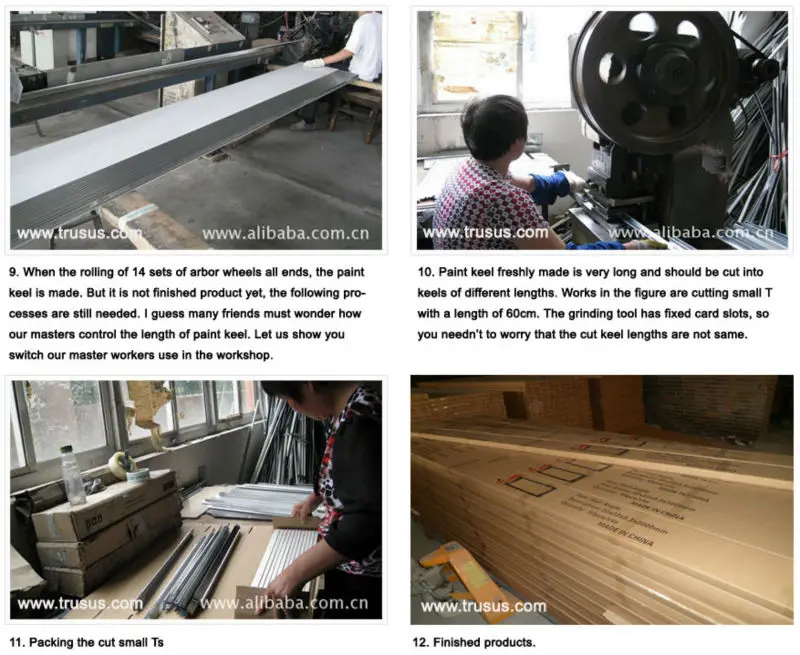

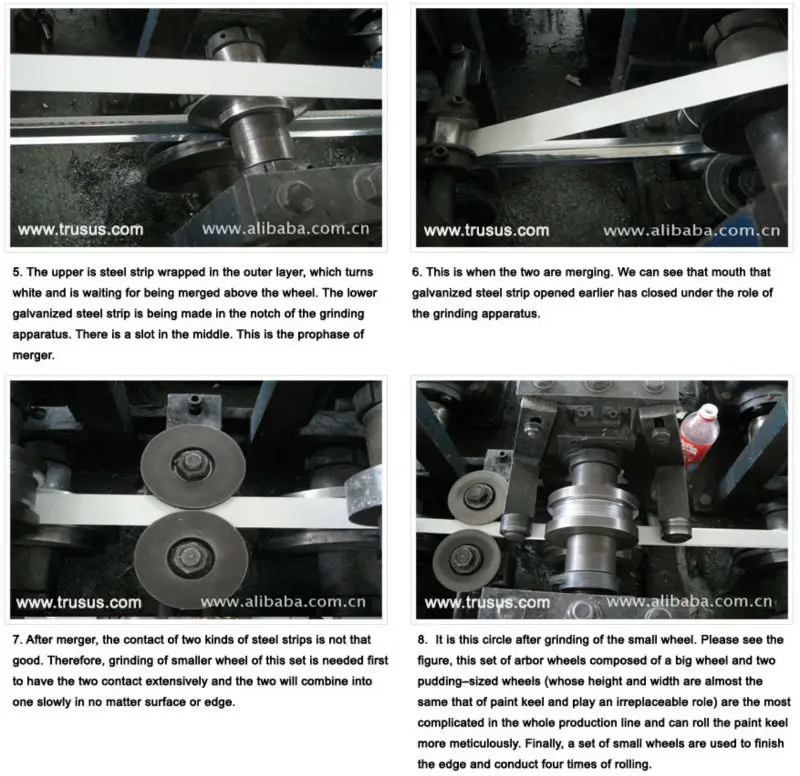

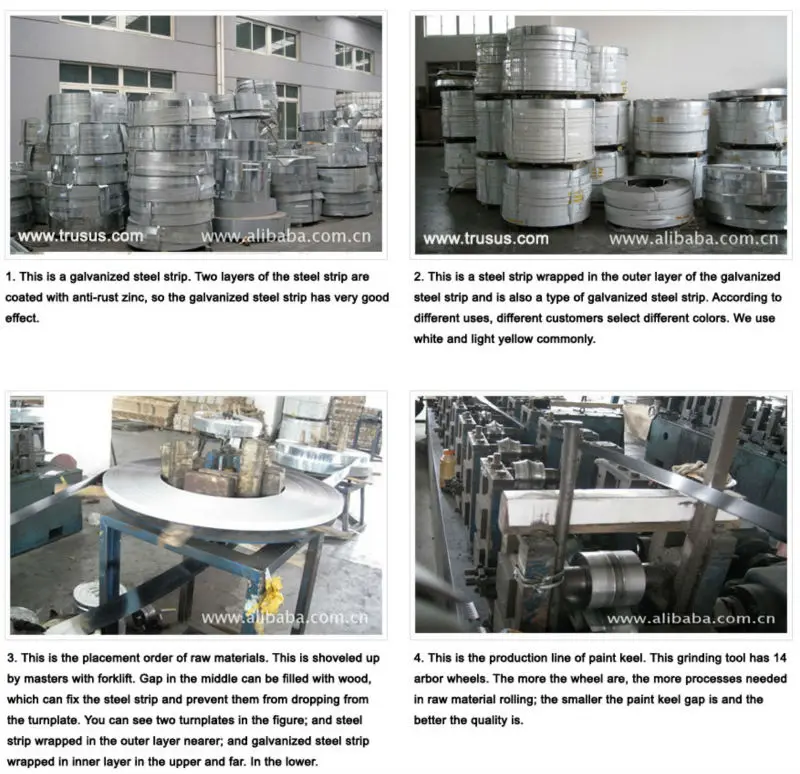

PRODUCTION LINE

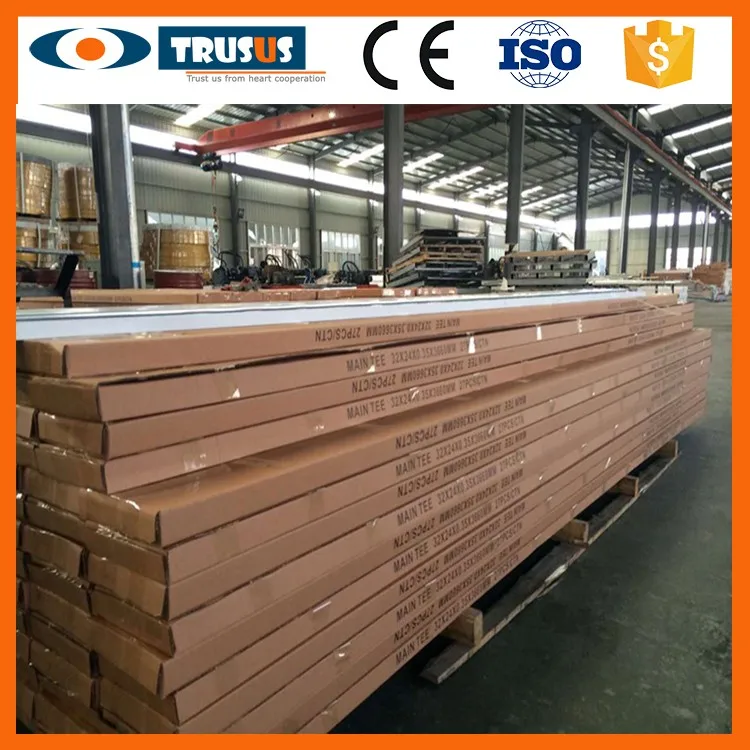

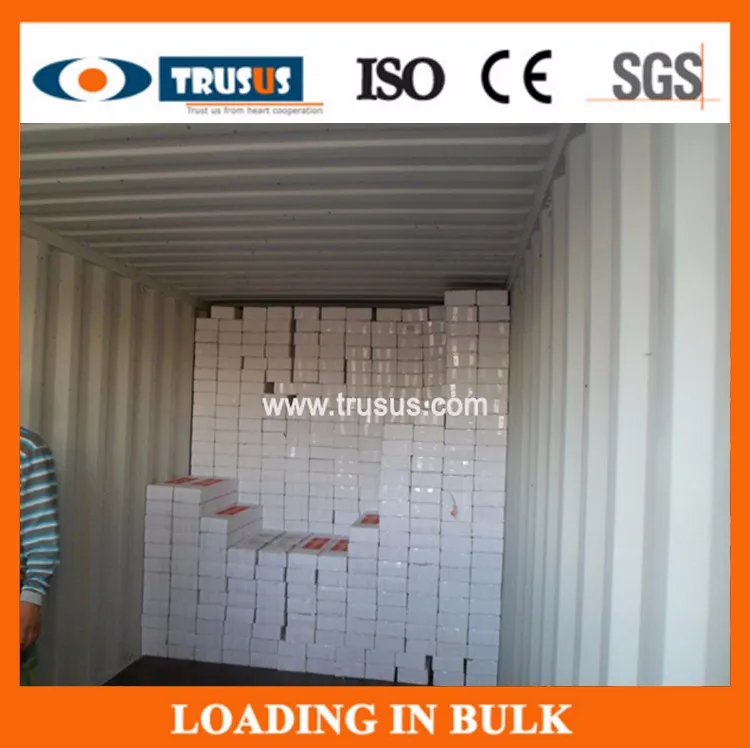

  PACKING & LOADING



  CUSTOMER FEEDBACK





  RECENT OVERSEAS EXHIBITION



Feel free to contact us if you would like to know more details,

we will reply you ASAP, thanks a lot !

Welcome to visit our factory !
