Product Description
Dimensions: width 415 mm – height 335 mm – depth 310 mm.
Total weight: 34 kg.
Mains Voltage: 85 – 264 AC
Total weight: 34 kg.
Mains Voltage: 85 – 264 AC

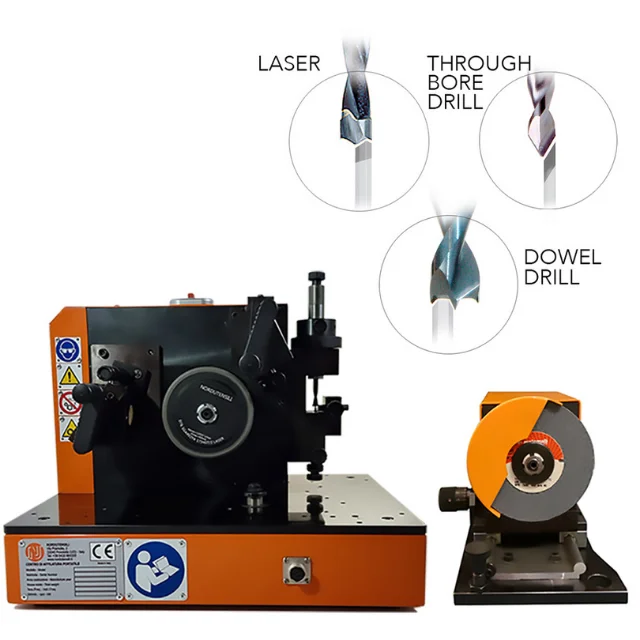

Complete manual sharpening machine for drills.
It is a very compact, easy to use, machine.
The machine is supplied with supports to sharpen:
⦁dowel drills (solid carbide and brazed) diameter from 5 mm to 16 mm;
⦁through bore drills (solid carbide and brazed) diameter from 4 mm to 16 mm;
⦁drills with radius spurs (Laser, Kanefusa, Marathon, Mosquito and similar) diameter from 4 mm to 10 mm.
Through a simple manual adjustment, the operator can easily switch from one configuration to another one in a very short time.
This is the ideal sharpening machine if you have many different kinds of tools to resharpen.
Sharpened tools are ready to use, with a significant time and money saving.
This machine is also equipped with a convenient grinding wheel dresser designed to re-profile the wheel with the original geometry.
It is a very compact, easy to use, machine.
The machine is supplied with supports to sharpen:
⦁dowel drills (solid carbide and brazed) diameter from 5 mm to 16 mm;
⦁through bore drills (solid carbide and brazed) diameter from 4 mm to 16 mm;
⦁drills with radius spurs (Laser, Kanefusa, Marathon, Mosquito and similar) diameter from 4 mm to 10 mm.
Through a simple manual adjustment, the operator can easily switch from one configuration to another one in a very short time.
This is the ideal sharpening machine if you have many different kinds of tools to resharpen.
Sharpened tools are ready to use, with a significant time and money saving.
This machine is also equipped with a convenient grinding wheel dresser designed to re-profile the wheel with the original geometry.
Specification
TYPE | drills hand sharpening machine |
WHEEL SIZE(mm) | 14D1; 14E1 94°; 11V9 |
DIMENSION (L*W*H) | 415x310x335mm |
WEIGHT (KG) | 34 kg |
POWER (kW) | 90W |
Company Profile
HISTORY
For more than twenty-five years, our company has been designing and producing high quality tools that are well-known for their
reliability,for working with wood, plastic materials and new materials.
Our product range is vast and is able to meet every type of requirement:
* Tools for boring machines
* Chucks and cutter bars for boring machines
* Tools and chucks for pantographs and CNC machines
* Tools for drilling machines, slotting machines, combination machines and electric milling machines
* Replaceable tip tools and polycrystalline diamond tools
* Tools for portable milling machines
* Circular saws and milling cutters (partner)
reliability,for working with wood, plastic materials and new materials.
Our product range is vast and is able to meet every type of requirement:
* Tools for boring machines
* Chucks and cutter bars for boring machines
* Tools and chucks for pantographs and CNC machines
* Tools for drilling machines, slotting machines, combination machines and electric milling machines
* Replaceable tip tools and polycrystalline diamond tools
* Tools for portable milling machines
* Circular saws and milling cutters (partner)
In addition, all our products are certified under the ISO 9001 quality system.
Over the years, the performance of all our drill bits has been excellent, due to the use of top quality hard metals and specific
treatments, such as the application of Dupont-Teflon, particularly on bits for hinges with multi radius chip breaker.
Special care and attention is paid at the design, testing and manufacturing stages for the preparation of tools for non-standard
and special applications, often to meet specific and special requests from our customers.
A modern warehouse, equipped with automated technology, further enhances the company's performance by ensuring a fast and accurate
response to every order, even for small and medium quantities.
Over the years, the performance of all our drill bits has been excellent, due to the use of top quality hard metals and specific
treatments, such as the application of Dupont-Teflon, particularly on bits for hinges with multi radius chip breaker.
Special care and attention is paid at the design, testing and manufacturing stages for the preparation of tools for non-standard
and special applications, often to meet specific and special requests from our customers.
A modern warehouse, equipped with automated technology, further enhances the company's performance by ensuring a fast and accurate
response to every order, even for small and medium quantities.
