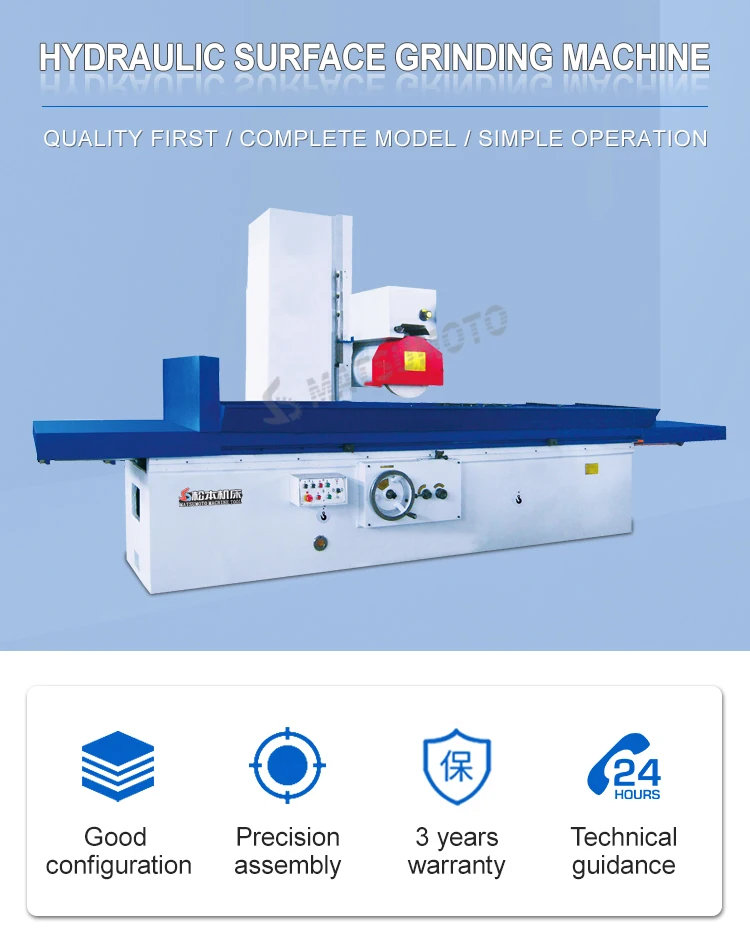

Шлифовальный станок M7160 1250/1600/2000 мм шлифовальный
- Категории: Surface Grinding Machines >>>
- Поставщик: Shandong,Matsumoto,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters
Features:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology. Grinding head vertical rapid lifting, improve production efficiency. The grinding head lateral movement driven by hydraulic motor, which can also be manually. The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry. The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product main technical specifications:
Specifications | Units | M7163*1250 | M7160*1250 | M7150*1250 | ||
Table size (L * W) | mm | 1250*630*600 | 1250*600*600 | 1250*500*600 | ||
Max. longitudinal feed of table | mm | 1350 | 1350 | 1350 | ||
Distance spindle center line to table | mm | 800 | 800 | 800 | ||
Max. Cross movement of grinding head | mm | 680 | 650 | 550 | ||
Grinding head vertical feed | per gra | mm | 0.01 | 0.01 | 0.01 | |
Handwheel scale value | per rev | mm | 1.00 | 1.00 | 1.00 | |
Fast lifting machine | power | kw | 0.37 | 0.37 | 0.37 | |
speed | r/min | 1440 | 1440 | 1440 | ||
Wheel size (O. D * W * I. D.) | mm | 400*40*127 | 400*40*127 | 400*40*127 | ||
Grinding wheel speed | r/min | 1440 | 1440 | 1440 | ||
Main motor power | kw | 12 | 12 | 12 | ||
Wheel spindle motor power | kw | 7.5 | 7.5 | 7.5 | ||
The oil pump motor | kw | 4/5.5 | 4/5.5 | 4/5.5 | ||
Parallelism of the machining face to the base | mm | 300:0.008 | 300:0.008 | 300:0.008 | ||
Surface roughness | um | Ra0.63 | Ra0.63 | Ra0.63 | ||
Machine weight | kg | 5800/6500 | 5600/6300 | 5300/6000 | ||
Overall dimension(L * W * H) | cm | 380*195*248 | 380*195*248 | 360*193*248 | ||

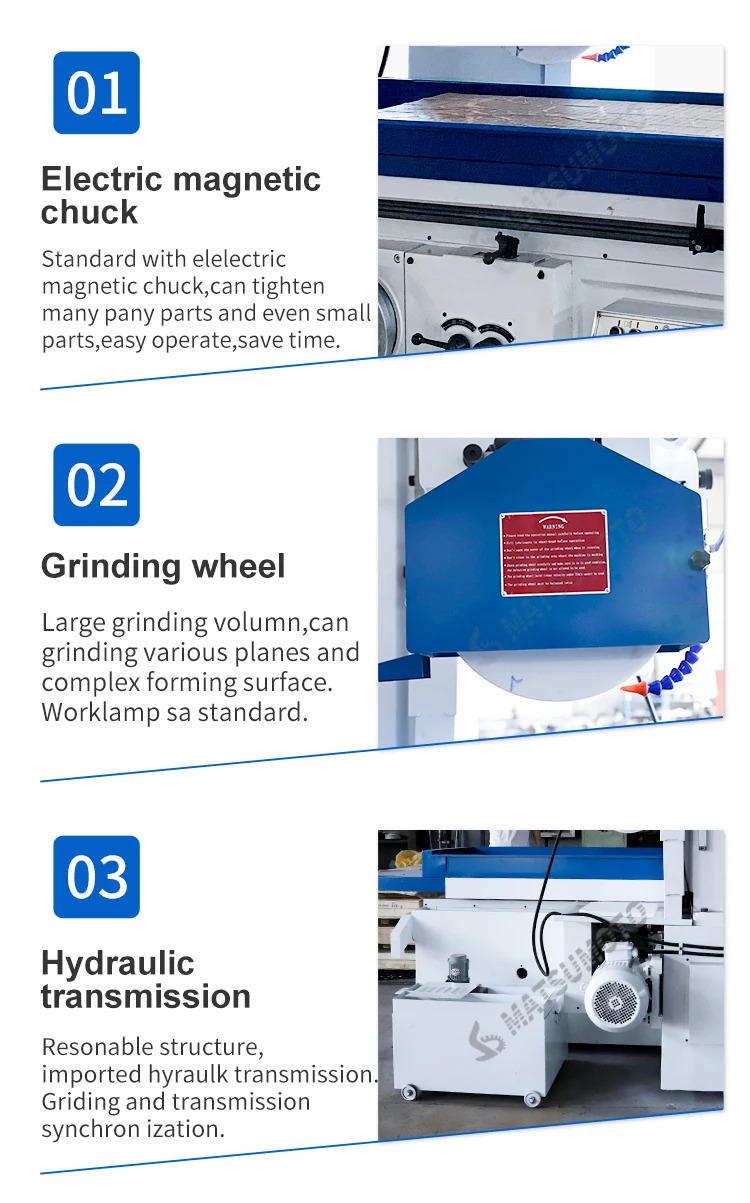

Details Images
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
