Подвесная платформа ZLP

Описание и отзывы

Характеристики

 Company Information





 Haoke Building Machinery Equipment Co., Ltd. is founded in 2005. It is a leading high-tech enterprise specialized in research, development and manufacturer of electrical suspended working platform and other various kinds of construction equipments.

ZLP630 Suspended Scaffolding/Working Platform



Main Usage:

a. Cleaning work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.
b. Painting and decoration work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.
c. Repair and maintenance work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.
d. Widely applied to various works of building walls, glasses, external walls, large chimney, large tanks, dams etc.



Specification of Suspended Working Platform :



Property         Model No.		ZLP500	ZLP630	ZLP800	ZLP1000
Rated load(kg)		500	630	800	1000
Lifting speed(m/min)		9~11	9~11	8~10	8~10
Motor power(kw)		2×1.5   50HZ/60HZ	2×1.5   50HZ/60HZ	2×1.8   50HZ/60HZ	2×3 50HZ/60HZ
Brake torque(Km)		16	16	16	16
Steel rope angle adjusting range(°)		3°-  8°	3°-  8°	3°-  8°	3°-  8°
Distance between two steel rope(mm)		≤100	≤100	≤100	≤100
Rated stretch of front beam(mm)		1500	1500	1500	1500
Suspending platform	Locking	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy
	Nr.Of platform rack	Single rack	Single rack	Single rack	Single rack
	Nr.Of platform	2	3	3	3
	L×W×H(mm)	(2000×2)×690×1180	(2000×3)×690×1180	(2500×3)×690×1180	(2500×3)×690×1180
	Weight(kg)	350 Kg	375 Kg	410 Kg	455kg
Suspending mechanism(kg)		2×175 Kg	2×175 Kg	2×175 Kg	2×175 Kg

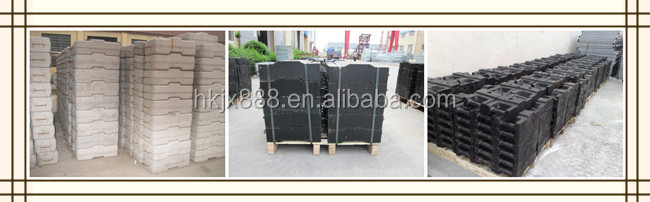

Counterweight(kg) optional		25×30pcs	25×36pcs	25×40pcs	25×44pcs
Diameter of steel rope(mm)		8.3	8.3	8.6	8.6
Max Lifting height(m)		300	300	300	300
Motor rotation speed(r/min)		1420	1420	1420	1420
Voltage(v) 3PHASES		220V/380V/415V	220V/380V/415V	220V/380V/415V	220V/380V/415V



 Advantages:



1)The max lifting height can be up to 300m;

2)We can supply customized platform to meet different requirements from customers;

3)Professional quality, competitive price,fast delivery and considerate service etc;

4)Certification:ISO & CE;

5)Features:it is easy to be disassembly and move; the size of platform can be adjusted freely,Safety,high quality components,

24 hours on line.

















MOQ:1 Set

Packing: Paper box and wooden cases,also we can customize for you!

Payment Term:TT or L/C at sight

Supply Ability:1000 sets per month .

Delivery Time:About 7 days.











Contact Information :
