Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55
Высокое качество щит 2 ядра твердый проводник красный кабель
- Категории: Control Cables >>>
- Поставщик: Shenzhen,Lanp,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

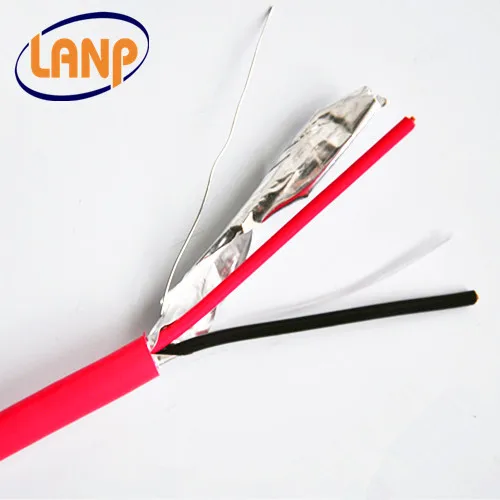

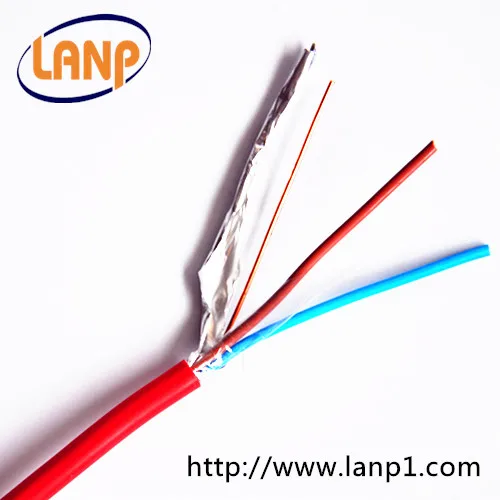

High quality Shield 2 core Solid Conductor Red Fire Alarm Cable
Product Description
Specification
1)Conductor: (2-8cores are available)
Bare Copper/CCA Stranded or Solid Conductor
Flexible section in 0.8sqmm,1.0mm 1.5mm,ect
2)Insulation:
PVC flame retardant/PE
3)Drain wire: (Options)
In Stranded or Solid Bare Copper,CCA,CCS
4)Shielding: (Options)
Aluminum/Polyester Foil Coverage
5)Outer Jacket:
General PVC,PVC flame retardant,LSZH Sheath,Polyethylene Sheath
6)Color
Red White gray,ect
Stranded Wire
| Item No. | Decription | Conductor Spec. | Insulatioon | Jacket | Packing | ||
| Nom.Thick (mm) | Nom.Diam (mm) | Nom.Thick (mm) | Nom.Diam. (mm) | ||||
| ALARM | TC/BC/CCA/TCCA Screened Unscreened Rip cord or No Drain wire or No | 2*7*0.2 | 0.22 | 1.05 | 0.45 | 3.1 | Box Coil Drum Paper reel Plastic reel Wooden reel |
| 4*7*0.2 | 0.22 | 1.05 | 0.45 | 3.4 | |||
| 6*7*0.2 | 0.22 | 1.05 | 0.5 | 4.1 | |||
| 8*7*0.2 | 0.22 | 1.05 | 0.5 | 4.5 | |||
| 10*7*0.2 | 0.22 | 1.05 | 0.6 | 5.1 | |||
| 12*7*0.2 | 0.22 | 1.05 | 0.6 | 5.5 | |||
| 14*7*0.2 | 0.22 | 1.05 | 0.7 | 6.1 | |||
| 16*7*0.2 | 0.22 | 1.05 | 0.7 | 6.4 | |||
| 20*7*0.2 | 0.22 | 1.05 | 0.8 | 7.2 | |||
Solid Wire
Description | Conductor Spec. | Insulation | Jacket | Packing | ||
Nom.Thick.(mm) | Nom.Diam(mm) | Nom.Thick.(mm) | Nom.Diam.(mm) | |||
Fire Alarm Cable | 2*1.0 | 0.6 | 2.4 | 1.0 | 6.8 | Box Coil Drum Paper reel Plastic reel Wooden reel |
2*1.5 | 0.7 | 2.8 | 0.8 | 7.2 | ||
2*2.5 | 0.8 | 3.4 | 1.0 | 9 | ||
4*0.5 | 0.4 | 1.6 | 1.2 | 6.2 | ||
4*1.0 | 0.6 | 2..4 | 0.8 | 7.4 | ||
4*1.5 | 0.7 | 2.8 | 0.8 | 8.3 | ||
4*2.5 | 0.8 | 3.4 | 1.1 | 10.3 | ||
Application: These cables are designed for installation signal alarm and alarm systems.They allow the connection of contacts,detectors and sensors,infr-red as well asmicrowave or mixed technoiogy to the switchboard.
Company Information
LANP Cables Technology Co., Ltd. established in 2003 , is one of the leading communications cables manufacturers. Our products include lan cable cat3, cat5, cat5e, cat6, patch cords, fiber optic patch cords, power cable and other network accessories and computer cables.
Our total manufacturing area covers 8000 square meters, with equipment such as high speed cross product lines, high speed cross supervisor data return online system (Zumbach), and cat6 twisters system machine. Our testing equipment includes Fluke test machine and PNA Network Analyzer machine.
Our products strictly adhere to ISO9001 international standards, which also cover our research and development, services, and management. We have more than 300 employees, among whom 10% are staffed with technical personnel. We have customers in over 16 countries and regions such as America, Europe, Southeast Asia, and Africa. Both OEM and ODM services are available.
We will continue being a people-oriented, faithful supplier offering quality products and excellent service. For more information, please visit our website or contact us directly with your questions or inquiries.
