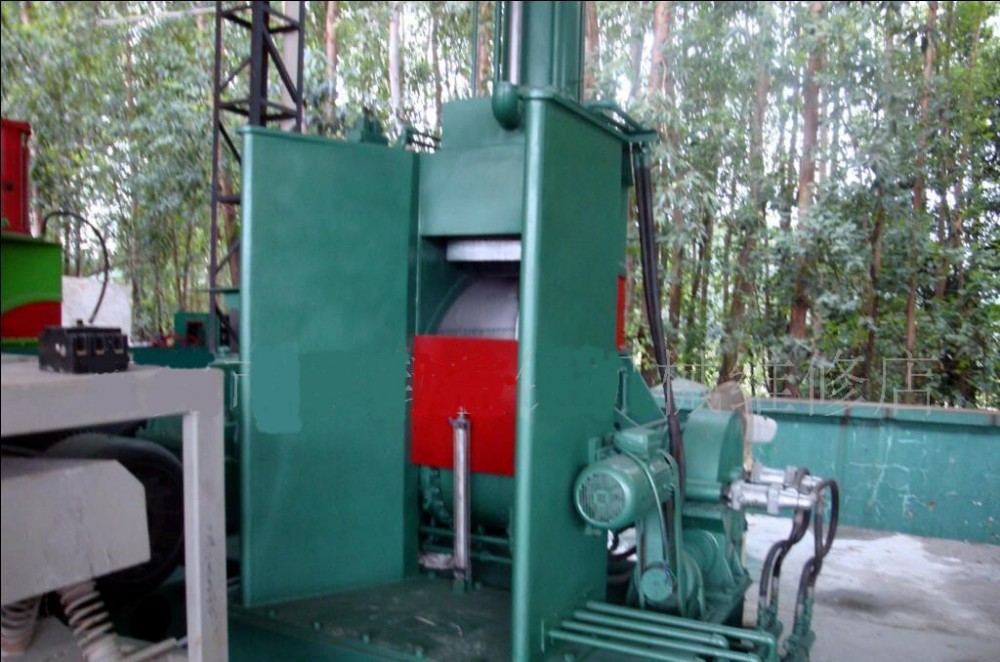

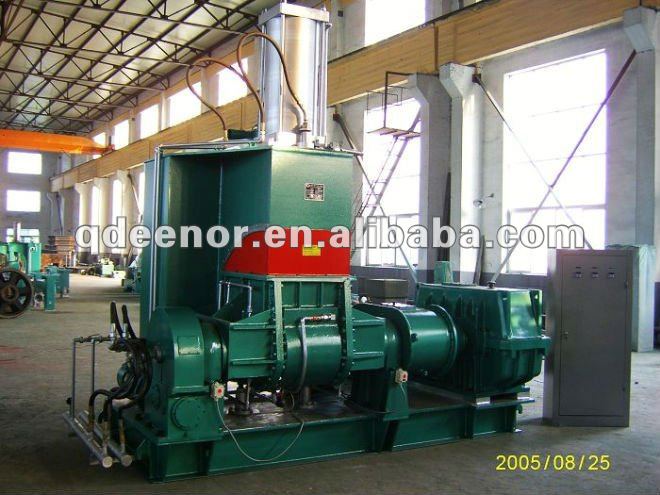

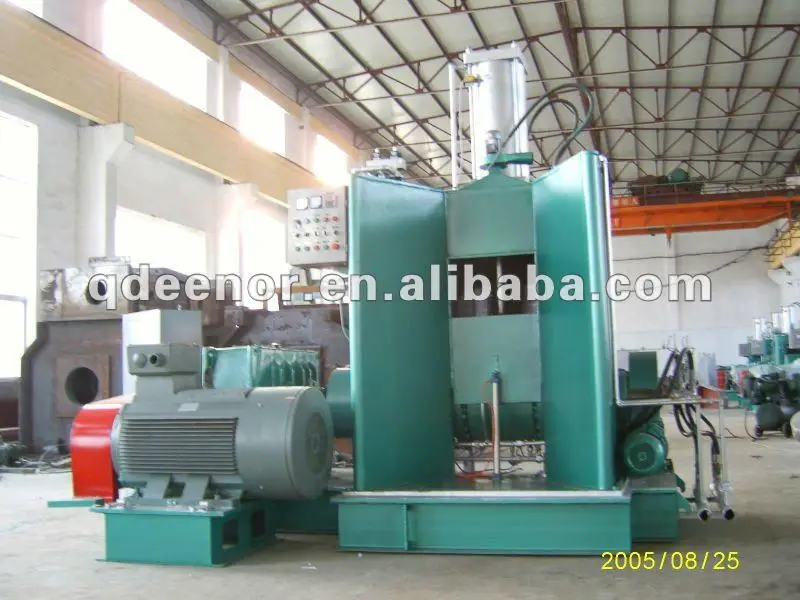

banbury rubber internal mixer/Internal rubber mixer kneader/used rubber banbury mixer



Introduction



1.Rubber kneader with completely sealed condition,materials are mixed or plasticated under certain pressure,controllable temperature ,which makes high production effciency and obtains excellent quality.



2.Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to bedispersed uniformly.



3.Surface where is contacted with the materials are all platedwith hard chromium and polished,which is corrosion-resistantand wear-resistant.



4.Jacket construction is adopted in parts that surfaces contactwith materials to achieve excellent water-cooling or steamheating effect and fit in with the needs of plastics and rubberprocessing technology.



5.Feeding from back door on the frame (or a separate top door)is convenient for continuous process operation in aproduction line. The mixing chamber is able to turn forward by 140 aroud the frond rotors to discharge and is easy for changingpigments and cleaning the chamer.



6.Programmable logic controller (PLC) is adopted in theelectric-control system,which has reliable control function andalarm function,and interlock safety-protection function and itis procded with serial interface of net.









Parameter

Model		X(S)N)-3	X(S)N-10	X(S)N-20	X(S)N-35	X(S)N-55	X(S)N-75	X(S)N-110
Mixing capacity	L	3	10	20	35	55	75	110
Main power	KW	5.5	15	30	55	55/75	90/110	160/200
Brake	KW	0.37	0.75	1.5	2.2	3	4	5.5
Motor
Tilting		110	110	110	140	140	140	140
Angle
Air compressor	KW	1.5	2.2	3	5.5	7.5	10	10
Dust Collector		HLL-10	HLL-10	HLL-10	HLL-10	HLL-15	HLL-20	HHL-30
Cooling Water	MPA	0.2-0.4	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Heating Steam	MPA	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Electric Heater	KW	4	6	9	12	15	18	24
Machine Weight	KG	1200	2300	4500	6500	7800	10500	14500
Overall Dimensions	CM	196x970x182	220x135x215	250x148 x250	310x179 x271	342x214 X280	380x214 X318	440x276 X377
