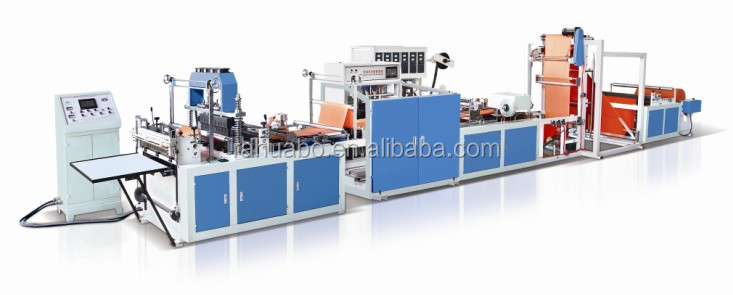

Name: Excellent High speed automatic non woven zipper bag making machine

HBL-DC 600/700/800



This newest nonwoven bag making machine is improved.







Advantages:



automatic non woven zipper bag making machine	1. The speed is 120pcs/min, faster than old type machine.
	2. The machine is higher reliability, reduced a lot of time for installing.
	3. Machine was shortened by 1 m to save space.
	4. The appearance of machine is become more artistic.
	5.Our engineer can speak English























Product introduction:



This machine is suitable for non woven fabric material only, it is the most advanced equipment and has the function of full automatic handle loop sealing. The speed is about 20-60 pcs/min, it equals to 5 workers operating 5 handle sealing machines. It can fully automatic make non woven bag products with different bag type and size, as handle attached bags, T-shirt bags (vest bags), box bags, flat bags, drawstring bags and so on. It has widely used in clothing, footwear, wine, gifts packaging etc. The machine can instead of the traditional hand-sewing and reducing labor and manufacturing costs. It’s very popular in worldwide.



Features:



1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.



6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.







This machine is suitable for non-woven fabric material. It can make following bags:





Main Technical Parameter

Nonwoven Bag Making Machine Type	HBL-DC600	HBL-DC700	HBL-DC800
Production Speed	20-55pcs/min	20-55pcs/min	20-55pcs/min
Bag Width	100-800mm	100-800mm	100-800mm
Bag Length	200-480mm	200-580mm	200-680mm
Bag-Making Thickness	30-120g	30-120g	30-120g
Power Supply	380V/220V	380V/220V	380V/220V
Total Power	18KW	18KW	20KW
Overall Dimension (L*W*H)	10.3m*2m*2.1m	10.3m*2m*2.1m	10.3m*2.2m*2.3m
Weight	2300KG	2500KG	2700KG

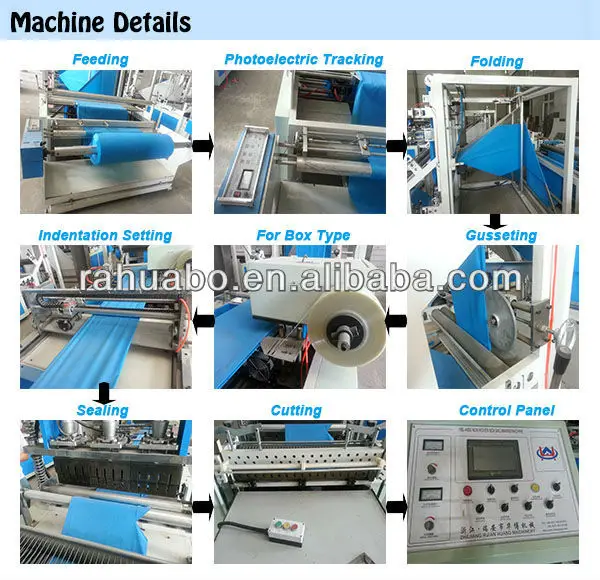

Main Parts of Machine:







Workshop

















Delivery

















The Certificates

















Our Company Culture









The Payment Term









1. Q: Are you Manufacturer?

A: Yes!



2. Q: How many non woven bags your machine can make?

A: Our machine can make various non woven bags with different price. We make kinds of machines according to customers' requirements.



3. Q: Whats the bag size that your machine can make?

A: Generally, our machines make two kinds of bag size. The first (HBL-700): Max Bag Width 800mm, Max bag Length 580mm.The second (HBL-800): Max Bag Width 800mm, Max bag Length 680mm. (Only the Max bag size of T-shirt bag is opposite).



4. Q: What’s the payment that you usually do?

A: T/T and L/C.



5. Q: What’s your delivery time?

A: 15 working days after 30%T/T deposit, the balance 70% before the shipment.
