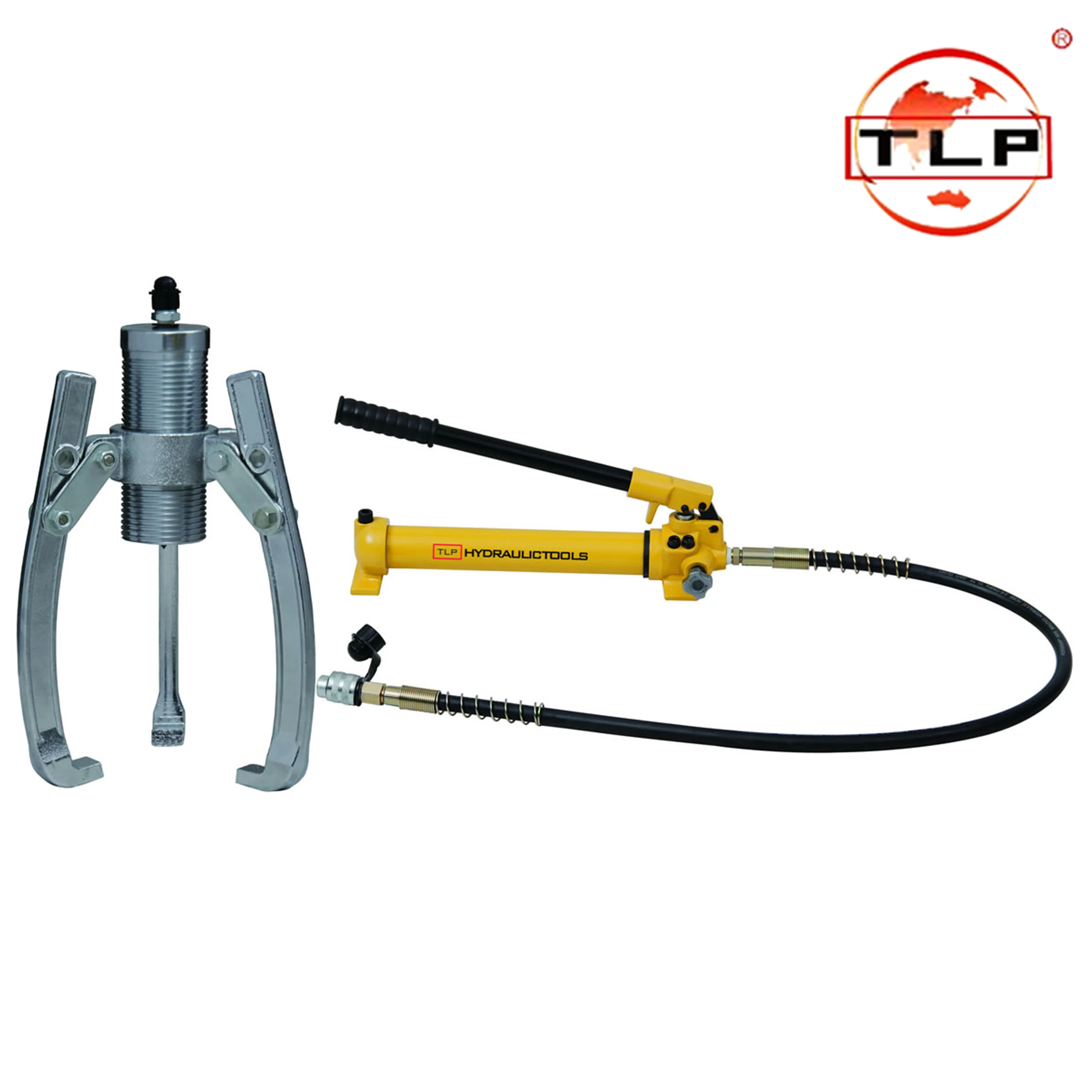

Разъемные гидравлических шестеренных съемники HHL-5F HHL-10F

Описание и отзывы

Характеристики

 The Seprable hydraulic gear pullers are simple to operate.

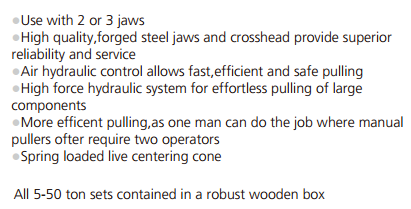

Features:

♥The pullers are chrome-plated for increased gloss and corrosion resistance.

♥Convenient transformation between three-jaw and two-jaw styles.

♥Jaw height adjustable.







Model: HHL-5F

1. Max. force: 5 ton
2. Stroke: 50mm
3. Claw number:3
4. Spread: 50-200mm
5. Weight(including hand pump): 15 kg
6. Packing dimensions: 73*18*18cm



Model: HHL-10F

1. Max. force: 10 ton
2. Stroke: 60mm
3. Claw number:3
4. Spread range: 50-250mm
5. Weight(including hand pump): 20 kgs
6. Packing dimensions: 73*18*18cm



Model: HHL-20F

1. Max. force: 20 ton
2. Stroke: 70mm
3. Claw number:3
4. Spread: 100-350mm
5. Weight(including hand pump): 27 kgs
6. Packing dimensions: 73*21*18cm



Model: HHL-30F

1. Max. force: 30 ton
2. Stroke: 70mm
3. Claw number:3
4. Spread: 150-400mm
5. Weight(including hand pump): 35 kgs
6. Packing dimensions: 73*25*18cm



Model: HHL-50F

1. Max. force: 50 ton
2. Stroke: 60mm
3. Claw number:3
4. Spread: 200-500mm
5. Weight(including hand pump): 55 kgs
6. Packing dimensions: 73*25*18cm
