Высокопроизводительная ударная Дробилка 450-520 tph
US $42999-$43200
Самая продаваемая 2024 ударная Дробилка для дробления камня линия известняка установка Добычи
- Категории: Sand Making Machinery >>>
- Поставщик: Henan,Hongxing,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Introduction

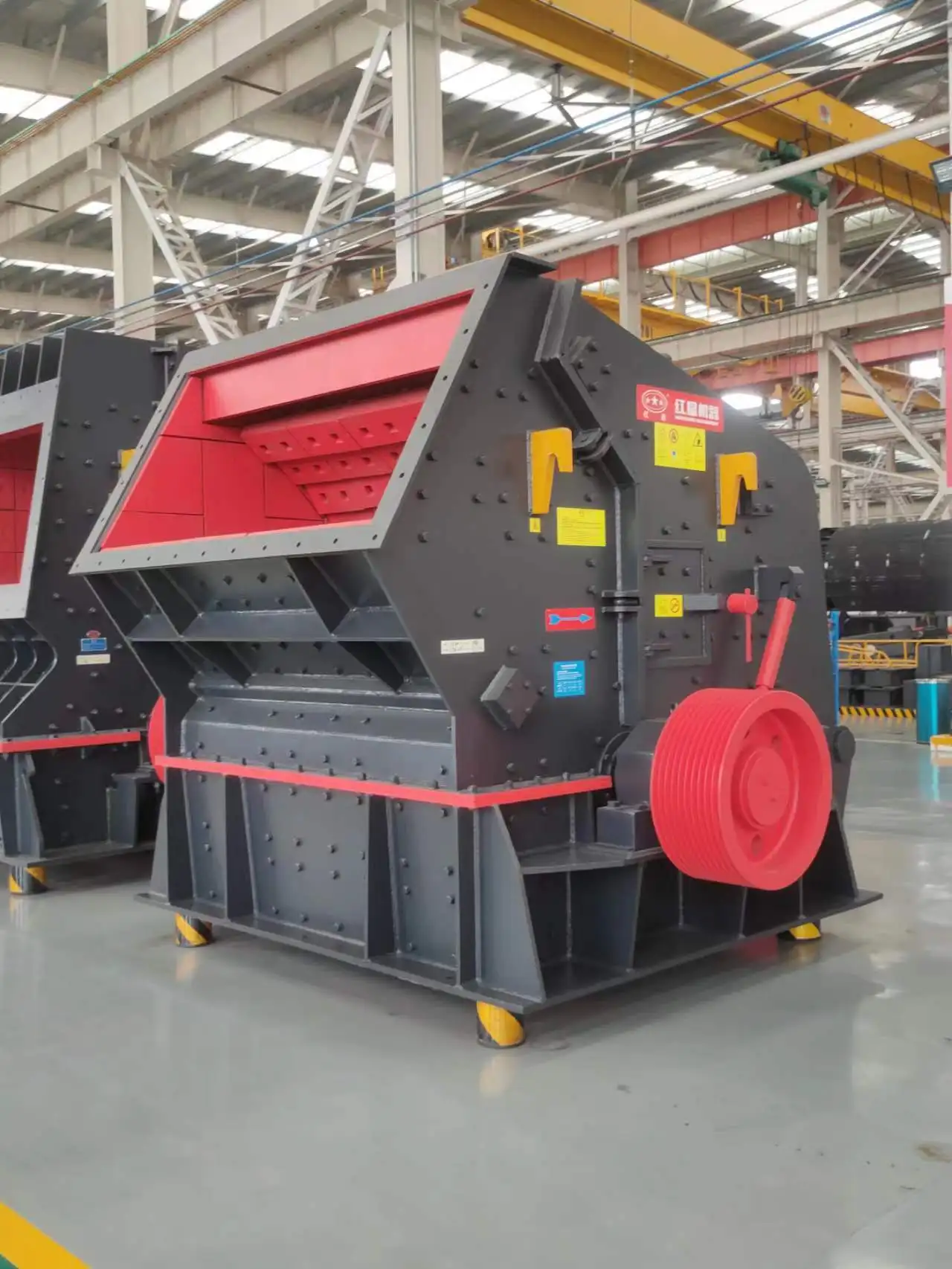

PF Series Impact Crusher
♥ It adopts the latest manufacturing technology and unique structure, and the final products are in the form of a cube and have no tension and fissure, and have good particle shape.
♥ It is able to crush coarse, medium, and fine materials such as granite, limestone, and concrete whose feeding granularity does not exceed 500mm and compression strength does not exceed 350MPa in many industries such as ore crushing, railway, highway, energy, cement, chemistry, and constriction.
♥ It is able to crush coarse, medium, and fine materials such as granite, limestone, and concrete whose feeding granularity does not exceed 500mm and compression strength does not exceed 350MPa in many industries such as ore crushing, railway, highway, energy, cement, chemistry, and constriction.
Advantages
→ The impact crusher has with unique simple structure and keyless connection.

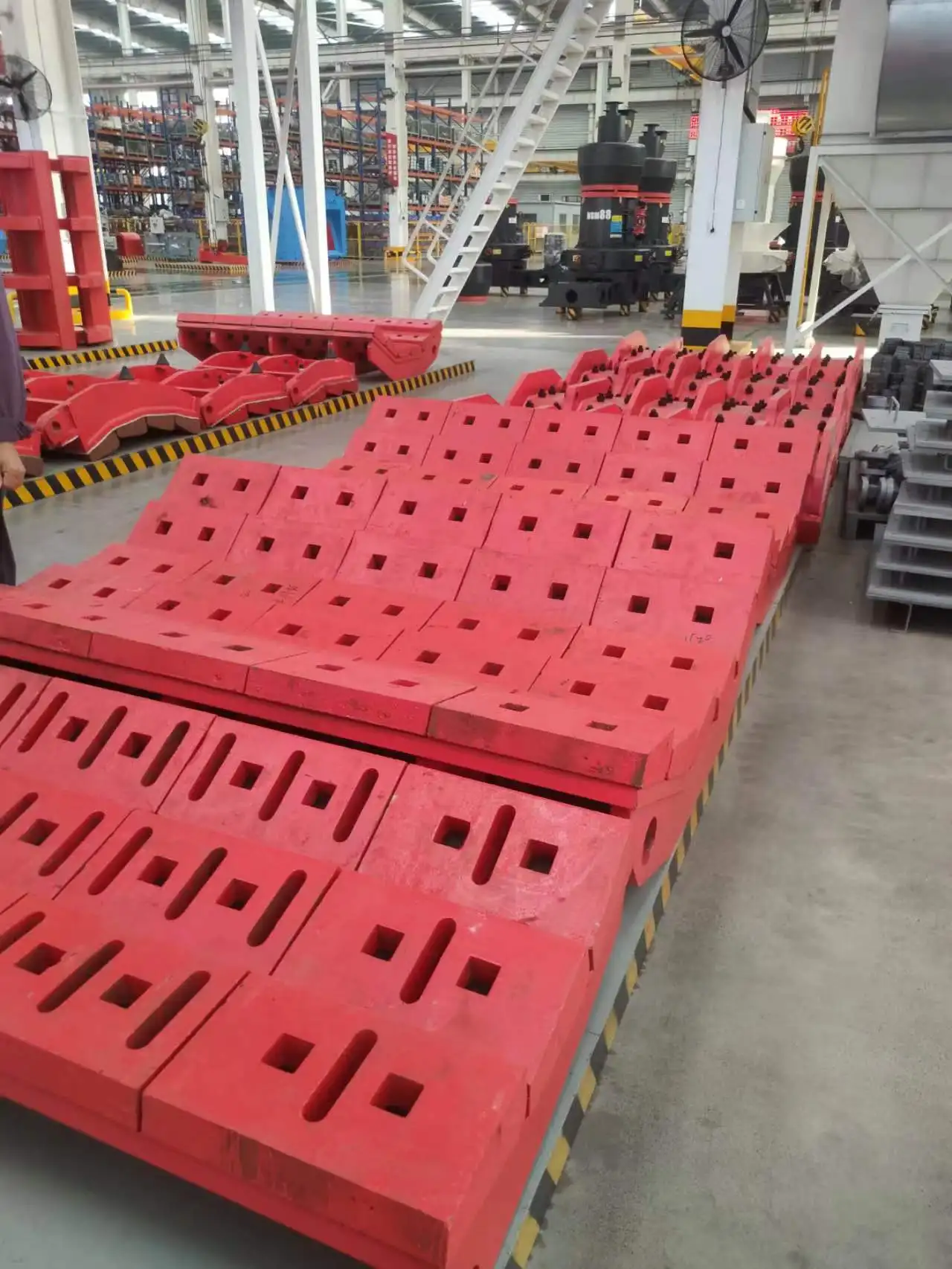

→ Impact crusher with a high-chromium plating hammer and special impact liner plate.
→ The impact crusher is capable of highly efficient hard rock crushing while saving energy.
→ The final product of the impact crusher is in the shape of a cube, the discharge grain size is adjustable to simplify the crushing circuit.
→less power consumption and high efficiency;
→ high productivity, little mechanical wear, high overall efficiency;
→ unique three chamber design
→ full hydraulic switch makes it easy for maintenance and replacement of wearing parts
→ Impact crusher with a high-chromium plating hammer and special impact liner plate.
→ The impact crusher is capable of highly efficient hard rock crushing while saving energy.
→ The final product of the impact crusher is in the shape of a cube, the discharge grain size is adjustable to simplify the crushing circuit.
→less power consumption and high efficiency;
→ high productivity, little mechanical wear, high overall efficiency;
→ unique three chamber design
→ full hydraulic switch makes it easy for maintenance and replacement of wearing parts

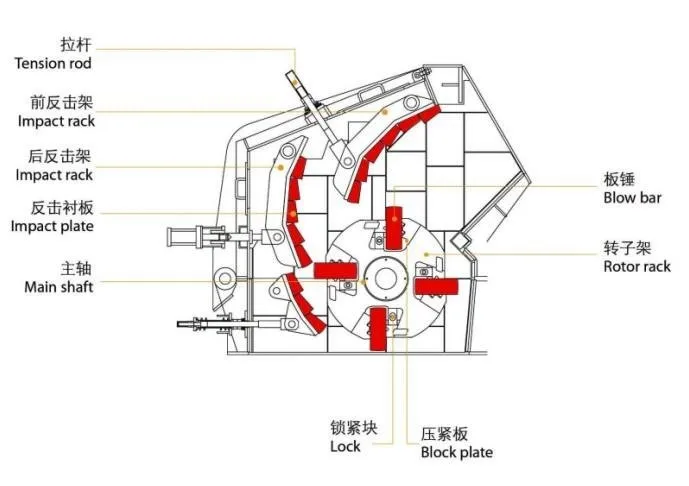

Working principle

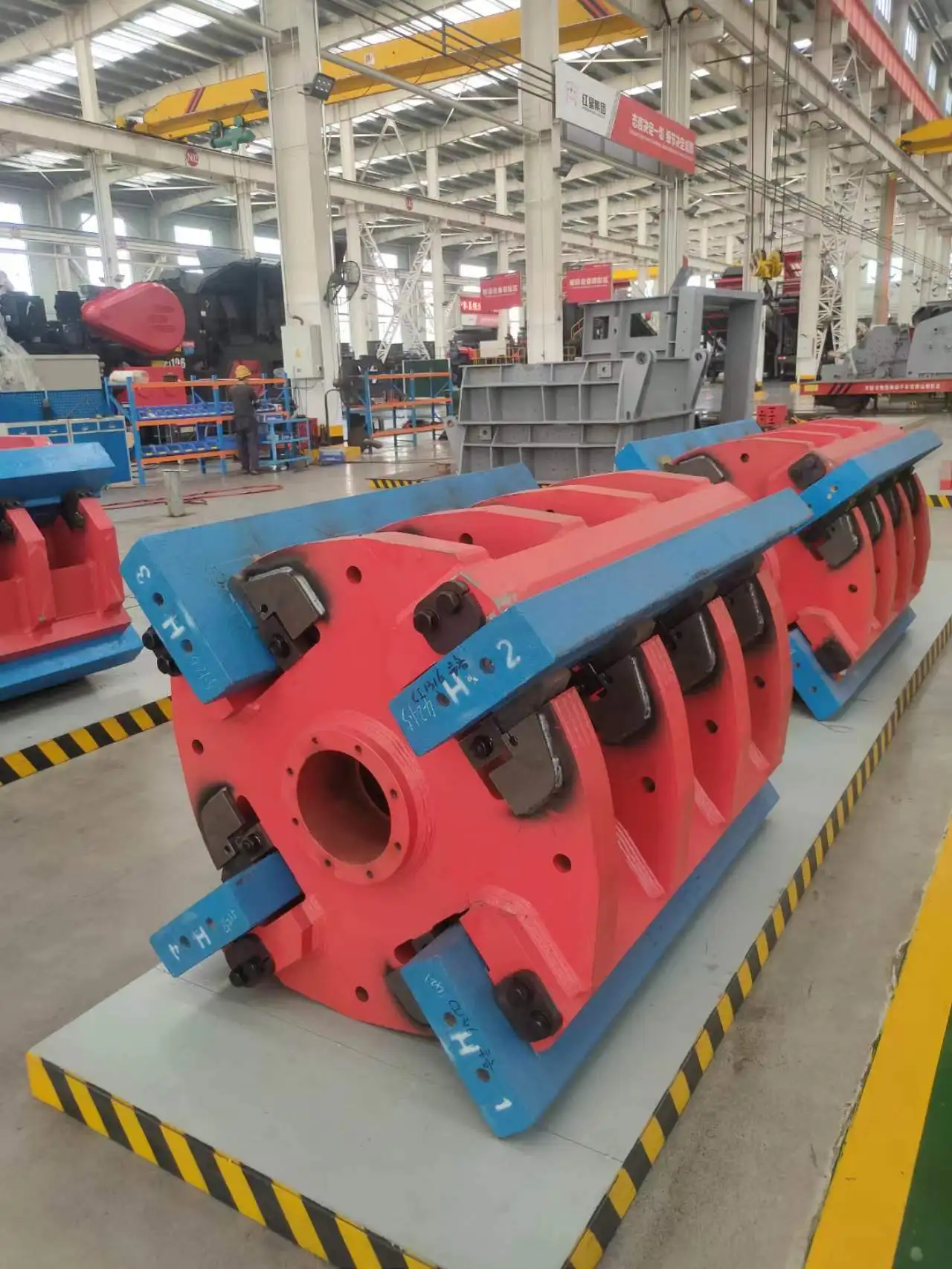

• When the mineral impact crusher works, the motor drives the rotor of the impact crusher with high speed, on the rotor where hammers installed.
• When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed.
• When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed.
Technical Parameter
Model | Specifications （mm） | Feed Opening （mm） | Max.Feeding Size （mm） | Capacity （t/h） | Power （kw） | Dimensions（L×W×H） （mm） |
PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 |
PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 |
PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 |
PF-1214 | Φ1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 |
PF-1315 | Φ1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 |
PF-1320 | Φ1300×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 |
PF-1520 | Φ1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 |
PF-1820 | Φ1800×2000 | 1260×2040 | 800 | 300-800 | 6P 630-710 | 4400×3866×4009 |
Related Products
Successful Project
Packing & Delivery
We have developed long-term and excellent relationship with many ocean freight partners, such as APL, COSCO, OOCL, CSCL, MSC, etc. And train carrying is also available.The complete mode of shipping and best service with lowest price are always provided forcustomers.
Company Profile
STRENGTH
Henan Hongxing Mining Machinery Co., Ltd.(HXJQ) covers an area of 500,000 square meters which includes 360,000 square meters of heavy duty industrial workshops.
Who Heave Chosen Us?
HXJQ enjoys a high reputation in more than 160 countries and regions in the world
Our Service
What We offer after-sale?
1. Free Consultation → Quick response within 30 minutes to give technical consultation reply:
2. Quick installation → The service engineer will guide the installation and commissioning within 1-2 days;
3. Technical Training →Regular free for customers to do maintenance, maintenance training;
4. 24h customer service →365 days a year to accept service requests;
5. After-sales network → after-sales network all over the country, to provide customers with all aspects of after-sales service;
6. Improve after-sales → Implement multi-year tracking service for the equipment sold.
