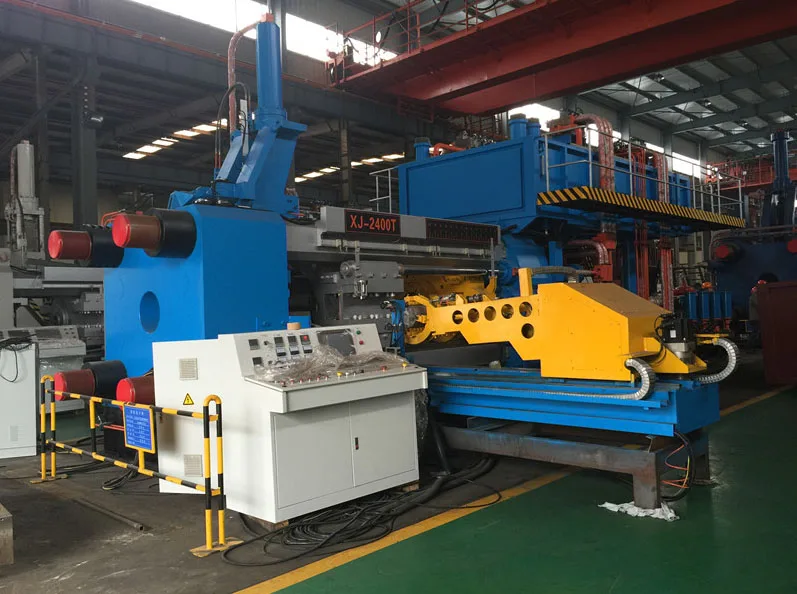

1000T Aluminum Profiles Extrusion Press Machine for Aluminum Extrusion Plant


Product Description


This series of equipment is suitable for extrusion processing of copper, lithium, zinc, aluminum, magnesium, lead and other metals and their alloys, and can produce various building profiles, industrial profiles, vehicles and aviation profiles.




Technical Parameters


Model No.
GA-300T
GA-500T
GA-630T
GA-800T
GA-1000T
GA-1250T
GA-1630T
Extrusion Force(KN)
3000
5000
6300
8000
10000
12500
14500
Return Force(KN)
150
250
435
435
510
510
600
Extrusion Speed(mm/s)
0~10(A)Aluminum






Extrusion Speed(mm/s)
0~50(B)Copper






Extruded tube ruler(φ×L)
φ65～φ75×300
φ75～φ95×400
φ85～φ115×500
φ95～φ135×550
φ115～φ145×550
φ125～φ165×600
φ125～φ165×600
Locking force (KN)
160
280
360
360
420
420
900
Mold opening force (KN)
220
360
480
480
610
610
1180
Shear force (KN)
110
180
210
210
210
240
300
Maximum working pressure of hydraulic system (MPa)
21
Motor power (A) (KW)
30
45
55
55+30
55x2
75+55
55x3+45
Motor power (B) (KW)
75
75+55
75+55x2
75x2+55x2
132x2
132x3
132x4
Heating power (KW)
15
18
20
24
24
28
45
Dimensions (L×B×H)
4.5×1.5×3.0
5.5×1.8×3.0
6.5×2.2×3.5
8.5×3×3.5
9×3.5×3.8
9.5×3.5×3.8
11×4.2×5
Weight (t)
10
24
34
42
52
58
95


Features:
1. Host part:
﹡The main cylinder, front beam and other main components are made of high-quality cast steel/forged steel
﹡The main plunger is made of chilled cast iron, the surface of the piston rod is plated with hard chrome, finely ground, and the roughness is small.
﹡The tension column is made of 45# steel and processed by flaw detection.
﹡The oil cylinder of the shearing mechanism is inverted, stable and durable.
﹡The die change cylinder is a direct push type, which is convenient for operation and maintenance.
﹡The stroke of the locking cylinder can be lengthened, suitable for extruding seamless aluminum tubes.
﹡Special quenching process of extrusion rod and extrusion barrel effectively prolongs the life of extrusion tools.
﹡The cylinder of the spindle is external, stable and reliable.
﹡Flat guide rail structure, the center of the movable beam can be adjusted, which makes the extrusion center of the calibration machine easy.
2. Hydraulic part:
﹡The system adopts high and low pressure separately configuration, differential connection, with fast response, quick and stable action, and effectively extend the service life of the main valve.
﹡The hydraulic system of 1250T and above series aluminum extrusion machine is divided into:
Ⅰ. Control system of traditional slide valve
Ⅱ. Disassembly and assembly valve (VC valve system), users can choose according to their different requirements
﹡Proportional valves and servo valves can be added to enable the system to realize speed regulation, pressure regulation and constant speed extrusion to meet special extrusion process requirements.
﹡The high-pressure part adopts imported seals, so there is little oil leakage.
3. Electronic control part:
﹡The main motor adopts 6-pole horizontal structure, which greatly prolongs the service life of the pump.
﹡Adopts imported programmable controller (PLC) to control.
﹡The operation panel is set to manual, semi-automatic/automatic, reflecting the humanized design concept.
﹡Imported parts are used for the key components of strong electricity and weak electricity.






After-Sale Service


Provide the best factory building support and machine design technical support,

and after-sale support machine usage guide instruction, and field video guide.

If necessary we can send professional technicians there.


Company Introduction


Dedicated to the aluminum extrusion industry for more than 10 years, Jiangsu Giantally Imp&Exp Co., Ltd has been servicing over a hundred aluminum extrusion companies, totalling nearly 20 million USD in yearly sales. With excellent product quality and professional service level, we've earned great reputation among our customers, and are fortune enough to have over the years kept growing in terms of customer base and sales revenue.

In addition, with the industrial influence of our parent company: Giansun Group, we've established cooperative relationships with many research institutes and manufacuters along the supply chain, which allows us to offer integrated solutions that incorporate various elements involved in aluminum extrusion industry, including aluminum melting&casting line, powder coating & anodizing production line, and other needed small machinery as well as the accessories & consumables, thus providing one-stop purchase services.

With the motto of creating real value for the customer and helping the customer grow together, we welcome your any technical and commercial enquiry and look forward to being of service.

To be with Giantally, to be a giant ally！




FAQ



1. What's the delivery time of your aluminum extrusion machine?

For ordinary small-sized machine such as saw, 30 days;middle-sized machine such as heating furnace, 45-50 days, for big-sized machine such as cooling system/profile handling system, 60 days. We could also design and make the whole production line for our customer, around 3-6 months.

2. What’s your ordinary shipment method?

We can deliver the machine by land, or by ocean.

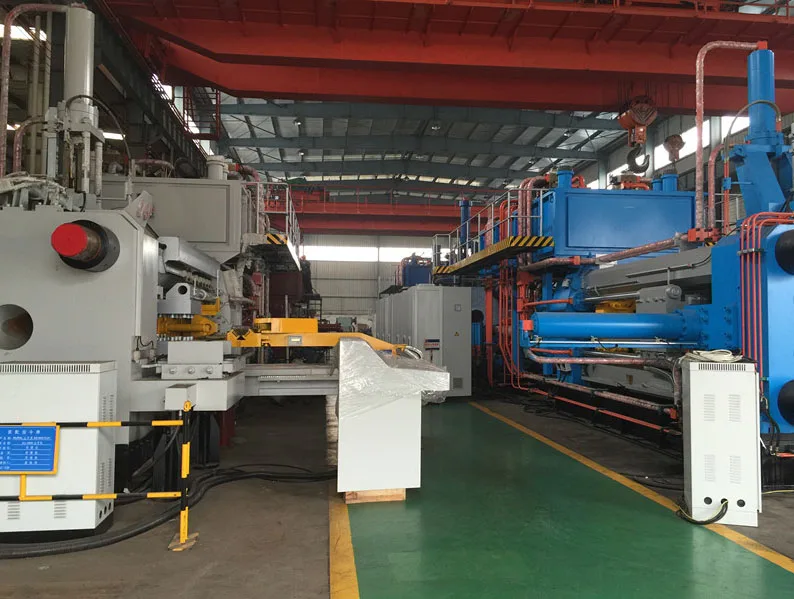

The Whole Extrusion Line
