Technical Parameters  :

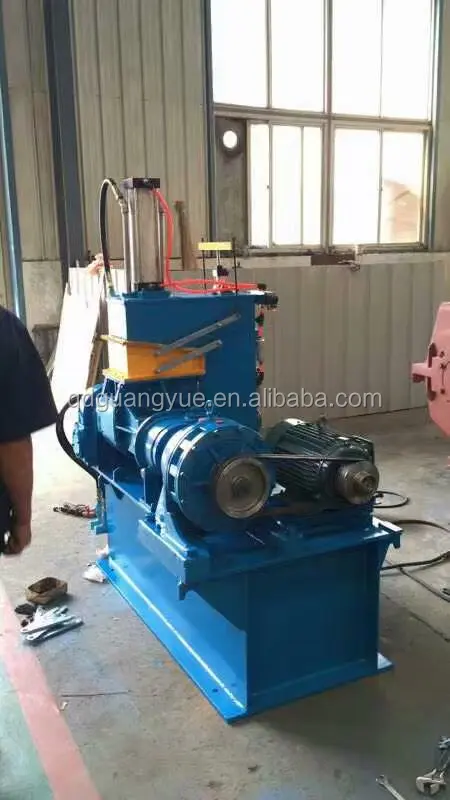

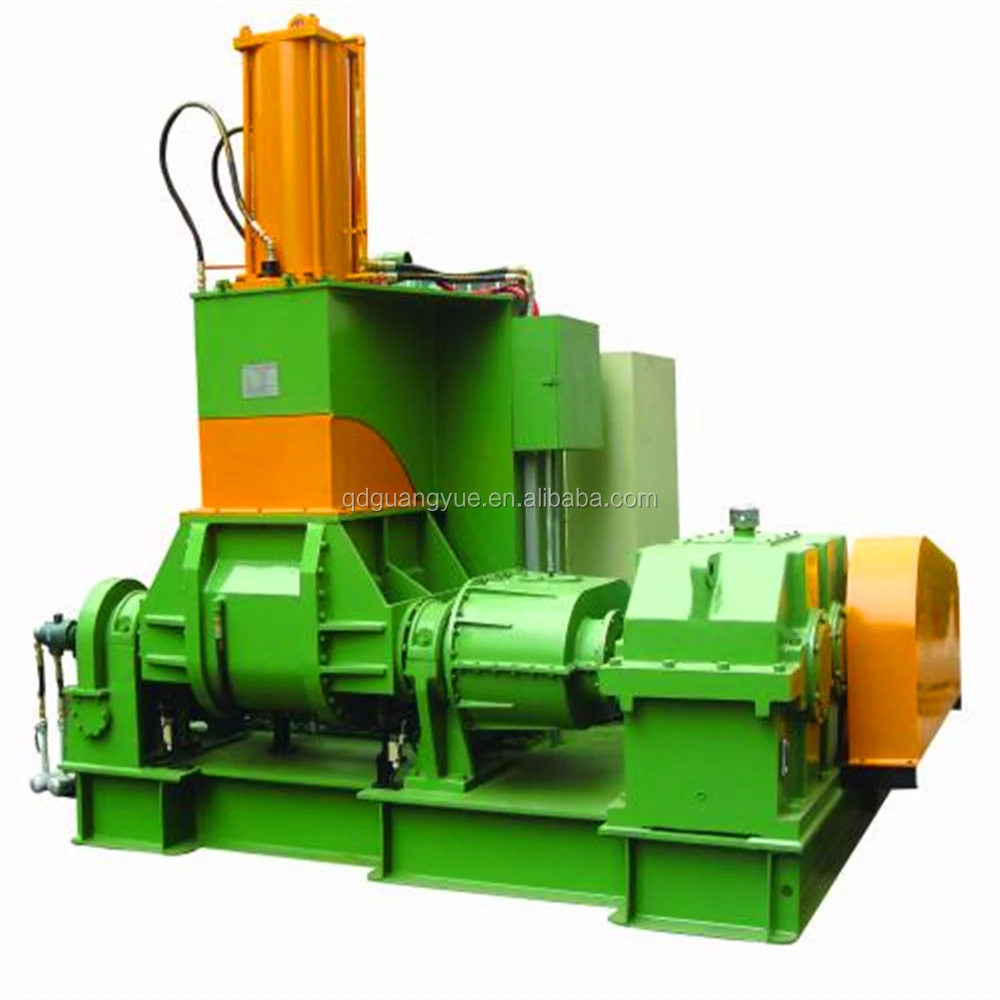

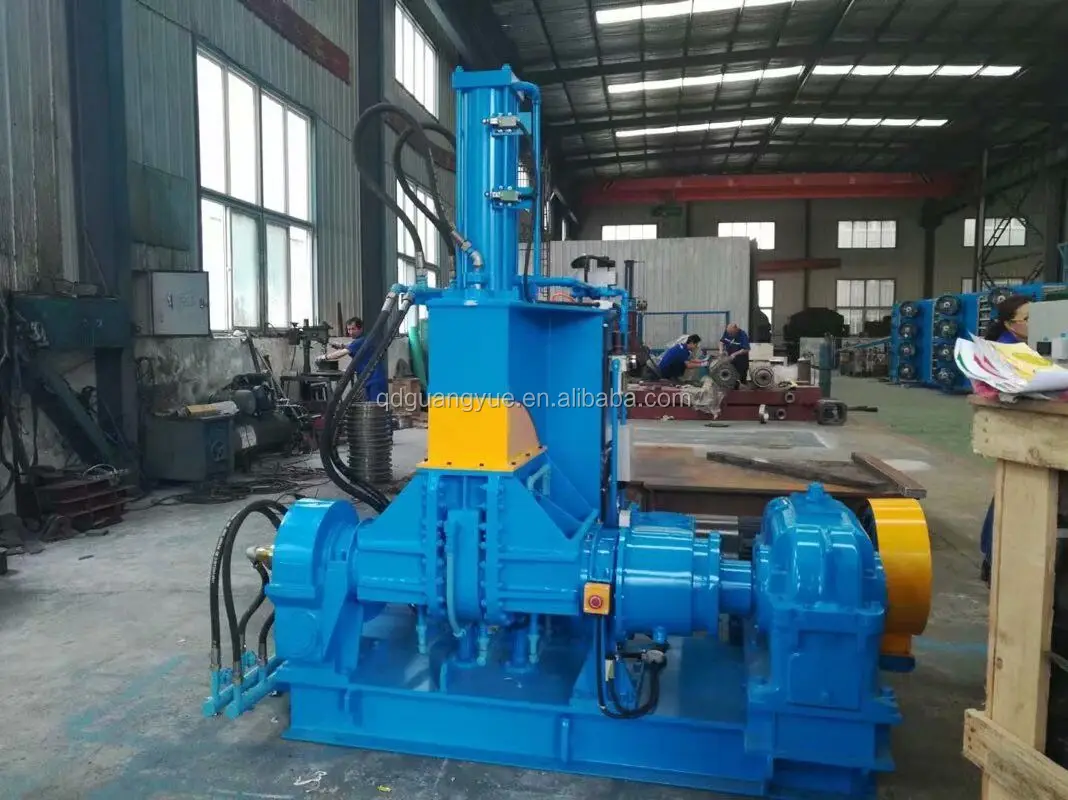

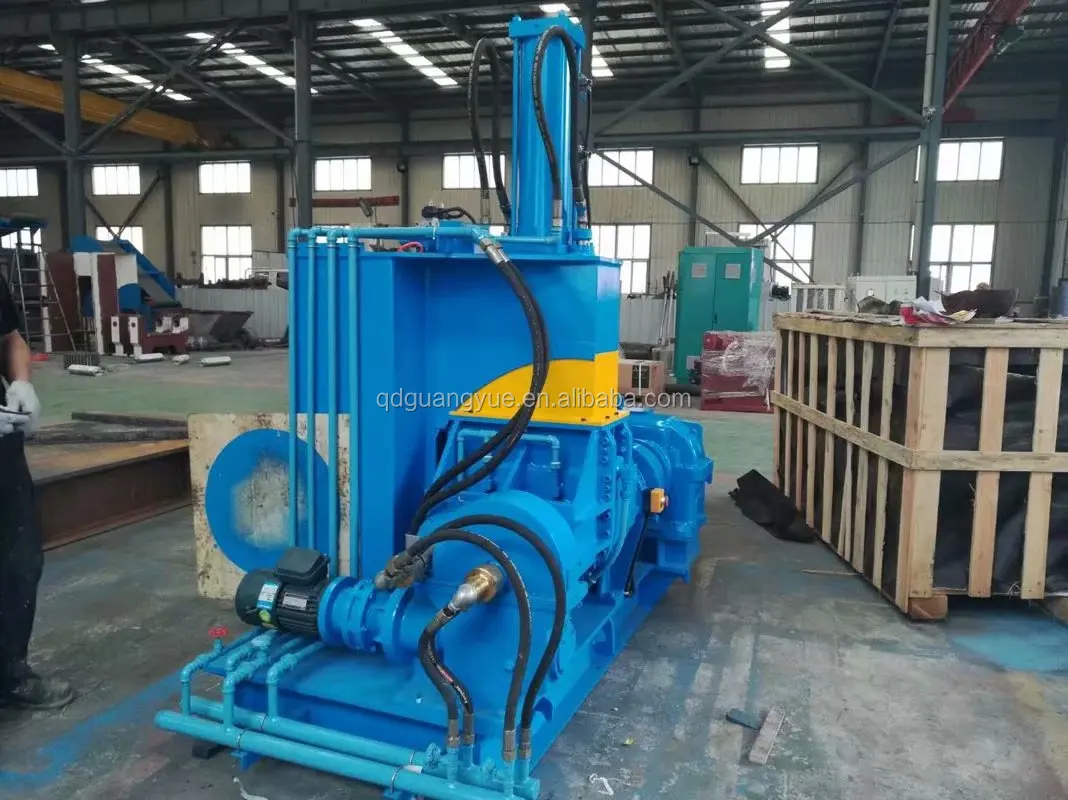

.Rubber internal mixer is mainly used for plasticating,mixing and final mixing the stock.

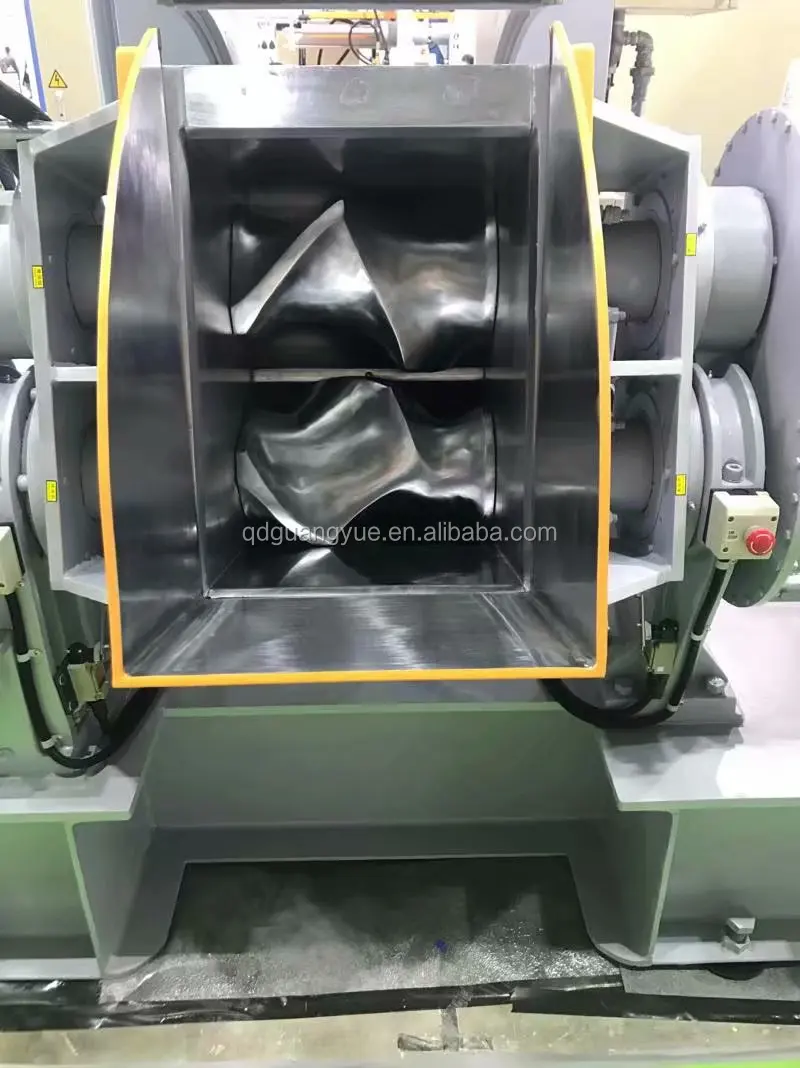

1. The diversity of rotor type can meet different mixing requirements.User can choose any kind of rotors(the mixer with different rotor has different total volume and working volume.

2. Drive sysyem adopts DC motor or AC inverter motor to realize stepless speed adjustment or adopts Acmotor with gear box etc.The drive system has the advantages of steady drive,lower noise and long service life etc.

3. The standard rotr adopts the right drive system.According to users needs we also can supply the left drive system.

4.Drive sysyem adopts DC motor or AC inverter motor to realize stepless speed adjustment or adopts Acmotor with gear box etc.The drive system has the advantages of steady drive,lower noise and long service life etc.

5.On-site operation cabinets and electrical control cabinets adopt PLC communication,results in reduction of equipment troubles and installation cost.

main techinical data:











model data	X(S)MN-90	XMN-190	XMN-270	XM-160			XM-270	XM-370	XM-650
L Total volume of mixing chamer	90	200	250	160			255(235)	425(395)	650
L Working volume of mixing chamer	63 (0.7) (filling factor	140 (0.7) (filling factor	175 (0.7) (filling factor	120 (0.75) (filling factor			191(176) (0.75) (filling factor	319(296) (0.75) (filling factor	485.5 (0.75) (filling factor
r/min Rear rotor speed	6-60		4-40	30/(4-40)			4-40/(6-60:20/40)	6-60/(7-70)	5-50
Rotor friction	1:1			1:1.6			1:1.171:1	1:1.511	11.16
Mpa Unit pressure of ram against material	0.06-0.6hydraulic ram0.38-0.48pneumatic ram
Mpa Compressed air pressure (pneumatic ram)	0.6-0.8
/h Consumption of compressed air	-60	-90	160-200		-70	160-200		-350
Mpa Coling water pressure	0.3-0.4
/h Water consumption	-25	-60	main machine-80motor-20		-45	main machine-80 motor-20		main machine-110 motor-2*20
KW Main motor:Power	520	1100	1250		355500	125015001000		2*1250 2*1500	2*1500
r/min Speed	100-1000				740/100-1000	100-1000







































































 We are Qingdao Guangyue Rubber Machinery Manufacturing CO.,LTD.Our main products are: various types of rubber mixer, rubber crusher, plate vulcanizer, rubber cutter, rubber extruder, rubber refiner and other kinds of rubber machineries. The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
If you are interested in our products mentioned above, kindly let us know by return e-mail.

Also we can make non-standard rubber machinery as customer’s requirements.

We are looking forward to receiving your inquiry sincerely, thanks!
