Лазерный стальной трос измерительный

Описание и отзывы

Характеристики

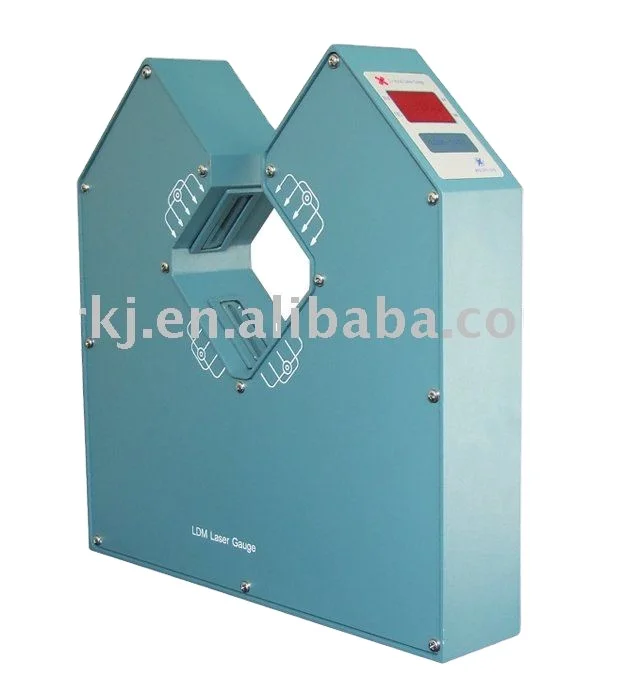

Laser steel wire rope measuring device is the high-accuracy online measurement that uses the laser scan to carry on the no-contacts on-line measurement. It (namely X axis and Y axis) simultaneously measure the diameter in two directions.

Applicable to metal wires, glass, pipes, wire and cable, etc. The diameter of the measurement and control. Two-directional measurement, the average shows that can simultaneously show the wire, pipe diameter, roundness.





2. Technical parameters

    Model       Measuring Range    Differentiation             Accuracy

LDM-25XY      0.1-20mm                  0.001     ±0.02%×(Reading)±0.001mm



Technical parameters

Model	LDM-25XY		LDM-50XY		LDM-100		LDM-150		LDM-210		LDM-380
Measuring Range	0.2-20mm		0.2-45mm		0.2-95mm		0.2-145mm		0.2-205mm		0.2-375mm
Min Size	0.2mm		0.2mm		0.2mm		0.2mm		0.2mm		0.2mm
Max Size	20mm		45mm		95mm		145mm		205mm		375mm
Accuracy	±0.001		±0.002		±0.01		±0.01		±0.01		±0.01
Resolution	0.001mm		0.001mm		0.001mm		0.001mm		0.001mm		0.001mm
Dimension	48.5x20x8.5cm		48.5x20x8.5cm		62x25x6cm		92x29x9.5cm		121x36x8.5cm		45x50x8.5cm(x2)
Units of Measurement	mm		mm		mm		mm		mm		mm
Power	~220V±15%, 50-60HZ
Temperature	-10~40℃
Humidity	<85% RH
Gauge Head Serial I/O	Standard: RS485 Options:RS232 / USB / Profibus
Presets	Diameter, +Tol,-Tol, Alarm Setting
Transparent Measurement	Option	Option		Option		Option		Option		Option
Control Output
Serial I/O	RS485
Analogues Output	16 bit ±10V DC Output
Relay Output	2 Volt Free (Status, Upper Tolerance, Lower Tolerance)



Main Features
1. Non-contact laser diameter measurement, high speed, high accuracy and good repeatability.
2. Real time outside diameter and roundness display, improve quality control and production efficiency, reduce the waste of materials.
3. Various digital and analog control signal functions, to achieve fully automated production.
4. Various preset functions,nominal value, the upper and lower tolerance, alarm control presets, easy to operate.



3. The performance indicators:
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W

Dimensions:

Measuring head: 372mm×360mm×60mm



4. The Device with the following Characteristics

1. Can be connected PLC, industrial computer.

2. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.

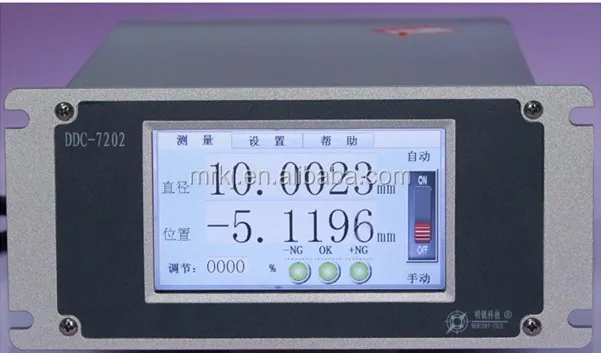

3. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.
