Software Compression 4 Channels USB DVR

Model Number: KDM-404UD

Introduction:

1) 4 channels video input in one card, 2 channels audio on board, 1 channel PC audio.

2) Maximum display / recording rate is 25 fps under PAL format, and 30 fps under NTSC format.

3) Multi alarm triggering method: sensor, motion, video loss, and HDD space shortage.

4) Support schedule recording mode, recycling recording method available.

5) MPEG4 video compression format. 5 level recording quality options available, and the recording frame rate range from 1 to 30 fps adjustable for each channel.

6) Support multi-channel playback, searching by time / date and recording events, images can be zoom / capture / save / print / backup.

7) Support remote surveillance and PTZ control through web browser, support dynamic domain name.

8) Remote playback function.

9) Configurable auto reboot function for preventing PC deadlock.

10) Auto mail.

Specification:

1. Card: USB video grabber
2. Video format: PAL/NTSC
3. Resolution: PAL: 352*288(CIF), 704*576(D1)

NTSC: 320*240(CIF), 640*480(D1)

1. Maximum rate per channel: 25fps(PAL) 30fps(NTSC)
2. Video channels: 1/4chs
3. Audio format: 8bit, 1ch or 2chs
4. Data format: MPEG4

System Requirements:

1. Screen resolution: 1024*768
2. DirectX: directX9.0
3. RAM: 256M
4. VGA: 32M
5. CPU: Intel PII 800M
6. USB: USB2.0
7. OS: Win2000/XP(SP2)

Hardware Installation:

1. Connect the USB interface to computer/laptop, if there is internet, it can be remotely controlled.
2. The yellow port is for video input, which could receive video signals from connected cameras.
3. The white port is for audio input, which could receive audio signals from connected microphones.
4. Then turn on the computer and install superDVR software.

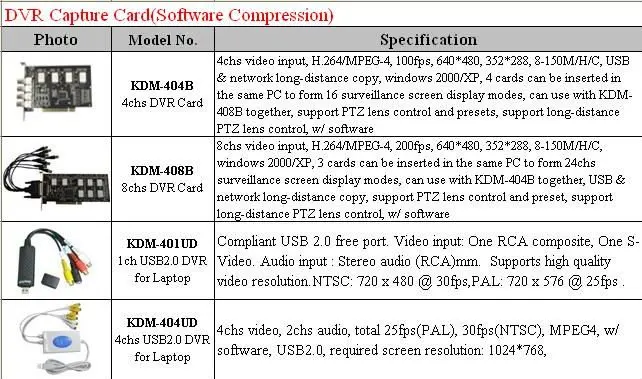

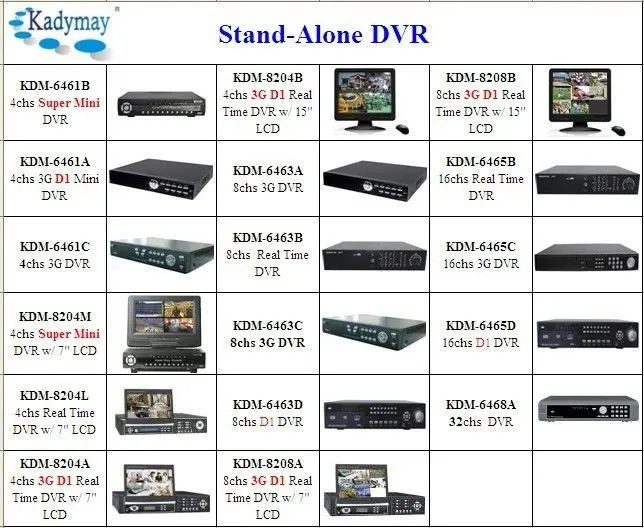

The related DVR Card and Stand-alone DVR
