Настольный мини-фрезерный станок YANDIAO с ЧПУ для гравировки по дереву и камню
- Категории: Wood Router >>>
- Поставщик: Beijing,Yandiao,CNC,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Description
Product Application

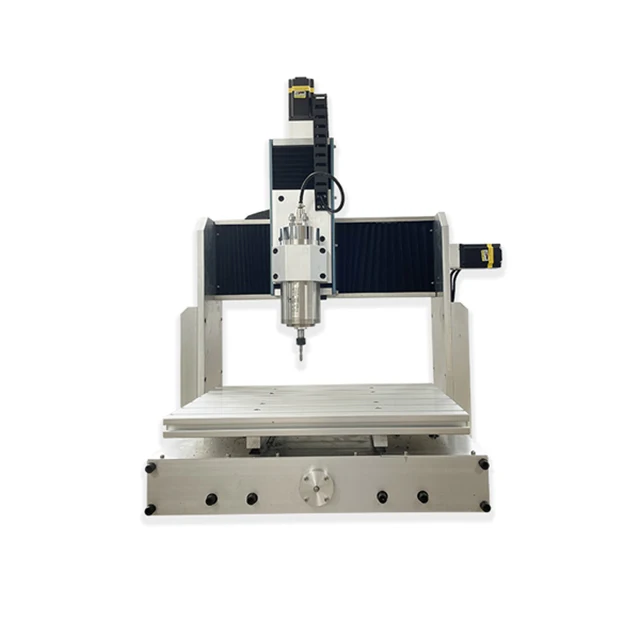

This 3040 engraver is a user-friendly desktop engraving machine for those with limited space and /or a limited budget.The Computerized CNC Engraving and Cutting Machine is suitable for various materials,such as WOOD,PMMA or other plastic,MDF board,native wood,PVC,Acrylic,wood,composite board plywood,It can be used widely to process or make advertising signs,PCB,nameplates,badges,seals,bronzing plate,aluminium alloy,acryplates,ABS resin double color plate,PVC foaming board,indentation plates,signs,construction models,instrument panels,wooden products,etc.
Parameter:
Effective working travel: 275(X)mm*385(Y)mm*60(Z)mm
Shape dimension: 610x480*400mm
Max.workpiece dimension: 70mm
Work table dimension: 320mm*530mm
Carving deepth: 55mm
Frame materials: Aluminum alloy 6063 and 6061
Leadscrew: 1204 double thread Trapezoidal screws
Driving units X Y Z axis: 1204 trapezoidal screws
Sliding units X Y axis: Dia.16mm chrome plate shafts
Sliding units Z axis: Dia.12mm chrome plate shafts
Stepping motor type: 57 two-phase 1.8A
Spindle motor: 230w dc motor 500~8000PRM/Min
Principal axis collet: ER11 /3.175 mm
Repeat accuracy: 0.05mm
Spindle precision: Radial beat acuities 0.03 mm
Control unit: Triaxial one-piece drive + ring variable power + PWM speed
Carving Instructions: G-code/.tab /.nc / .ncc/.txt
Communication interface: Through parallel connection with computer
Software environment: Windows 2000 / xp
Maximum speed: 0-4000mm/min
Carving speed: 300-2500mm/min (different materials differ)
Shape dimension: 610x480*400mm
Max.workpiece dimension: 70mm
Work table dimension: 320mm*530mm
Carving deepth: 55mm
Frame materials: Aluminum alloy 6063 and 6061
Leadscrew: 1204 double thread Trapezoidal screws
Driving units X Y Z axis: 1204 trapezoidal screws
Sliding units X Y axis: Dia.16mm chrome plate shafts
Sliding units Z axis: Dia.12mm chrome plate shafts
Stepping motor type: 57 two-phase 1.8A
Spindle motor: 230w dc motor 500~8000PRM/Min
Principal axis collet: ER11 /3.175 mm
Repeat accuracy: 0.05mm
Spindle precision: Radial beat acuities 0.03 mm
Control unit: Triaxial one-piece drive + ring variable power + PWM speed
Carving Instructions: G-code/.tab /.nc / .ncc/.txt
Communication interface: Through parallel connection with computer
Software environment: Windows 2000 / xp
Maximum speed: 0-4000mm/min
Carving speed: 300-2500mm/min (different materials differ)

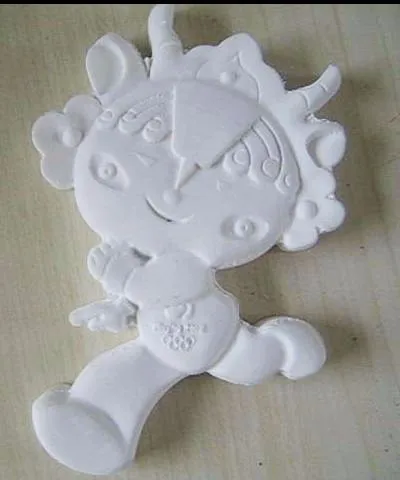

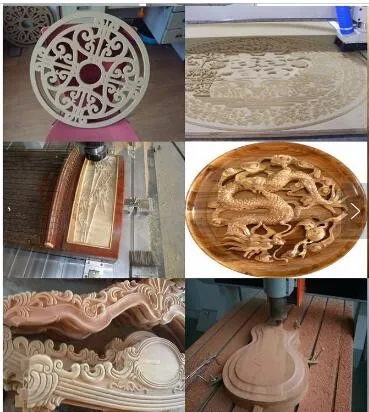

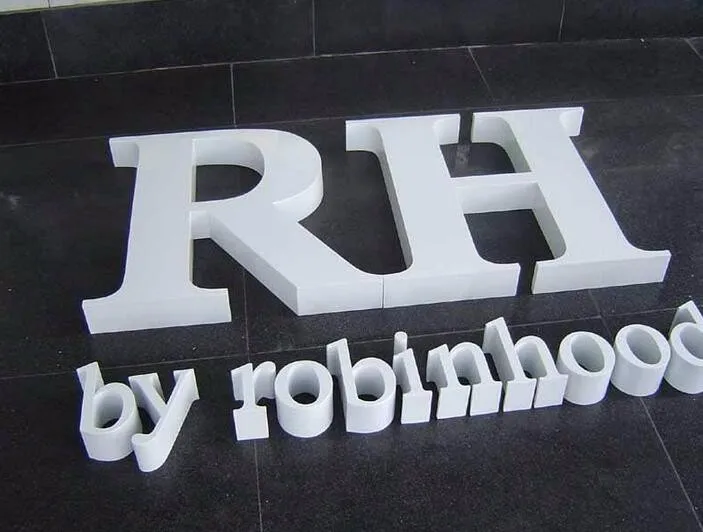

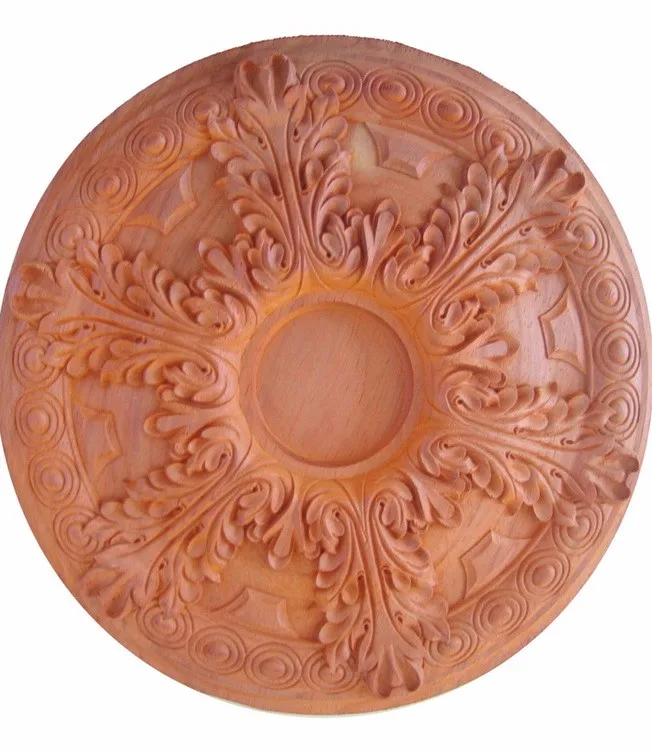

Samples
Samples
Our Service
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packing & Delivery

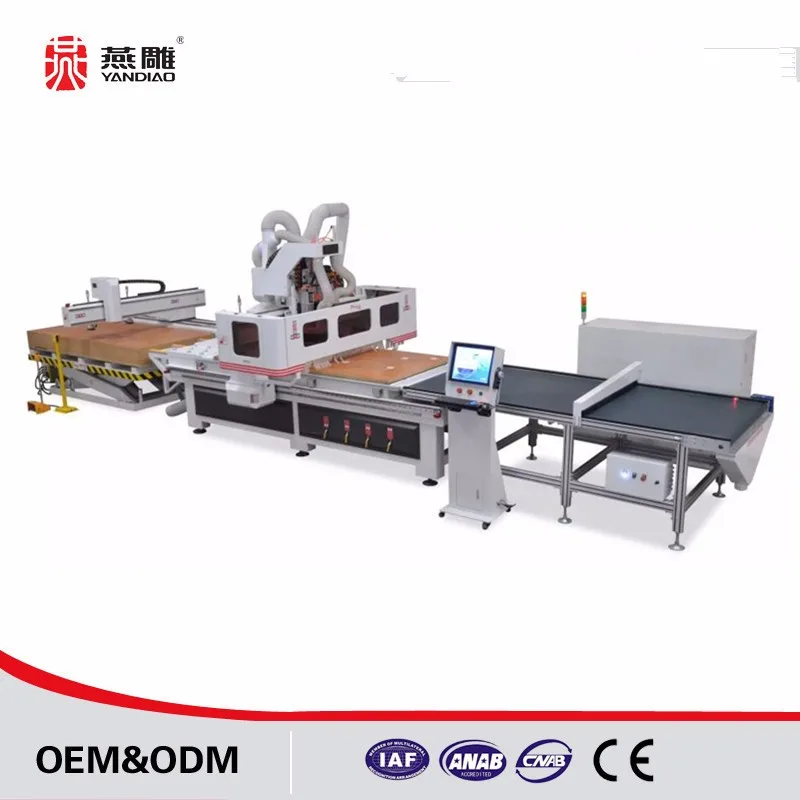

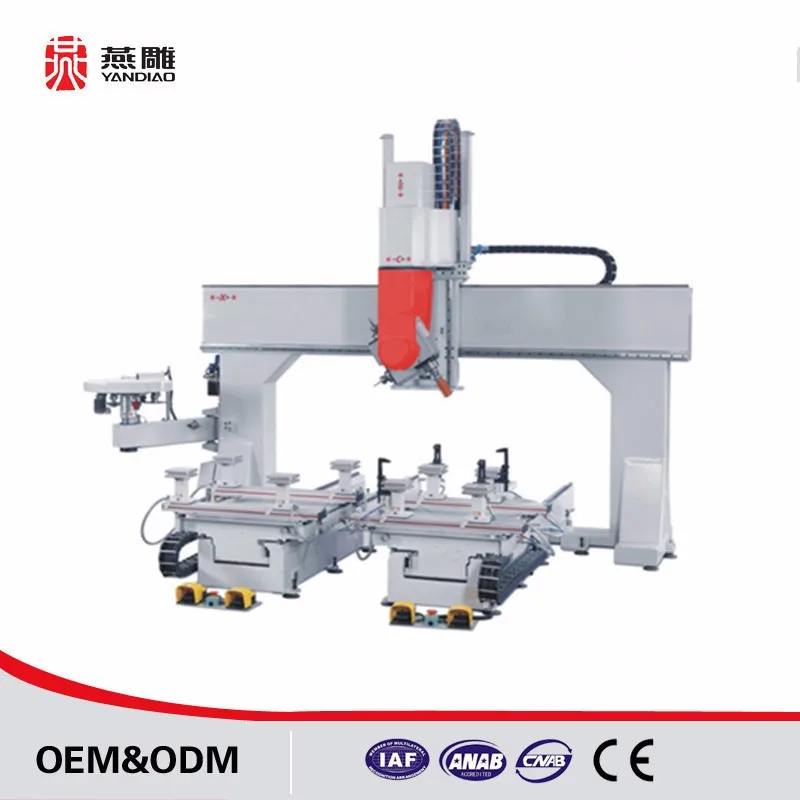

Related Products
