Клавиатура экрана дисплея/клавиатура

Описание и отзывы

Характеристики

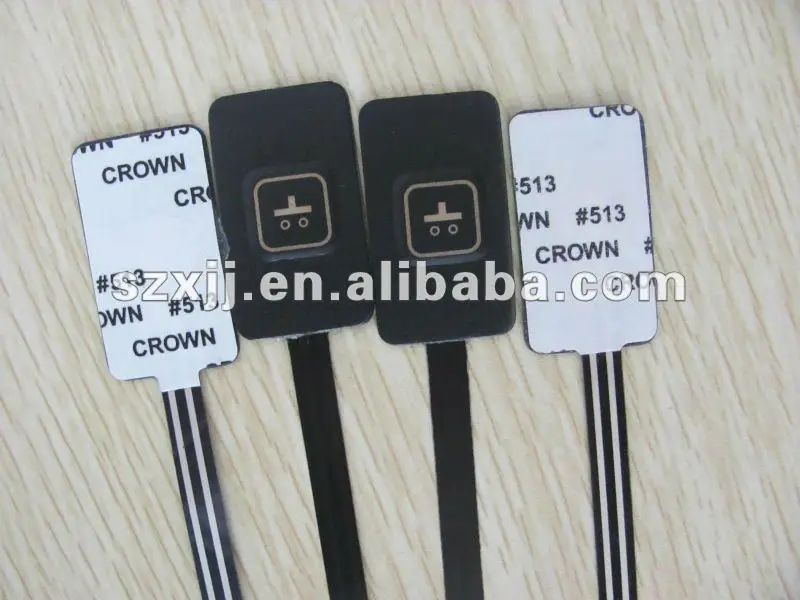

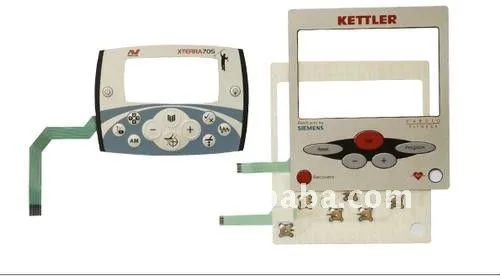

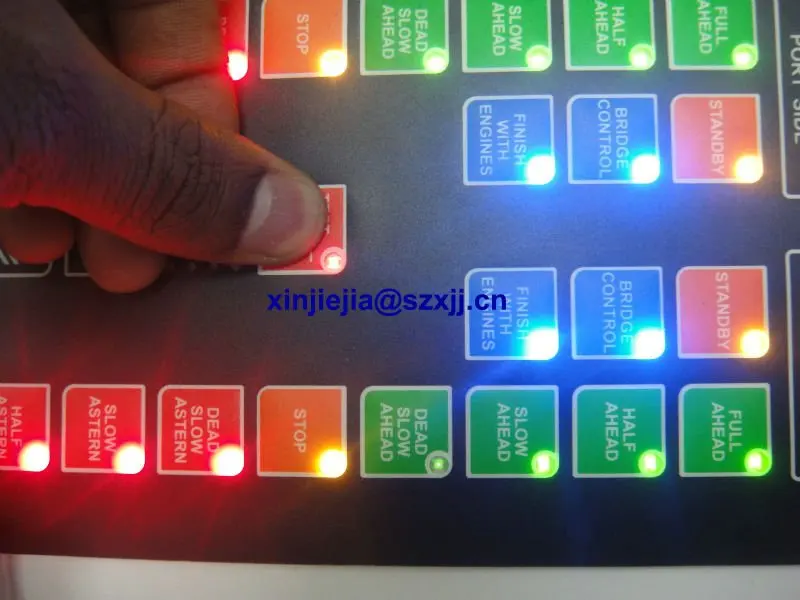

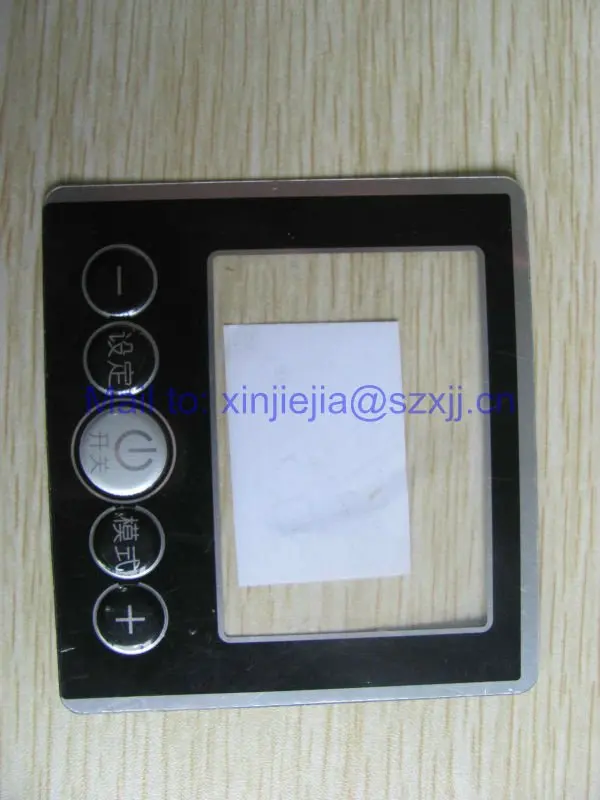

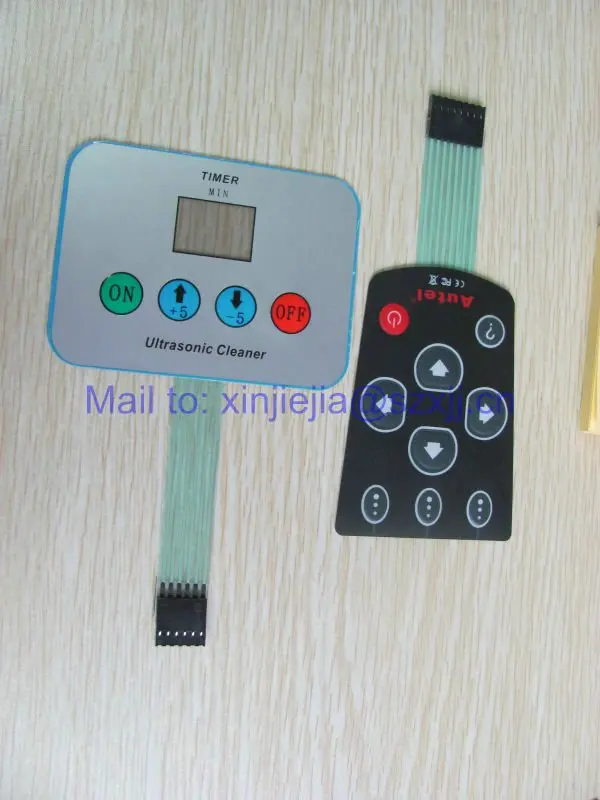

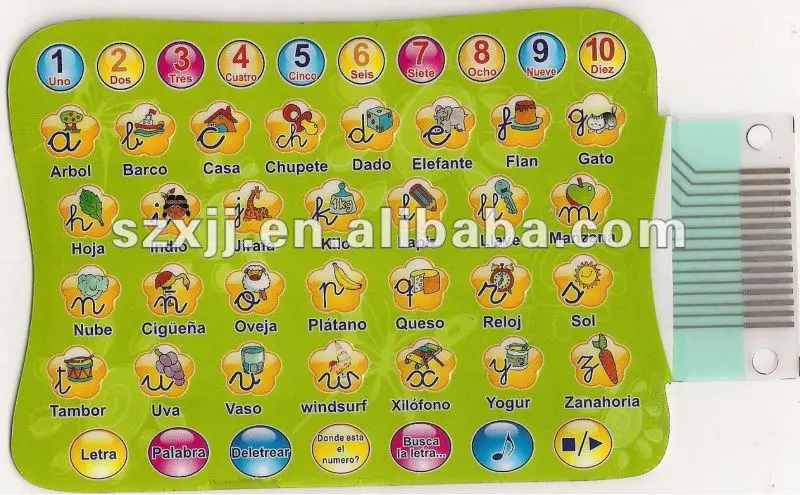

Display Screen Keypad membrane switch panel









Environmental      Operating Temperature  -20° to 65° C (-4° to 149° F)
Storage Temperature  -40° to 85° C (-40° to 185° F)
Seals  3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions.
Special sealing options are available for wet environments.
Mechanical   Travel  .007 inches to .015 inches
Operating Force  4oz to 8oz

Electrical       Operating Voltage  30 volts maximum
Operating Current  10 microamps to 100 milliamps, resistive
Closed Circuit Resistance  100 ohms typical, dependent on size and layout
Open Circuit Resistance  10 megohms
Operating Power  1 watt maximum
Circuitry  X-Y matrix or one side common
