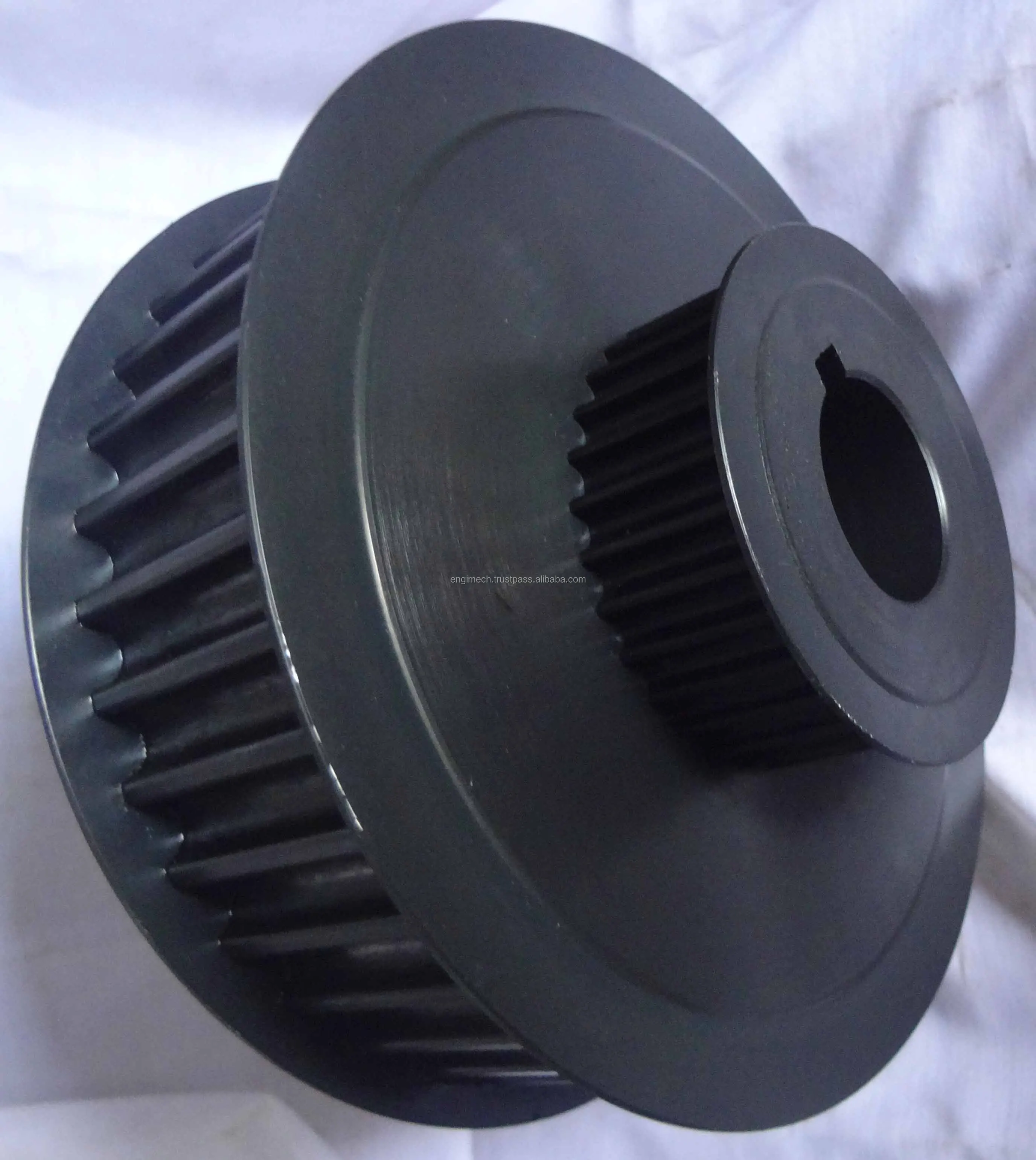

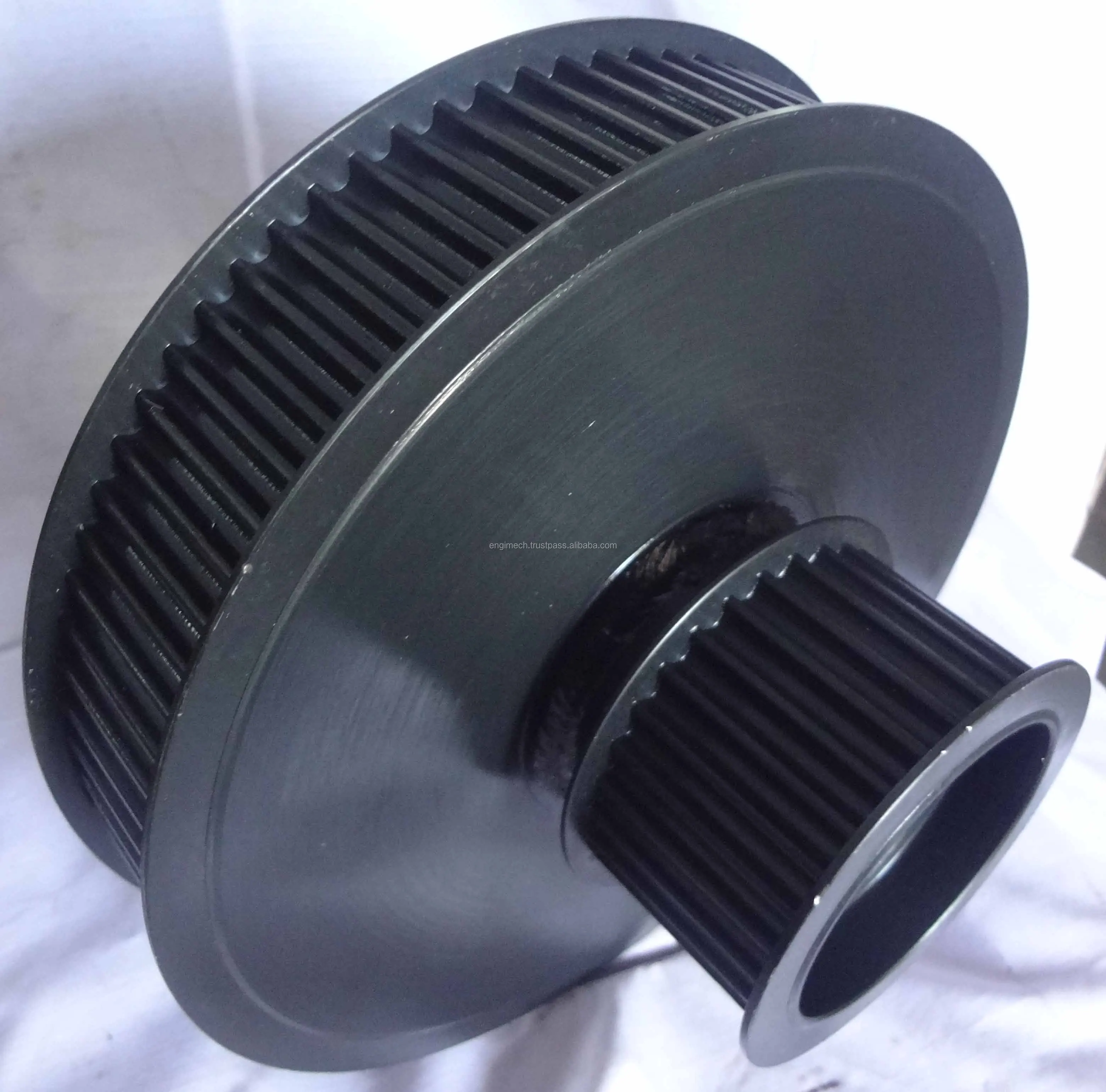

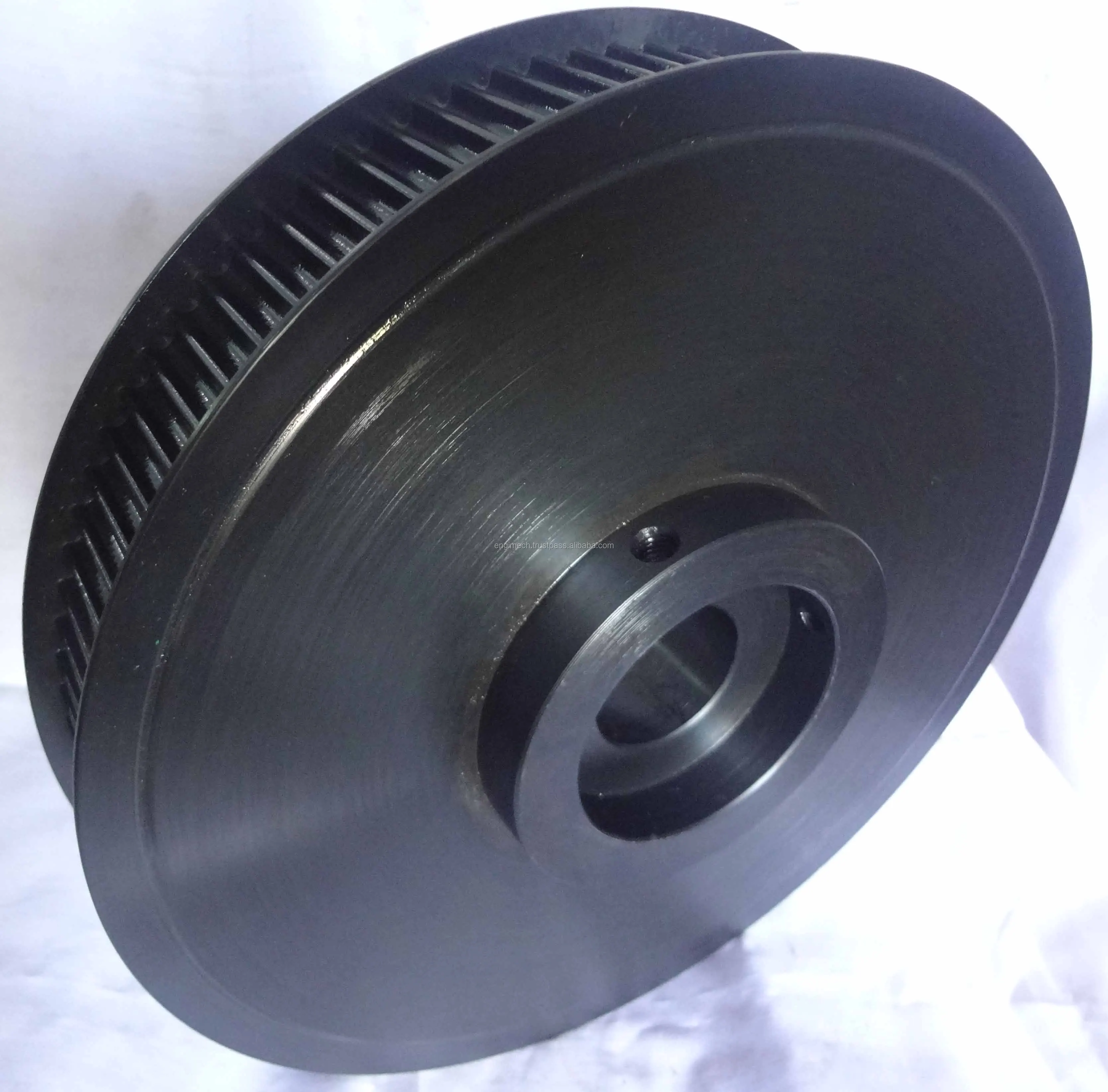

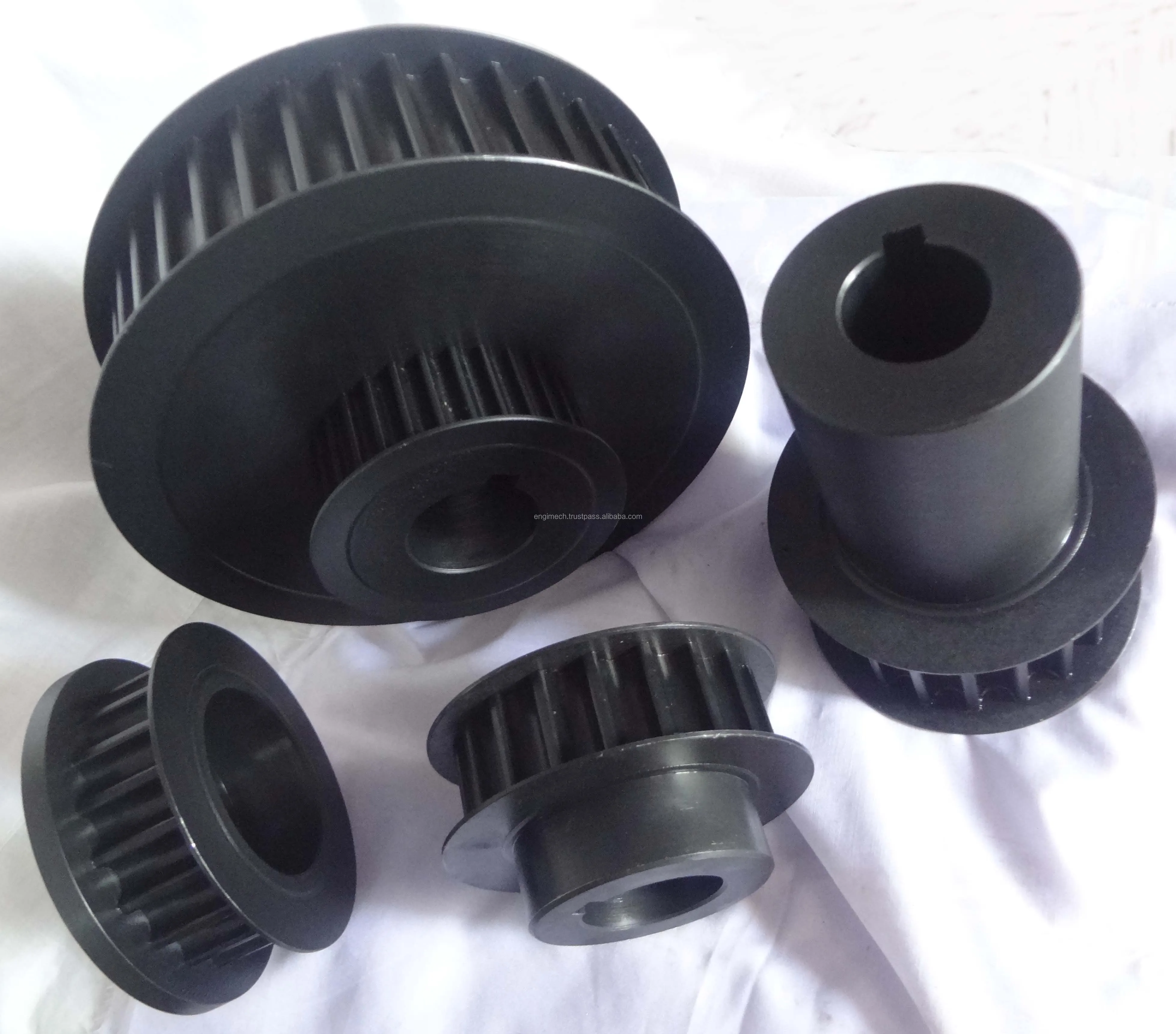

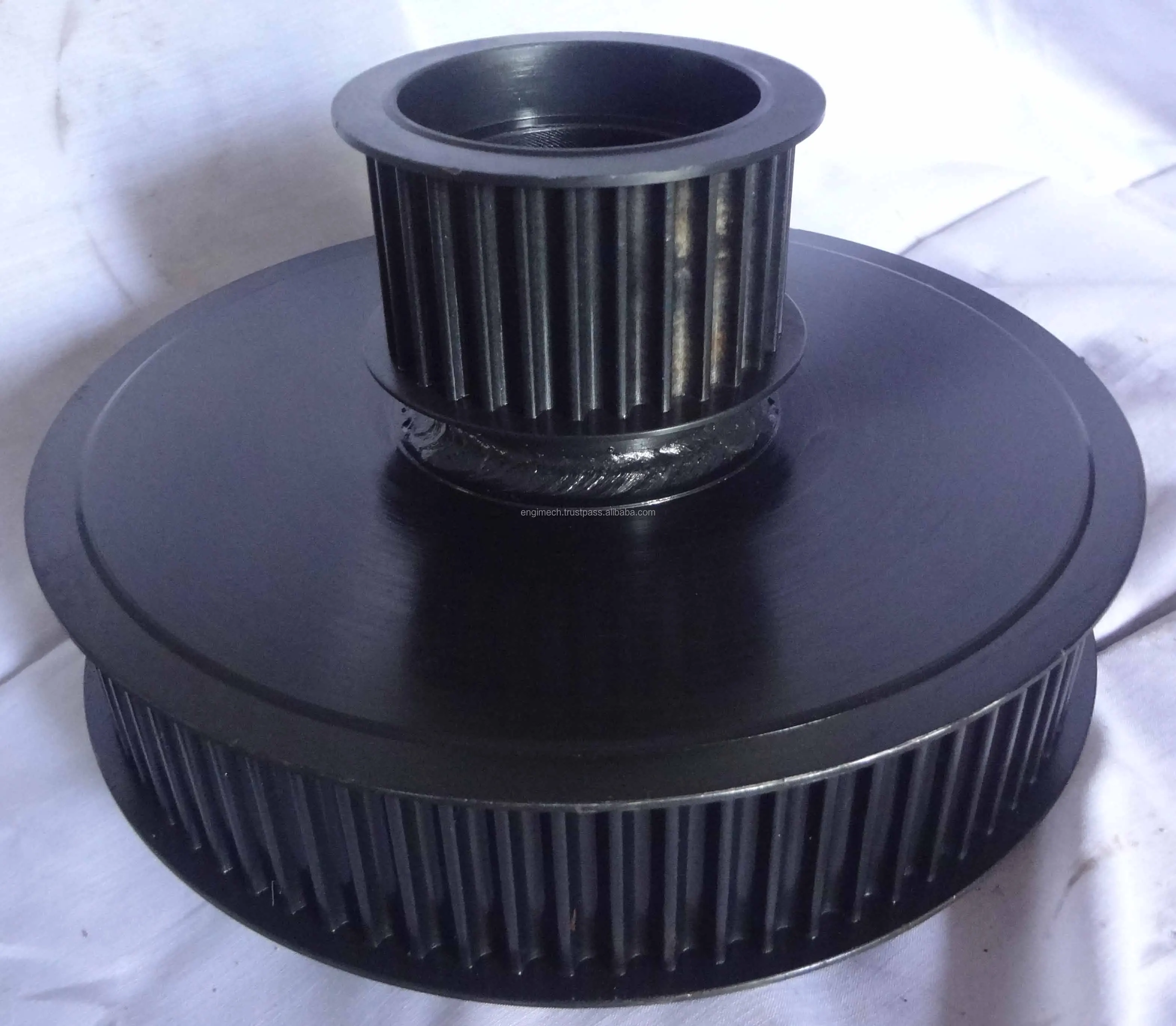

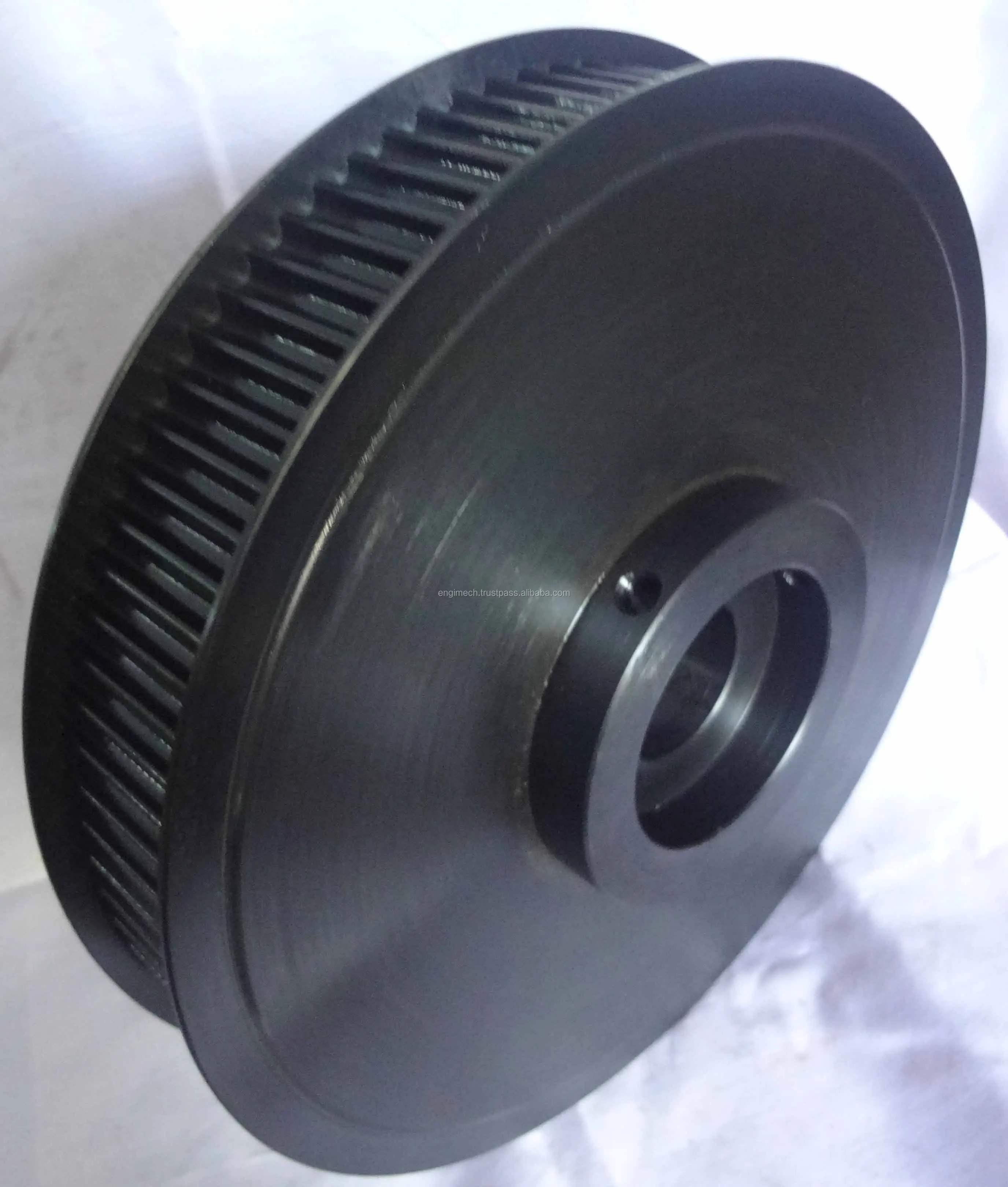

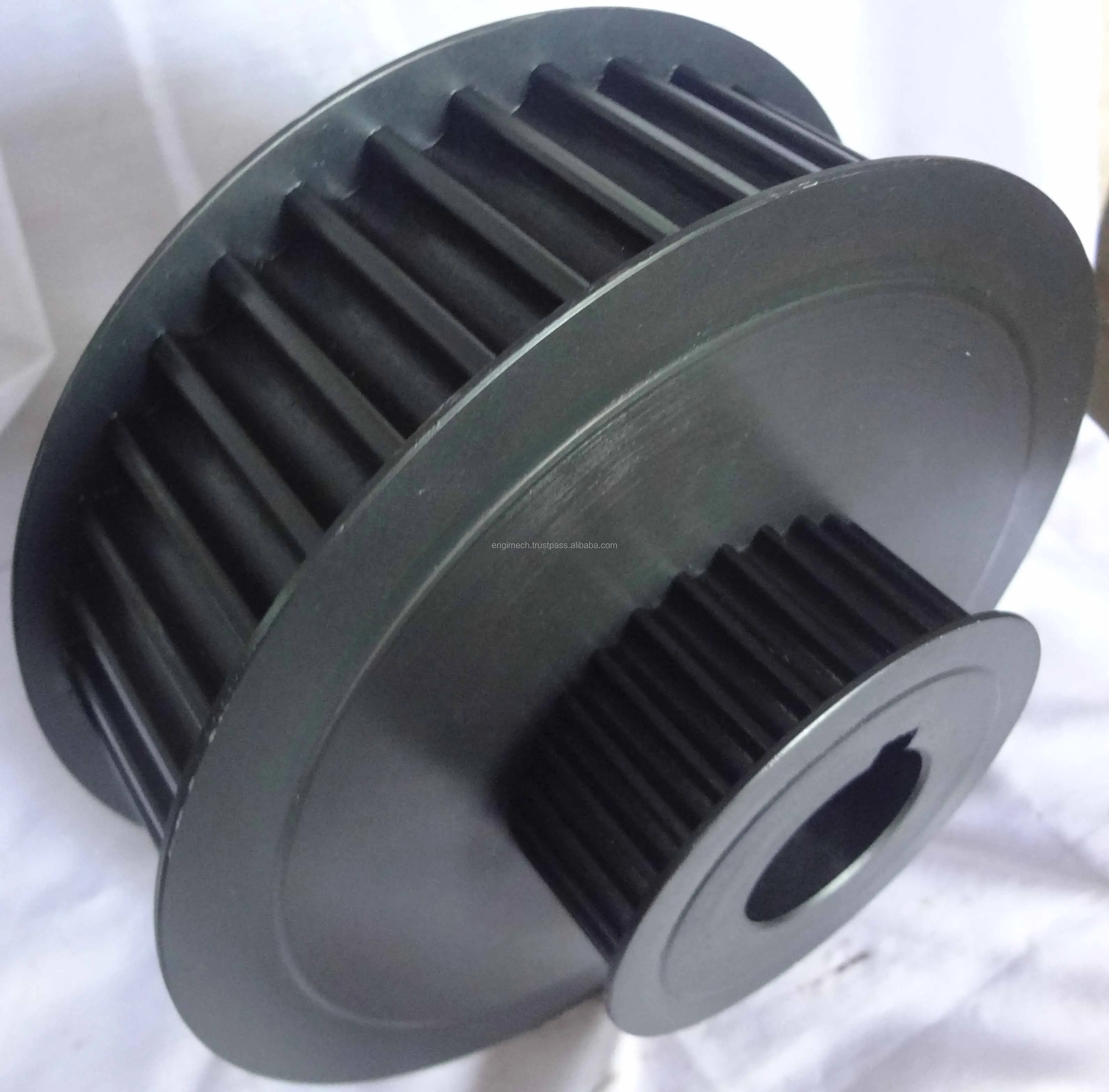

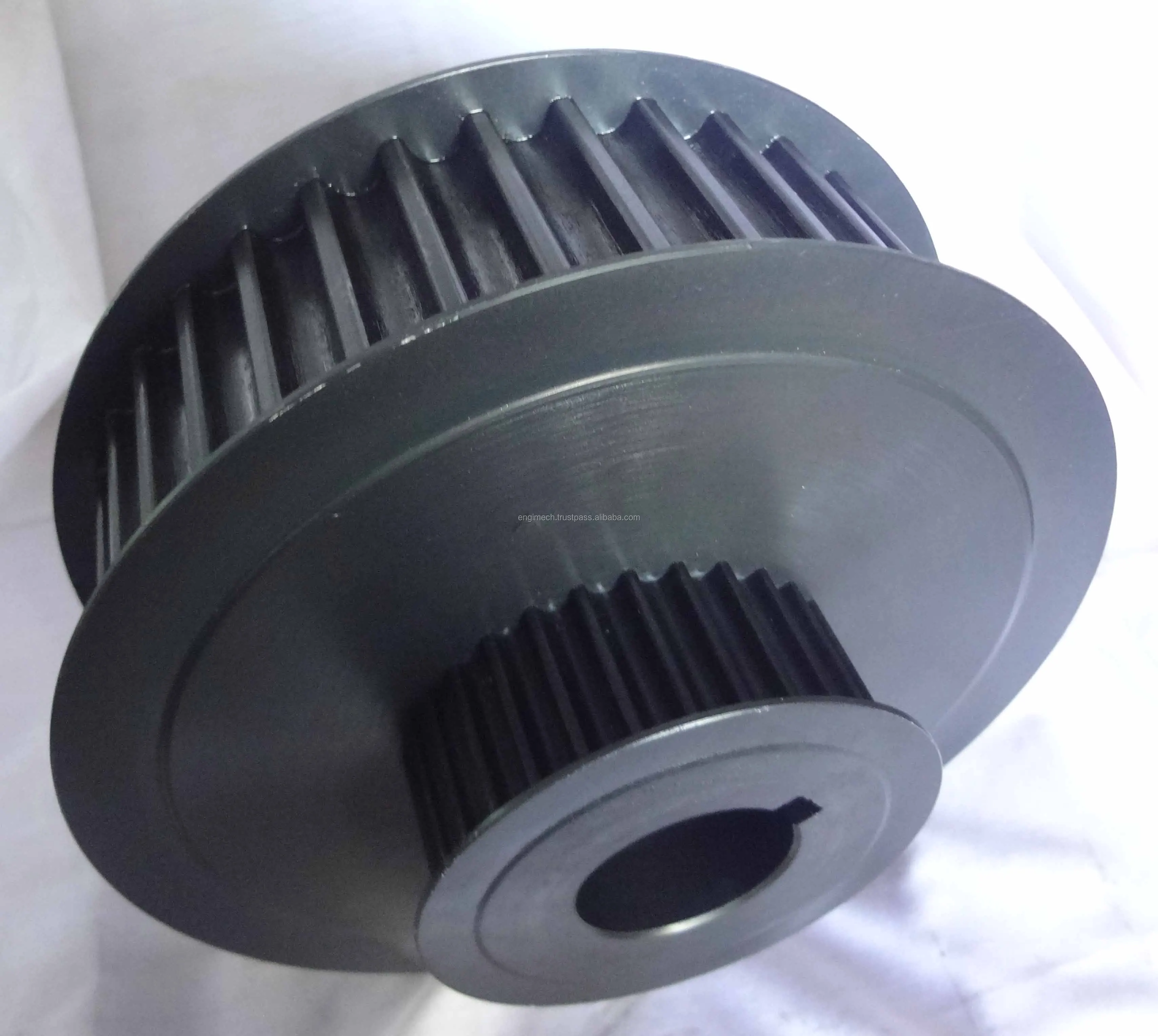

Шкивы зубчатого ремня ГРМ HTD 8 м и

Teeth Profile Available

No. of Teeth

Parts

Bore Size Available

Material

Surface Treatment

8M,14M;

10~100

Can be equipped with Threaded Holes, Screws etc.

Pilot Bore

Keyway

Set screws

Taper Bore

Aluminum

Brass,

Steel,

Cast Iron

Anodising for Aluminum & Blackodised or

Zinc Phosphating or Zinc Plating for Steel Items

Hole Precision

   H7, H8

Belt Section

Pitch

Outer Diameter

(Pcd less difference)

Belt Width

Tooth Depth

High Torque drive pulley, with curvilinear geometry teeth, namely as follows :

8M Timing belt pulley

8.000 mm

1.37 mm

20,30,50,85 mm

3.560 mm

14M HTD Timing belt pulley

14.000 mm

2.80 mm

40,55,85,115,170 mm

N.A.
