Высококачественный прессованный резиновый меситель/Паровой меситель/10 литровый
Высококачественный прессованный резиновый меситель/Паровой меситель/10 литровый
Высококачественный прессованный резиновый меситель/Паровой меситель/10 литровый
Высококачественный прессованный резиновый меситель/Паровой меситель/10 литровый
Высококачественный прессованный резиновый меситель/Паровой меситель/10 литровый
Высококачественный прессованный резиновый меситель/Паровой меситель/10 литровый
Высококачественный прессованный резиновый меситель/Паровой меситель/10 литровый

Высококачественный прессованный резиновый меситель/Паровой меситель/10 литровый


Поделиться:

Цена:5 000,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики







rubber mixer : banbury kneader , dispersion kneader
We provide a wide range of compound mixing equipment for different production requirement, rubber hardness and capacity.


Rubber Internal Mixer / Intensive Mixer/ Banbury kneader
It is mainly used for plasticating, mixing and final mixing the stock
Range of specifications:25L-650L
Type of rotor: To be advise
Intermeshing rotor: NG intermeshing rotor
Type of ram: hydraulic type, pneumatic type


Rubber (Plastics) Dispersion Mixer / Kneader
It is mainly used for mixing and plasticating rubber or plastics etc.
Range of specifications:25L-150L
Lab kneader




Machine Application
This machine consists of pnuematic control system , heating/cooling system, tilting system,rotor,thermal resistance,main driving system,mixing chamber,rotor ,dust stop device , ete . It is used to plasticize , mix and final mix rubber , plastics or blend ofplastics and rubber




Machine features
1. Pneumatic control system is controlled by PLC instruction . A bi-directional air cylinder make the ram up or down , in case that overload occurs in the mixing chamber ,the top ram can be raised automatically or manually if necessary , so as to protect motor from overload




2.Tilting mechanism consists of brake motor , cycloidal gear reducer , TP type worm and worm gear etc . It is able to actuate the mixing chamber to tilte by 140 around the front rotor




3.rotor shaft wing body top and wing corner are welded up with wear resistant alloy . rotor shaft surface ,the mixing chamber inner wall , upper ram surface and other surface connected with stock are hardened or polished and plated with hard chrome , or welded up wear resistant alloy welding , so they are wear resistant and corrosion resistant

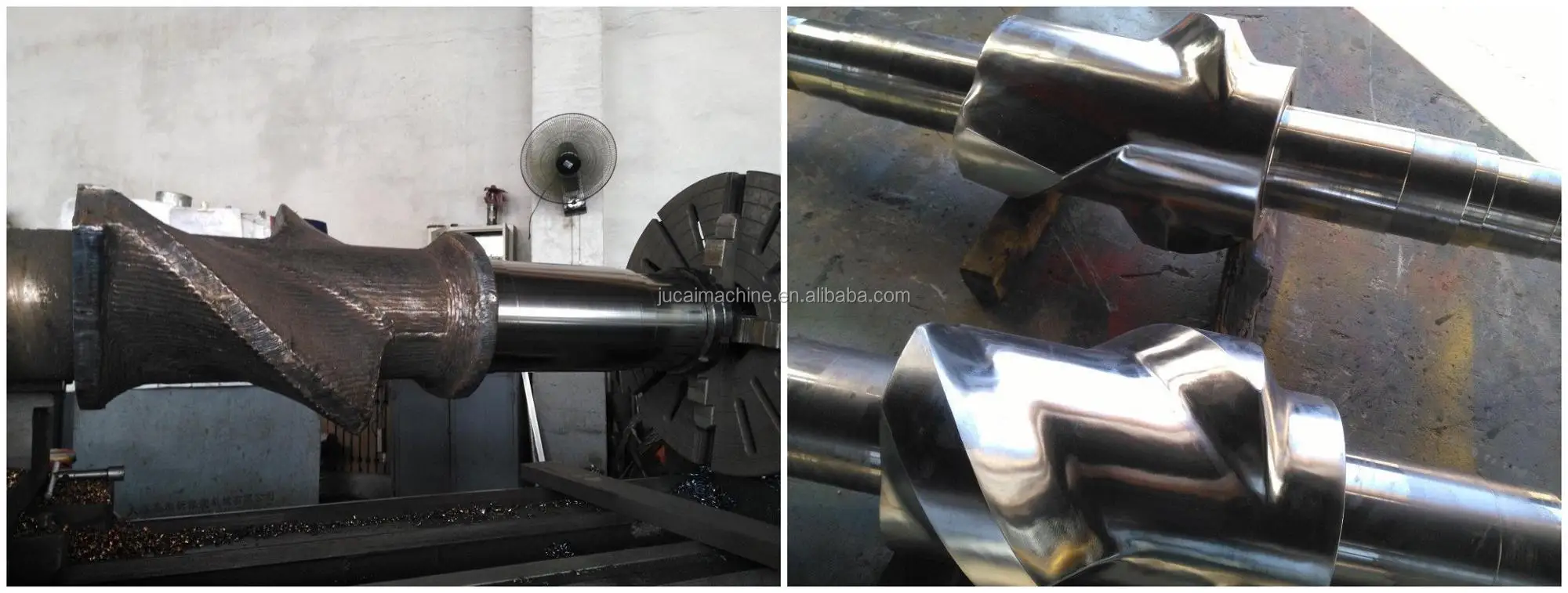

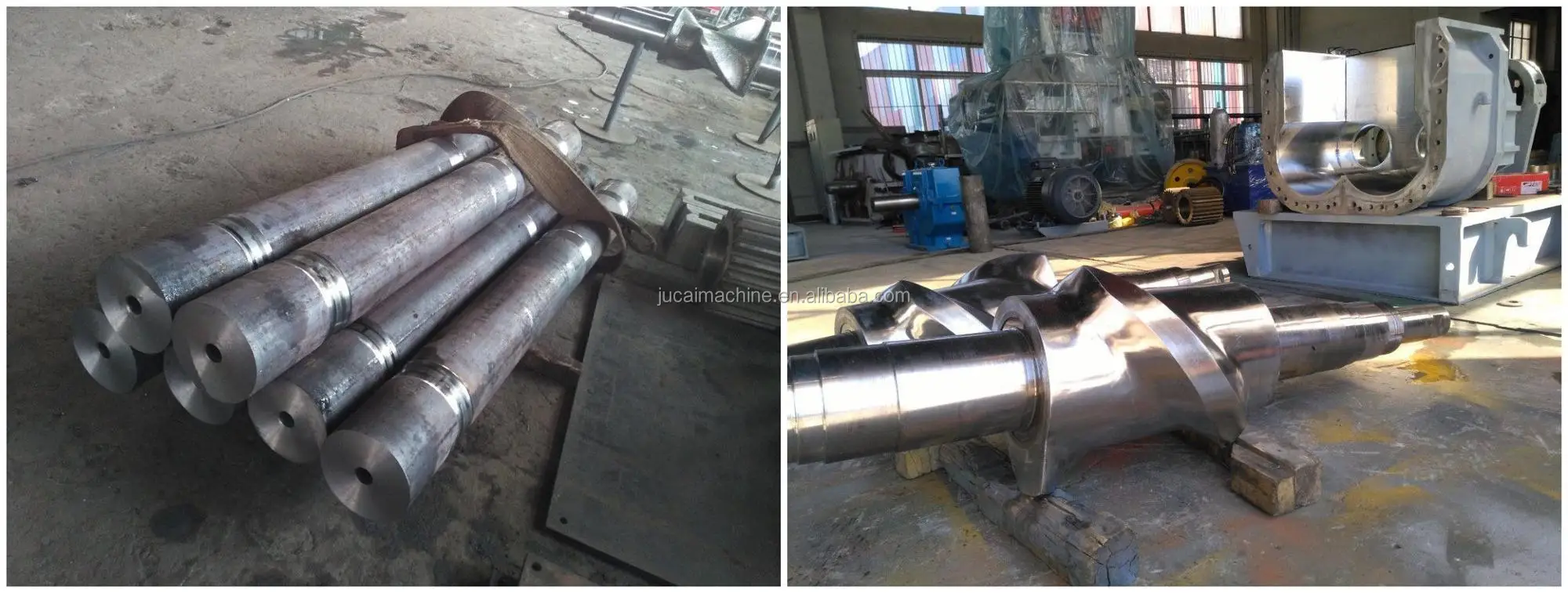

4.rotor shaft is of integral structure rotor wing body welded on bored shaft , so it improves the strength and stiffness of the rotor . rotor inner wing vody cavity can be put through the cooling water or heating steam

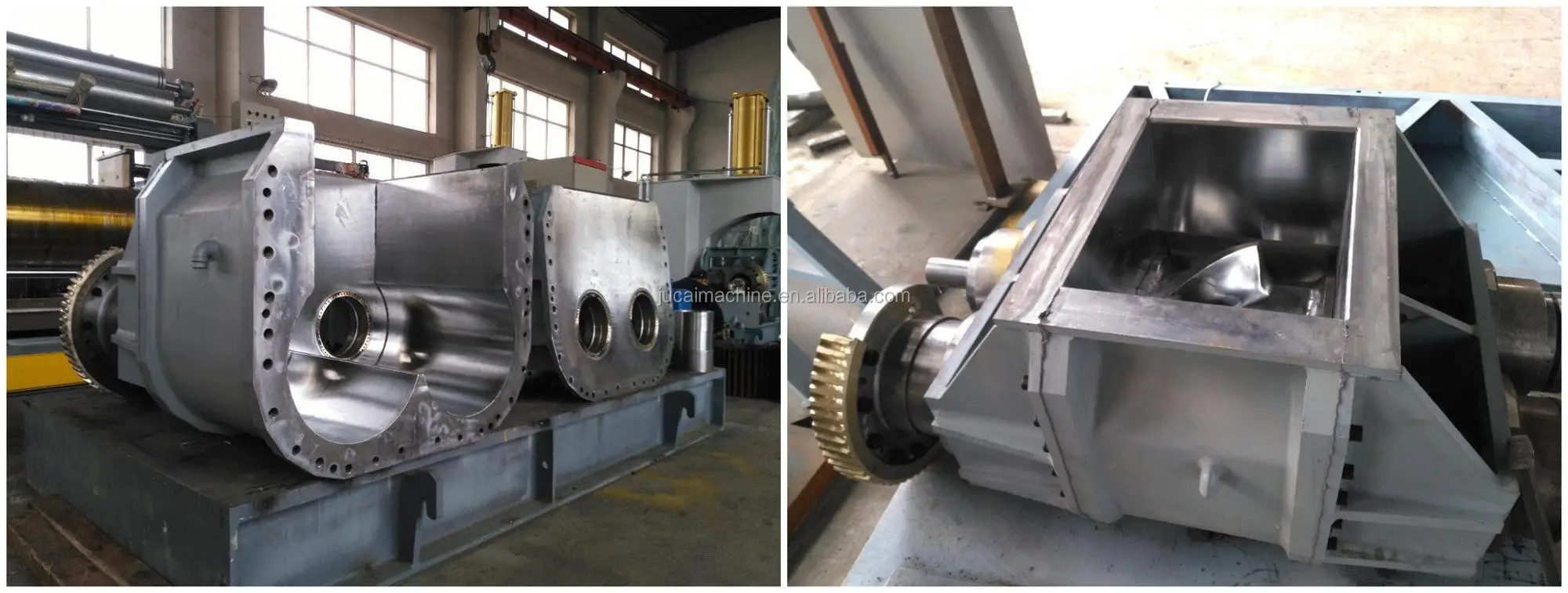

5..mixing chamber is jacket type hollow structure . upper ram is hollow to increase cooling or heating area and the temperature control effect




6.main driving system consists of main motor ,reducer ,connecting gearbox odd-speed and face to face rotation of rotors is achived

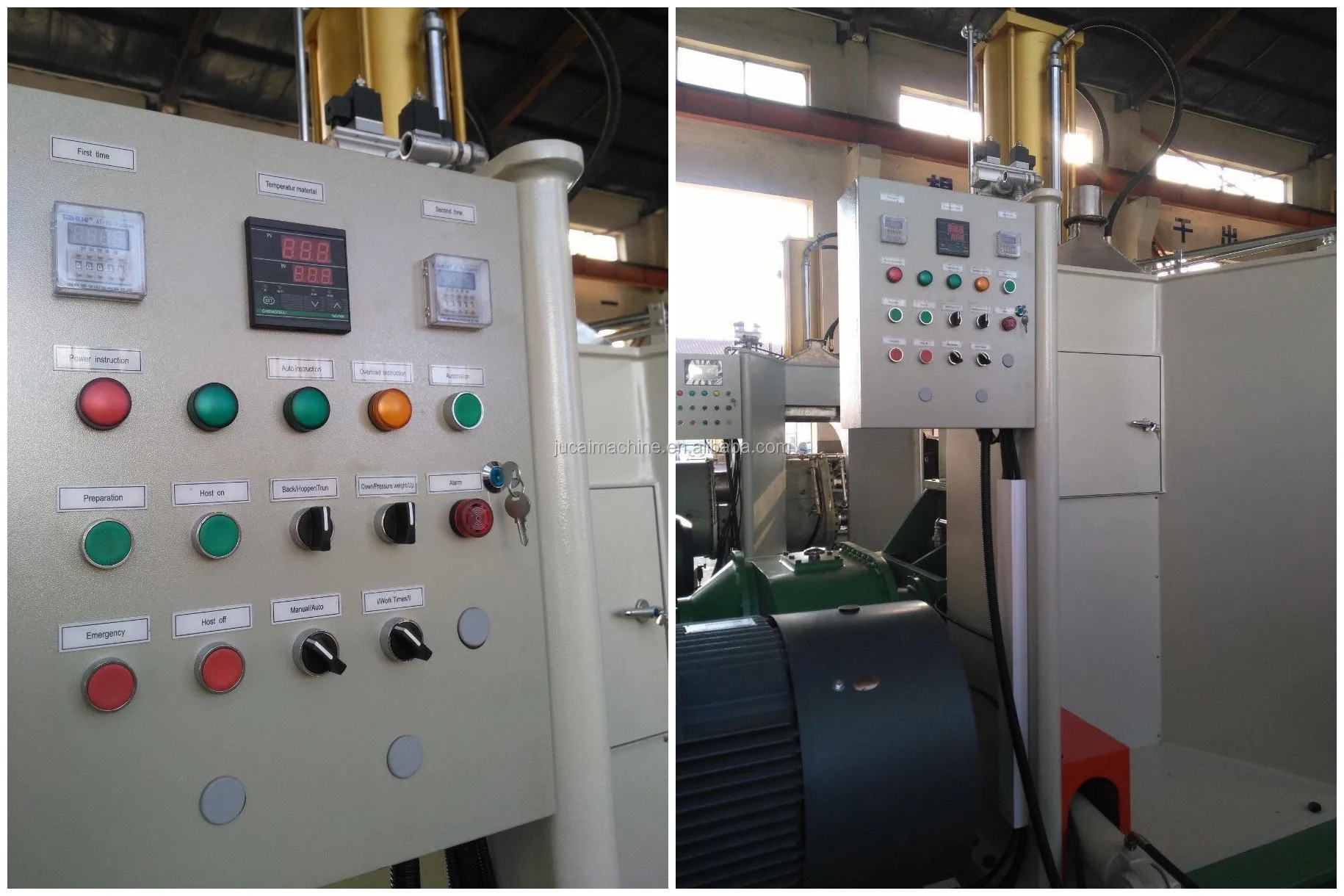

7.electrical control system adopts the imported PLC device . All electronic components are imported or introduction technology products , to improve the reliability of the system.






















1.Are your company a trading one or a factory?

Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.

2.How to choose the most suitable products?

Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.

3.Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

4.How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.

5.How about the packing for machine, is it safely protected during transportation?

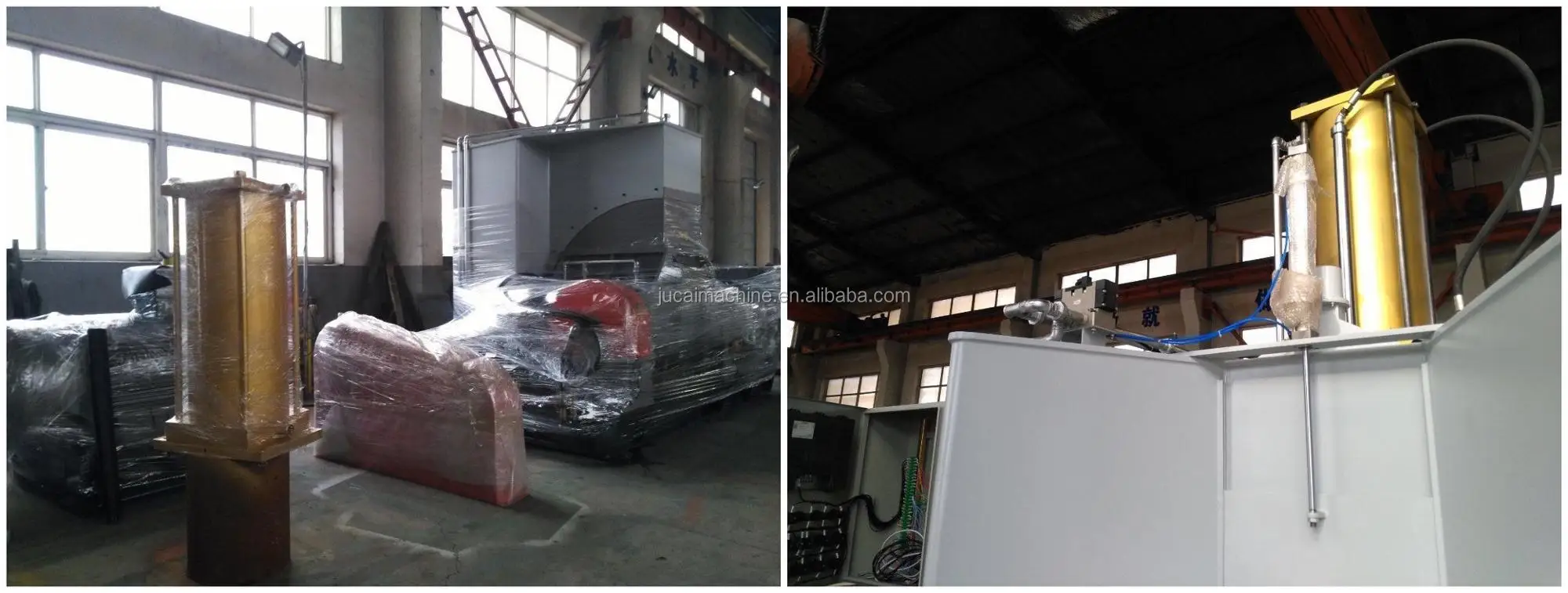

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

6.What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
