Large Capacity CE Vibratory Feeder Vibrating Grizzly Feeder - Vibro FeederProfile of ZSW Vibrating Feeder

Vibrating feeder, Vibratory Feeder, also called vibro feeder is a kind of feeding machinery generally at the start spot of a production line. Our company produces ZSW series is eccentric shaft exciting source, gear transmission, low noise, smooth operation, long life, while presized fines, making the crusher more efficient.

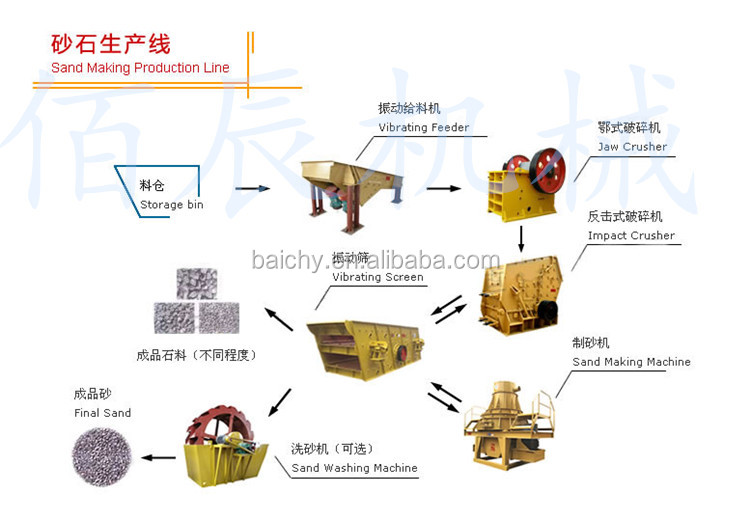

Vibrating feeder can be divided into steel structure and grate structure. And steel plate structure of feeder used for sand and gravel production line, all the material evenly into the broken equipment; grate structure of feeder can be coarse screening for material, to make the system more economical and reasonable in the preparation.

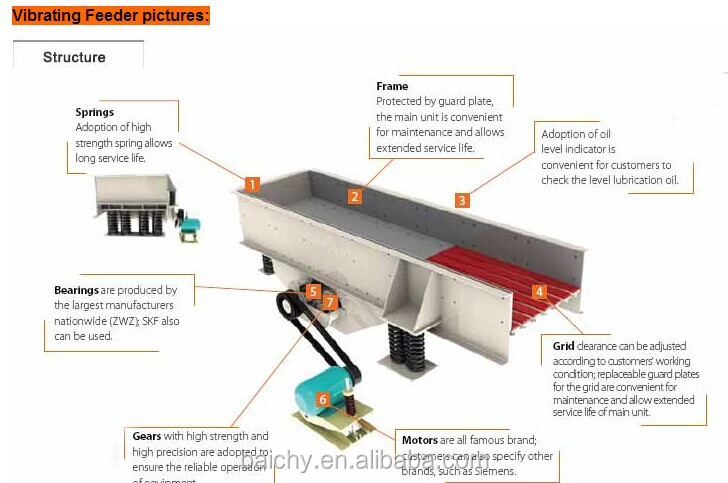

Operating Principle of ZSW  Vibratory Feeder

 The vibration motor power, vibration motor start-up. Which produces the exciting force in the horizontal direction to the hopper nakedness produce strong vibration, the vibration through the conical or spherical activator excitation force is decomposed into a horizontal normal force and tangential force, normal force transmitted to the material radially depths, the tangential shear force so that the material, thus eliminating the warehouse bagging materials, so that the material like water from the discharge port. Cut off the power, vibration motor to stop vibration, nesting can be stopped

Parameters of  Vibratory Feeder

Model	Size of feed spout (mm)	Max feeding size(mm)	Capacity (t/h)	Motor power (kw)	Overall dimension (mm)
ZSW850×3000	850×3000	400	80-120	7.5	3100×1800×1600
ZSW960×3800	960×3800	500	120-210	11	3850×1950×1630
ZSW1100×4200	1100×4200	580	200-430	15	4400×2050×1660
ZSW1100×4900	1100×4900	580	280-500	15	5200×2050×1700
ZSW1300×4900	1300×4900	650	450-600	22	5200×2350×175

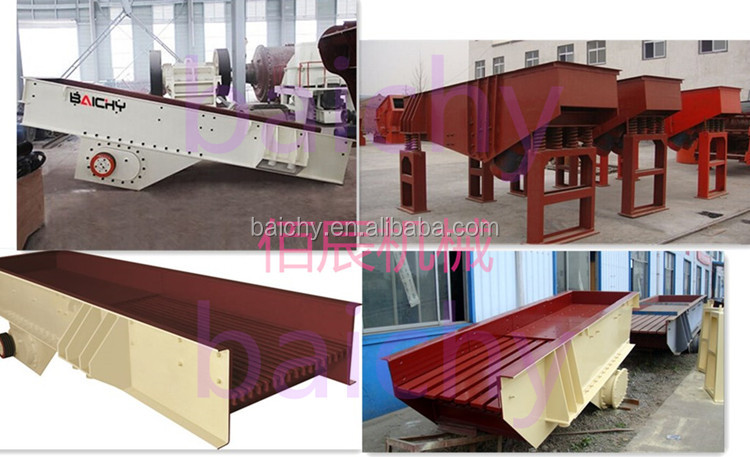

More Samples of Vibratory Feeder



Why choose our Vibrating Feeder ?

v In fact we are not in selling Vibrating Feeder ,and more to help the customers to make a reasonable choice

v We have good after-sale service about Vibrating Feeder (erection and commissioning,operator training,spare parts supply)

v We have pre-defined query future,ourVibrating Feeder will be cheaper,

v energy-saving,simple structure,etc.

v As a professional exporter,our target is to serve worldwide clients with high-quality products,great reliability,devoted responsibility,professional service and honorable credibility to meet customers’requirements in all aspects.
