Industrial radiator separator machine for copper pipe,radiator separator machinery

 Air conditioning radiator stripping machine /Conditioning radiator crush separator/ Aluminum and copper separator for air condition radiator /Air conditioning radiator crusher and separator

Application Scopes:

It can separate all kinds of used radiators, coppers, and aluminums.



Main Features:

This kind of machine is composed of motor, reduction box, rack, press roller, blade, and pinch roller and so on. The copper and aluminum of the radiator are separated by the cut of the blade. After separated, the copper pipe is stay the same, and the aluminum is irregular pieces.



Working Principle:

After starting motor, the vee belt drives the compression roller, pinch roller, and blade to rotate through the reduction box. The raw material is compacted and sent to the fly-cutter blade by pinch roller. Then, the radiator is cut up by the fly-cutter blade, the copper pipe is separated, and the aluminum scattered network is cut up.



Specification:



Model	JXL-300
Motor	5.5 kw
Capacity	2-3T/H
Machine weigh	1100 kg
Machine size	1500*1200*1200 mm





Raw material:



Finished products:

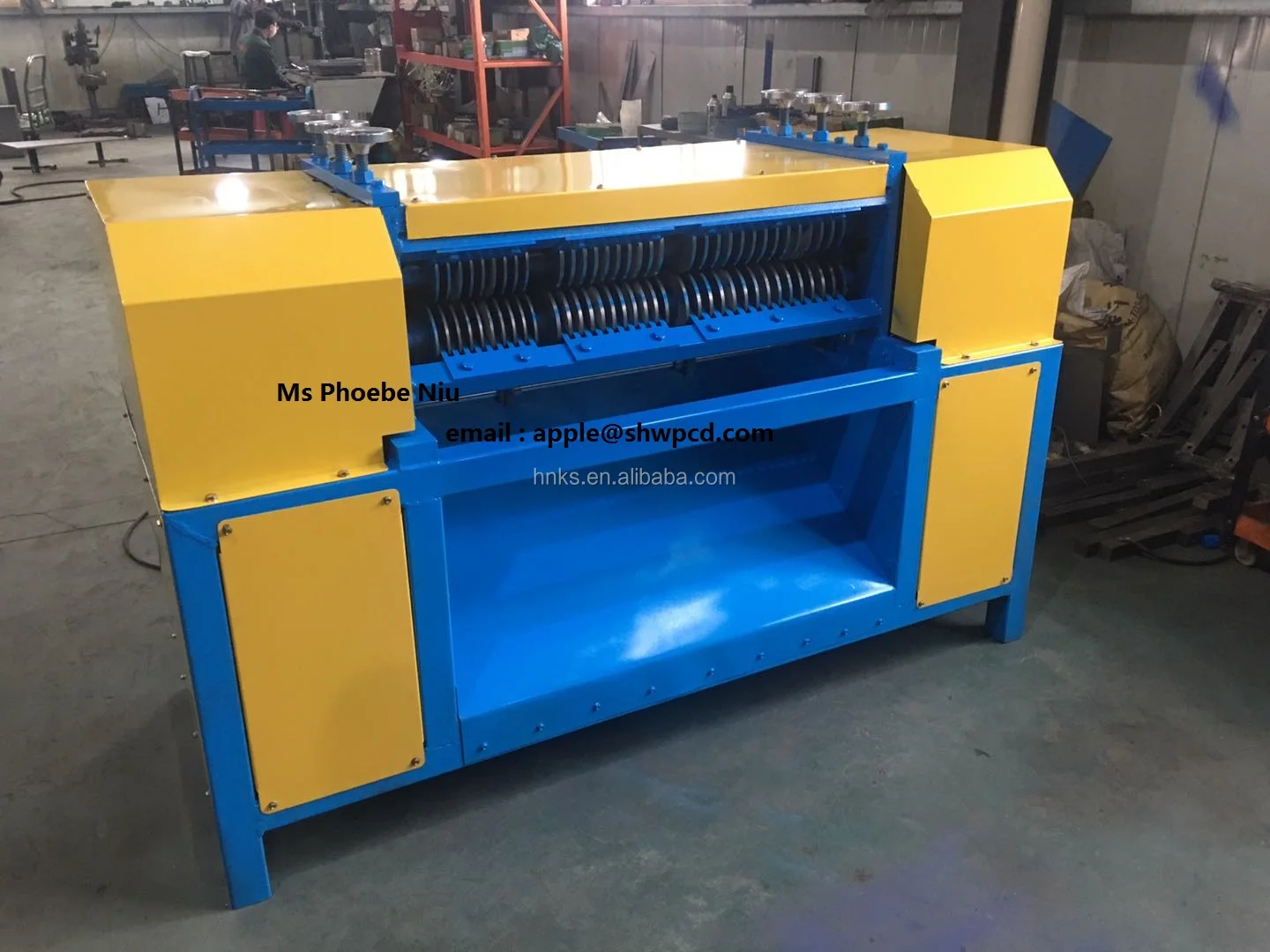

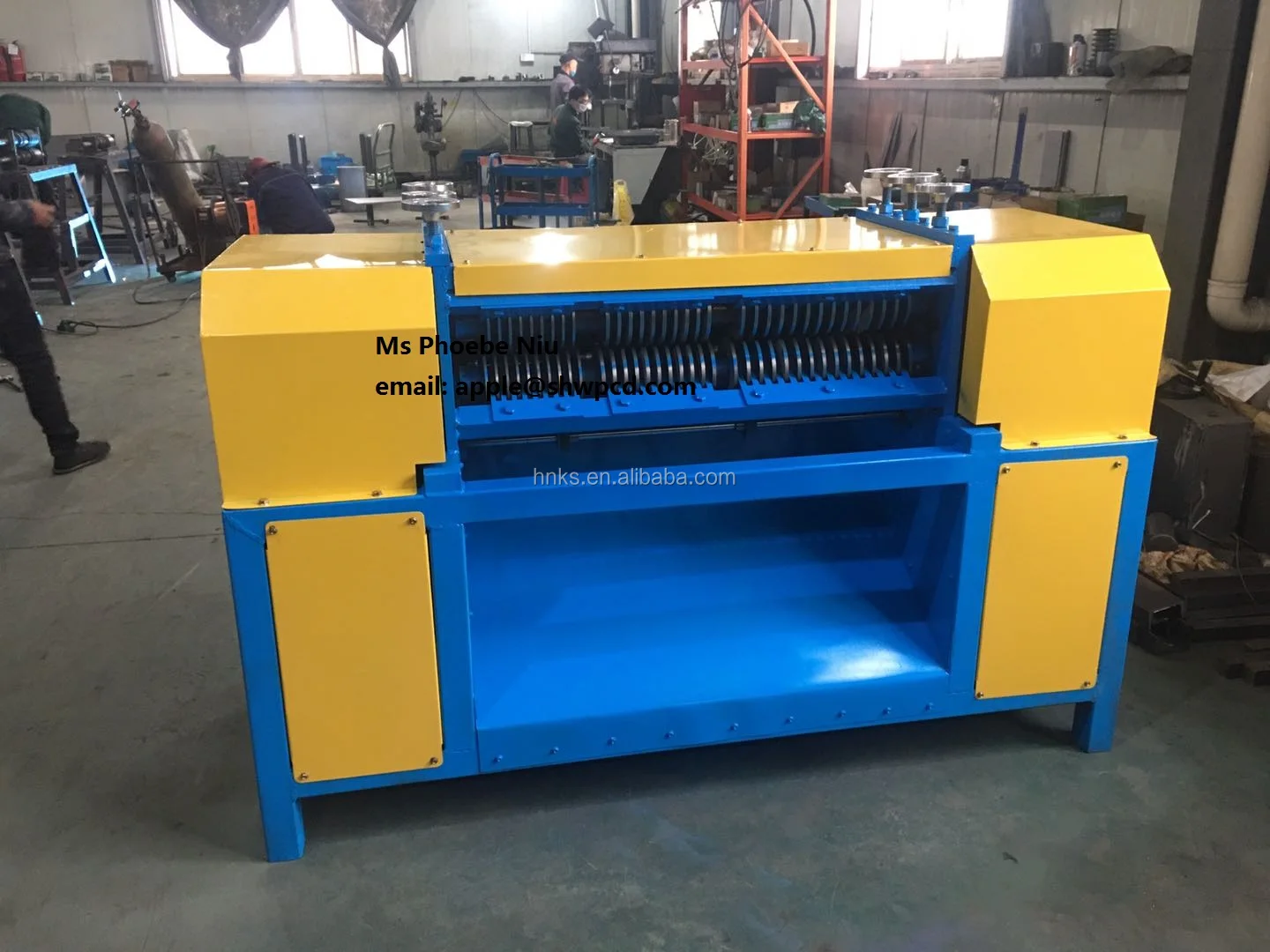

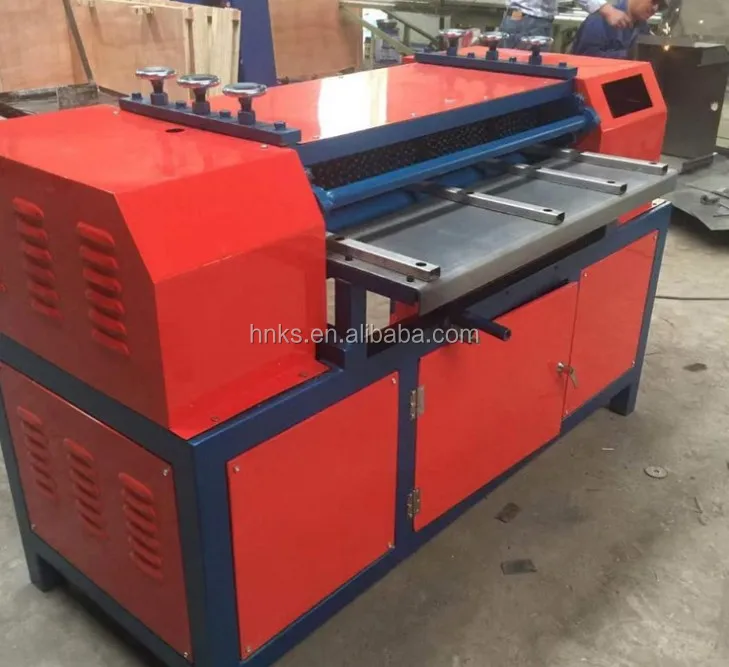

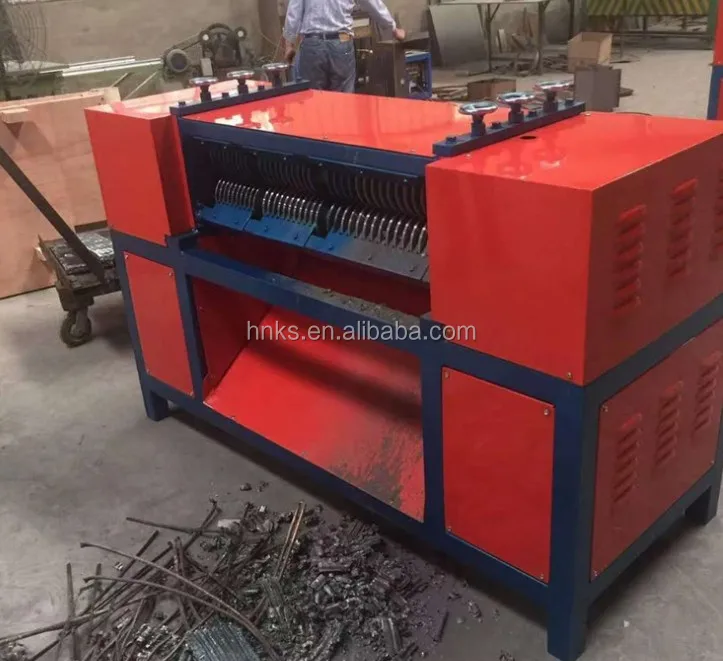

Machine photo:















 Transport and delivery:
