Product Introduction



Track gauge/Gauging rule/track gauge Appliance :



1.Aluminum track gauge adopts load area of 42 * 25 * 2 mm (thickness) of aluminum alloy rectangular pipe, aluminum pipe bottom is 3.5 mm two stiffener;



2.Build rail for aluminum alloy, probe into steel, wear-resisting performance is good;



3.Narrow gauge track gauge adopts load area of 35 h * 25 * 3 mm aluminum alloy profiles;



4.Narrow gauge track gauge rail for wear-resistant nylon 66, probe into steel wear-resisting performance is good.

Technology Parameters



JTGC-1A aluminium alloy fold gauging rule	1610×196×524 ≤2.5kg
JTGC-3A Aluminum alloy work gauging rule ( Has a high board )	1660×106×55  ≤2.3kg
MTGC-3  woodiness gauging rule	1600×80×55   ≤2.2kg
MTGC-4woodiness gauging rule  ( Has a high board )	1600×80×55   ≤2.2kg
ZJTGC-6 Aluminum alloy narrow gauge 600 feet	765×93×30    ≤1.1kg
ZJTGC-7 Aluminum alloy narrow gauge 762 feet ( Has a high board )	915×96×55    ≤1.2kg
ZJTGC- Aluminum alloy narrow gauge 900 feet ( Has a high board )	1070×93×55   ≤1.4kg
JTGC-1000 1000mm aluminium alloy gauging rule	1610×196×524 ≤2.5kg
JTGC-1000W 1000mm magna gauging rule	1660×106×55  ≤2.3kg
JTGC-GC  Ultra high board gauging rule	1660×106×55  ≤2.3kg
JTGC-GBJ  Compensating  magna gauging rule	1660×106×55  ≤2.3kg

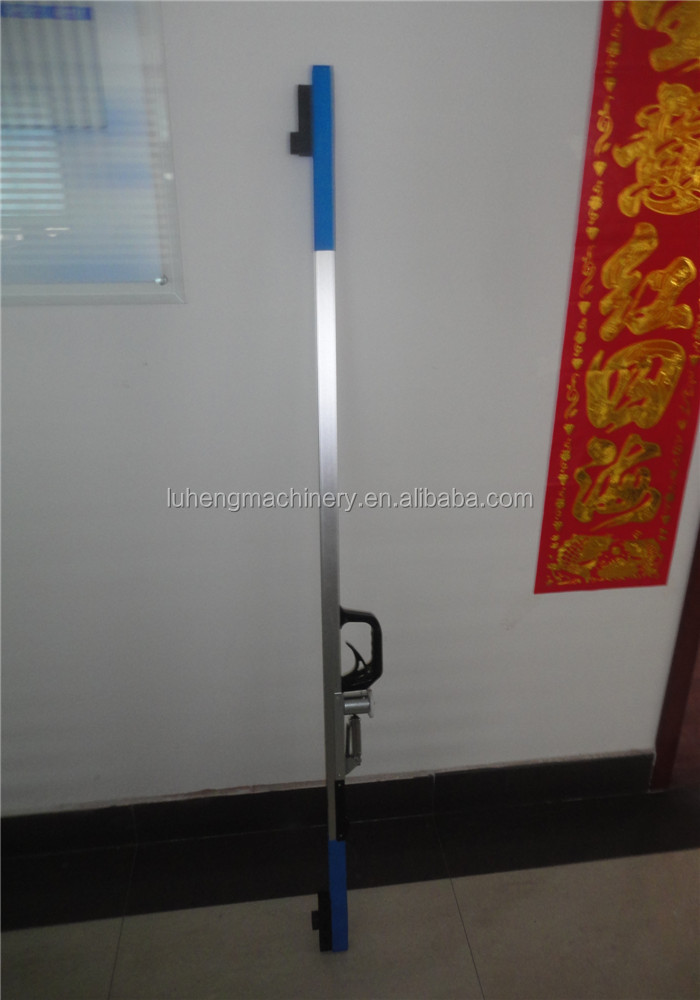

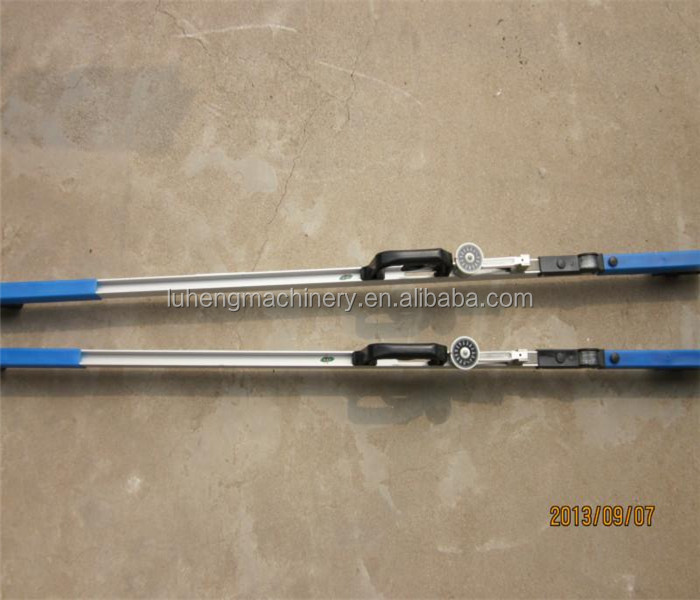

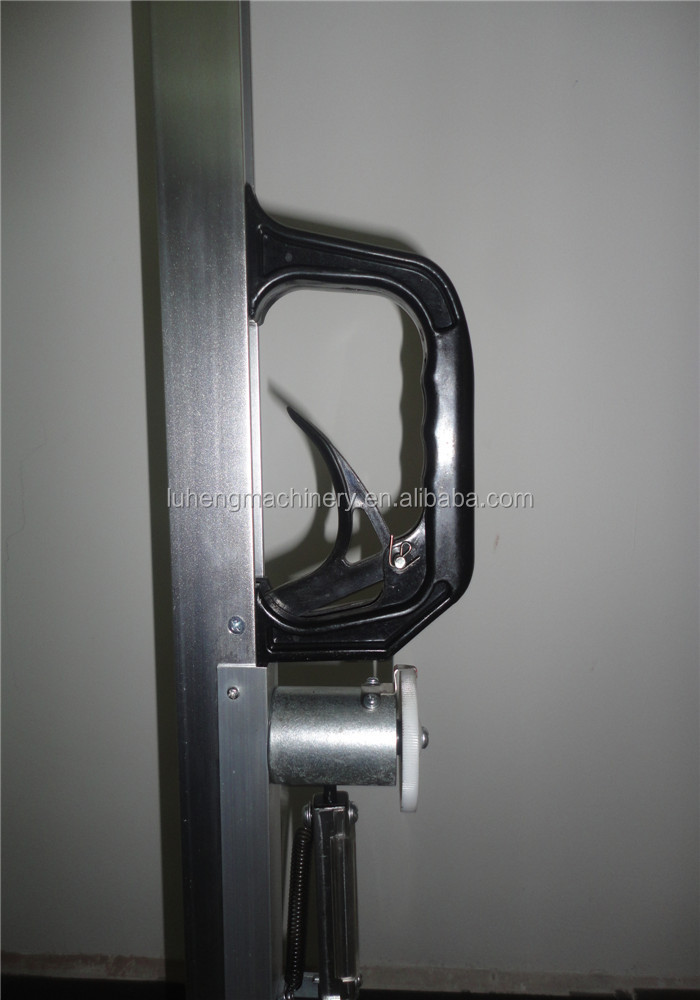

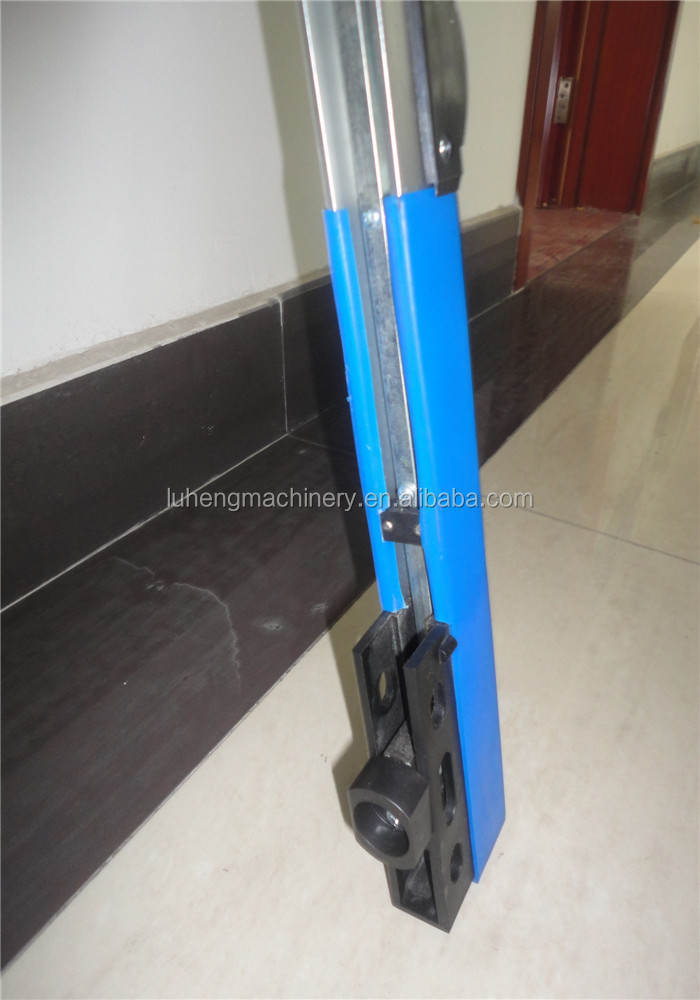

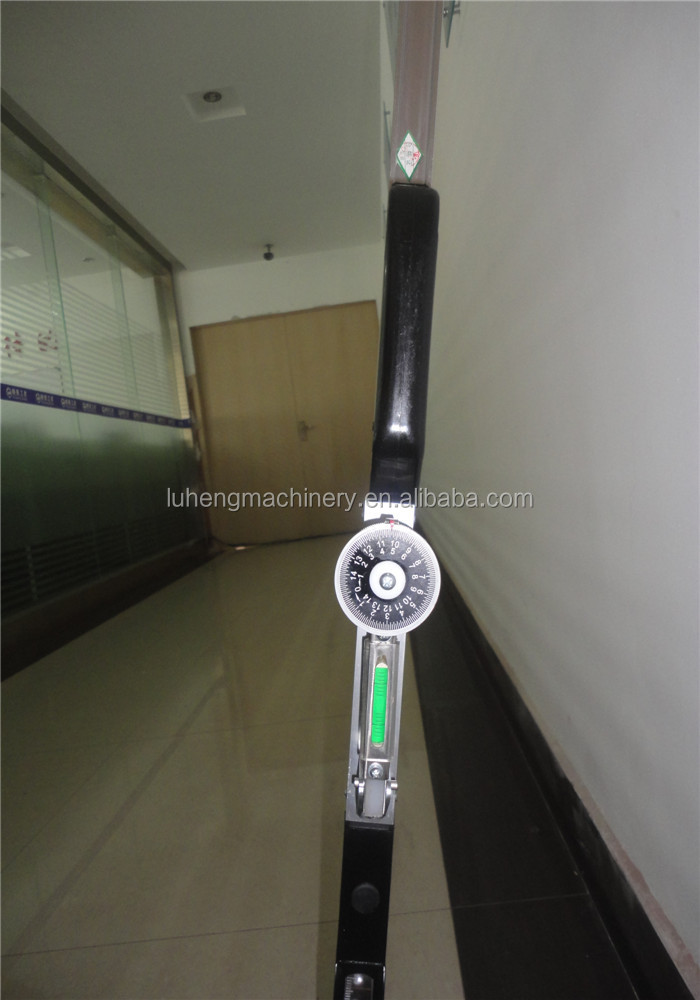

The real details photo                                                       Good Cooperation
