WalkIn Freezer Room, Commercial Cold Storage Room for Market



10~15working days, fast delivery
Easy to install, storage space can be customized

used copeland /bitzer compressor



 cold freezer room



Cold room is widely used in food process factory, dairy factory, pharmaceutical factory, chemical factory, fruit and vegetable warehouse, egg storage, hotel, supermarket, hospital, blood bank, troops and laboratory, to keep stuff fresh for a long time and will not be effected by climate.



     Greenheath frozen cold storage room adopts environment friendly R404a refrigerant. Capacity can be small to 10cubic meter, big to 1000cubic meter. The temperature can be 0 to 10 °C for chilling storage, or -20°C to frozen storage. The frozen cold room is high quality such as high temperature resistant -60 to +80 celsius. Anti-sun photochemical effect, salt spray test 4days, painted inner interlayer thick 0.5mm, shear stiffness 0.1MPa, inner core materials fire resistance B2. Roof load 1KN/M2 water-proof 0.2Mpa, 10mm/min, 30min, endure. It is fire resistance according to B2 of GB 8624-1997. << buiding materials >> burning relative humidity 5% to 99%. Loading on floor 6KN/m2.



Product Pictures:









1.Cold Room,fruit ,vegetable,flowers...



1. Setting Temp. Range: 0°C~10°C

2. Integration refrigerating unit
3.Body material: Both sides painted steel polyurethane board
4.Body Material Thickness: 100mm

5. Single door size: 800mm*1800mm(w*h).

    Door material: both sides painted steel.

6.Cold room with floor panel thickness 100mm.

7. Compressor: Coperland



2.Frozen Room, meat or fish freezing

1.Setting Temp. Range: -18°C~0°C
2.Integration Refrigerating unit

3.Body material Both sides painted steel polyurethane board
4.Body Material Thickness:150mm

5.Single door  size: 800mm*1800mm(w*h).

   Door material: both sides painted steel.

6.Cold room with floor panel thickness 100mm.

7. Compressor: Coperland/Bitzer



3.Optional:
        Setting Temp. Range:0~10°C , 0~-18°C , -18~-25°C ,  -30°C
        Body material:Both sides painted steel polyurethane board
        Body Material Thickness: 100mm,120mm,150mm ,200mm
        Voltage:220V/380V,50/60Hz

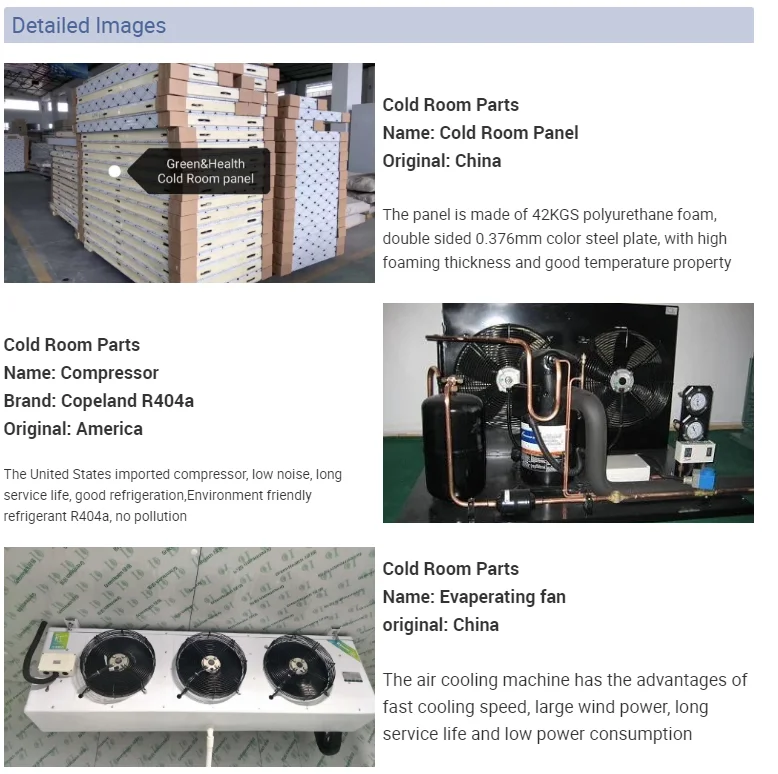

4.Cold room panels and accessories included



Copeland Scroll compressor / BITZER germany compressor unit optional

Double-side colored steel PU panels

Panel Accessories(Silicon sealant, hook)

Double side color steel hand door

Cooper Evaporator

Danfoss expansion valve

Round-trip insulation copper piping

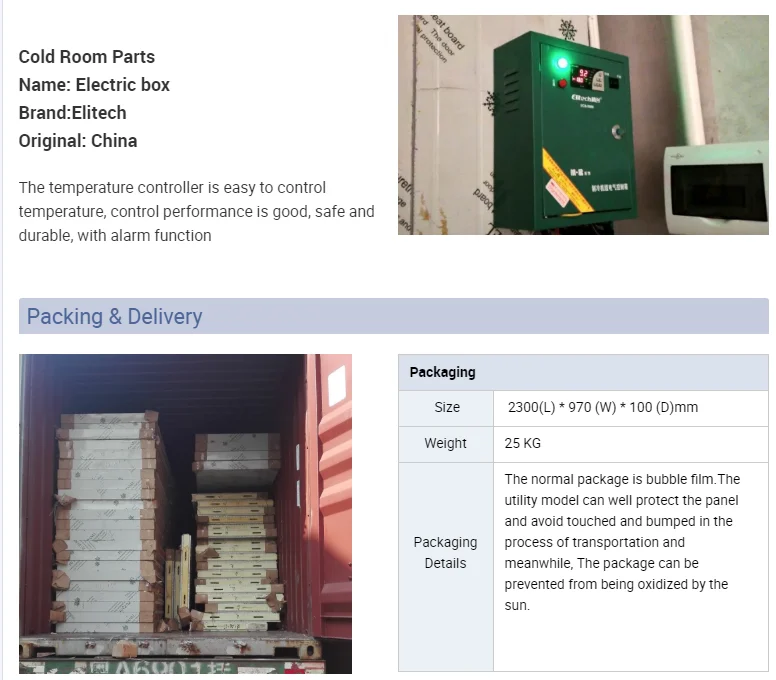

Electrical cabinet

R404a refrigerant

Moisture-proof cold light

Hardware, manual stabilize, balance boom, tem-balance window...



The price is our weapon,quality is our life.

To save the cost of investment and operating costs for our client.





 Customize idea

Different size, different temperature for keeping different goods available to make…Low Running Costs
