Products Description
Brief introduction
The Multi Grind Universal Grinding Machine is perfect for tooling and mold building, mechanical fabrication, development, laboratories and training.
Its frame is made of solid gray cast iron which minimizes vibrations, thanks to its weight of 1300 kg.

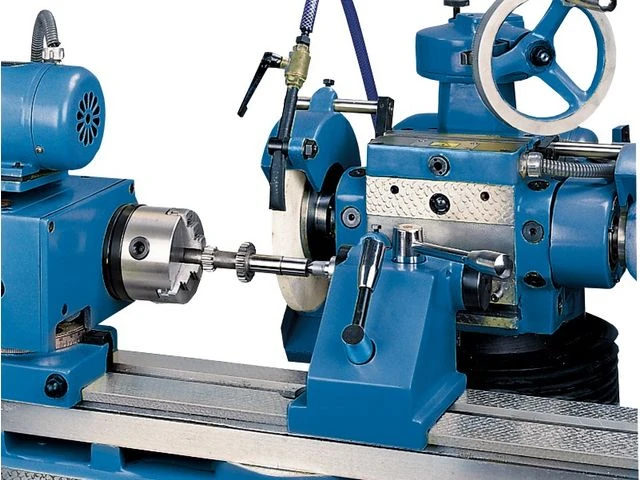

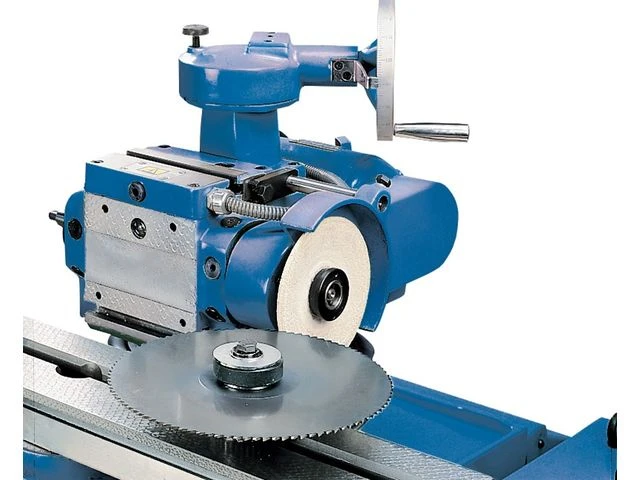

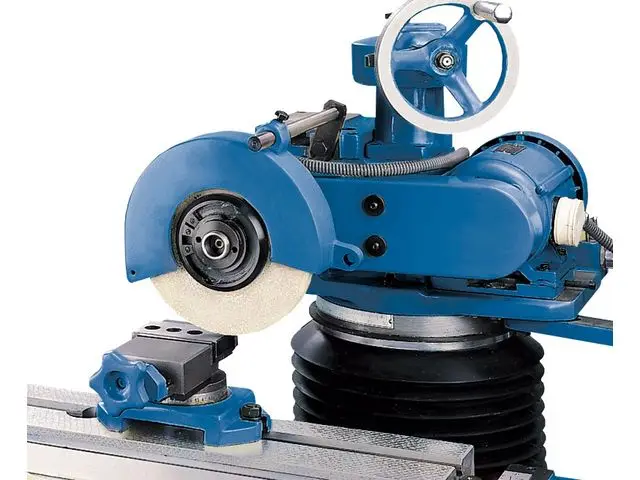

This universal grinding machine provides internal and external cylindrical grinding, conical grinding, tool grinding such as cutters, drills and chisels and simple work of grinding flat surfaces.
Its frame is made of solid gray cast iron which minimizes vibrations, thanks to its weight of 1300 kg.
This universal grinding machine provides internal and external cylindrical grinding, conical grinding, tool grinding such as cutters, drills and chisels and simple work of grinding flat surfaces.
Characteristic
Feed drives Hydraulic feed of the table (longitudinal) with automatic change of direction. An additional longitudinal feed manually operated with hydraulic support allows feed rates of up to 7 m/min.
Specification
Model | 14101 | 14102 | |
Specitication | MTG20A | MTG25 | |
Max sowing diameter over table | 200mm | 250mm | |
Max. workpiece length | 500mm | ||
Size for surface Grinding(L*W) | 300*125mm | ||
Size for cutter grinding | 200-500mm | ||
Max. weight of Workpiece | 10kg | ||
Workhead spindle speeds | 110,200,300rpm | 60,90,120,175.235,345rpm | |
Workhead swivel | ＋90° | ||
Speed of rheelhead up-dowon travel | 280mm/min. | ||
Internalgrinding spindlle speed | 13500rpm | ||
Longitudinal table travel hand control | 500mm | ||
Table travers speed | ＜7 m/min | ||
Max swivel of table | ＋45 -30° | ||
Total power | 2.905kw | 3.105kw | |
Overall dimensions | 1520x1133x1173mm | 1520x1220x1360mm | |
Size of case: | 1820x1400x1630mm | 2000x1520x1630mm | |
Gross Weight Net weight | 1700/1285kg | 1780/1380kg | |
Old model | 2M9120A | 2M9125 | |
