COVNA DN8 1/4 дюймовый Трехходовой 12 В DC Универсальный латунный соленоидный водяной клапан прямого
COVNA DN8 1/4 дюймовый Трехходовой 12 В DC Универсальный латунный соленоидный водяной клапан прямого
COVNA DN8 1/4 дюймовый Трехходовой 12 В DC Универсальный латунный соленоидный водяной клапан прямого

COVNA DN8 1/4 дюймовый Трехходовой 12 В DC Универсальный латунный соленоидный водяной клапан прямого


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Specifications
\t
Item
\t

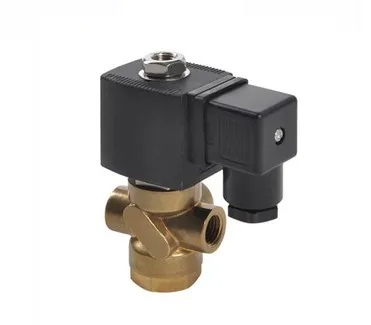

COVNA DN8 1/4 inch Three Way 12V DC Universal Operation Direct Acting Brass Solenoid Water Valve
\t
Size Range
\t
1/4", DN08
\t
Medium
\t
Water, Air, Steam, Gas, Oil, etc
\t
Temperature
\t
VITON: -10℃~150℃, NBR: -10℃~80℃, EPDM: -10℃~120℃
\t
Pressure
\t
0~1.5MPa
\t
Port Thread
\t
NPT, BSPP, BSP
\t
Voltage
\t
DC-12V, 24V
AC-24V, 120V,  240V/60Hz; 110V, 220v/50Hz
\t
Tolerance
\t
±10%
\t
Material
\t
Body: Brass or Stainless Steel
Seal: VITON, NBR, EPDM
Armature Tube: Stainless Steel304
Stop: SS403F
Springs: SS304
Shading Rings: SS304
\t
Application
\t
Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries
\t

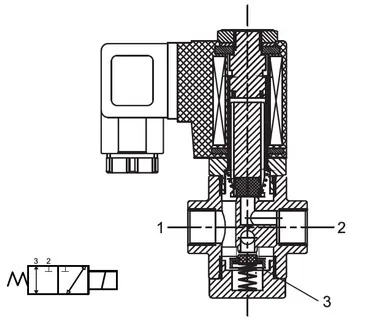

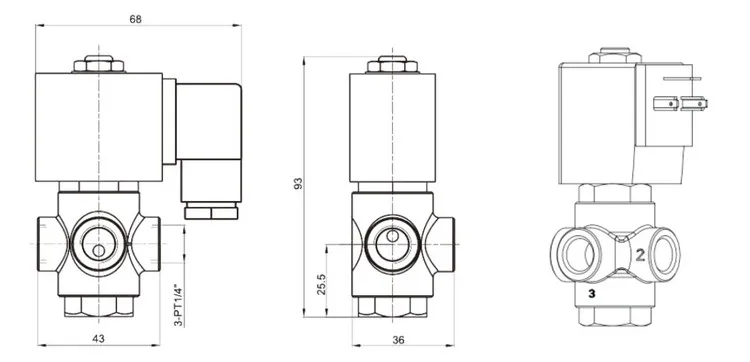

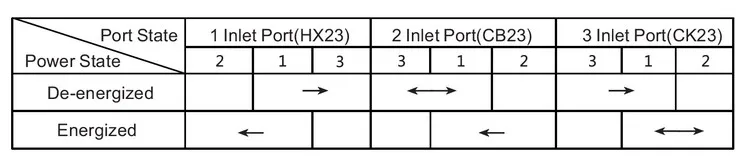

Technical Parameters
Installation

Make sure that the pipe is free of impurities.
It is recommended to install the solenoid in vertical position with the coil facing upwards.

Application
Production Flow
About COVNA

COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.

COVNA Top Sales Team

Outward Bound Activity

COVNA is warmly popular all over the world and it's certified by TUV, SGS, RoHS, ISO 9001 for the entire process of design and manufacture of valves.

Packing

Packing: COVNA DN8 1/4 inch Three Way 12V DC Universal Operation Direct Acting Brass Solenoid Water Valve packed with foam in carton.

Delivery Time: 7 working days after payment confirmed.
