High rise aluminium window machinery equipment building cleaning lift
Application

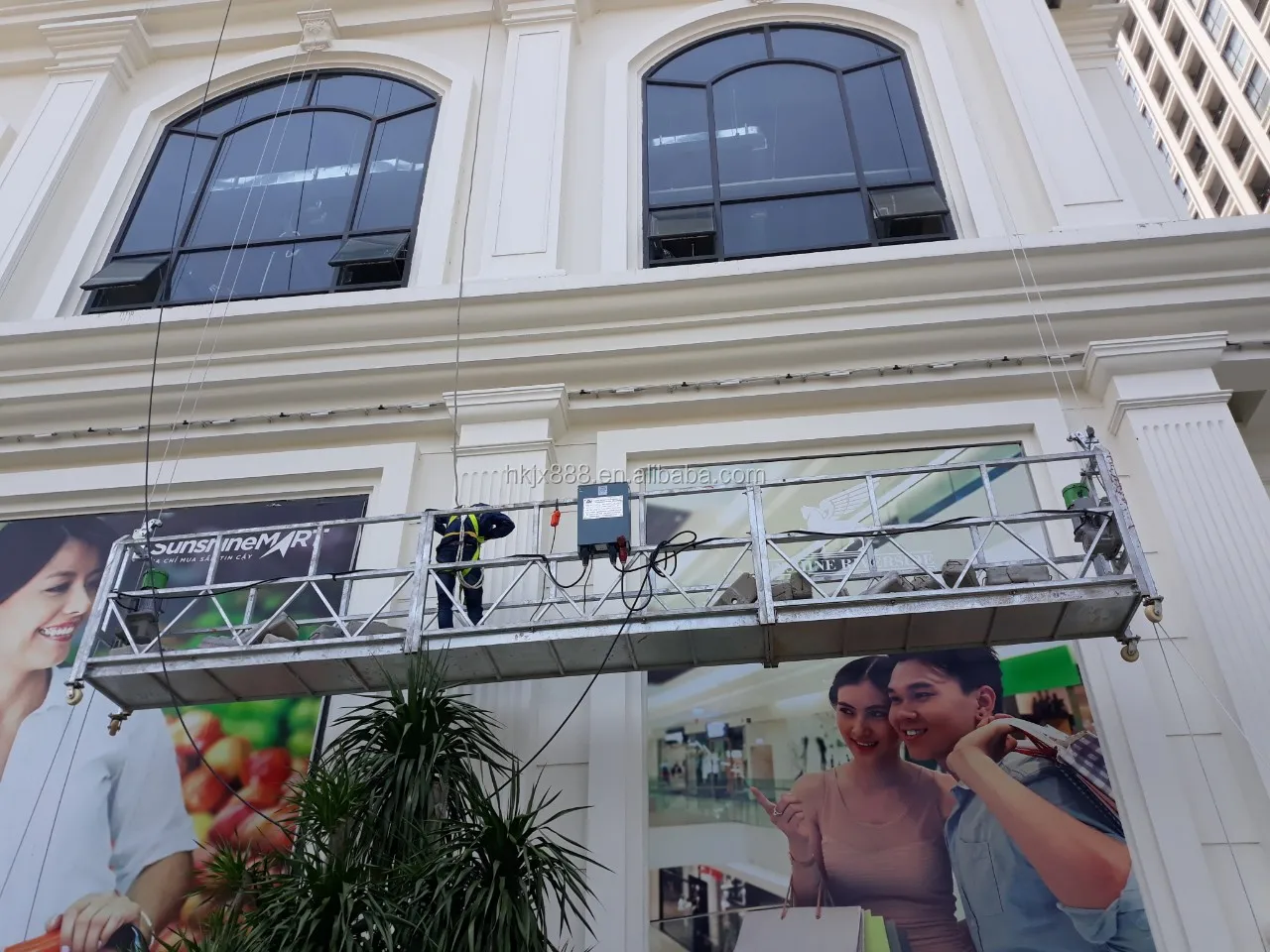

Application of suspended platform (building cleaning lift):
1. Highrise building: Decoration,construction for external wall,installation of curtain wall and external components,
repairing, checking,maintenance and cleaning for external wall;
2. Large-scale project: construction,repairing and maintenance for large tank, chimney, dams, bridges,derrick.
3. Large ships: welding, cleaning and painting.
4. billboard: installation billboard for high-rise building.
Product Description
Technical Parameters of suspended platform (building cleaning lift) :
Model | ZLP 500 | ZLP630 | ZLP800 | ZLP1000 |
Appearance | Painting / Hot galvanized | |||
Fabrication material | Steel/ Aluminum alloy | |||
Rated load | 500 kg | 630kg | 800kg | 1000kg |
Lifting speed | 9~11m/min | 9~11m/min | 8~10m/min | 8~10m/min |
Motor power | 2×1.5kw | 2×1.5kw | 2×1.8kw | 2×2.2kw |
Brake torque | 16 km | 16 km | 16 km | 16 km |
Steel rope angle adjusting range | 3°~8° | 3°~8° | 3°~8° | 3°~8° |
Distance between two steel rope | ≤ 100mm | ≤ 100mm | ≤ 100mm | ≤ 100mm |
Counterweight (optional) | 25kg×30pcs | 25kg×36pcs | 25kg×40pcs | 25kg×44pcs |
Diameter of steel rope | 8.3mm | 8.3mm | 8.6/9.1mm | 9.1mm |
Max Lifting height(m) | 300m | 300m | 300m | 300m |
Motor rotation speed | 1420 r/min | 1420 r/min | 1420 r/min | 1420 r/min |
Voltage (3PHASES) (optional) | 220V/380V/415V 50Hz/60Hz | |||

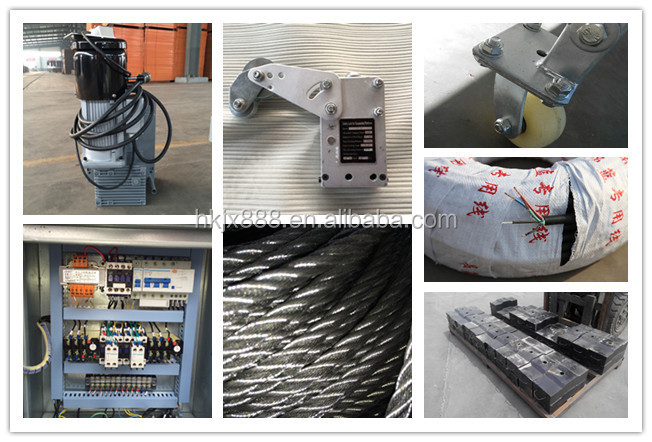

Components details
1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)
2. Suspension Mechanism: Steel (painted or hot galvanized)
3. Electric hoists:LTD6.3, LTD8.0, LTD10.0
4. Safety Lock: LS30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm
7. Safety rope: 18mm,20mm
8. Electric cable: 3*2.5+2*1.5
9. Counterweights: Cement, cement with steel cover & Iron casting counterweight
10. Wheels both under suspension mechanism & platform available;
11. Platform: We can meet your requirements on different length, such as 2m,3m,4m,6m,7.5m....12m
maximum.
12. Lifting height: 300m maximum.

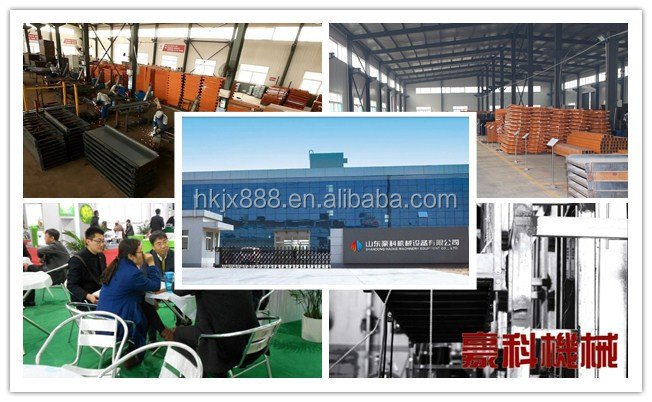

Factory shows
Payment term
We can accept TT, Western Union, Paypal and other are available.

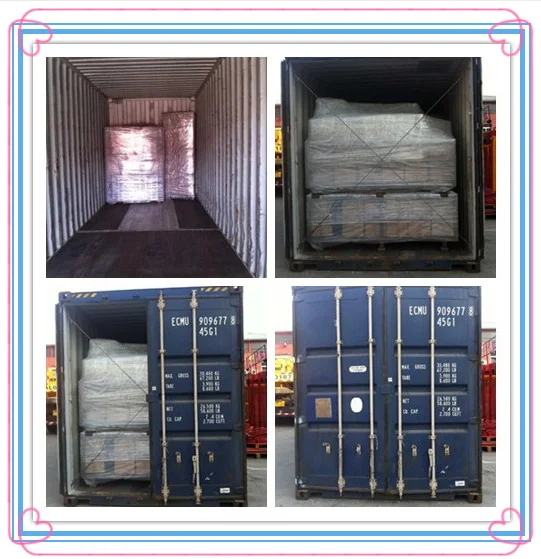

Packing and shipping
Our Suspended platform can be shipped by sea, air, express, it just depend on the quantity.
Order Process
Company Information
1). More than 9 years experience in suspended platform industry.
2). Five to seven working days fast and prompt delivery to every corner of the world.
3). One year warranty with nice after-sale services.
4). CE, ISO & TUV Certification available.
5). Customized service is available, including length, shape, color, design, depend on your idea!
FAQ:
1).Q: Can I buy only 1 set?
A: Yes, MOQ is 1 set.More quantity, more discount.
2).Q: How to pay?
A: T/T, West Union, Paypal is availible.30% for deposit,70% for balance.
3.Q: How to delivery?
A: By sea, by air or by express.
4).Q: How long is the delivery time?
A: About 7 days on receipt of your payment.
5).Q: I have some design, can you make it for me?
A: Customized service is available, including length, shape, color, design, depends on your idea!
