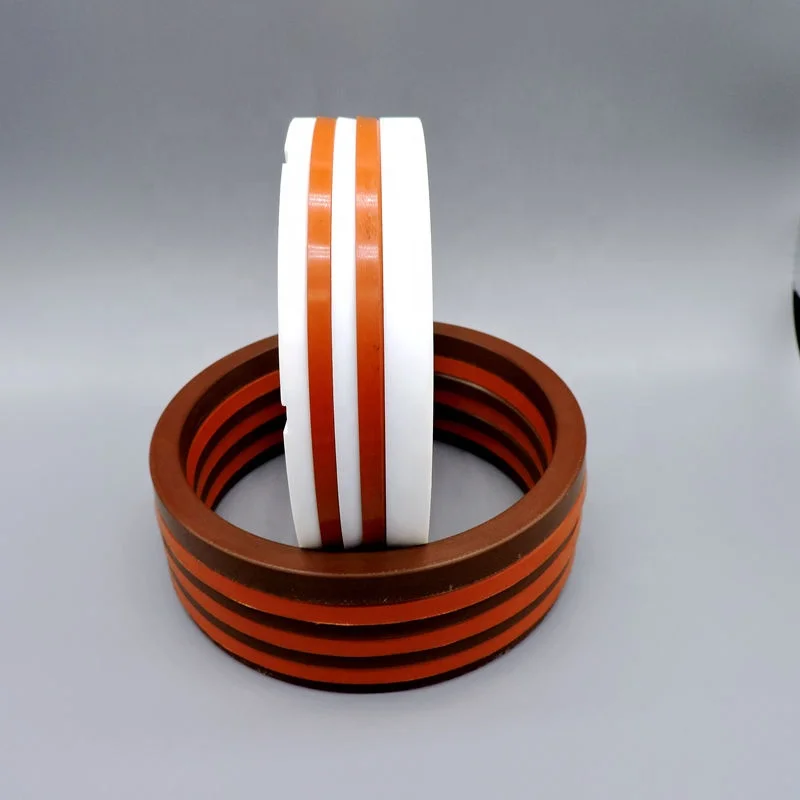

Vee packing seal

Vee packing/V packing/Chevron Packing is designed for sealing rods, pistons and plungers in hydraulic cylinders and hydraulic presses. Extremely suitable for medium duty to heavy duty application. Chevron seal accepts low & high pressure, vigorous conditions & also if any misalignment between sealing gaps.

Features of Chevron Packing Seal Set

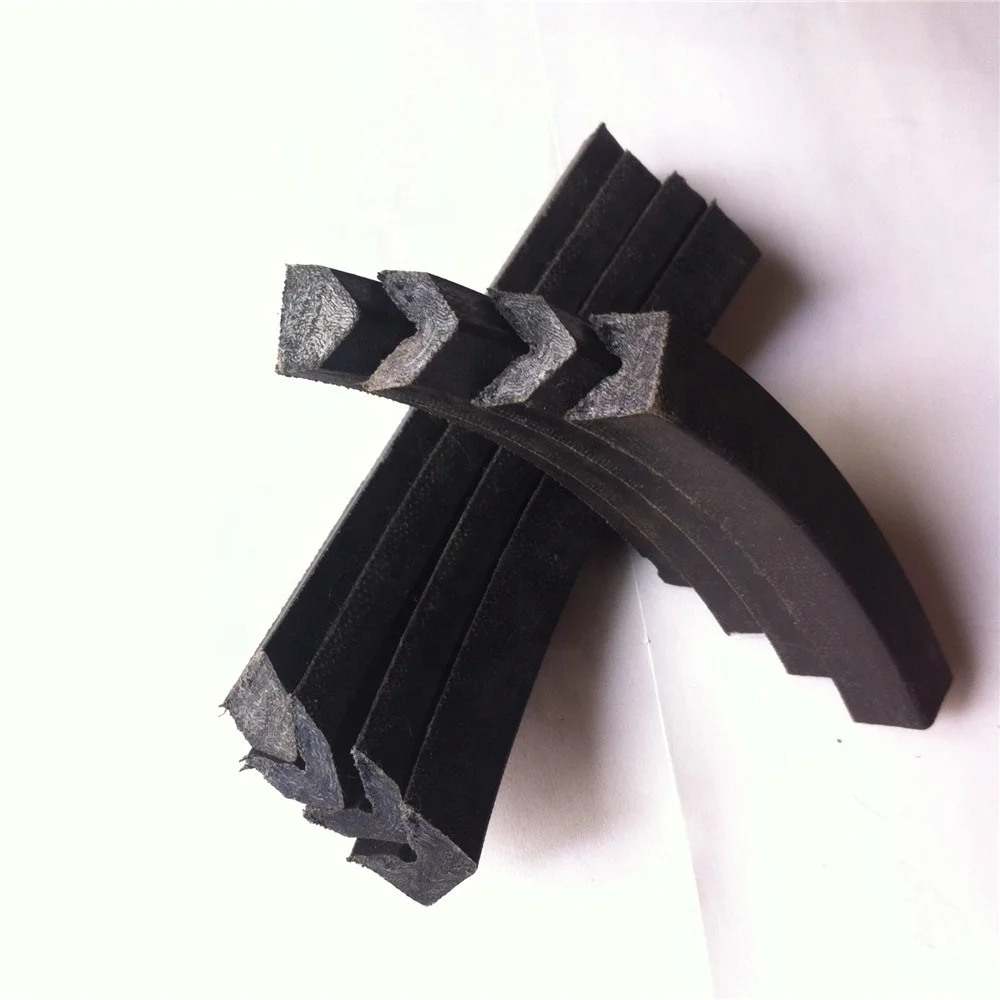

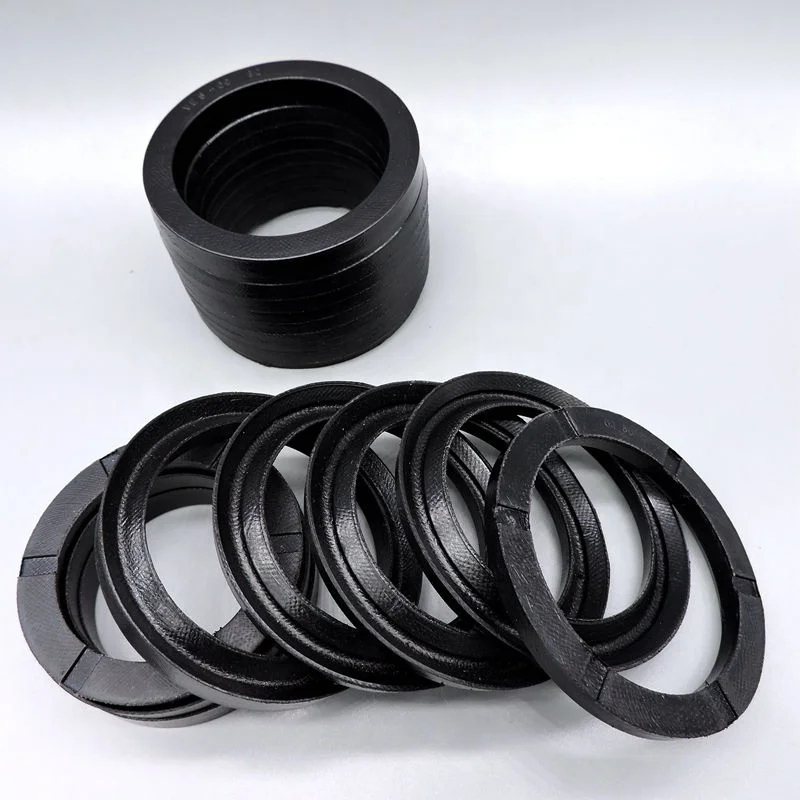

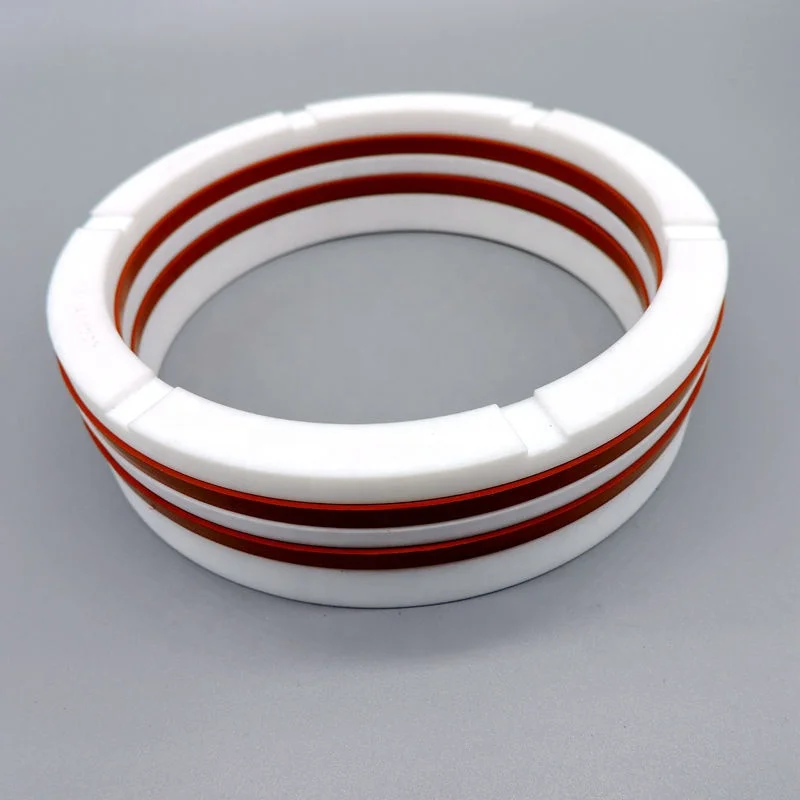

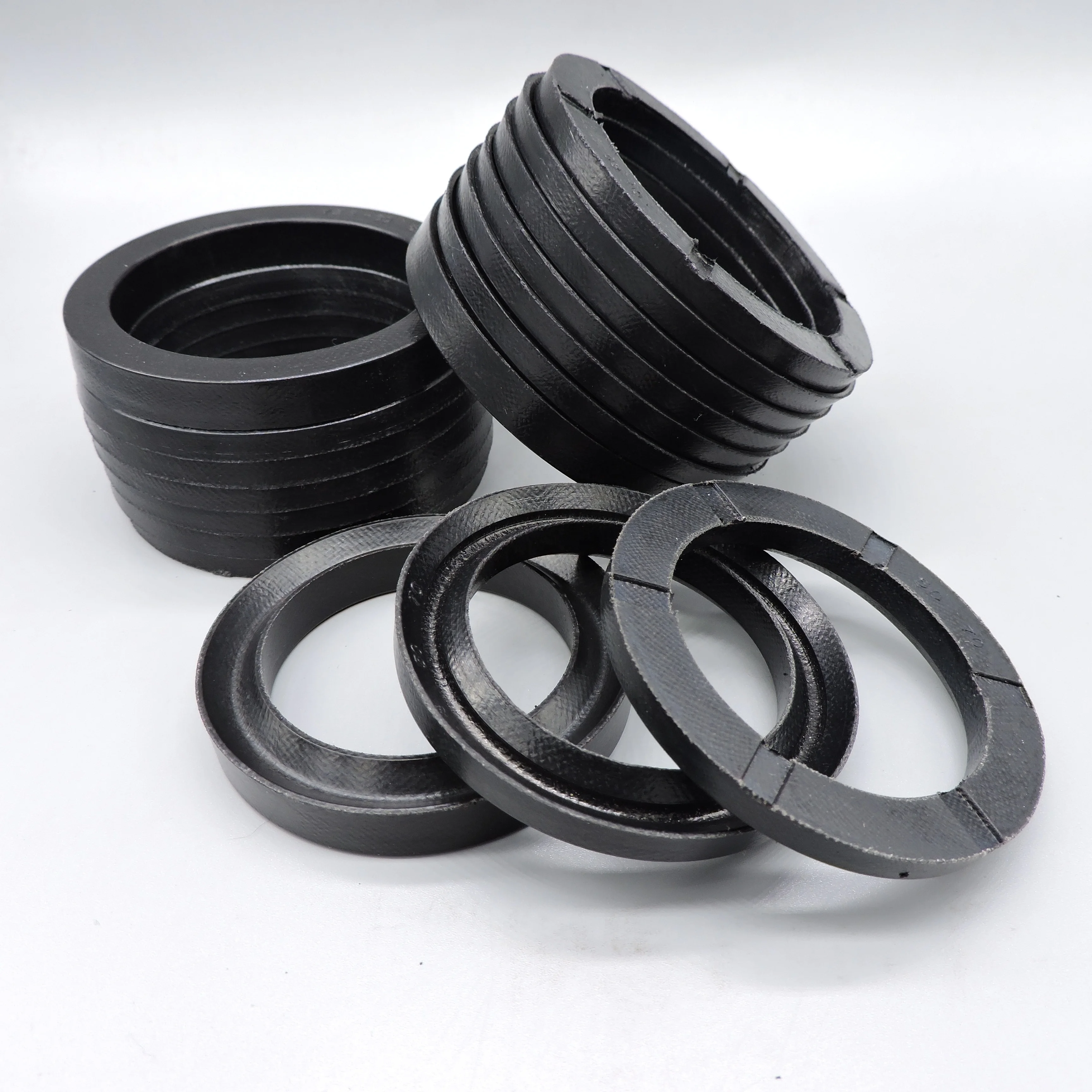

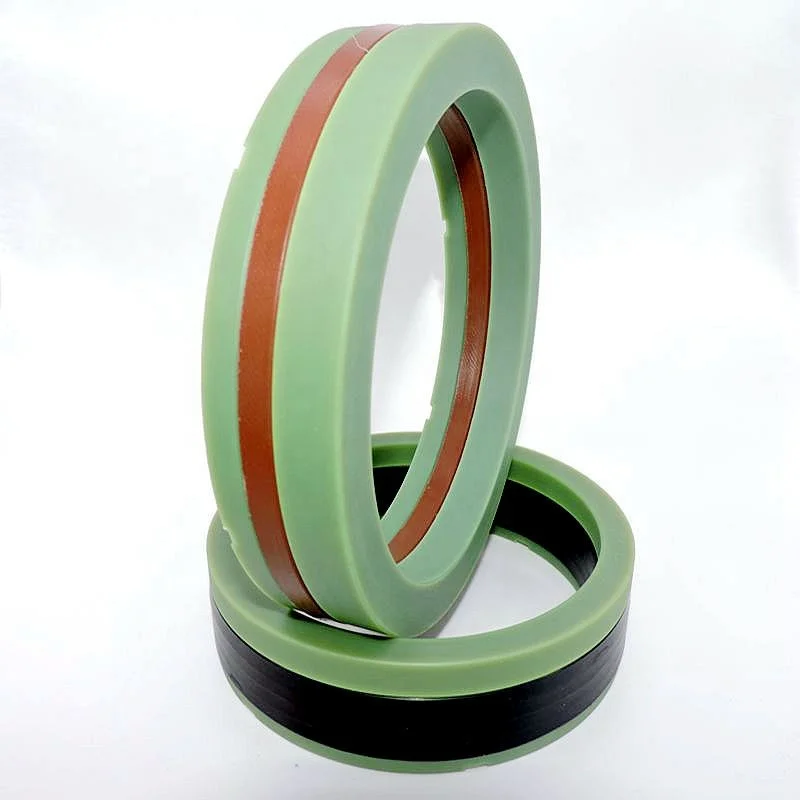

The seal is a combination of a Base seal(Male Adapter), center V-Ring & pressure ring(Female Adapter). The center ring is the main seal being flexible enough to retain high & low pressure, whereas the base seal support the center ring from getting extruded against high pressures. The pressure ring helps in retaining the center ring profile& distributing pressure equally.

Advantages of Chevron Packing Seal Set

The distinctive and exclusive hinge-like action of each Chevron ring permits immediate reaction even to minor pressure changes. Each individual lip of Chevron packing set independently reacts to pressure and automatically effect a seal. The multiple lip configurations automatically distribute pressure and an effective seal along the shaft. The design of Chevron packing also permits an automatic reaction to pressure shock and overloads.
