980nm 10W high power multimode fiber coupled/fiber output diode infrared laser made in

FC-980-10W-MM

Optical Parameters^[1]

Parameters

Symbol

Typical Value

Unit

Central Wavelength

λc

980

nm

Wavelength Tolerance

+/-5

nm

Output power(after fiber)

P

10

W

Power stability

Ps

<3%^[2]

%

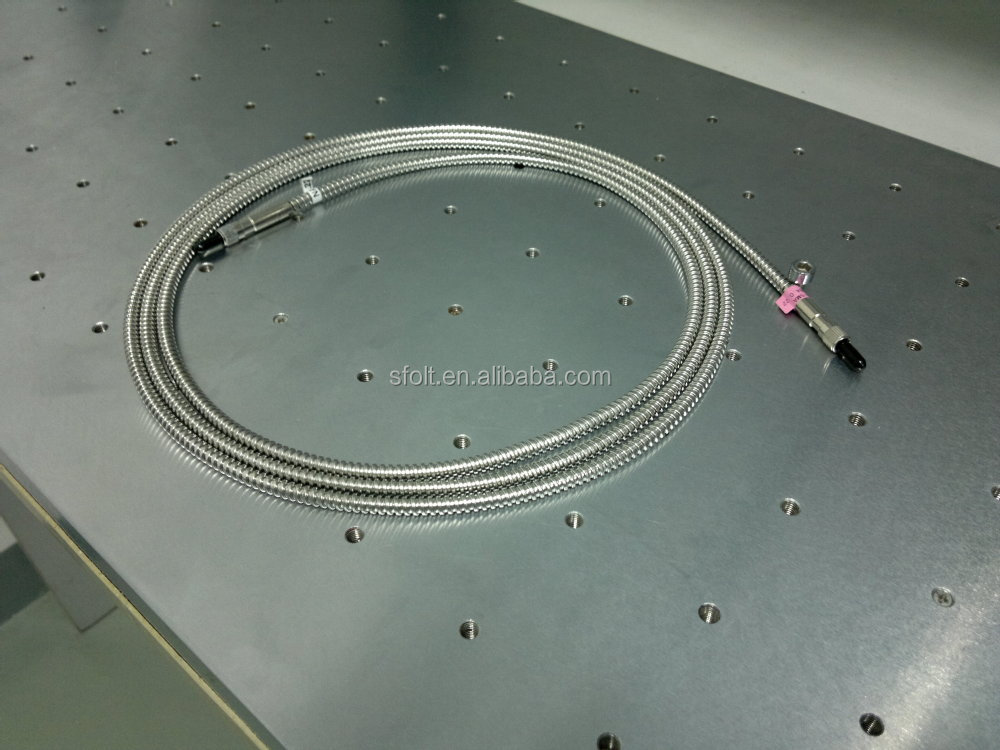

Fiber core diameter

400

um

Fiber Connector

SMA

Fiber Protective Outer Jacket

SP

φ5.0mmSUS+PVC tubing

Numerical Aperture

NA

0.22

Expected operating lifetime

MTBF

10000

hrs

Warranty time

1^[3]

year

Environmental Parameters^[4]

Operating temperature

Top

0~40

℃

Storage temperature

Tst

-40~85

℃

Note:

[[1]: Test data under 25℃.

[2]: High power stability value available upon request.

[3]: 2-year warranty time available upon request.

[4]: case temperature.

Part Number

Multimode fiber coupled laser

FC-980-10W-MM-BB

10W

Output power: 10W etc.

MM

Multimode fiber coupled laser

BB

Package type

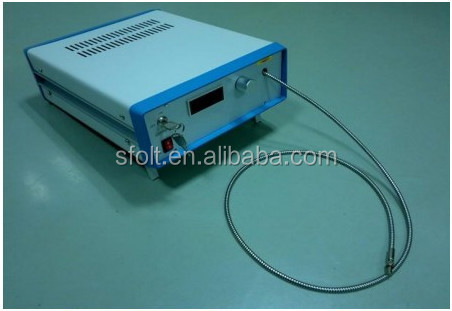

T5: overall unit, case dimension: 320*250*90mm, with power adjustor and digital display temperature stabilized

Package legend

T5: overall unit, case dimension: 320*250*90mm, with power adjustor and digital display temperature stabilized
