Details of kneader machine:

Regarding the details of kneader machine,kindly check the picture as above
1.Mixing chamber
From high quality steel plate welded into a W-shaped body and two side
panels. Jacketed structure for cooling or heating. The inner surface of
hard chrome plating.

2,Thermal resistance
Inserted in the middle of the bottom of the mixing chamber is equipped
with thermal resistance, and electric control system phase, monitoring,
control the mixing temperature.

3,Rotor
The primary class wrapped rotor. The rotor shaft center hole and ledge
interior chamber, a cooling, heating channel. Edge peak and the end
surfacing wear carbide, polished, hard chrome plated polished.

4,Heating cooling system
Adopt a common piping system to allow cooling water or heating steam
into the rotor through the ribs in three columns, mixing chamber, and the
ram cavity, the material for circulating cooling or heating.

5,Turnover mechanism
The brake motor, cycloid reducer peace enveloping worm gear, etc., and
drive around the front rotors turning the mixing chamber 140 °.

6,Dust-proof sealing device
Mixing chamber catchy cantilever rack interface board slot using arc
labyrinth structure, good dustproof effect; rotor shaft using the contact
spring tension without lubrication structure, reliable sealing.

7,Main transmission system
By the main motor, reducer, and the composition ratio gear box, easy to
achieve two opposite differential rotation of the rotor. transmission
system

8,Porosity system
Controlled by the PLC instruction, two-way lift cylinder to drive the
ram. When mixing overload, the ram automatically go up, you can protect
the motor. When necessary, you can manually force the ram pressure rises.

9.Electronic control system
Imported PLC devices, electronic control components are all imported
products or the introduction of technology to improve the system
reliability.



Technical Parameters:

Type	X (S)N35	X(S)N55	X(S)N75	X(S)N110
Total Volume of mixing chamber(L)	75	125	180	250
Working Volume of mixing chamber(L)	35	55	75	110
Driving motor power(KW)	55	75	110	185
Tilting motor power(KW)	5.5	5.5	5.5	7.5
Tilting angle	110	110	110	110
Rotational speed of the rotor(front/rear)	36/30	36/30	36/30	30/24.5
Pressure of compressed air(Mpa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Cooling wate presssure (Mpa)	0.3~0.4	0.3~0.4	0.3~0.4	0.2~0.4
Size:length×Width×Height	3150×1900×2880	3280×2120×3090	3250×2210×3250	4075×2712×3580

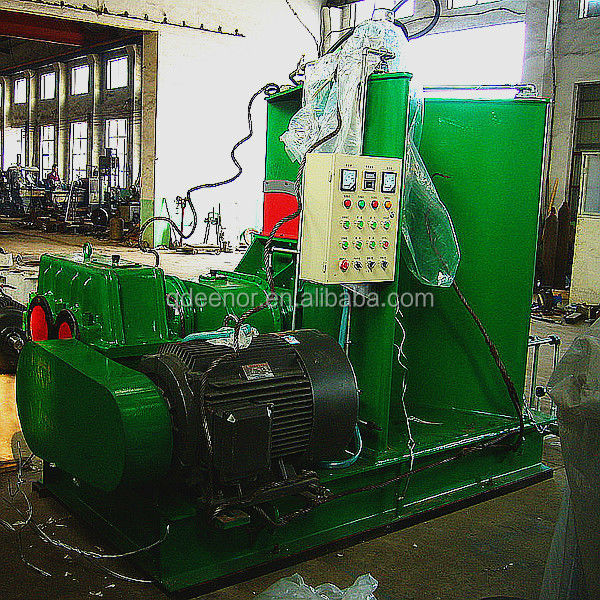

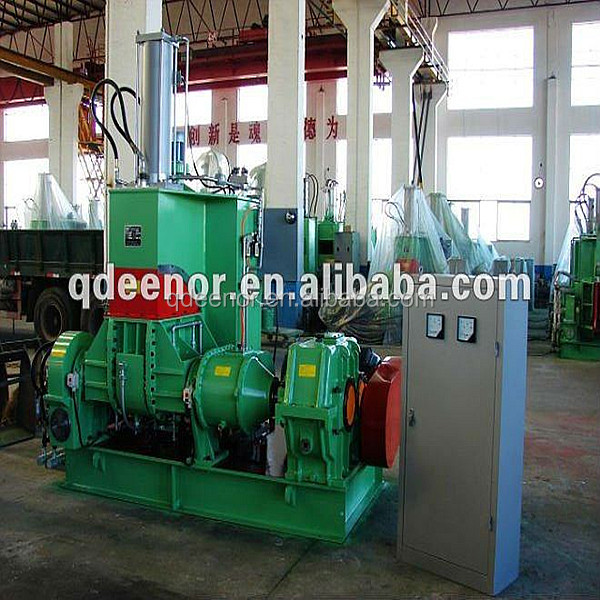

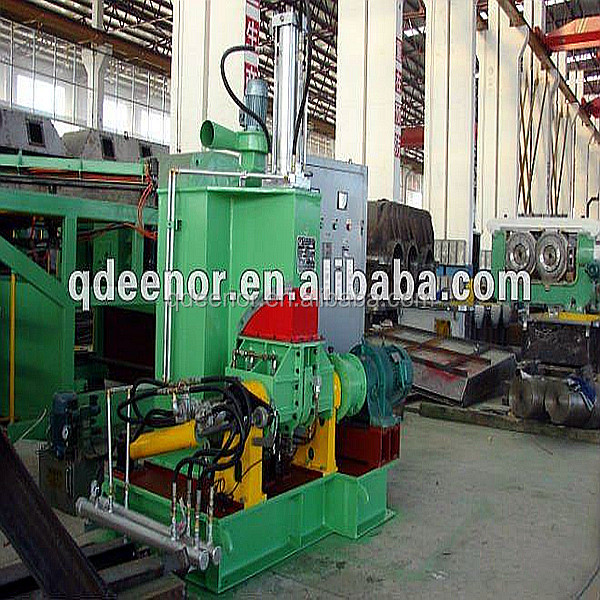

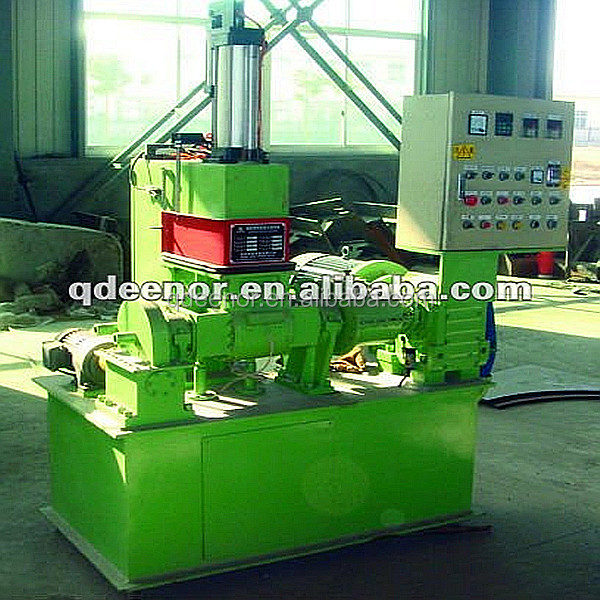

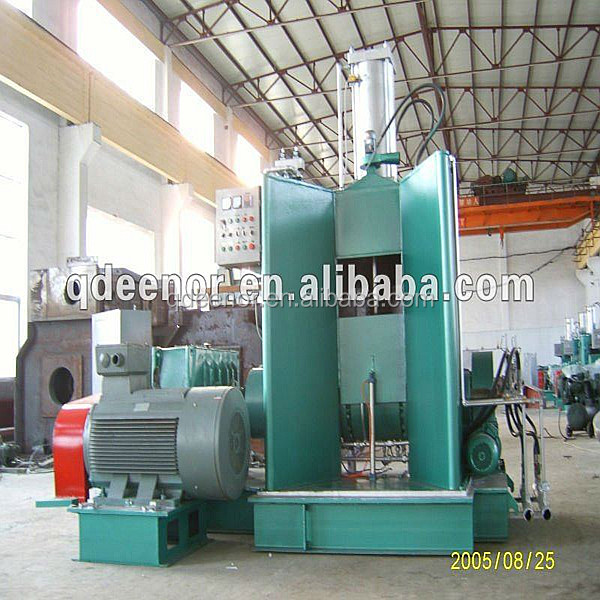

 Pictures of kneader machine:



Customers visiting;



FAQ:

1.Q:Are you a factory or trading company?

   A:We are factory.

2.Q:Where is your factory?How can i visit ?

   A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome visit us.

3.Q:How does your factory control the quality of machines and after sales service?

   A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.



We can product all kinds of non-standard rubber machinery,we can design by your requests.

If you are interested in our products or have any questions please contact us freely.We will try our best to meet your requirement at first time.



If you are interested in our machine,or have some questions,welcome contact us~~~

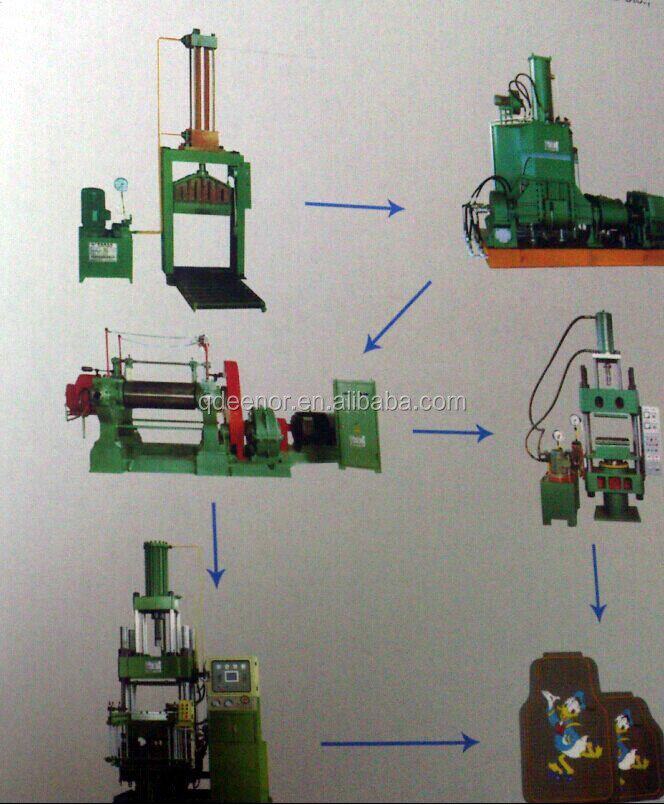

 Process for rubber mat:

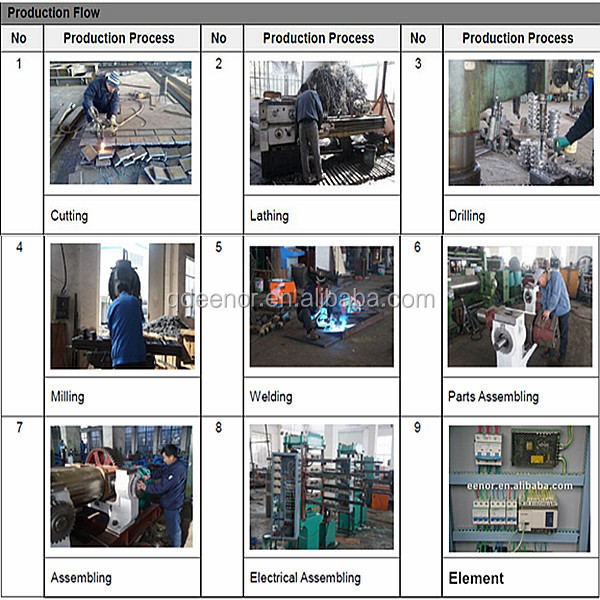

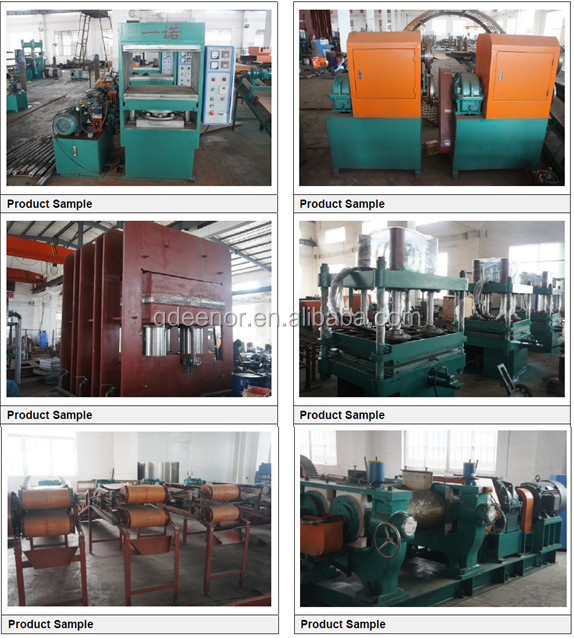

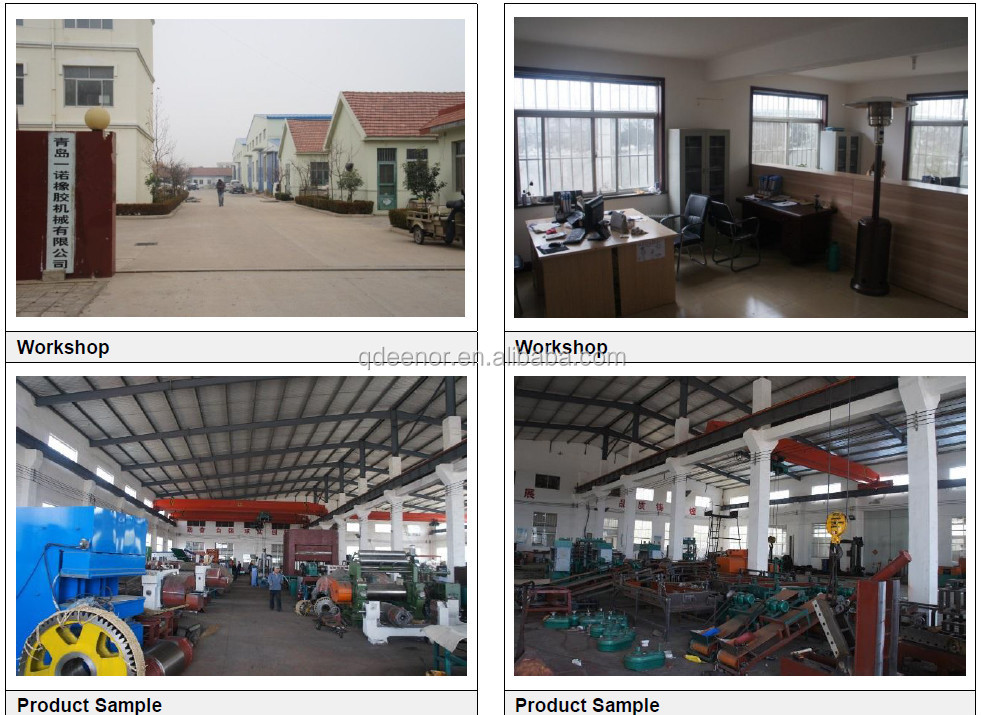

Workshop:
