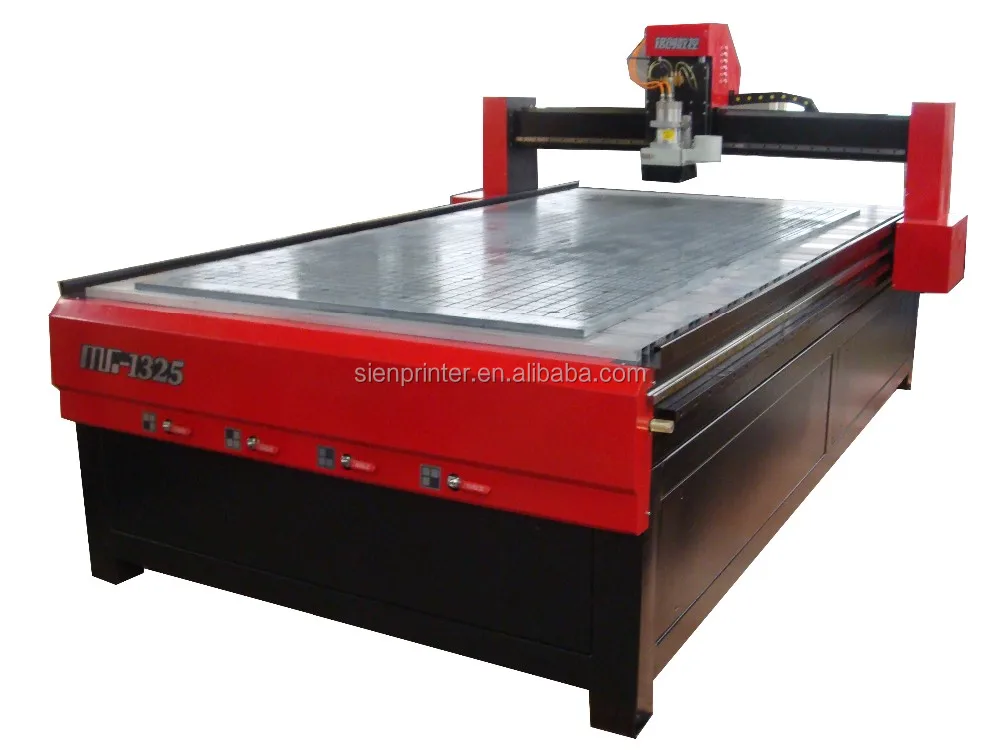

Plastic/Acrylic/ MDF/PVC/Metal/Furniture/Door making processing cutting engraving machine 1325 sculpture wood carving cnc router

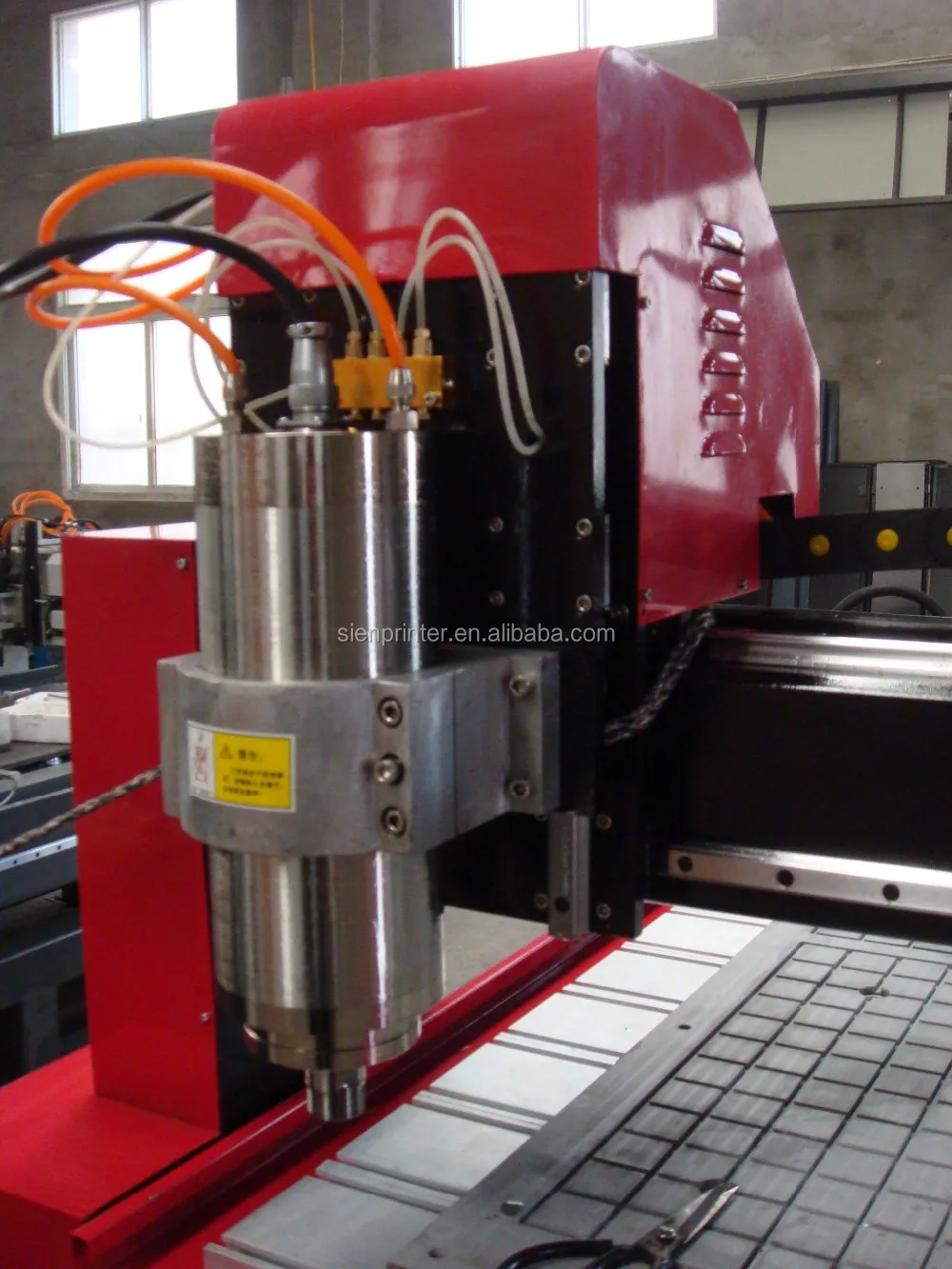

1.configure with powered BOL high speed air cooling spindle motor
2.X.Y axis adopt auto eliminating clearance device.more accuracy
3.configure with big power AC driver system,more strong
4.adopt the most advanced FPGA colored LCM controlling system,intelligent module rapid calculation,outstanding performance.
model | CNC1212 | CNC1318 | CNC1325 | CNC2030 |
Processing size | 1.2X1.2m | 1.3x1.8m | 1.3x2.5m | 2x3m |
Power of spindle | 2.2kw | 3kw | 5kw | 5kw |
Traveling Positioning Accuracy | ±0.01/300mm | |||
Repositioning Accuracy | ±0.03mm | |||
machine structure | Seamless steel tubes welding structure | |||
X, Y axis Configuration | High wear-resistant rack+ Beeline rectangular rail | |||
Z axis Configuration | High wear-resistant rack+ Beeline rectangular rail | |||
Table Type | Aluminum extrusion | |||
Table Overlay | none | |||
Max .Consume Power | 2Kw ( without spindle motor) | |||
Max. Traveling Speed | 15000 mm/min | |||
Max .Working Speed | 10000 mm/min | |||
Spindle Motor Power | Water-cooled 3Kw x1 (option: 4.5Kw or higher,or air-cooled) | |||
Spindle Speed | Max. 400Hz 24000 r/min | |||
Motor Drive mode | Stepper subdivision driver (option: AC servo system) | |||
Machine Working Voltage | AC 220V 50/60Hz | |||

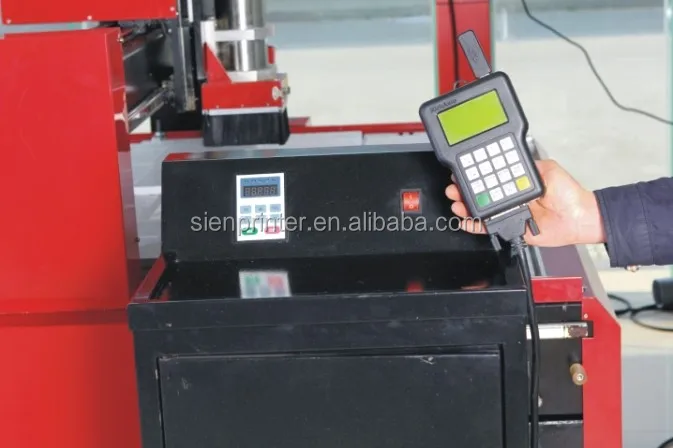

Operating system | Hand-held Micro Numerical Control System | |||
Machine Interface | Shielding communication cable | |||
Collets and Cutter | diameter: 3.175/4/6/12.5 | |||
Command Format | G-code,HPGL,TAP,Type3/Artcam/Castmate/Proe/UG/Artcut etc. | |||
Working Environment | Temperature:-10 ~ 45 Relative humidity: 30% ~ 75% (Non-condensing) |

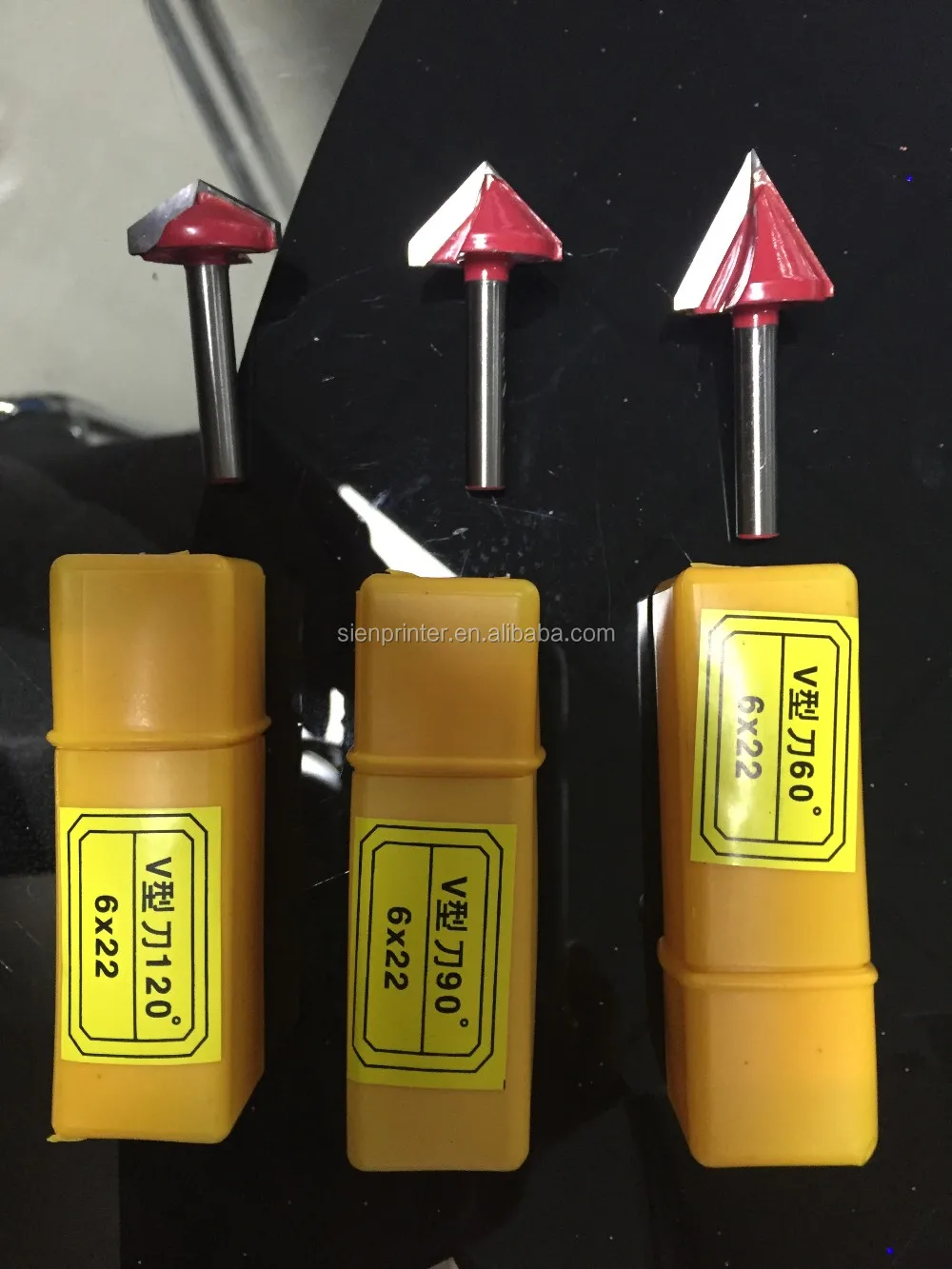

Engraving Blade 3D Engraving blade
(1)Guarantee for one year
(2)24-hour technical support by email or calling
(3)User-friendly English manual and Video CD for machine using and maintaining
(1)Offer us a caill, even cooperate with us or not, you may get unexpected harvest.
(2)Studying customers' requirement carefully, we could help clients to choose the best suitable machine and also
will offer you the relative samples and suggestions promptly
(1)Promptly and patiently answer customer's questions. Put our heart and soul into service for customer, including
supply some suggestion on choosing the place
(1) We will deliver the machine as soon as possible, We will deliver the nomal models within 5 days receiveing the
orders for abnormal models, the delivery time is at most 15 days.
(2)Our technicians will provide on-site servie to customers in China, We will supply the whole day on-line service to
foreign customers,According to foreign customer's requirement, we will arrange techinians go abroad to install or maintenance the machines,.
(3)Within the warranty period and the machine parts were damaged under normal using condition, we will offer
new parts for the free
(4)We will offer software upfrades for free.
(5) The company will research the staffs service attitude aperiodicalty to improve the service satisfaction.
