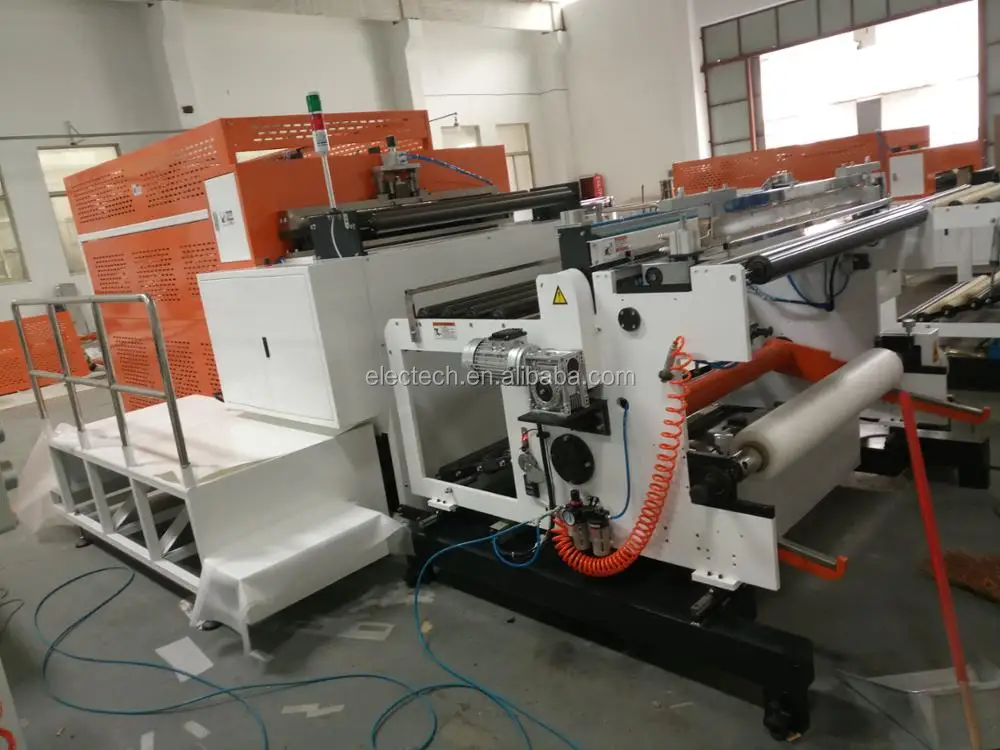

Description of Automatic EVA solar panel backsheet roll to sheet cutting machine

High Speed EVA/ TPT Cutting Machine for the cutting of the EVA and TPT of the solar energy factory, with high precision and speed, you can set the parameter of the machine to finish the procedure of length cutting, punching.This machine composed by human-computer interface, PLC, servo-motor, air gripper and sensors,

with the advantage of easy to use, stable working and high efficiency.



Working procedure:

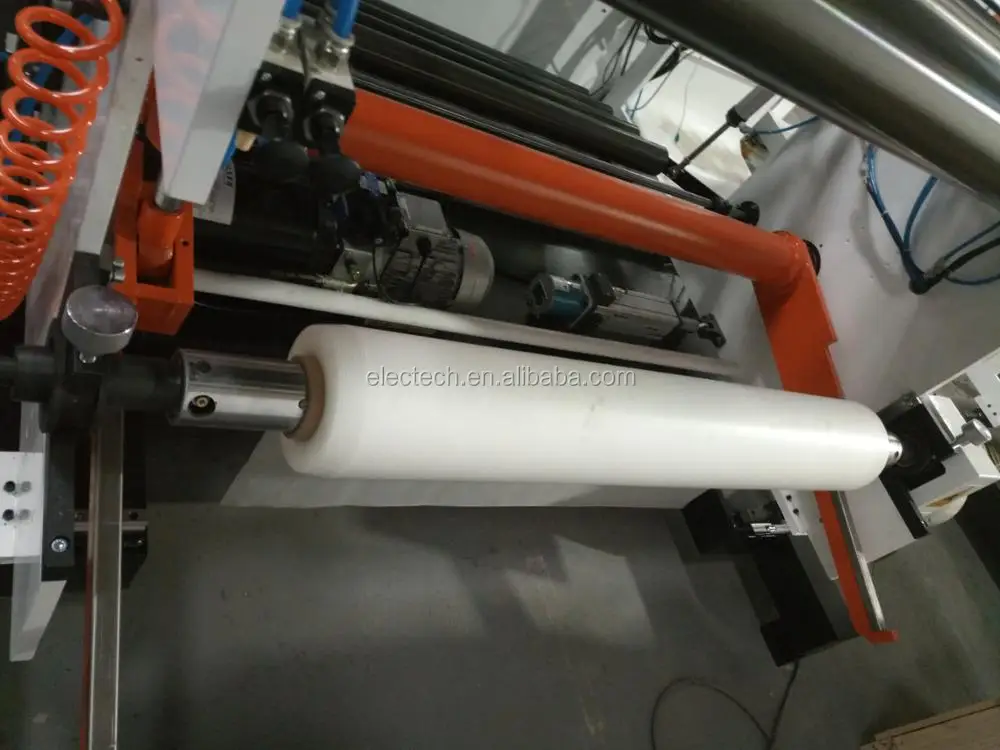

Material feeding (by hydraulic) –correction system—material unwinding –driving—

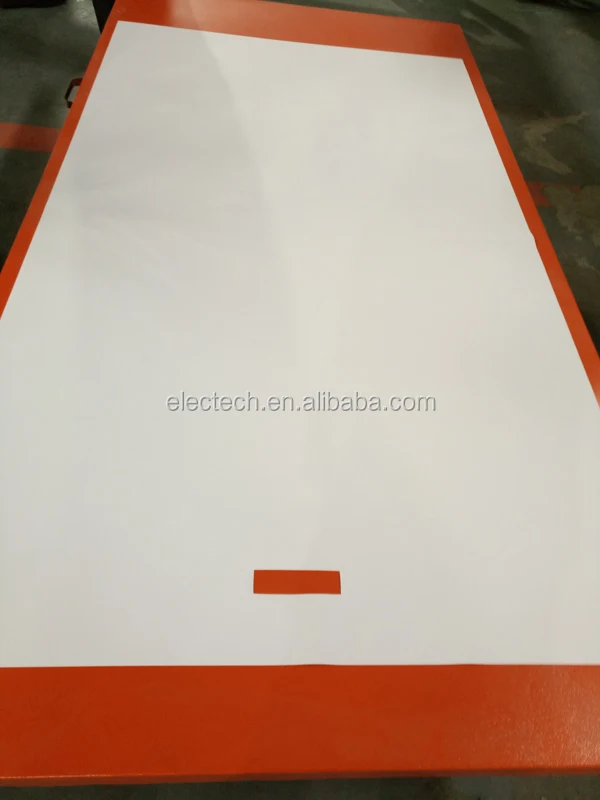

material cutting (can set the cutting length, and reserve the punching holes)

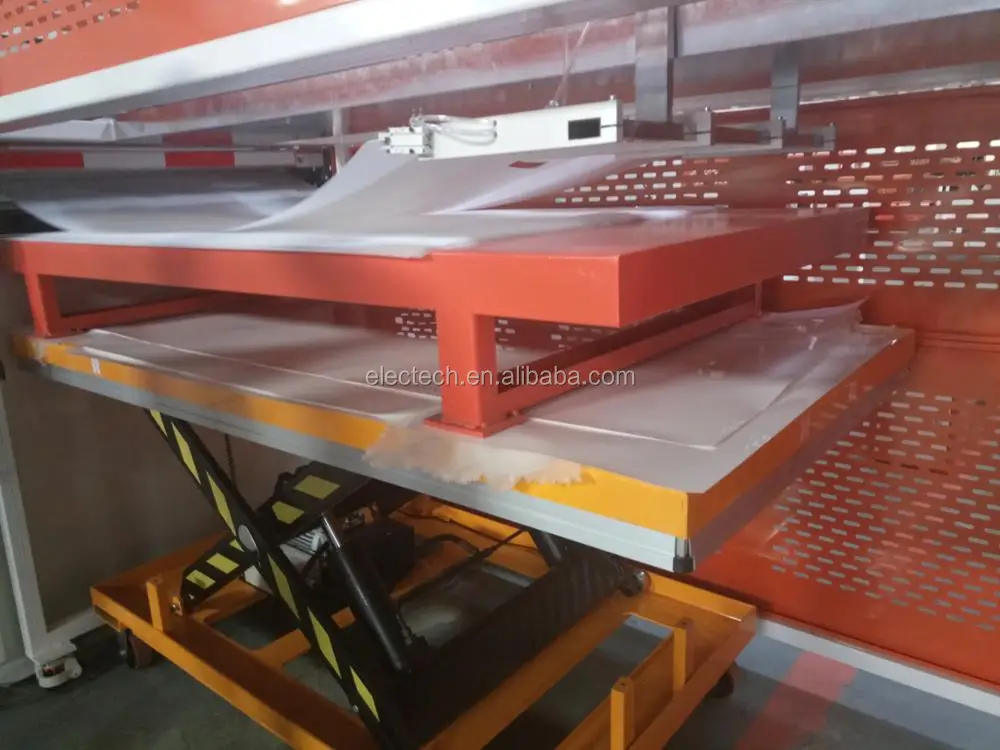

—automatically material packing after cutting.



Technical parameters:



Model	Automatic EVA solar panel backsheet roll to sheet cutting machine
Cutting width	1160mm
Unwinding diameter	400~800mm
Cutting speed	12 sheets (with punching)             15 sheets (without punching)
Cutting precision	TPT±1mm; EVA±2mm
Voltage	380V
Total power	8Kw
Machine size	5280*2160*1600mm
Machine weight	2500Kg
Main Client	KYOCERA SOLAR etc.

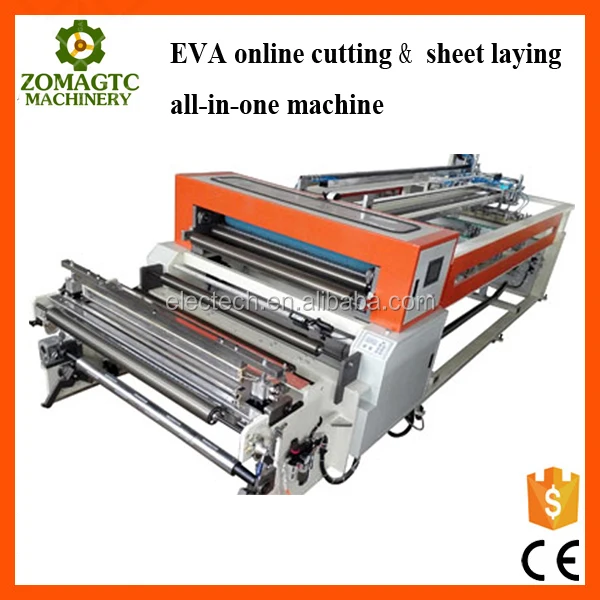

EVA online cutting and paving machine

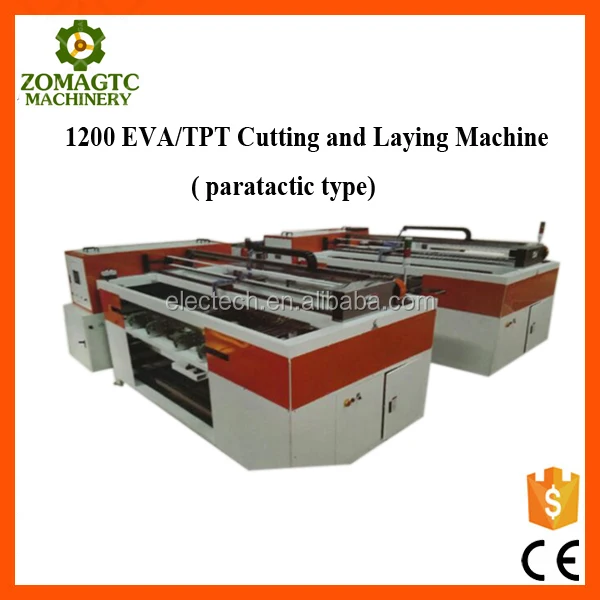

EVA Backsheet Cutting and Layup Machine (paratactic type)

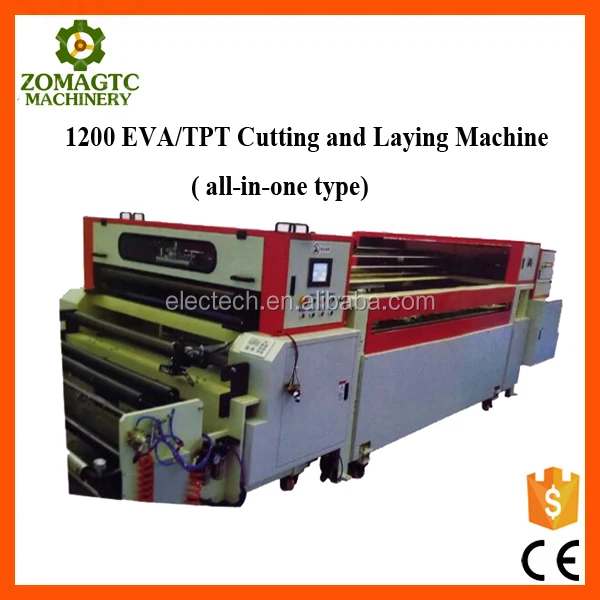

EVA Backsheet Cutting and Layup Machine (all-in-one type)

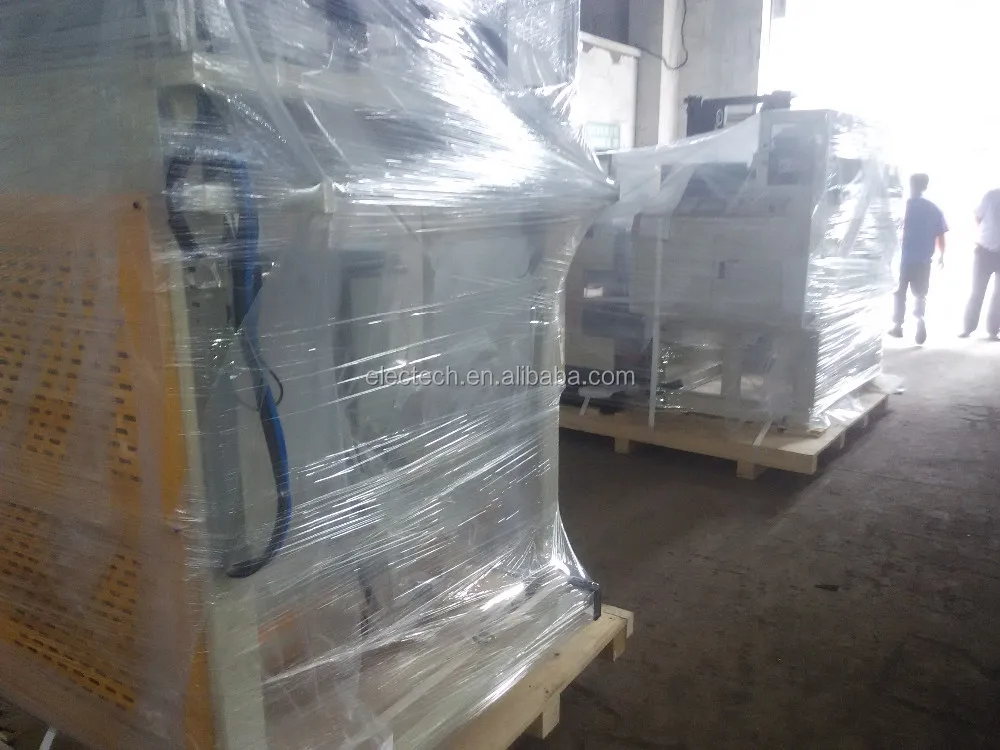

Packaging Detail:	20GP container
Delivery Detail:	30 days after receiving down payment

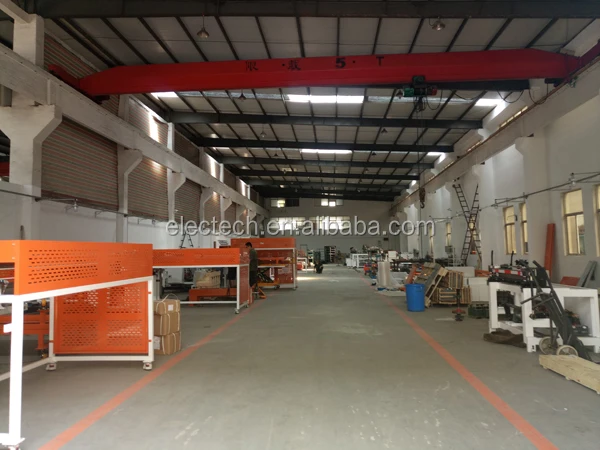

Zhengzhou Zomagtc Company Ltd. have been designing, developing, manufacturing
