SEC345 is a cost-effective 3D electronic compass developed by Bewis Sensing Technology LLC.
The product adopts the patented hard iron and soft iron calibration algorithm of Beiwei
Sensing Technology LLC, which can provide high-precision heading information when its inclination
reaches 40°. It has the advantages of small size and low power consumption, and is suitable for
sensitive measurement systems with small size and high precision. The SEC345 integrates a three
axis magnetic sensor that compensates for the tilt angle with a three-axis accelerometer when the
heading is solved in real time by the central processor, providing accurate heading data in very
harsh environments. The SEC345 supports RS232, RS485 and TTL level output interfaces. The output baud rate is 2400-115200, and the output angle is 0°~360°. There are two types of hexadecimal and Modbus protocols. It can be adapted to different application scenarios and can integrate the electronic compass function into various systems very conveniently and quickly.
- Accuracy: 1° (RMS)
- Operating temperature: -40 ° C ~ +85 ° C
- Small size: L55 x W37x H24(mm)
- Supply voltage: 5V
- Hard magnetic, soft magnetic and tilt compensation
- Resolution: 0.1°
- Rolling pitch accuracy: 0.1°
- RS232/RS485/TTL interface optiona
- Satellite tracking
- Petroleum geological exploration
- Optical range finder
- GPS-assisted navigation
- Individual combat equipment
- Ocean test
- Underwater navigation
- Mechanical control
| SEC345 Performance Specifications | ||
| Parameters | Typical | Units |
| Heading accuracy | 1° (Tilt <40°) | Deg RMS |
| Resolution | 0.1° | |
| Max Dip Angle | 40° | Deg |
| Magnetometer Specifications | ||
| Parameters | Typical | Units |
| Calibrated Field Measurement Range | ±1.5 | Gauss |
| Magnetic Resolution | ± 0.5 | mGauss |
| Tilt Specifications | ||
| Parameters | Typical | Units |
| Pitch Accuracy | 0.15°(Tilt < 40°) | Deg RMS |
| Pitch Accuracy | 0.15°(Tilt < 40°) | Deg RMS |
| Tilt Range | ± 40° | Deg |
| Tilt Resolution | 0.01° | |
| Mechanical Specifications | ||
| Parameters | Typical | Units |
| Dimensions (L x W x H) | 55*37*24 | mm |
| Net Weight | 130(within 1.5m cable,package excluded) | g |
| Mounting Options | Screw mounts/standoffs; horizontal | |
| Connector for RS-232 | 5-pin | |
| I/O Specifications | ||
| Persaramet | Typical | Units |
| Latency from Power-On | < 50 | mSec |
| Maximum Sample Rate | 50 | samples/sec |
| Communication Rate | 2400 to 19200 | baud |
| Output Formats | Binary | |
| Power Specifications | ||
| Parameters | Typical | Units |
| Supply Voltage | 5V | VDC |
Current Draw | 40 (Max) | mA |
| 30 (TYP) | ||
| Environmental Specifications | ||
| Persaramet | Typical | Units |
| Operating Temperature | – 40 to 85 | °C |
| Storage Temperature | – 40 to 85 | °C |
| Shock | 2600 | G |
| Vibration | Z-Axis, Skewed Block, at 1, 2 & 4 | |
| Humidity | 70C with 95% R.H. for 168 hrs | |
| Calibration | ||
| Parameters | Typical | Units |
| Hard Iron Calibration | Yes | |
Soft Iron Calibration | Yes | |
| Performance | ||||
| Measuring range | ±15 | ±30 | ° | |
| Measuring axis | X-Y | X-Y | ||
Zero temperature drift | -40℃~85 ℃ | ±0.0007 | ±0.0007 | °/℃ |
Frequency response | 100 | 100 | Hz | |
| Resolution | 0.0005 | 0.0005 | ° | |
| Accuracy | 0.002 | 0.005 | ° | |
| Baud rate | 4800~115200 | 4800~115200 | ||
| Shockproof | 2000 gravity, 3 times/axis | |||
| Net Weight | 130(within 1.5m cable,package excluded) | |||

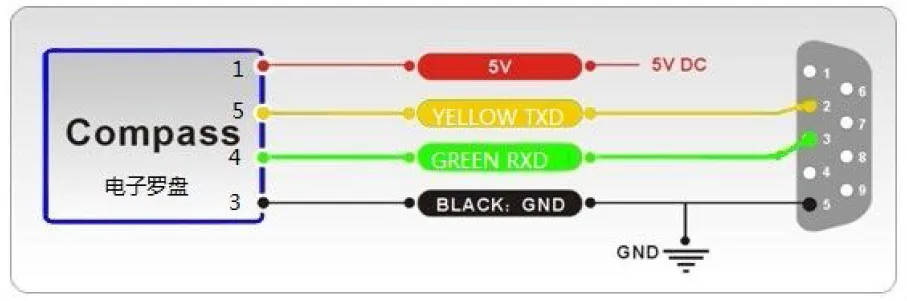

| Electrical interface | |||||
Line Color | RED | BLUE | BLACK | GREEN | YELLOW |
| 1 | 2 | 3 | 4 | 5 | |
DC 5V | NC | GND | RXD | TXD | |
Company Information
BEWIS(Bwsensing) is a high-tech enterprise integrating R&D, manufacturing and sales of inertialattitude sensors. It is the gold medal winner of the 2018 World IoT Expo and the drafter of China nationalstandards. It has more than 100 related intellectual property rights and is headquartered in Binhu, WuxiCity, Jiangsu Province. Bewis is an university-industry cooperation company, focus on the inertial sensor ,the product accuracy is from 0.2 degree to 0.001 degree, from the industrial to the military field, Bewis play an important role in China Market,products cover inclinometer digital compass/IMU/AHRS/INS, concentrate on MEMS and the Fiber Optical Gyroscopr field, we have customer like Siemens(Medical)/ GE/ GOLDWIND/ AVIC/ COMAC/ Caterpillar etc. we could offer the OEM/ODM service for you.
