Advanced Rubber Babury Mixer / Rubber Kneader Machine



E. V. A. Rubber & TPR, Sole, Rubber Roller, Hoses Belts, Sponges, Vibration Insulator, Elastic Cord, Sealing Materials, Tire, Tapes, Master Batches, Pigment Ink, Automobile&Electric Rubber Parts, Chemical Industry Compounds.

Feature for Dispersion Kneader:
1. An automatic temperature and time control system to provide a 100% mixing efect.
2. Easy to clean chamber and changing colors.
3. In 6~10 minutes/batch of output equivalent to 2 units of mixing Roller.
4. Pressurized and sealed mixing chamber to provide high mixing performance and prevented environmental pollution.
5. Easy installation, operation and maintenance to lower the running cost



Technical Parameters:

Model		X(S)N-3	X(S)N-10	X(S)N-20	X(S)N-35	X(S)N-55	X(S)N-75	X(S)N-110
Mixing capacity	L	3	10	20	35	55	75	110
Main power	KW	5.5	15	30	55	55/75	90/110	160/200
Brake Motor	KW	0.37	0.75	1.5	2.2	3.0	4.0	5.5
Tilting Angle		110	110	110	140	140	140	140
Air compressor	KW	1.5	2.2	3.0	5.5	7.5	10	10
Dust Collector		HLL-10	HLL-10	HLL-10	HLL-10	HLL-15	HLL-20	HHL-30
Cooling Water	MPA	0.2-0.4	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Heating Steam	MPA	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Electric Heater	KW	4	6	9	12	15	18	24
Machine Weight	KG	1200	2300	4500	6500	7800	10500	14500
Overall Dimensions	CM	196x970x182	220x135x215	250x148 x250	310x179 x271	342x214 X280	380x214 X318	440x276 X377

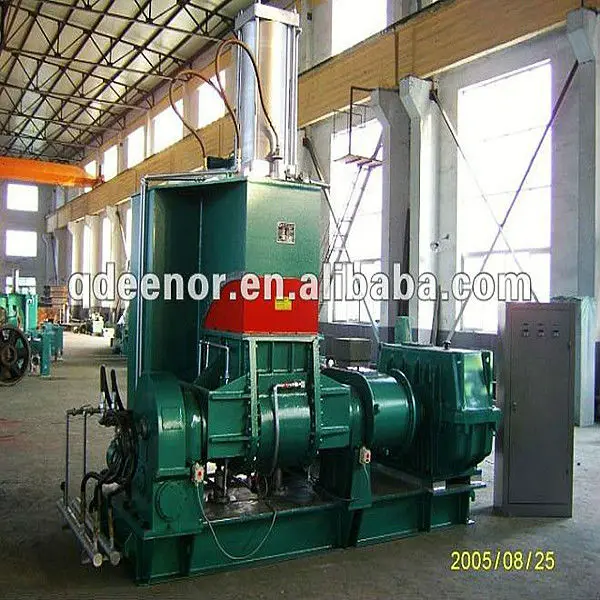

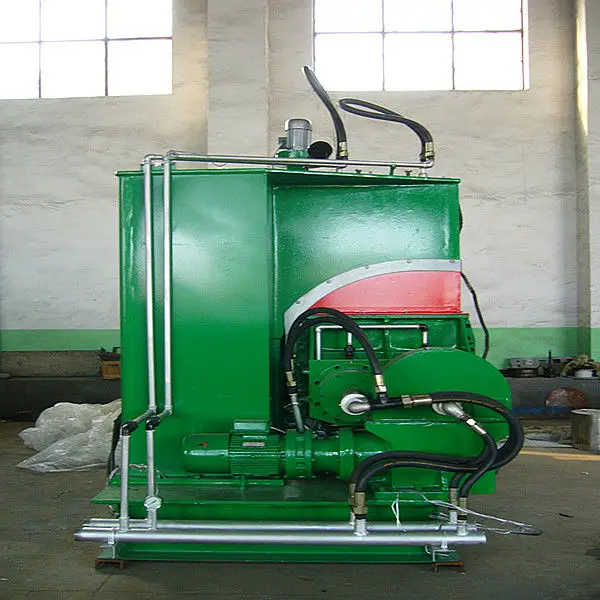

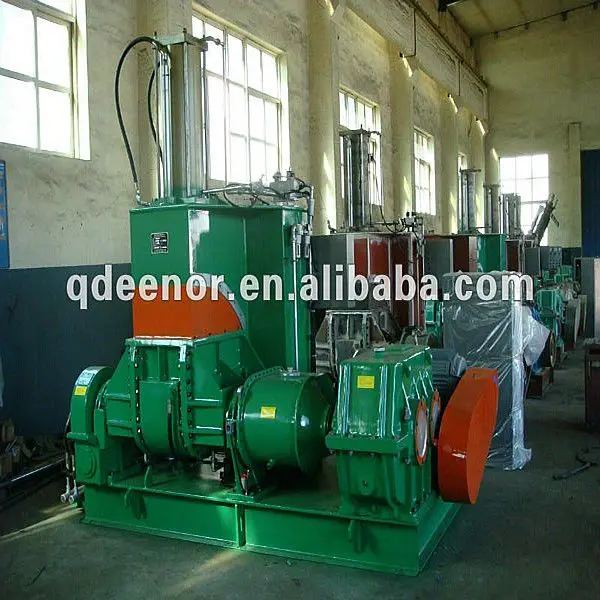

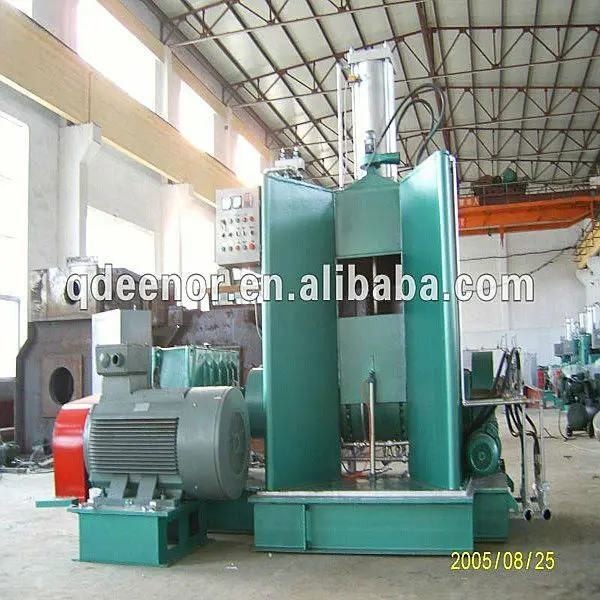

Pictures of rubber kneader machine:



Certification:

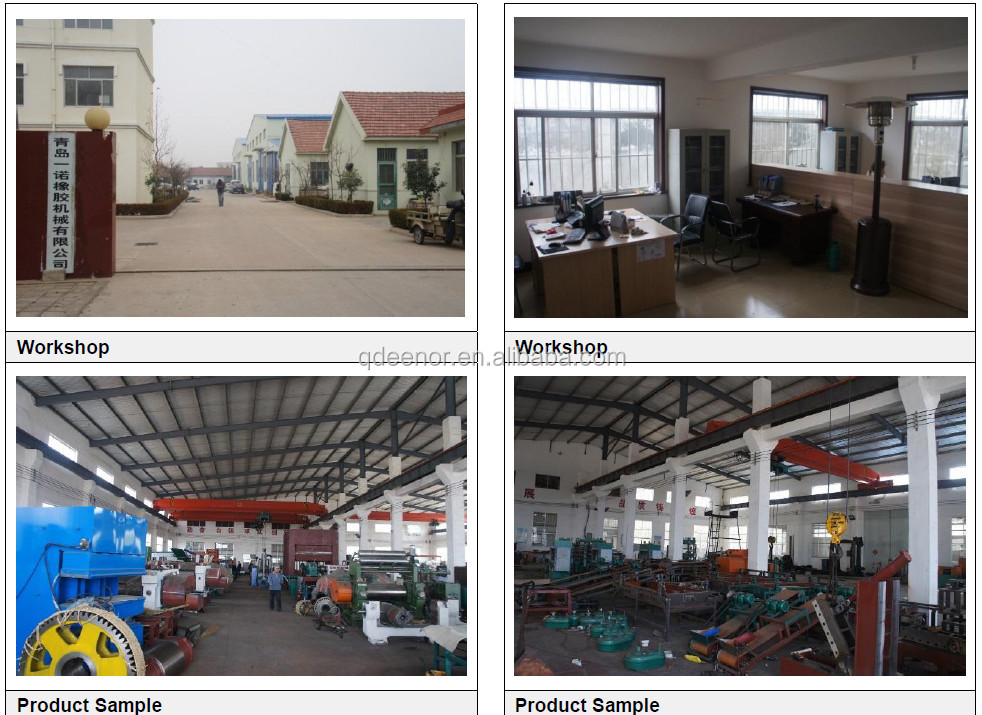

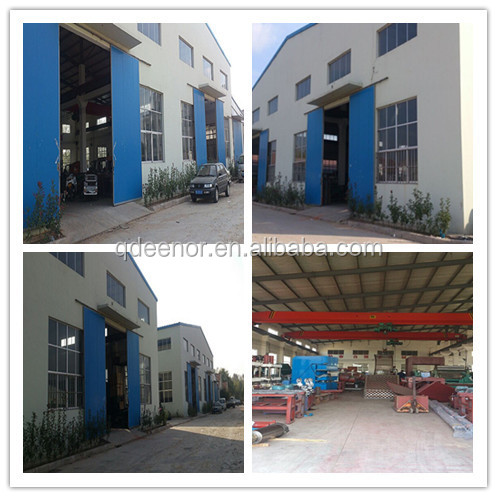

Our factory:
