630window

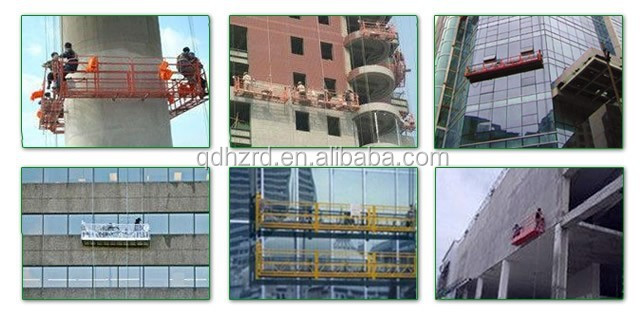

Platform is an alternative to traditional scaffold , reduce labor intensity and improve work efficiency, and the new high operating equipment can be reused. Currently , the use of the gondola building has become a trend , has been widely recognized in the construction of high-rise multi-storey high building facades , and curtain wall installation , construction and maintenance of clean exterior insulation and other high-altitude operations.
At the same time can be used for large tanks , bridges and dams and other engineering operations. The use of this product , you can avoid scaffolding . So that greatly reduce the cost of construction , construction costs only 28 % of the traditional scaffolding , and a substantial increase in work efficiency. Suspended Platform flexible operation , the shift is easy, convenient and practical, safe and reliable.
Technical parameters
Name | Technical parameter | ||
Model | ZLP800 | ZLP630 | |
Rated load | 800Kg | 630Kg | |
Lifting speed | 8-10m/min | 8-10m/min | |

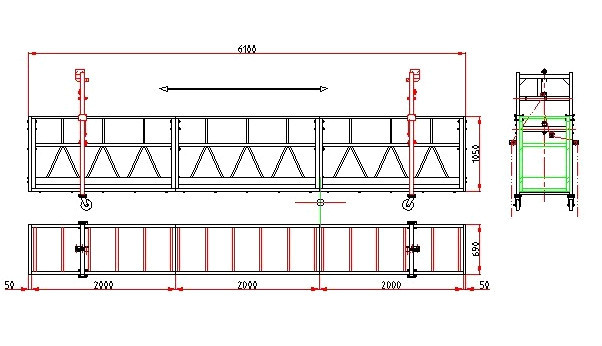

Platform Dimension L×W×H(mm) | 7500×720×1300 | 6000×720×1300 | |
Lifting Height | 100 m | 100 m | |
Cable | 100 m | 100 m | |
Steel rope (diameter) | 9.1mm | 8.3mm | |
Hoist | Power | 1.8KW*2 | 1.5KW*2 |
Voltage | 380V/50HZ | 380V/50HZ | |
Safety lock | Permission force of impact | 30KN | 30KN |
Locking Cable Angle | 3°~8° | 3°~8° | |
Suspension mechanism | Front beam overhang | 1.3~.1.5m | 1.3~.1.5m |
Support adjustable height | 1.44~2.14m | 1.44~2.14m | |
Counterweight | 1000KG | 1000KG | |
20’ft container | 8 sets | 9 sets | |
Power driven hanging basket

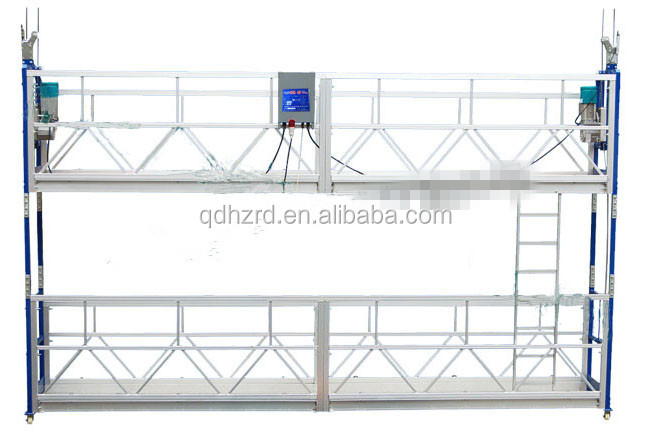

double hanging basket

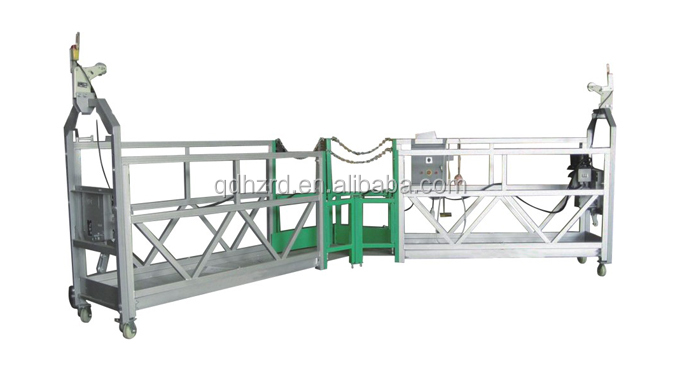

90 degree

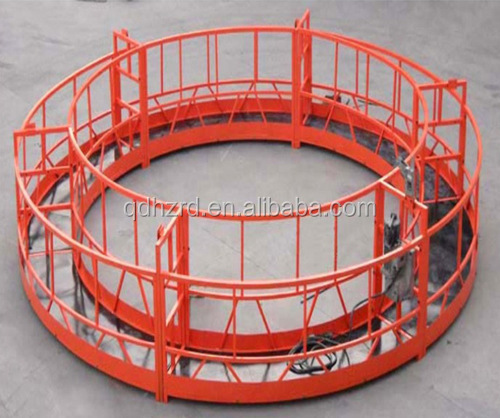

Round shape hanging basket

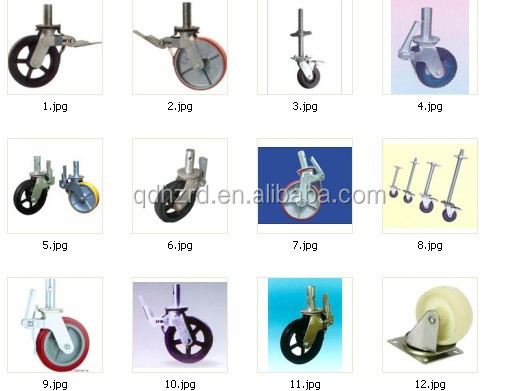

wheels
other products:
our company
packing
main market
What should you do when working on a suspended platform ?
- Ensure that platform is installed and maintained according to job requirements, safety regulations, standards and the manufacturer's specifications.
- Inspect all equipment before erecting and before each shift.
- Use a separate safety harness attached to an independent life line for each worker. Maintain lanyard attachment at highest point possible.
- Ensure that suspended platform roof beams and attachments are secure.
- Ensure that the roof or parapet wall is structurally sound to support either outriggers or cornice hooks.
- Check for kinked or damaged ropes.
- Secure all ropes at anchor ends.
- Ensure that all safety equipment, stops, override switches and brakes function properly.
- Prevent contact between welding or grinding equipment and wire safety or suspension ropes.
- Secure hand tools to the platform.
- Ensure that power source is secured and properly grounded.
- Secure platform when not in use.
- Ensure that guardrails and toe boards are in place.
- Extend suspension ropes completely to the ground or terminate with wire rope clips to prevent the stage from running off the end of the ropes.
- Test by raising the fully loaded platform a few feet off the ground before going aloft.
What should you not do ?
- Do not exceed platform load capacity.
- Do not enter or leave the platform other than at ground level or at other safe access points.
- Do not allow electric cables or connections to lie in gutters or other areas where water can collect.
- Do not work near exposed electrical circuits or equipment.
- Do not join platforms unless they are designed for this purpose.
- Do not use damaged or defective equipment.
- Do not alter, substitute or remove components of platform.
- Do not use life line for raising or lowering tools or materials.
- Do not move work platform unless all workers on it are protected by individual safety belts and lines.
FAQ
1.Q:Are you a factory or trading company?
A:We are factory,passed CE,BV certification.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
Why choose us?
We are ready to give them a turnkey solution, by designing the line according to their space, designing all
electrical Installation, water installation, civil foundation, training their people and proving that they will
get the targets for production according to the design.
The cost of the machinery they are paying is one off but the correct production design and machine
configuration in order to get the production targets is the most important point. Even if somebody got the
cheapest machine quotation, at the end of the day, what is count are the production quantity, quality and the
durability .so to cover the investment in the correct time.
If you are interested in our machine,or have any doubts,welcome to contact us~~
