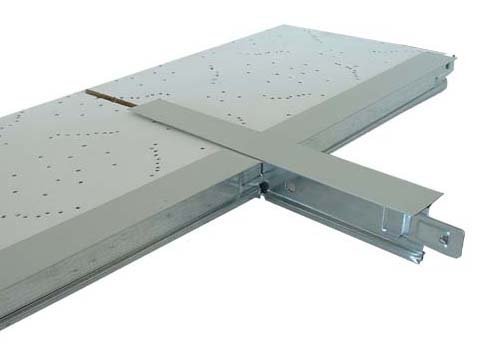

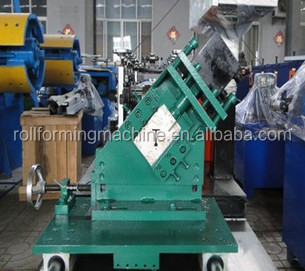

Suspended ceiling framing t grid roll forming machine/ T bar suspended ceiling grid making machine

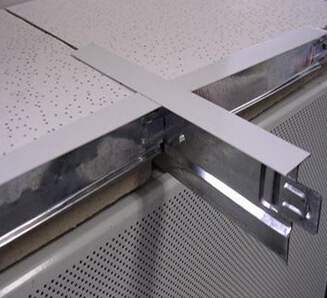

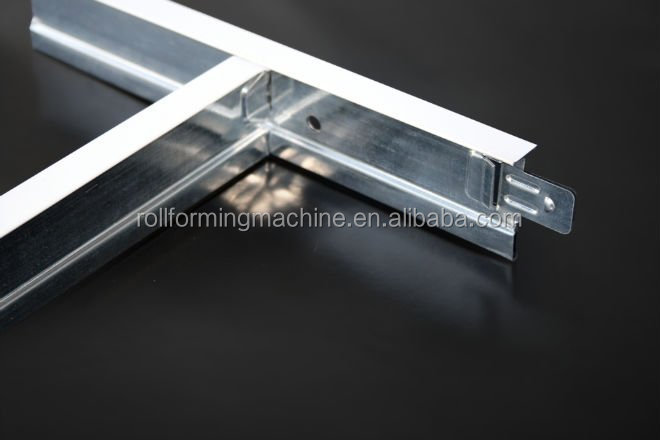

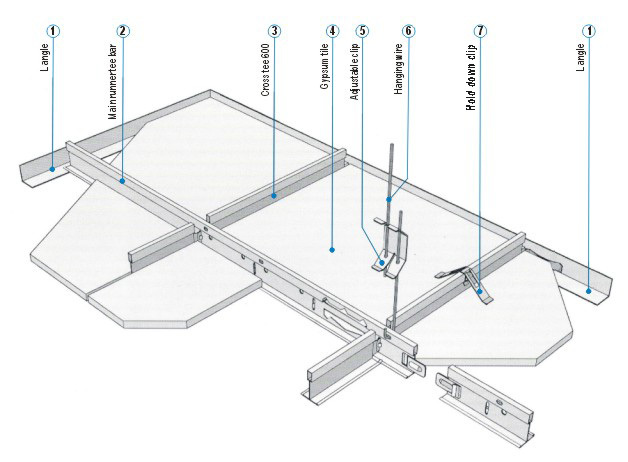

 1.Advantageceiling T-grids/T-bar



1)Good and Stable quality
2) Strong bearing capacity
3)Non-deforming, fadeless
4)packing in carton

5)easily to install

1.Paintbrush
2.Durable and handsome
3.Moisture-resistant
4.Corrosion protection
Hot Dipped Galvanized Steel and Aluminum  Alloy

Elegant

Rust proof

Fade proof

Acid & alkali resistant

Convenient for installation

Different dimensions can be made as required.

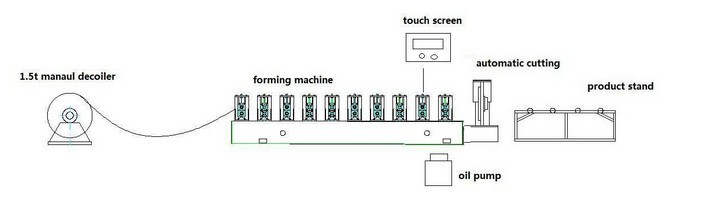

2.Process Flow

Decoiling-feeding-forming-straightening-punching-cutting-production



3.Detailed information of machine

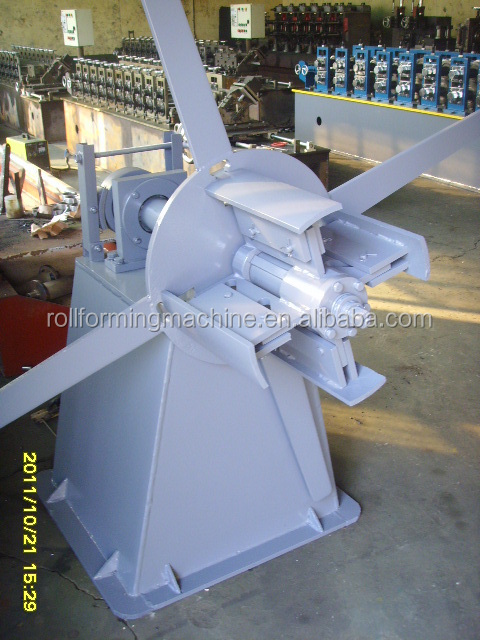

1)Decoiler

  Coil inner diameter:400-470mm

  Coil outer diameter:2000mm

  Coil max width:600mm

  Max carrying capacity:1500kg

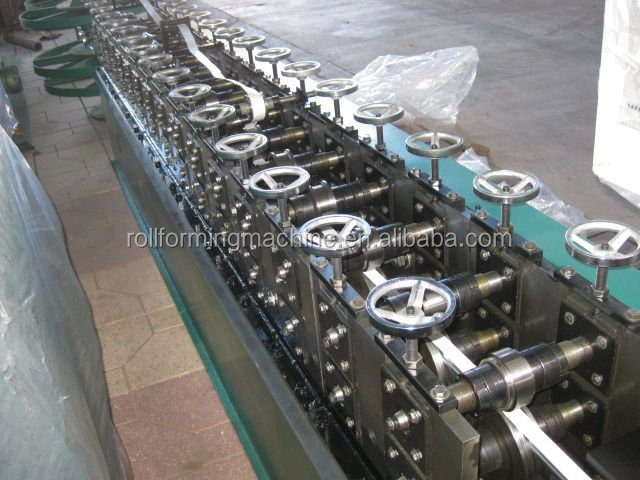

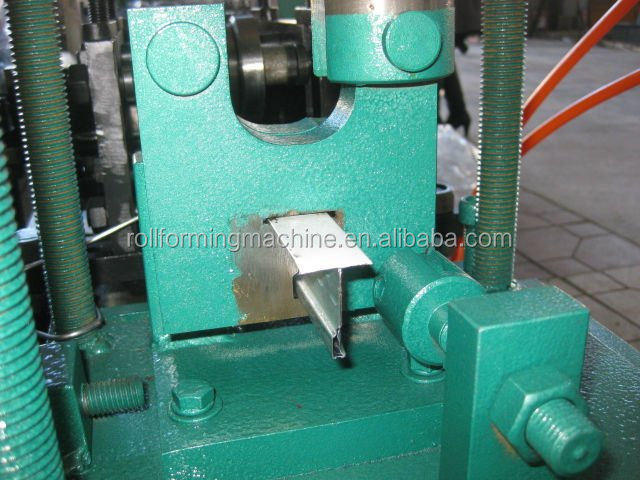

2)Forming Machine

1.Shaft material :	45#steel
2.roll stations:	12 main forming steps
3.  Rollers material:	bearing steel(GCR15)
4. forming speed:	12m/min(incluing punching)  25m/min(without punching)
5.Driving of machine	gear wheel
6.Main power of motor:	7.5kw
7.Measurement of machine:	5.5*1.3*1.4m
8.Voltage:	380v/50hw,3phases or as your request.



3)Cutting blade:

1. material of blade:Cr12 steel with quenched treated 60-62


2. cutting after forming,cutting the sheet after roll forming to the required length


3. cutting motion:the main machine automatically stops and the cutting will take       place.After the cutting,the main machine will automatically start.


4. tolerance of length: within ±1.5mm



4)Control system

1. displayer:text screen


2. PLC: to control length and quantity(Panasonic from China)


3. coder:ENC-1-1-1T-24


4. automatic length and quantity measurement


5. control voltage:24v


6. unit of length:in millimeter(mm)


7. manual and automatic

5)Hydraulic system

1. advanced hydraulic system from Taiwan


2. power:3kw

6)Product table



1. one piece


2. length:3 m
